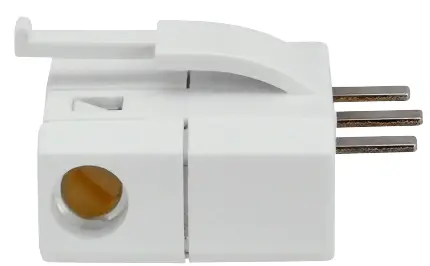

anslut 007249 Lamp Plug DCL
SAFETY INSTRUCTIONS
- Do not connect power strips to each other.
- Do not cover the power strip.
ELECTRICAL SAFETY
New installations and extensions to existing systems should always be carried out by an authorised electrician. If you have the necessary experience and knowledge (otherwise contact an electrician), you can replace power switches and wall sockets, fit plugs, extension cords and light sockets. Incorrect installation can result in fatal injury and the risk of fire.
WARNING!
The product is only intended for permanent installation.
SYMBOLS
- (I Read the instructions.
- Approved in accordance with the relevant directives.
- Recycle discarded product as electrical waste.
TECHNICAL DATA
- Rated voltage
230 V ~ 50 Hz - Current
6A
ASSEMBLY
CONNECTION OF SWITCH

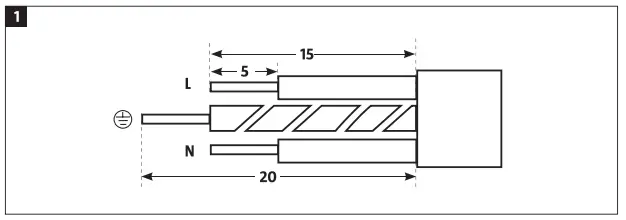

- Prepare the wires as shown.

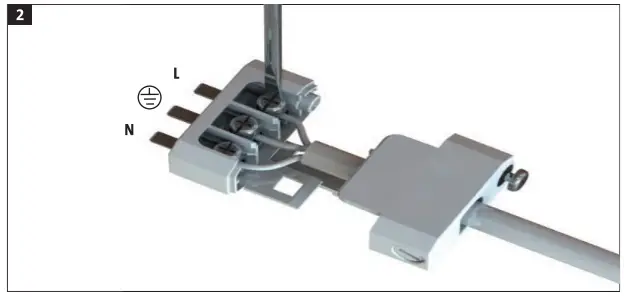

FIG. 1 - Connect the wires.
FIG. 2 - Put on the casing and tighten the screw.
- Tighten the cable relief to specified torque.
FIG. 3
