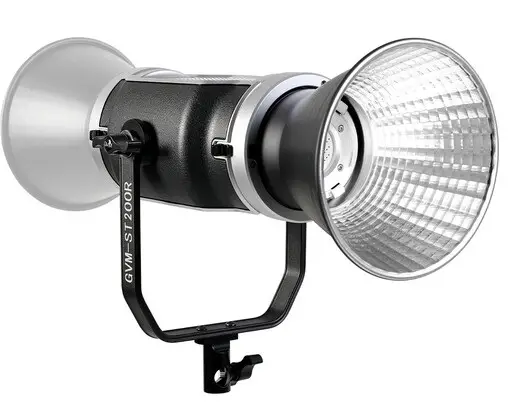

GVM ST200R DMX Channel List
Instructions
CCT MODE | |||
8 bit | |||
| Channel | Value | Function | Remark |
| Start Channel | 0-255 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+1 | 0-255 | CCT(2700K-7500K) | Color temperature |
| Start Channel+2 | 0-255 | Reserved | |
| Start Channel+3 | 0-255 | Reserved | |
| Start Channel+4 | 0-35 | CCT | Light Mode |
| 36-71 | HSI | ||
| 72-107 | GEL | ||
| 108-143 | RGB | ||
| 144-179 | SOURCEMATCHING | ||
| 180-215 | WHITE EFFECTS | ||
| 216-255 | COLOR EFFECTS | ||
| Start Channel+5 | 0-85 | Auto | Fan Mode |
| 86-172 | Quiet | ||
| 173-255 | High | ||
CCT MODE | ||||
16 bit | ||||
| Channel | Value | Function | Remark | |
| High Byte | Low Byte | |||
| Start Channel | Start Channel+1 | 0-65535 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+2 | Start Channel+3 | 0-65535 | CCT(2700K-7500K) | Color temperature |
| Start Channel+4 | 0-255 | Reserved | ||
| Start Channel+5 | 0-255 | Reserved | ||
| Start Channel+6 | 0-35 | CCT | Light Mode | |
| 36-71 | HSI | |||
| 72-107 | GEL | |||
| 108-143 | RGB | |||
| 144-179 | SOURCEMATCHING | |||
| 180-215 | WHITE EFFECTS | |||
| 216-255 | COLOR EFFECTS | |||
| Start Channel+7 | 0-85 | Auto | Fan Mode | |
| 86-172 | Quiet | |||
| 173-255 | High | |||
HSI MODE | |||
8 bit | |||
| Channel | Value | Function | Remark |
| Start Channel | 0-255 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+1 | 0-255 | HUE(0-360°) | Hue |
| Start Channel+2 | 0-255 | Saturation(0%-100%) | Saturation |
| Start Channel+3 | 0-255 | Reserved | |
| Start Channel+4 | 0-35 | CCT | Light Mode |
| 36-71 | HSI | ||
| 72-107 | GEL | ||
| 108-143 | RGB | ||
| 144-179 | SOURCEMATCHING | ||
| 180-215 | WHITE EFFECTS | ||
| 216-255 | COLOR EFFECTS | ||
| Start Channel+5 | 0-85 | Auto | Fan Mode |
| 86-172 | Quiet | ||
| 173-255 | High | ||
HSI MODE | ||||
16 bit | ||||
| Channel | Value | Function | Remark | |
| High Byte | Low Byte | |||
| Start Channel | Start Channel+1 | 0-65535 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+2 | Start Channel+3 | 0-65535 | HUE(0-360°) | Hue |
| Start Channel+4 | Start Channel+5 | 0-65535 | Saturation(0%-100%) | Saturation |
| Start Channel+6 | 0-35 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS | Light Mode | |
| 36-71 | ||||
| 72-107 | ||||
| 108-143 | ||||
| 144-179 | ||||
| 180-215 | ||||
| 216-255 | ||||
| Start Channel+7 | 0-85 | Auto | Fan Mode | |
| 86-172 | Quiet | |||
| 173-255 | High | |||
GEL MODE | |||
8 bit | |||
| Channel | Value | Function | Remark |
| Start Channel | 0-255 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+1 | 0-126 127-255 | LEE ROSCO | Color paper type |
| Start Channel+2 | 0-7 | “L002 Rose Pink”,// | LEE Color paper number |
| 8-15 | “L007 Pale Yellow”,// | ||
| 16-23 | “L019 Fire”,// | ||
| 24-31 | “L021 Gold Amber”,// | ||
| 32-39 | “L025 Sunset Red”,// | ||
| 40-47 | “L026 Bright Red”,// | ||
| 48-55 | “L036 Medium pink”,// | ||
| 56-63 | “L046 Dark Magenta”,// | ||
| 64-71 | “L058 Lavender”,// | ||
| 72-79 | “L079 Just Blue”,// | ||
| 80-87 | “L089 Moss Green”,// | ||
| 88-95 | “L102 Light Amber”,// | ||
| 96-103 | “L113 Magenta”,// | ||
| 104-111 | “L120 Deep Blue”,// | ||
| 112-119 120-127 | “L124 Dark Green”,// “L128 Bright Pink”,// | ||
| 128-135 136-143 | “L131 Marine Blue”,//131 “L140 Summer Blue”,// | ||
| 144-151 | “L143 Pale Navy Blue”,// | ||
| 152-159 | “L201 Full CTB”,// | ||
| 160-167 | “L202 1/2 CTB”,// | ||
| 168-175 | “L203 1/4 CTB”,// | ||
| 176-183 | “L204 Full CTO”,// | ||
| 184-191 | “L205 1/2 CTO”,// | ||
| 192-199 | “L206 1/4 CTO”,// | ||
| 200-207 | “L701 Provence”,// | ||
| 208-215 | “L723 Virgin Blue”,// | ||
| 216-223 | “L738 JAS Green”,// | ||
| 224-231 | “L748 Seedy Pink”,// | ||
| 232-255 | “L795 Magical Magenta”,// | ||
| 0-7 | “R23 Orange”, | ROSCO Color paper number | |
| 8-15 | “R26 Light Red”, | ||
| 16-23 | “R41 Salmon”, | ||
| 24-31 | “R42 Deep Salmon”,// | ||
| 32-39 40-47 48-55 | “R44 Middle Rose”,// “R47 Light Rose Purple”,// “R65 Daylight Blue”,// | ||
| 56-63 | “R83 Medium Blue”,// | ||
| 64-71 | “R89 Moss Green”,// | ||
| 72-79 | “R92 Turquoise”,// | ||
| 80-87 | “R99 Chocolate”,// | ||
| 88-95 | “R310 Daffodil”,// | ||
| 96-103 | “R318 Mayan Sun”,// | ||
| 104-111 | “R325 Henna Sky”,// | ||
| 112-119 | “R333 Blush Pink”,// | ||
| 120-127 | “R364 Blue Bell”,// | ||
| 128-135 | “R375 Cerulean Blue”,// | ||
| 136-143 | “R378 Alice Blue”,// | ||
| Start Channel+2 | 144-151 | “R2001 VS Red”,// | ROSCO Color paper number |
| 152-159 | “R2002 VS Orange”,// | ||
| 160-167 | “R2003 VS Yellow”,// | ||
| 168-175 | “R2004 VS Green”,// | ||
| 176-183 184-191 192-199 200-207 | “R2007 VS Blue”,// “R3220 Double Blue”,// “R4490 90 Green”,// “R4590 90 Yellow”,// | ||
| 208-215 | “R4690 90 Red”,// | ||
| 216-223 | “R4790 90 Magenta”,// | ||
| 224-231 | “R4890 90 Pink”,// | ||
| 232-255 | “R4990 90 Lavender”,// | ||
| Start Channel+3 | Reserved | ||
| Start Channel+4 | 0-35 | CCT | |
| 36-71 | HSI | ||
| 72-107 108-143 144-179 | GEL RGB SOURCEMATCHING | ||
| 180-215 | WHITE EFFECTS | ||
| 216-255 | COLOR EFFECTS | ||
| Start Channel+5 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode |
GEL MODE | ||||
16 bit | ||||
| Channel | Value | Function | Remark | |
| High Byte | Low Byte | |||
| Start Channel | Start Channel+1 | 0-255 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+2 | 0-126 127-255 | LEE ROSCO | Color paper type | |
| Start Channel+3 | 0-7 | “L002 Rose Pink”,// | LEE Color paper number | |
| 8-15 | “L007 Pale Yellow”,// | |||
| 16-23 | “L019 Fire”,// | |||
| 24-31 | “L021 Gold Amber”,// | |||
| 32-39 | “L025 Sunset Red”,// | |||
| 40-47 | “L026 Bright Red”,// | |||
| 48-55 | “L036 Medium pink”,// | |||
| 56-63 | “L046 Dark Magenta”,// | |||
| 64-71 | “L058 Lavender”,// | |||
| 72-79 | “L079 Just Blue”,// | |||
| 80-87 | “L089 Moss Green”,// | |||
| 88-95 | “L102 Light Amber”,// | |||
| 96-103 | “L113 Magenta”,// | |||
| 104-111 | “L120 Deep Blue”,// | |||
| 112-119 120-127 | “L124 Dark Green”,// “L128 Bright Pink”,// | |||
| 128-135 136-143 | “L131 Marine Blue”,//131 “L140 Summer Blue”,// | |||
| 144-151 | “L143 Pale Navy Blue”,// | |||
| 152-159 | “L201 Full CTB”,// | |||
| 160-167 | “L202 1/2 CTB”,// | |||
| 168-175 | “L203 1/4 CTB”,// | |||
| 176-183 | “L204 Full CTO”,// | |||
| 184-191 | “L205 1/2 CTO”,// | |||
| 192-199 | “L206 1/4 CTO”,// | |||
| 200-207 | “L701 Provence”,// | |||
| 208-215 | “L723 Virgin Blue”,// | |||
| 216-223 | “L738 JAS Green”,// | |||
| 224-231 | “L748 Seedy Pink”,// | |||
| 232-255 | “L795 Magical Magenta”,// | |||
| 0-7 | “R23 Orange”, | ROSCO Color paper number | ||
| 8-15 | “R26 Light Red”, | |||
| 16-23 | “R41 Salmon”, | |||
| 24-31 | “R42 Deep Salmon”,// | |||
| 32-39 40-47 48-55 | “R44 Middle Rose”,// “R47 Light Rose Purple”,// “R65 Daylight Blue”,// | |||
| 56-63 | “R83 Medium Blue”,// | |||
| 64-71 | “R89 Moss Green”,// | |||
| 72-79 | “R92 Turquoise”,// | |||
| 80-87 | “R99 Chocolate”,// | |||
| 88-95 | “R310 Daffodil”,// | |||
| 96-103 | “R318 Mayan Sun”,// | |||
| 104-111 | “R325 Henna Sky”,// | |||
| 112-119 | “R333 Blush Pink”,// | |||
| 120-127 | “R364 Blue Bell”,// | |||
| 128-135 | “R375 Cerulean Blue”,// | |||
| 136-143 | “R378 Alice Blue”,// | |||
| Start Channel+3 | 152-159 | “R2002 VS Orange”,// | ROSCO Color paper number | |
| 160-167 | “R2003 VS Yellow”,// | |||
| 168-175 | “R2004 VS Green”,// | |||
| 176-183 184-191 192-199 200-207 | “R2007 VS Blue”,// “R3220 Double Blue”,// “R4490 90 Green”,// “R4590 90 Yellow”,// | |||
| 208-215 | “R4690 90 Red”,// | |||
| 216-223 | “R4790 90 Magenta”,// | |||
| 224-231 | “R4890 90 Pink”,// | |||
| 232-255 | “R4990 90 Lavender”,// | |||
| Start Channel+4 | Start Channel+5 | Reserved | ||
| Start Channel+6 | 0-35 | CCT | ||
| 36-71 | HSI | |||
| 72-107 108-143 144-179 | GEL RGB SOURCEMATCHING | |||
| 180-215 | WHITE EFFECTS | |||
| 216-255 | COLOR EFFECTS | |||
| Start Channel+7 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode | |
RGB MODE | |||
8 bit | |||
| Channel | Value | Function | Remark |
| Start Channel | 0-255 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+1 | 0-255 | Red Intensity | Red Intensity |
| Start Channel+2 | 0-255 | Green Intensity | Green Intensity |
|
Start Channel+3 | 0-255 | Blue Intensity | Blue Intensity |
| Start Channel+4 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS | Light Mode |
| Start Channel+5 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode |
RGB MODE | ||||
16 bit | ||||
| Channel | Value | Function | Remark | |
| High Byte | Low Byte | |||
| Start Channel | Start Channel+1 | 0-65535 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+2 | Start Channel+3 | 0-65535 | Red Intensity | Red Intensity |
| Start Channel+4 | Start Channel+5 | 0-65535 | Green Intensity | Green Intensity |
|
Start Channel+6 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS |
Light Mode | |
| Start Channel+7 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode | |
| Start Channel+8 | Start Channel+9 | 0-65535 | Blue Intensity | Blue Intensity |
Light source matching mode | |||
8 bit | |||
| Channel | Value | Function | Remark |
| Start Channel | 0-255 | Turn Intensity(0%-100%) | Intensity |
|
Start Channel+1 | 0-20 21-40 41-60 61-80 81-100 101-120 121-140 141-160 161-180 181-200 201-220 221-255 | Tungsten, HMI5600, HMI6000, StudioLamps, SodiumLamp, Halogen, ArcLamp, Candle, Sunset/Sunrise, Daylight, OvercastSky, CFL Cool White, |
type of light source |
| Start Channel+2 | 0-255 | Reserved | |
| Start Channel+3 | 0-255 | Reserved | |
|
Start Channel+4 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS |
Light Mode |
| Start Channel+5 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode |
Light source matching mode | ||||
16 bit | ||||
| Channel | Value | Function | Remark | |
| High Byte | Low Byte | |||
| Start Channel | Start Channel+1 | 0-65535 | Turn Intensity(0%-100%) | Intensity |
|
Start Channel+2 | 0-20 21-40 41-60 61-80 81-100 101-120 121-140 141-160 161-180 181-200 201-220 221-255 | Tungsten, HMI5600, HMI6000, StudioLamps, SodiumLamp, Halogen, ArcLamp, Candle, Sunset/Sunrise, Daylight, OvercastSky, CFL Cool White, |
type of light source | |
| Start Channel+3 | Start Channel+4 | 0-65535 | Reserved | |
| Start Channel+5 | 0-255 | Reserved | ||
|
Start Channel+6 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS |
Light Mode | |
| Start Channel+7 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode | |
White light effect mode | |||
8 bit | |||
| Channel | Value | Function | Remark |
| Start Channel | 0-255 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+1 | 0-25 | OFF”, | White light effect type |
| 26-50 | “Lightning”, | ||
| 51-75 | “CCT Loop”, | ||
| 76-100 101-125 126-150 | “Candle”, “Bad Bulb”, “TV”, | ||
| 151-175 | “Paparazzi”, | ||
| 176-200 | “Explosion” | ||
| 201-255 | “Pulsing” | ||
| Start Channel+2 | 0-255 | CCT(2700K-7500K) | Color temperature |
|
Start Channel+3 | 0-25 26-50 51-75 76-100 101-125 126-150 151-175 176-200 201-225 226-255 | Rate1 Rate2 Rate3 Rate4 Rate5 Rate6 Rate7 Rate8 Rate9 Rate10 |
Rate |
|
Start Channel+4 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS |
Light Mode |
| Start Channel+5 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode |
White light effect mode | ||||
16 bit | ||||
| Channel | Value | Function | Remark | |
| High Byte | Low Byte | |||
| Start Channel | Start Channel+1 | 0-65535 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+2 | 0-25 | OFF”, | White light effect type | |
| 26-50 | “Lightning”, | |||
| 51-75 | “CCT Loop”, | |||
| 76-100 101-125 126-150 | “Candle”, “Bad Bulb”, “TV”, | |||
| 151-175 | “Paparazzi”, | |||
| 176-200 | “Explosion” | |||
| 201-255 | “Pulsing” | |||
| Start Channel+3 | Start Channel+4 | 0-65535 | CCT(2700K 7500K) | Color temperature |
|
Start Channel+5 | 0-25 26-50 51-75 76-100 101-125 126-150 151-175 176-200 201-225 226-255 | Rate1 Rate2 Rate3 Rate4 Rate5 Rate6 Rate7 Rate8 Rate9 Rate10 |
Rate | |
|
Start Channel+6 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS |
Light Mode | |
| Start Channel+7 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode | |
Color light effect mode | |||
8 bit | |||
| Channel | Value | Function | Remark |
| Start Channel | 0-255 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+1 | 0-50 51-100 101-150 151-200 201-255 | “OFF”, “Disco”, “Cop Car”, “Party”, “Hue Loop”, | Color light effect type |
| Start Channel+2 | 0-255 | Reserved | |
| Start Channel+3 | 0-255 | Saturation(0% 100%) | Saturation |
|
Start Channel+4 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS |
Light Mode |
| Start Channel+5 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode |
|
Start Channel+6 | 0-25 26-50 51-75 76-100 101-125 126-150 151-175 176-200 201-225 226-255 | Rate1 Rate2 Rate3 Rate4 Rate5 Rate6 Rate7 Rate8 Rate9 Rate10 |
Rate |
Color light effect mode | ||||
16 bit | ||||
| Channel | Value | Function | Remark | |
| High Byte | Low Byte | |||
| Start Channel | Start Channel+1 | 0-65535 | Turn Intensity(0%-100%) | Intensity |
| Start Channel+2 | 0-50 51-100 101-150 151-200 201-255 | “OFF”, “Disco”, “Cop Car”, “Party”, “Hue Loop”, | Color light effect type | |
| Start Channel+3 | Start Channel+4 | 0-65535 | Saturation(0%-100%) | Saturation |
| Start Channel+5 | 0-255 | Reserved | ||
|
Start Channel+6 | 0-35 36-71 72-107 108-143 144-179 180-215 216-255 | CCT HSI GEL RGB SOURCEMATCHING WHITE EFFECTS COLOR EFFECTS |
Light Mode | |
| Start Channel+7 | 0-85 86-172 173-255 | Auto Quiet High | Fan Mode | |
|
Start Channel+8 | 0-25 26-50 51-75 76-100 101-125 126-150 151-175 176-200 201-225 226-255 | Rate1 Rate2 Rate3 Rate4 Rate5 Rate6 Rate7 Rate8 Rate9 Rate10 |
Rate | |
