INSTALLATION FOR HIGH OUTPUT IN-WALL BACK BOX & DYNAMO IW-O SUBWOOFER

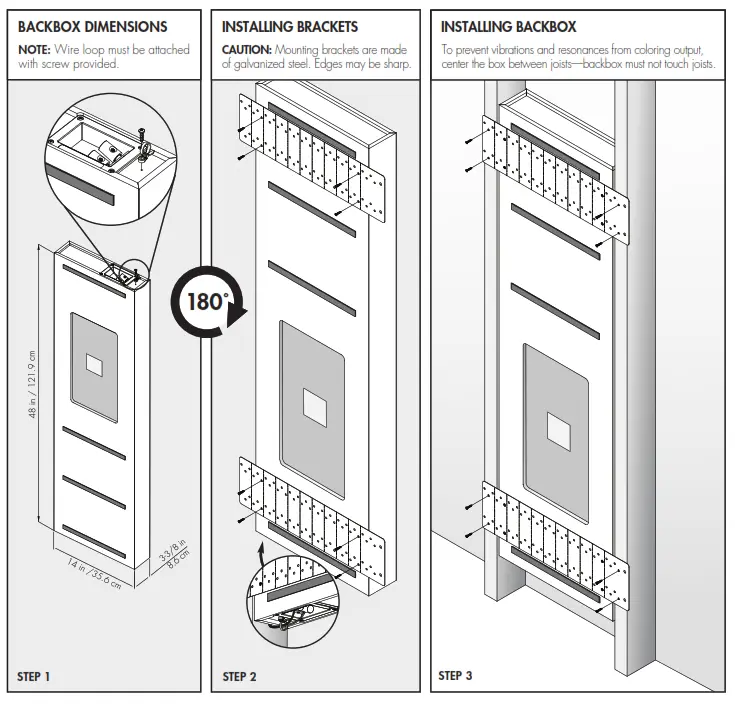

PARTS INCLUDED:
- 1 – Backbox
- 2 – Pre-Construction Brackets
- 1 – Wire Loop with Screw
REQUIRED, NOT INCLUDED:
- 16 – #8 Wood Screws
(8 to attach brackets to box; 8 to attach box to wall)
NOTE: DO NOT PUNCTURE OR REMOVE PROTECTIVE PLASTIC OVER THE CUTOUT UNTIL READY TO INSTALL THE SUBWOOFER.
MARTINLOGAN DOES NOT SUPPLY SCREWS FOR MOUNTING THE BACKBOX AND SUBWOOFER TO THE WALL. CHOOSE SCREWS APPROPRIATE FOR WALL COMPOSITION AND WEIGHT OF BACKBOX WITH SUBWOOFER.
DYNAMO IW-O IN-WALL SUBWOOFER: 14 lb/6.3 kg
DYNAMO IW-O BACKBOX: 17.6 lb/8 kg | TOTAL WEIGHT: 31.6 lb/14.3 kg
IF YOU ARE NOT COMFORTABLE PERFORMING THE FOLLOWING PROCEDURE, CONTACT A PROFESSIONAL INSTALLER.

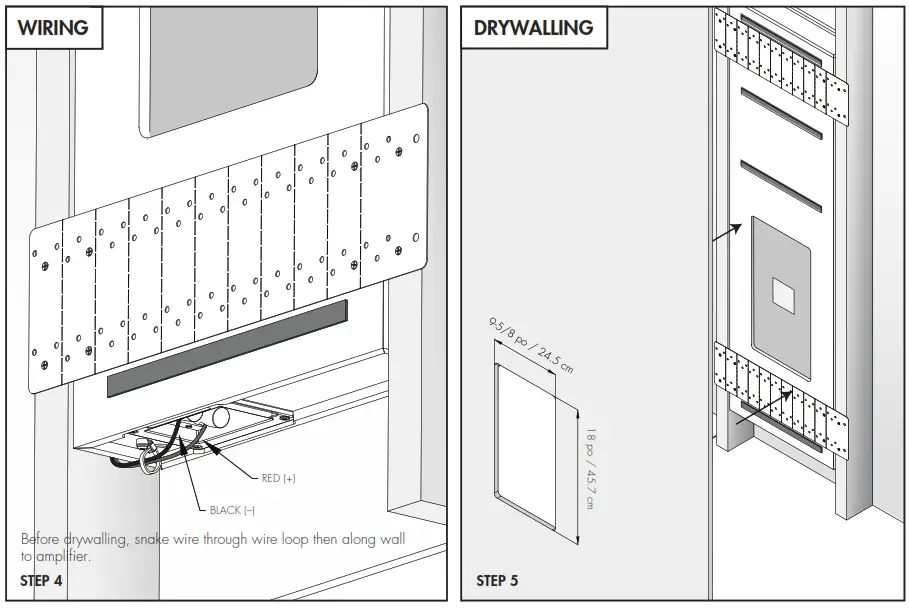

IMPORTANT NOTE: The required amount of damping material is included and correctly positioned in the backbox. DO NOT remove, compact or add additional damping material. DO NOT add damping material to the wall directly behind the backbox.
 |  |

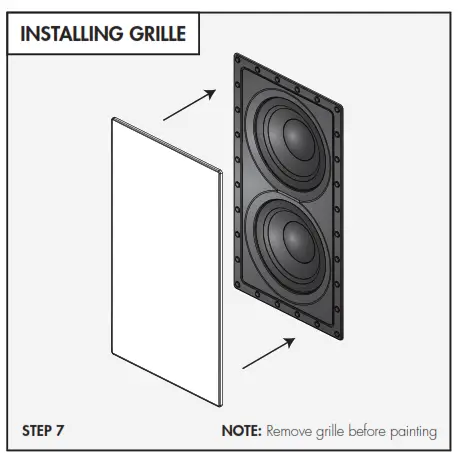

INSTALLING SUBWOOFER
Holding the subwoofer’s front lip with your thumbs and index fingers, push the brackets can fit through the hole with an “up-and-in” motion. Release the screws and gently push the subwoofer into the backbox.
