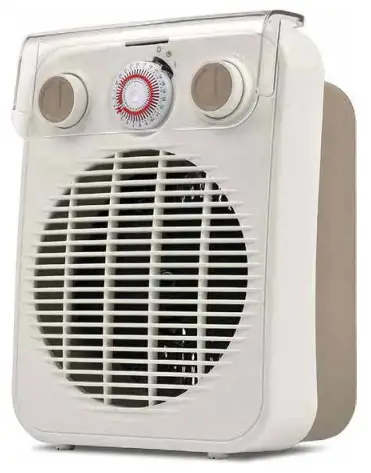

ARDES 328136250 Floor Air Heater 2000W
Product Information
The CHRONOS AR4F10TI is a fan heater designed for heating purposes. It has two power settings: eco and comfort. It also features summer ventilation, a thermostat for room temperature regulation, a 24-hour timer, and overheating protection. The product has a protection level of IP21 and an operating indicator light.
Product Usage Instructions
- Choose the desired power setting by selecting either eco or comfort.
- If you want to use the fan for summer ventilation, set the mode accordingly.
- Adjust the thermostat to your preferred temperature level.
- If you wish to program the heater to turn on or off at specific times, use the 24-hour timer function.
- Ensure that the product is placed in an area protected from liquid ingress, as it has an IP21 protection rating.
- Monitor the operating indicator light to know when the fan heater is functioning.
- The product is equipped with overheating protection, which automatically shuts off the heater if it reaches unsafe temperatures.
Fanheater. 2 power settings: eco & comfort. Summer ventilation. Thermostat for room temperature regulation. 24h timer. Protection level IP21. Pilot lamp Overheating protection.

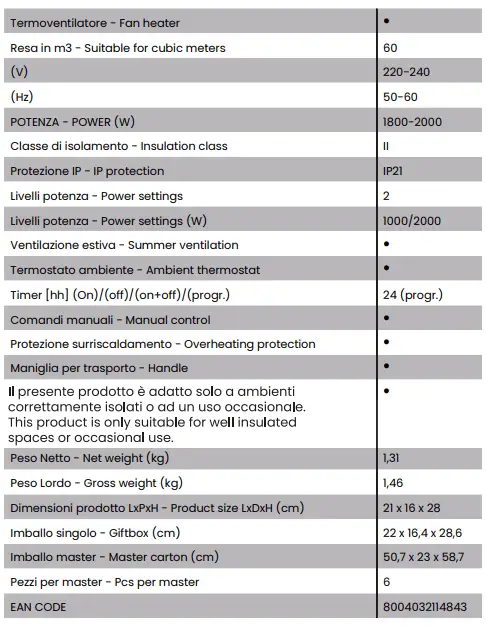

SPECIFICATION
Information requirements for electric local space heaters – REGULATION (EU) 2015/1188
| Model identifier(s): | AR4FlOTl | ||||
| Item | Symbol | Value | Unit | Item | Unit |
| Heat output | Type of heat input, for electric storage local space heaters only (select one) | ||||
| Nominal heat output | Pnom | 1,8-2,0 | kW | manual heat charge control, with integrated thermostat | N.A |
| Minimum heat output (indicative) | Pmin | 0,9 | kW | manual heat charge control with room and/or outdoor temperature feedback | N.A |
| Maximum continuous heat output | Pmax,c | 2,0 | kW | electronic heat charge control with room and/or outdoor temperature feedback | N.A |
| Auxiliary electricity consumption | fan assisted heat output | N.A | |||
| At nominal heat output | elmax | N.A | kW | Type of heat output/room temperature control (select one) | |
| At minimum heat output | elmin | N.A | kW | single stage heat output and no room temperature control | no |
| In standby mode | elSB | 0,0009 | kW | Two or more manual stages, no room temperature control | no |
| with mechanic thermostat room temperature control | yes | ||||
| with electronic room temperature control | no | ||||
| electronic room temperature control plus day timer | no | ||||
| electronic room temperature control plus week timer | no | ||||
| Other control options (multiple selections possible) | |||||
| room temperature control, with presence detection | no | ||||
| room temperature control, with open window detection | no | ||||
| with distance control option | no | ||||
| with adaptive start control | no | ||||
| with working time limitation | yes | ||||
| with black bulb sensor | no | ||||
| Contact details | POLY POOL S.p.A. – via Sottocorna 21/B, 24020 Parre (BG) – Italy | ||||
