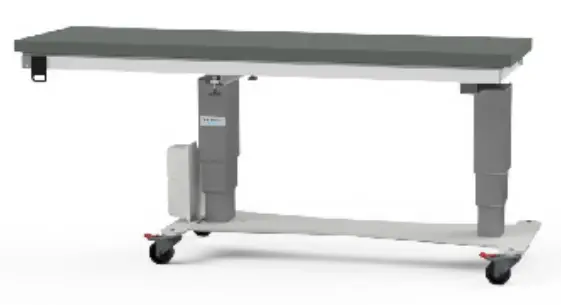

OAKWORKS DTPM300 Imaging Table
The DTPM300 is a 3 motion table at a great price point. The two tower design with manual longitudinal travel of 23” allows imaging in cervical, lumbar and thoracic areas.
Motions
- Motion 1 – Height Range 24” – 40”
- Motion 2 – Trendelenburg Tilt ±14º
- Motion 3 – Longitudinal Travel 23”
Features
- Large 24” wide x 78” long Radiolucent Polycarbonate top
- 2” Comfort Foam® table top pad
- Warranty is 3 years parts and 2 years labor
SPECIFICATIONS
- Cost Effective 3 Motion Design
- Stable 2 Tower Lift Design

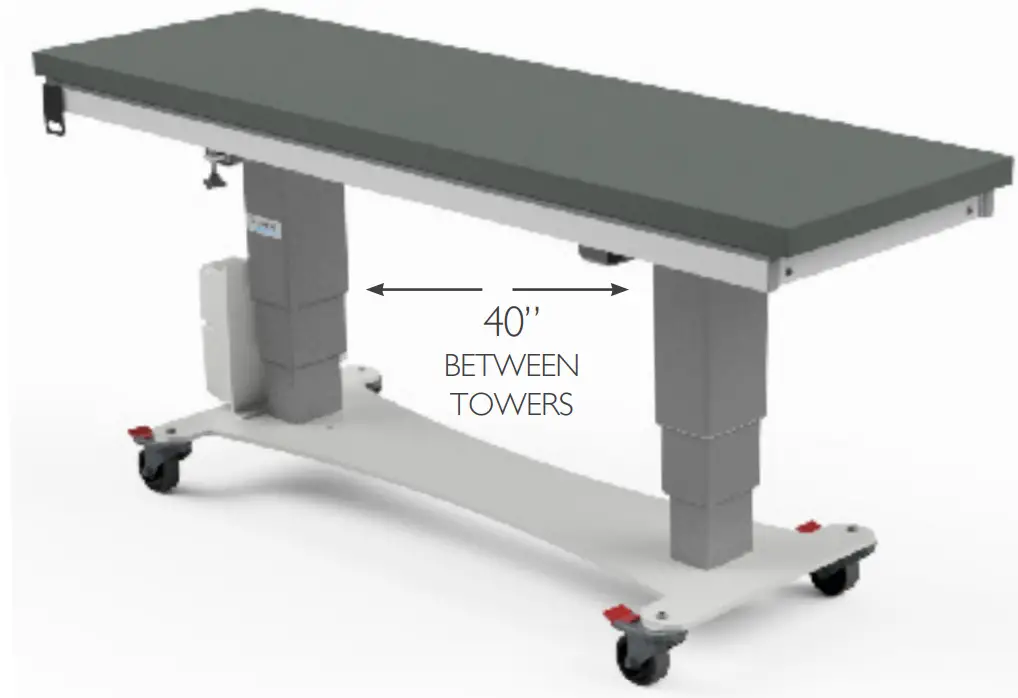

- 40” Open Space Between Towers
- 23” Manual Longitudinal Travel
- Warranty: 3 years parts, 2 years labor
DTPM300 #81806
| INCLUDED FEATURES | |
| Polycarbonate Top with non- scattering aluminum frame | Rectangular 24” (61cm) wide x 78” (198cm) long – imaging area 20” wide x 74” long (50cm x 188cm) |
| Motion 1 | Electric Height Range 24” – 40” (61-101cm) w/o pad |
| Motion 2 | Electric Trendelenburg tilt +14°/-14° |
| Motion 3 | Manual Longitudinal travel 23” (58cm) |
| Controls | Foot control (height) & hand control (height & Trendelenburg) |
| Weight Capacity | 450 lb (205kg) |
| Product Weight | 390 lb (177kg) |
| Included Features | 2” (3cm) Radiolucent Comfort Foam™ table top pad, 4” (10cm) locking casters, patient restraint straps (2) |
| Warranty | 3 years parts, 2 years labor |
| Safety Listings | FDA listed, cETLus listed, CB Certificate |
| OPTIONAL TABLE CONFIGURATIONS | TABLE # | |
| With Fixed T-rail (2, 1 on each side) | 78” long (198cm) | 82013 |
| Non-USA electrical systems | Please inquire | — |
| ACCESSORIES order any time. | # | |
| Carbon Fiber Arm Board (6” wide) | 180º Articulation | 83575 |
| Fluoro Extender | Polycarbonate | 33975 |
| Interventional Supine Pillow System | Contoured pad and support wedge pad | 81821 |
| Spine Positioning System II | 8 piece system | 81819 |
PATIENT RESTRAINT STRAP
The Patient Restraint Strap helps eliminate unwanted patient movement and injury during surgical procedures. The strap is easily adjusted to accommodate a variety of patient sizes.
- Easily adjusted and repositioned with hook & loop fasteners
- Durable radiolucent material
ACCESSORIES

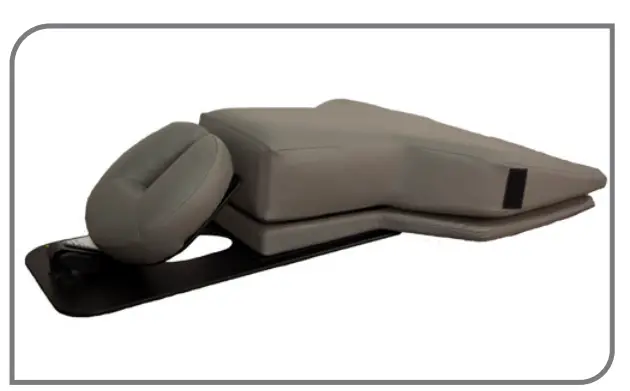

SPINE POSITIONING SYSTEM II
Radiolucency & adjustability for ideal cervical, thoracic & lumbar visualization. Minimize unwanted movement & reduce procedure time.

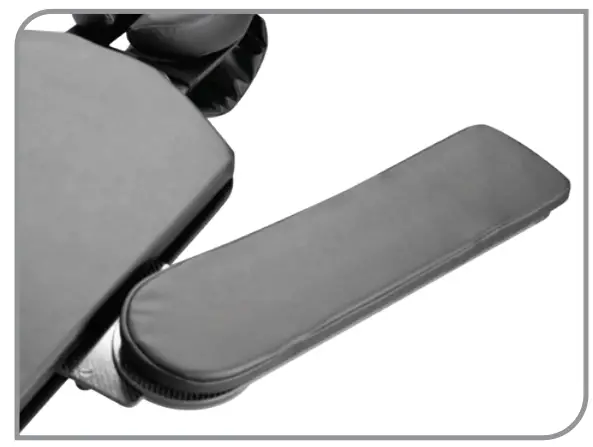

SINGLE CARBON FIBER ARM BOARD
Fully radiolucent with a 180° range of motion, the arm board requires no mounting or attachment hardware and simply slides under the table top pad. Will support arms and feet in a variety of positioning configurations.
FLUORO EXTENDER
Made of radiolucent, polycarbonate material, it’s organic shape is conducive to a variety of table placement applications. 30” long x 23.5” wide x 1/4” thick

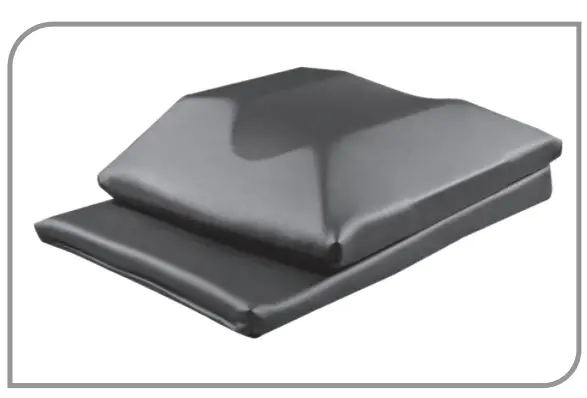

INTERVENTIONAL SUPINE PILLOW SYSTEM
Primarily designed to facilitate cervical transforaminal injections, but useful for other anterolateral procedures such as facet injections, medial branch blocks, stellate ganglion blocks, scalene injections, brachial plexus blocks and discography.
© 2021 Oakworks® , Inc. 923 East Wellspring Rd. New Freedom, PA 17349 USA
