Dometic Tc14 Thermoelectric Cooler Instruction Manual

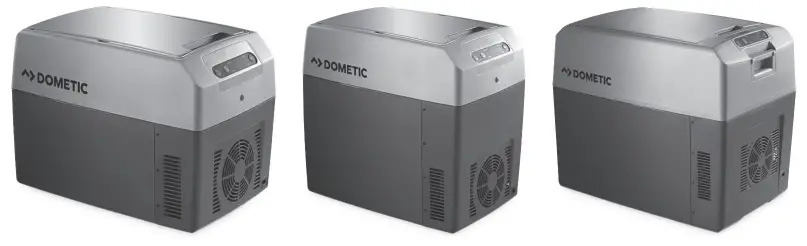

TC14 Thermoelectric Cooler
Instruction ManualTC 14, TC 21, TC 35

TC14 Thermoelectric Cooler

Please read this operating manual carefully before starting the device.
Keep it in a safe place for future reference. If the device is passed on to another person, this operating manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage or incorrect operation.

Explanation of symbols

WARNING!
Safety instruction: Failure to observe this instruction can cause fatal or serious injury.
CAUTION!
Safety instruction: Failure to observe this instruction can lead to injury.
NOTICE!
Failure to observe this instruction can cause material damage and impair the function of the product.
NOTE
Supplementary information for operating the product.

Safety notes

2.1 General safety
WARNING!

• Do not operate the device if it is visibly damaged.
• If this device’s power cable is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person in order to prevent safety hazards.
• This device may only be repaired by qualified personnel. Improper repairs can lead to considerable hazards.
• This device can be used by children aged 8 years or over, as well as by persons with diminished physical, sensory or mental capacities or a lack of experience and/or  knowledge, providing they are supervised or have been taught how to use the device safely and are aware of the resulting risks.
• Cleaning and user maintenance must not be carried out by children without supervision.
• Children must not play with the device.
• Children must be supervised to ensure that they do not play with the device.
• Always keep and use the device out of the reach of children under the age of 8 years.
• Do not store any explosive substances such as spray cans with a flammable propellant in the device.

CAUTION!

• Disconnect the device from the power supply
  – before each cleaning and maintenance
  – after every use
• Food may only be stored in its original packaging or in suitable containers.

NOTICE!

• Check that the voltage specification on the type plate corresponds to that of the energy supply.
• Only connect the device to a DC plug socket in the vehicle (e. g. cigarette lighter) with the DC cable.
• Never pull the plug out of the socket by the cable.
• Disconnect the cooler and other power consuming devices from the battery before connecting the quick charging device.
• Disconnect the cooler or switch it off when you turn off the engine.
  Otherwise you may discharge the battery.
• The cooling device is not suitable for transporting caustic materials or materials containing solvents.
• The cooling device contains inflammable cyclopentane in the insulation. The gases in the insulation material require special disposal procedures. Deliver the device at the end of its life-cycle to an appropriate recycling.

Operating the device safely
CAUTION!

• Before starting the device, ensure that the power supply line and the plug are dry.
  NOTICE!
• Do not use electrical devices inside the cooler unless they are recommended by the manufacturer for the purpose.
• Do not place the device near naked flames or other heat sources (heaters, direct sunlight, gas ovens etc.).
• Danger of overheating!
  Ensure at all times that there is sufficient ventilation so that the heat that arises during operation does not build up. Make sure that the device is sufficiently far away from  walls and other objects so that the air can circulate.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluid.
• Never immerse the device in water.
• Protect the device and the cable against heat and moisture.

Scope of delivery

• Refrigerator
• Connection cable for 12/24 Vg
• Instruction manual
  Check before starting up the device that all parts are available belonging to the scope of delivery.

Use as intended

The refrigerator can be used to cool and keep foodstuffs warm. The device can be also used for camping purposes.
If you want to cool medicine, check please if the cooling capacity of the device corresponds to the requirements of the respective pharmaceuticals.
All materials processed in the refrigerator are safe for foodstuffs.

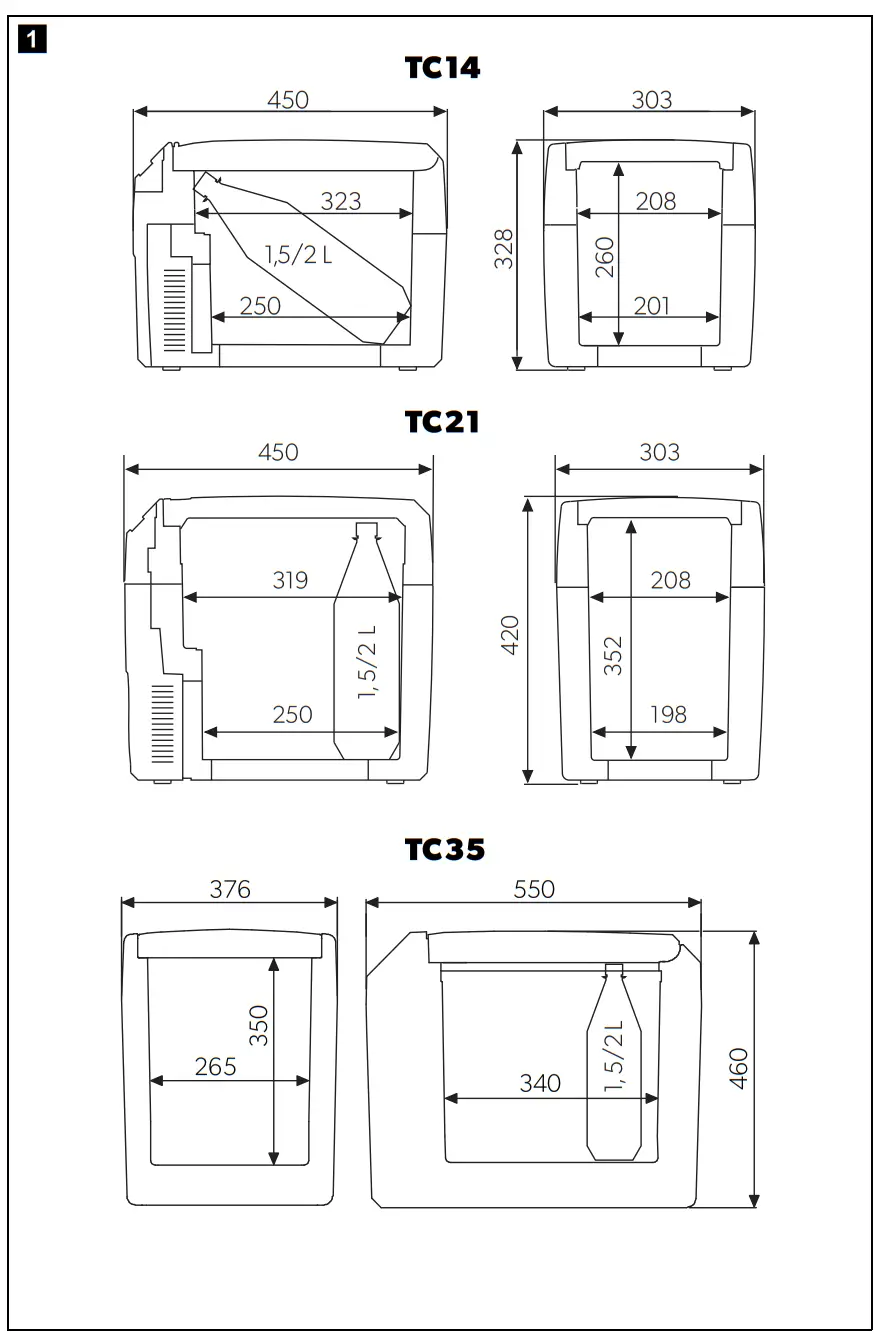

Technical description

The cooling box is suitable for mobile use. It can cool goods up to max. 30 °C (86 °F) under ambient temperature (thermostatic switch-off with approx. 0°C (32°F)) or keep  them cool or warm them up to max. 65 °C (149 °F) or keep them warm.
If the device has reached the set temperature range, then it will automatically switch over to the energy save mode. In this mode only the energy is consumed which is required to reach the temperature inside the box.
The cooling is a wear-free thermo-electric cooler with heat removal through a ventilator.
The cooling box is equipped with an automatic priority circuit. Thus it is ensured that with simultaneous connection to the alternating current circuit and to a 12/24 V- battery, the alternating current circuit will be used.

Operation

NOTE
Before you put the new refrigerator into operation, you should clean it inside and outside with a damp cloth for hygienic reasons (see also chapter “Cleaning and servicing” on page 12).

6.1 Tips to save energy
NOTE
A ventilator in the interior space of the cooling box provides for the circulation of the cold air within the box. Thus a better cooling capacity will be achieved. In order that  the cold air cannot reach the outside when opening the cooling box, this is equipped with a switch which turns off the ventilator as soon as the lid is opened.

• Choose a well ventilated installation location which is protected against direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.

6.2 TC 35: Opening the cooler

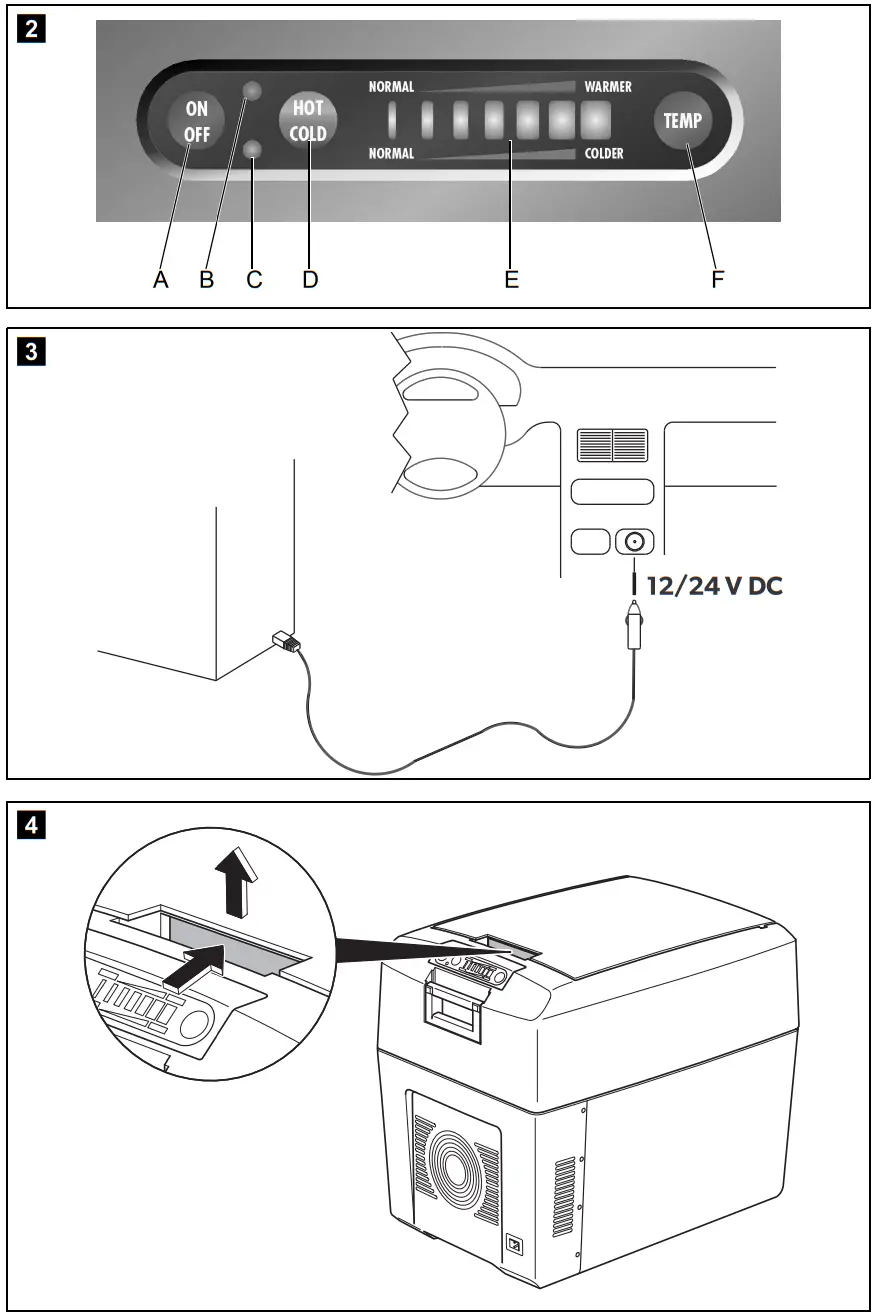

The TC 35 cooler must be unlocked for opening (fig.4, page 3).

6.3 Switch on the cooling box
NOTICE!
Take care that there are only objects or goods in the cooling box which may be cooled or heated to the selected temperature.
➤ Place the cooling box on a stable base.
NOTE
The plug is safe against wrong polarity: You can plug it only in one direction into the (fig.3, page 3) socket.
➤ Connect the cooling box with the supplied connecting cable to the 12/24 V socket in the vehicle (fig.3, page 3).
➤ Press the button “ON/OFF” at the control panel (fig.2 A, page 3) to switch on the cooling box.
✓ The cooling box starts to cool or heat the interior space.

6.4 Switch over between cooling and heating
➤ If you want to switch over between cooling and heating, press the button “HOT/COLD” (fig.2 D, page 3).
NOTE
The control unit of the cooling box has a memory function. It memorises the selected temperature range for each mode (cooling and heating).
Thus the temperature range which is previously selected in the mode is set again with each switching on or switching over.
✓ The red or blue operating display lights up and the device starts to cool/heat.
➤ When you want to finish the cooling or heating process, press the button “ON/OFF” (fig.2 A, page 3).
➤ When you stop using the cooler, disconnect it from the mains.

6.5 Select temperature
The status display of the temperature (fig.2 F, page 3) indicates the selected temperature range. With an increasing number of illuminating LEDs, the intensity of the  temperature range also increases.
NOTE
The following temperature indications are subject to tolerances and are dependent on the measuring position.
Interior space-temperature at approx. 25 °C (77 °F) ambient temperature:

➤ If you want to select the temperature to cool/heat, press the button “Temp” (fig.2 F, page 3), until the requested temperature range is reached.

6.6 Connect to the cigarette lighter
NOTE
When you connect the cooling box to the cigarette lighter of your vehicle (fig.3, page 3), observe that you have to turn on the ignition, if necessary, so that the device is  supplied with current.

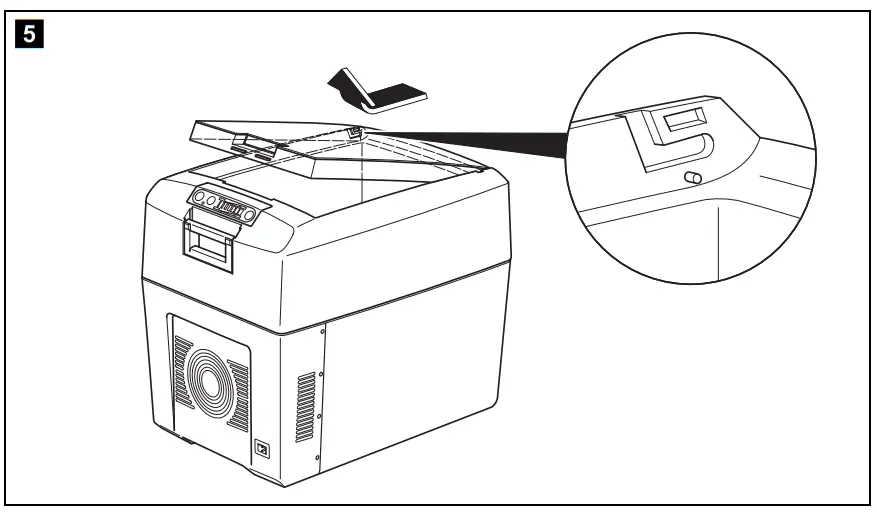

6.7 Removing the lid
You can remove the lid of the cooler (fig.5, page 4):
➤ Open the lid until it is at a ca. 30° angle to the cooler.
➤ Pull the lid forwards and lift it off diagonally.

Cleaning and servicing

WARNING!
Always disconnect the device from the power supply before you clean
and service it.
NOTICE! Risk of damage

• Never clean the cooler under running water or in dish water.
• Do not use abrasive cleaning agents or hard objects during cleaning as these can damage the cooler.
  ➤ Occasionally clean the device interior and exterior with a damp cloth.
  ➤ Make sure that the air inlet and outlet vents on the device are free of any dust and dirt, so that heat can be released and the device is not damaged.

Disposal

➤ Place the packaging material in the appropriate recycling waste bins wherever possible.
If you wish to finally dispose of the product, ask your local recycling centre or specialist dealer for details about how to do this in accordance with the applicable disposal regulations.

Troubleshooting

Technical data

	TC14	TC21	TC35
Ref. no.:	9105330702	9105330703	9105330704
Input voltage:	12/24 V
Power input:	46 W(12 V) 50 W (24 V)
Temperature range:	Cooling: 0 °C to 16 °C (32 °F to 60.8 °F) (up to 30 °C (86 °F) below ambient temperature) Heating: 48 °C to 65 °C (118.4 °F to 149 °F)
Gross capacity:	141	211	351
Usable capacity:	14.	201	331
Climate class:	T
Ambient temperature:	18 °C to 43 °C (+64.4 °F to 109.4 °F)
Noise emission:	41 dB(A)
Weight:	5,5 kg (12.13 Ibs)	7 kg (15.43 Ibs)	10 kg (22.05 Ibs)
