Svenska Up10c 10000mah Dual Output Powerbank User Guide

Svenska Up10c 10000mah Dual Output Powerbank User Guide

SVENSKA-UP10C-10000mAh-Dual-Output-Powerbank-logo

SVENSKA UP10C 10000mAh Dual Output Powerbank

SVENSKA-UP10C-10000mAh-Dual-Output-Powerbank-product

Dual Output power bank 10.000mAh

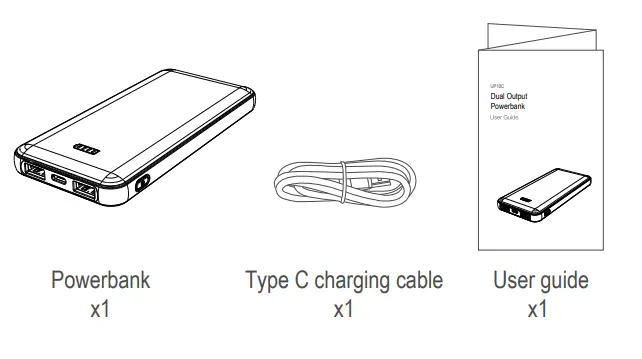

Package contentSVENSKA-UP10C-10000mAh-Dual-Output-Powerbank-fig-1

AppearanceSVENSKA-UP10C-10000mAh-Dual-Output-Powerbank-fig-2

  1. Power button
  2. Power LED indicator
  3. Type-C input
  4. USB-A2 output
  5. USB-A1 output

How to use

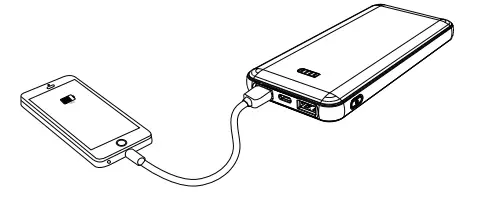

Use the power bank to charge other devices

  • Plug through USB-A1 or USB-A2 and charge your mobile device directly. Press the power button and start to charge your devicesSVENSKA-UP10C-10000mAh-Dual-Output-Powerbank-fig-3

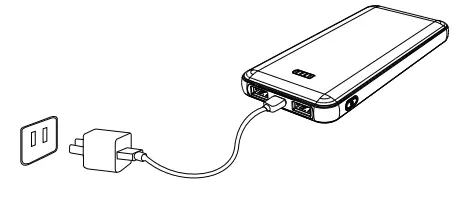

Charge power bank

  • Insert the Type-C connector into a power bank.SVENSKA-UP10C-10000mAh-Dual-Output-Powerbank-fig-4

Specification

  • Input 2 (Type-C): 5V 2A
  • output 1 (USB-A1): 5V 2A
  • Output 2 (USB-A2): 5V 1A
  • Battery: Lithium Polymer
  • Battery Capacity: 10.000mAh
  • Weight: 207g
  • Size: 144.2 x 69.4 x 15 mm
  • Operating Temperature: 0-45 ˚C
  • Transport and Storage Temperature: -20 ∼ 50 ˚C

SAFETY PERFORMANCE

  1. This power bank has overcharging, discharging, short-circuiting and overvoltage protection which protects both the charger and the device being charged.
  2. Intelligent MCU controller, High transfer efficiency, and fast charging speed.
  3. Fully tested for all batteries and PCB boards and finished products.

SAFETY CAUTIONS

  1. The power bank can be damaged if dropped, discard it to avoid future damage.
  2. Do not impact or disassemble the product.
  3. Do not place this product in or near fire or water.
  4. Please use the correct charger according to the instructions.
  5. Please stop to use immediately if the battery is bulging, leaking, or smells.
  6. This product should be charged once every month at least when you do not use it for a long period.
  • C Two Products AB
  • Ridbanegatan 4
  • SE-213 77 Malmö, Sweden
  • www.ctwo.se
  • Art nr: 14910 / Batch nr: Made in China
