Instruction Manual

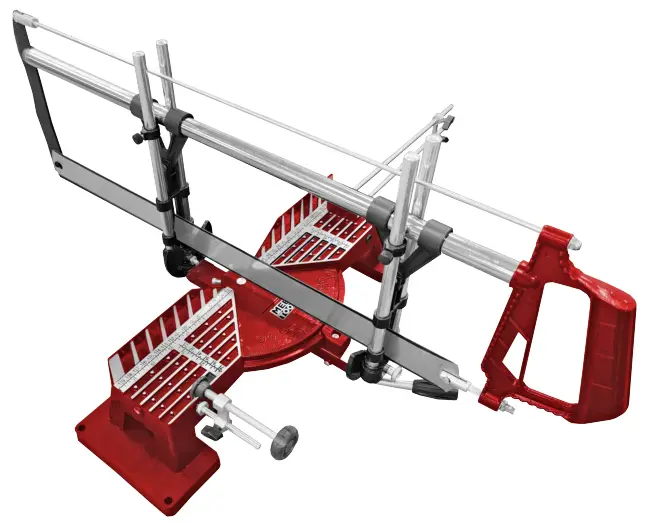

020651 Mitre Saw
MITRE SAW
600 mm
Item no. 020651
OPERATING INSTRUCTIONS
Important! Read the user instructions carefully before use. Save them for future reference. (Translation of the original in- instructions)
SAFETY INSTRUCTIONS
SYMBOLS
Read the instructions.
TECHNICAL DATA
| Blade length | 600 mm |
| Teeth per inch | 18 |
| Saw depth at 9 0 ° | 150 mm |
DESCRIPTION

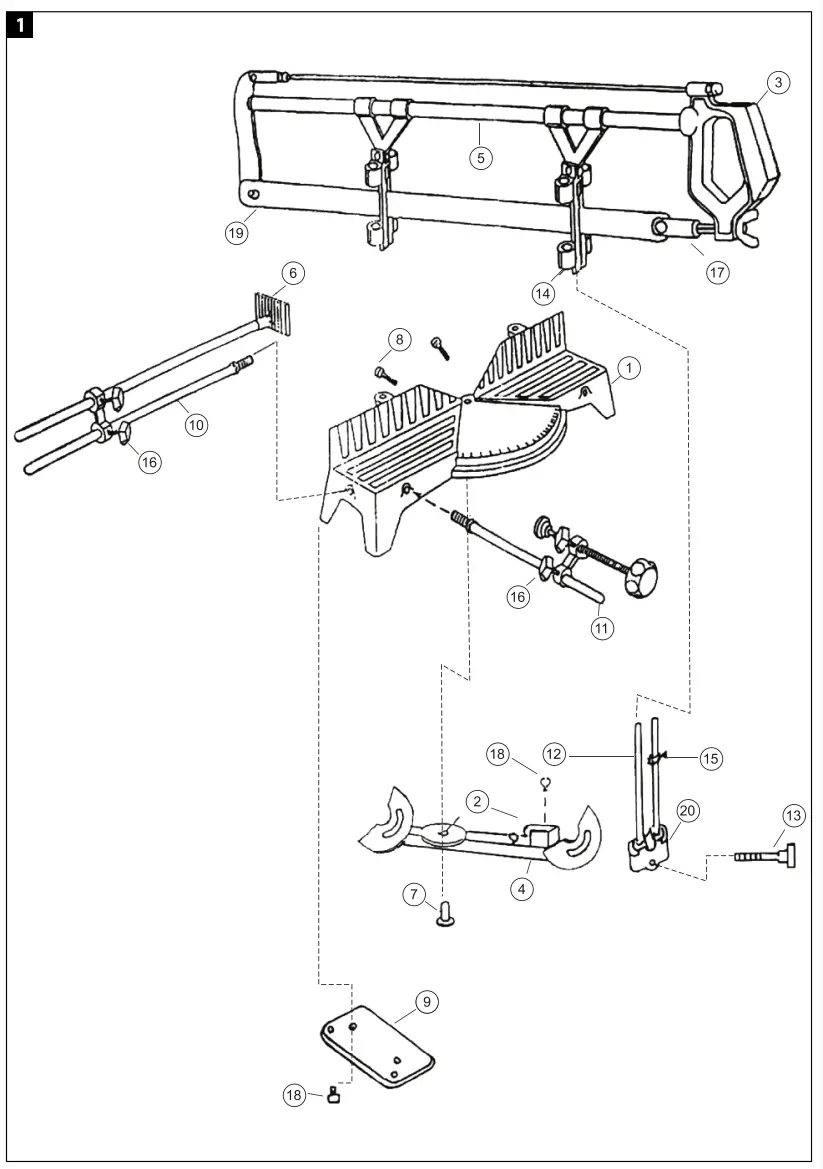

| 1. Body 2. Pointer 3. Handle 4. Pivoting Arm 5. Steel Tube 6. Fence And Fence Stud Assembly 7. Pivot 8. Pivot Lock Screw 9. Base 10. Screw | 11. Clamp And Clamp Stud Assembly 12. Guide Posts 13. Lock Screw 14. Saw Guide 15. Adjusting Ring 16. Adjusting Knob 17. Fixation Pole 18. Hex.Screw 19. Sow Blade 20. Guide Posts Assembly |
FIG. 1Jula reserves the right to make changes. For the latest version of operating instructions, see www.jula.com
