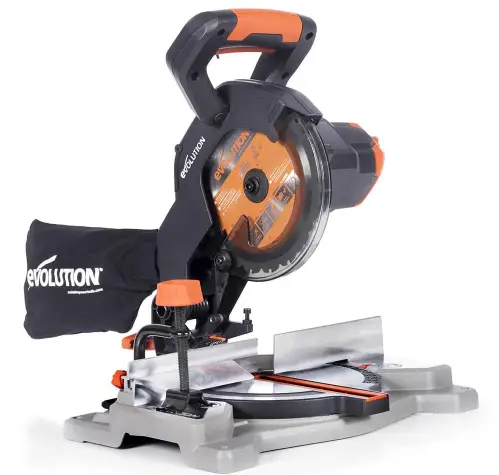

evolution 088-0004 Cordless 185mm Compound Mitre Saw
Instructions

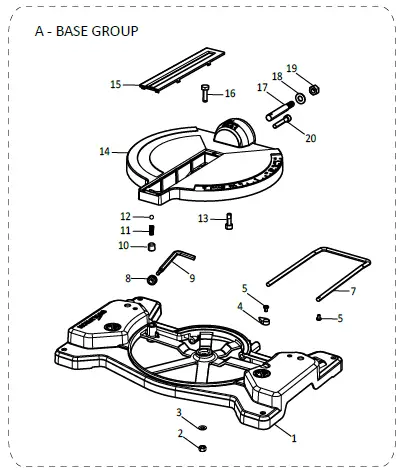

| A01 | BASE | 088-0101 | 1 |
| A02 | NYLOC NUT FULL M6 | F-NNIF-M6-ST-BO | 1 |
| A03 | WASHER M6 | F-W-M6-ST-BO | 1 |
| A04 | MITRE INDICATOR | 088-0102 | 1 |
| A05 | SCREW M4x6 | F-SPHPZ-M4-6-ST-BO | 2 |
| A07 | REAR SUPPORT BAR | 046-0171 | 1 |
| A08 | Grommet | 047-0200 | 1 |
| A09 | Dual Hex Key M5/M8 | F-HEXKEY-M5/8-ST-BO | 1 |
| A10 | M10x10 GRUB SCREW | 046-0176 | 1 |
| A11 | COMPRESSION SPRING | 046-0175 | 1 |
| A12 | 8MM BALL BEARING | 046-0174 | 1 |
| A13 | CAP SCREW M6x18 | F-SHCS-M6-18-ST-BO | 1 |
| A14 | TABLE | 046-0170 | 1 |
| A15 | BLADE THROAT | 046-0169 | 1 |
| A16 | HEX BOLT M6x20 | F-HB-M6-20-ST-BO | 1 |
| A17 | BEVEL SHAFT | 046-0194 | 1 |
| A18 | WASHER M8 | F-W-M8-ST-BO | 1 |
| A19 | NYLOC NUT FULL M8 | F-NNIF-M8-ST-BO | 1 |
| A20 | CAP SCREW M6x35 | F-SHCS-M6-35-ST-BO | 1 |

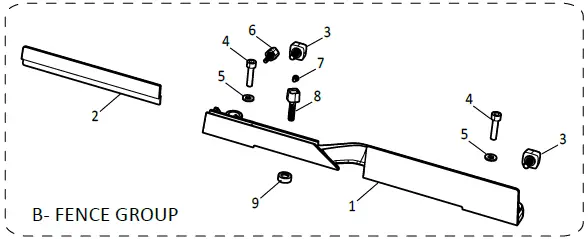

| B01 | FENCE | 046-0165 | 1 |
| B02 | SLIDING FENCE | 046-0158 | 1 |
| B03 | THUMB SCREW | 046-0162 | 2 |
| B04 | CAP SCREW M6x25 | F-SHCS-M6-25-ST-BO | 2 |
| B05 | WASHER M6 | F-W-M6-ST-BO | 2 |
| B06 | FENCE THUMB SCREW | 046-0161 | 1 |
| B07 | SCREW M4x5 | F-SPHPZ-M4-5-ST-BO | 1 |
| B08 | TABLE LOCKING SCREW | 046-0164 | 1 |
| B09 | MITRE LOCK PAD | 046-0166 | 1 |
| C01 | SCREW M3X8 | F-SPHPZ-M3-8-ST-BO | 1 |
| C02 | BEVEL INDICATOR | 046-0186 | 1 |
| C03 | NUT HALF M6 | F-NSH-M6-ST-BO | 3 |
| C04 | GRUB SCREW M6x14 | F-SSCFP-M6-14-ST-BO | 2 |
| C05 | PIVOT | 046-0181 | 1 |
| C06* | External Circlip 16mm | F-CCEXT-16-100-ST-BO | 2 |
| C07 | PIVOT SPRING | 046-0179 | 1 |
| C08 | CAP SCREW M6x20 | F-SHCS-M6-20-ST-BO | 1 |
| C10 | WASHER M8 | F-W-M8-ST-BO | 1 |
| C11* | BEVEL LOCK LEVER | 046-0197 | 1 |
| C12 | Lock Down Pin | 048-0157 | 1 |
| C13 | O Ring | 048-0167 | 1 |
| C14 | External E-clip 8mm | F-ECLIP-8-100-ST-BO | 1 |
| C15 | PIVOT BLOCK | 046-0192 | 1 |

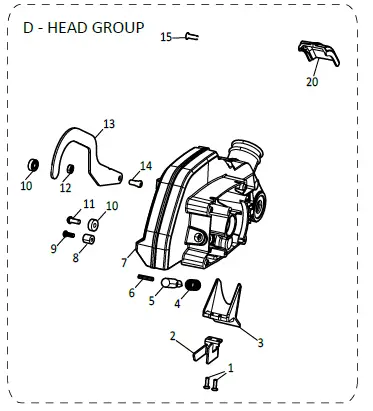

| D01 | Counter sunk Screw M4x20 | F-SCHPZ-M4-20-ST-BO | 2 |
| Finger Guard | 088-0103 | 1 | |
| D03 | Dust Chute | 088-0104 | 1 |
| D04 | Spring | 048-0108 | 1 |
| D05 | Arbour Lock Pin | 064-0130 | 1 |
| D06 | Spring Pin Φ4×28 | F-SDL-400-28-ST-BO | 1 |
| Blade Head/ Housing | 088-0105 | 1 | |
| D08 | Guard Stop | 064-0112 | 1 |
| D09 | Screw M5x16 | F-SPHPZ-M5-16-ST-BO | 1 |
| D10 | Bearing 606 | F-B-606-2Z | 2 |
| Screw M6x12 | F-SPHPZ-M6-12-ST-BO | 1 | |
| D12 | Guard Linkage Spacer | 088-0106 | 1 |
| Guard Linkage | 088-0107 | 1 | |
| D14 | Shoulder Screw Guard Linkage | 046-0146 | 1 |
| D15 | Counter sunk Screw M5x16 | F-SCHPZ-M5-16-ST-BO | 1 |
| D20 | Blanking plate | 064-0127 | 1 |

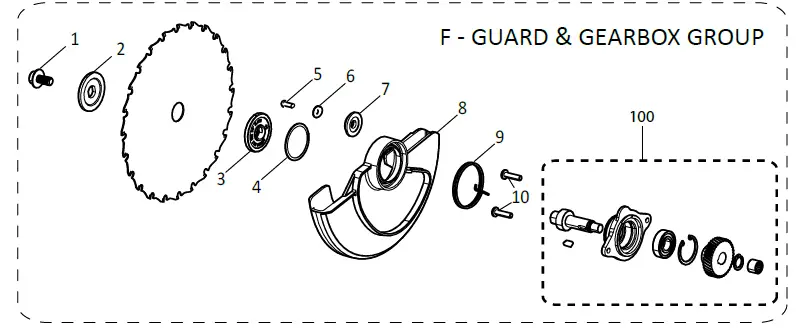

| F01 | Arbour Bolt M8x16 | 048-0188 | 1 |
| F02 | Outer Flange (Double Flange Type) | 088-0110 | 1 |
| F03 | Double Inner Flange (5/8″ & 20mm) | 088-0111 | 1 |
| F04 | Guard Coil Spring Clip | 046-0152 | 1 |
| F05 | Tapping screw 4×10 | F-TFPX-4-10-ST-BO | 1 |
| F06 | Washer M4 | F-W-M4-ST-BO | 1 |
| F07 | Guard Roller | 048-0189 | 1 |
| F08 | Blade Guard | 064-0134 | 1 |
| F09 | Guard Spring | 046-0141 | 1 |
| F10 | Screw M5x16 | F-SPHPZ-M5-16-ST-BO | 2 |
| F100 | Gearbox Sub Assembly | 064-0085 | 1 |

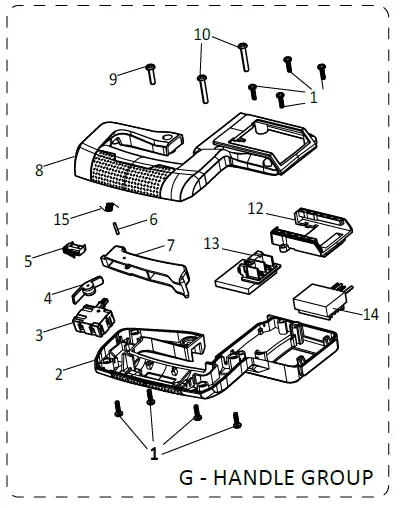

| G01 | Tapping screw 4×14 | F-TFPX-4-14-ST-BO | 8 |
| G02 | Main Handle Lower | 064-0153 | 1 |
| G03 | Switch | 064-0142 | 1 |
| G04 | Interlock Lever | 064-0136 | 1 |
| G05 | LED Micro Switch | 064-0143 | 1 |
| G06 | Pin | 083-0130 | 1 |
| G07 | Trigger | 064-0135 | 1 |
| G08 | Main Handle Upper | 064-0152 | 1 |
| G09 | Screw M5x20 | F-SPHPZ-M5-20-ST-BO | 1 |
| G10 | Screw M5x30 | F-SPHPZ-M5-30-ST-BO | 2 |
| G12 | Battery Socket | 064-0154 | 1 |
| G13 | Motor PCB | 064-0148 | 1 |
| G14 | Battery PCB | 064-0149 | 1 |
| G15 | Trigger Lock Spring | 083-0128 | 1 |

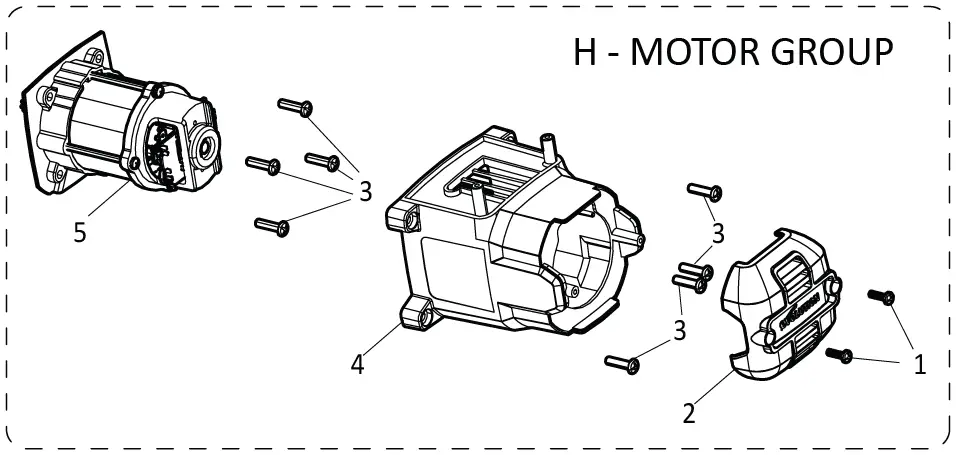

| H01 | Tapping screw 4×14 | F-TFPX-4-14-ST-BO | 2 |
| H02 | Motor End Cap | 064-0106 | 1 |
| H03 | Screw M5x20 | F-SPHPZ-M5-20-ST-BO | 8 |
| H04 | Motor Housing | 064-0105 | 1 |
| H05 | Motor-SMS | 064-0160 | 1 |

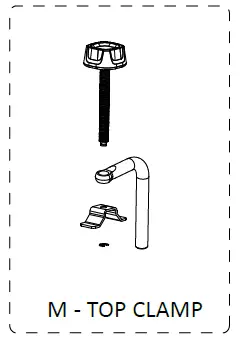

| M01 | Hold Down Clamp | 046-0202 | 1 |

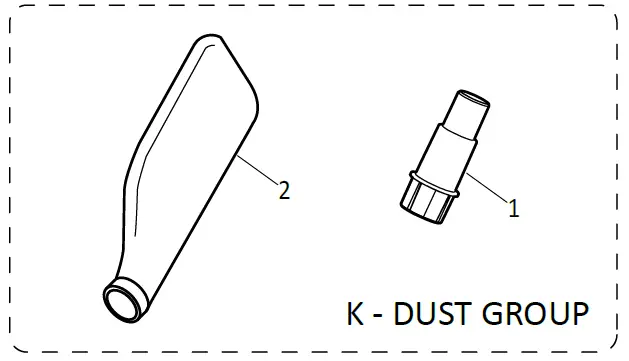

| K01 | Dust Hose Connector UK/EU | 027-0220 | 1 |
| K02 | Dust Bag | 048-0259 | 1 |
Service Parts List V: 088-0001
UK/EU/AUS
Cordless 185mm Compound Mitre Saw
