Asustek Computer Rt-ax57 Wireless Ax3000 Dual Band Gigabit Router User Guide

Quick Start Guide
RT-AX57
Wireless-AX3000 Dual-band
Gigabit Router

FAST Networking Solutions
FARTHEST EASY SECURE TRUSTED

Hardware Explanations

Specifications:

One Router Setup Steps WE SUGGEST
01 Prepare your Modem

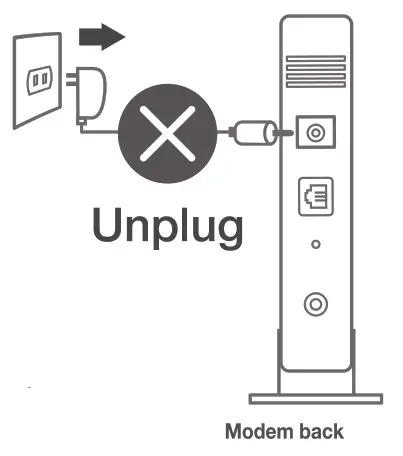

1. Unplug the power of the cable / DSL modem. If it has a battery backup, remove the battery. 1
   1. If you are using DSL for the Internet, you will need your username/password from your Internet service provider OSP) to properly configure your router.
2. Connect your modem to the WAN port at the back side of the router with the network cable provided.
3. Power on the modem. Plug mode into the power outlet and power it on.

4. Check the modem LED lights to ensure the connection is active.

02 Install your Router

1. Plug the adapter into the DCIN port, and press the Power button.

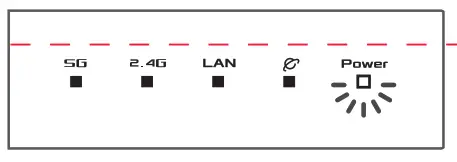

2. The power LED will light up when the hardware is ready.via App
3. [App] On your iOS or Android mobile device, go to the app store, search for ASUS Router, and download the app.


   https://www.asus.com/support	https://qr.asus.com/wl_videotutorials

4. [App] On your iOS or Android mobile device, tap Settings > Wi-Fi,  the connect to the default network SSID shown on the product label on app. the back side of the router. Or scab the QR code on the product label to connect the default network SSID.


5.  [App] Launch ASUS Router App and follow the instructions to complete the setup.

– or via Web Browser
3.  [Wired}Connect yeur PG-to LAN pert at-the back side of – the router using an additional network cable.
[Wireless] Connect to the network with the default SSID shown on the product label on the back side of your router “ASUS_XX”.

4. [Wired+Wireless} Oper-a web browser
You will be redirected to the ASUS Setup Wizard. If not, navigate to http://router.asus.com.
Follow the instructions to complete the setup.

FAQ FREQUENTLY ASKED QUESTIONS

Q1: Where can | find more information about the wireless router?
Technical support site: https://www.asus.com/support

https://www.asus.com/support	https://qr.asus.com/wl_videotutorials

‘NOTES:

• UK support e-mail: network [email protected]
• For more information, visit the ASUS support site at: https://www.asus.com/support/

ASUS Recycling/Takeback Services
ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for you to be able to responsibly recycle our products, batteries, other components, as well as packaging materials. Please go to http://csr.asus.com/english/Takeback.htm for the detailed
— recycling-information diferentregionss
REACH
Complying with the REACH (Registration, Evaluation, Authorisation, and Restriction of Chemicals) regulatory framework, we published the chemical substances in our products at ASUS REACH website at http://csr.asus.com/english/REACH.htm Federal Communications Commission Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

• This device may not cause harmful interference.
• This device must accept any interference received, including interference that may cause undesired operation.
  This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or  television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
•  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

WARNING! Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
Prohibition of Co-location
This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.
IMPORTANT NOTE:
radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. End users must follow the specific operating instructions for satisfying RF exposure compliance. To maintain compliance with FCC exposure compliance requirements, please follow operation instructions as documented in this manual. [This device is restricted for indoor use.
WARNING! This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter.
Compliance Statement of Innovation, Science and Economic Development Canada (ISED)
his device complies with the Innovation, Science and Economic Development Canada licence-exempt RSS standard(s).
Preparation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must ccept any interference, including interference that may cause undesired operation of the device.
Preparation in the band 5150-5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems.
[PANTCES-3(B/NMB-30By
Radio Frequency (RF) Exposure Information
The radiated output power of the ASUS Wireless Device is below the Innovation, Science, and Economic Development Canada facto frequency exposure limits. The ASUS Wireless Device should be used in such a manner that the potential for human contact during normal operation is minimized.
[ris equipment should be installed and operated with a minimum distance of 20cm between the radiator any part of your ody.
[This device has been certified for use in Canada. The status of the listing in the Innovation, Science and Economic Development Canada’s REL (Radio Equipment List) can be found at the following web address: http://www.ic.ge.ca/eic/site/ceb-bhst.nsf/eng/htt00020.htm!
Additional Canadian information on RF exposure also can be found at the following web: htts://www.ic.ac.ca/eic/site/smt-ast nsf/ena/sf08792.html
This radio transmitter [3568A-RTAX8A00] has been approved by Innovation, Science and Economic Development Canada to pperate with the antenna types listed below, with the maximum permissible gain indicated. Antenna types not included in this list that have a gain greater than the maximum gain indicated for any type listed are strictly prohibited for use with this device.

‘The maximum antenna gain permitted for devices in the bands 5250-5350 MHz and 5470-5725 MHz shall be such that the equipment still complies with the e.i.r.p. limit.
The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the e.i.t.p. limits specified for point-to-point and non-point-to-point operation as appropriate. !

safety Notices

• Use this product in environments with ambient temperatures between 0°C(32°F) and 40°C(104°F).
• Refer to the rating label on the bottom of your product and ensure your power adapter complies with this rating.
• DO NOT place on uneven or unstable work surfaces. Seek to service if the casing has been damaged.
• DO NOT place or drop objects on top and do not shove any foreign objects into the product.
• DO NOT expose to or use near liquids, rain, or moisture. DO NOT use the modem during electrical storms.
• DO NOT cover the vents on the product to prevent the system from getting overheated.
• DO NOT use damaged power cords, accessories, or other peripherals.
•  If the Adapter is broken, do not try to fix it by yourself. Contact a qualified service technician or your retailer.
• To prevent electrical shock hazards, disconnect the power cable from the electrical outlet before relocating the system.
• DO NOT mount this equipment higher than 2 meters.

TOL± DIM									CUSTOMER: ASUS			T&W SHENZHEN GONGJIN ELECTRONICS CO., LTD.
RANGE	Cl	C2		C3		C4
0-6	0.1	0.1		0.15		0.2
							TITLE:		MODEL: RT-AX57					PART NO:  610000012293XXXX
6-30	0.2	0.3		0.4		0.5
30-80	0.25	0.5		0.9		1.	QUICK INSTALLATION GUIDE
80-180	0.3	0.8		12		2.
							UNIT’S	mm	VER:	VO1	DRAW				DATE: 20221014
180-315	0.5	1.		2.		3
315-500	0.7	2.		3.		4	MAT’L		SCALE	N/A	CHECK
500-800	0.9	2.		3		5
							FINISH	/	SHEET	1/1	PDE		N/A
ANG.TOL±	T-3070.1′		30°-60:10.3′		60°-90/0.5°

NOTES

1. Dimension after folding( _2 175*130.5mm.
2. Print colour( Ef mIZA): black printing ~~ 7″
3. Material(44 fi): 80g copperplate paper(8 A) .
4. Coating(zM Ak): Varnishing (Wms)
5. Binding process(¢iJ LZ): Paper folding!
6. Output Ipi: 200 Ipi.
7. Tolerance(28#): L(+€)*W(3e):+1mm.
8. Raw materials and the corresponding post-processing should meet requirements defined in the T&W Environmental Protection Technical Standards.
