Aeg191214 Led Ceiling Light Alfie Instruction Manual

ALFIE AEG191214
Instruction Manual

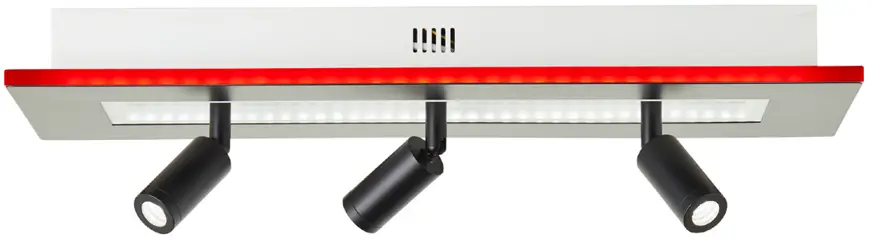

AEG191214 LED Ceiling Light Alfie

This product contains a light source of energy efficiency class F.

The light source should be replaced by a qualified person.

The separate control gear should be replaced by a qualified person.

Caution, risk of elecric shock!

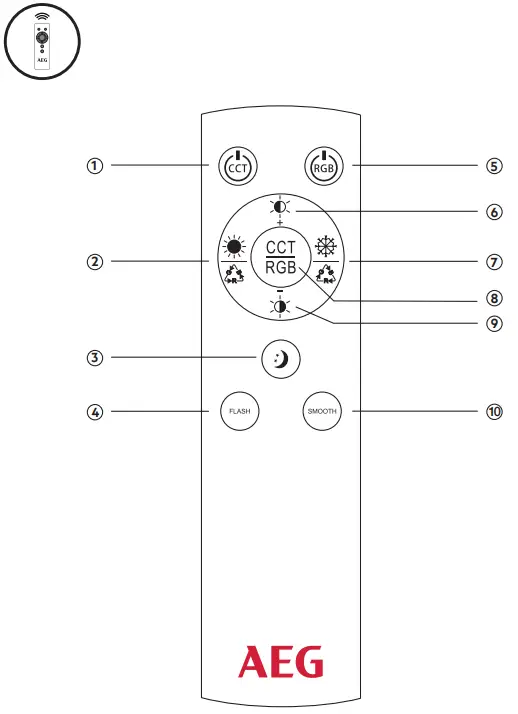

REMOTE CONTROL

Notes on battery disposal
When it comes to sale of batteries or delivery of devices which contain batteries, we are required to draw your attention to the following:
As the end user, you have a legal obligation to return used batteries. You can return old batteries which we have, or have had, as new batteries in our range, to our shipping warehouse (Brilliant AG, Brilliantstr.1, D – 27442 Gnarrenburg), or at your local dealer, free of charge. The symbols shown on the batteries have the following respective meanings:
Pb = Battery contains more than 0.004% lead by mass
Cd = Battery contains more than 0.002% cadmium by mass
Hg = Battery contaiss more than 0.0005% mercury by mass
The crossed out dustbin symbol means that the battery may not be included in household rubbish.
Please observe the notes above.

Battery information

If required, clean the battery and device terminals before inserting.
Remove exhausted batteries from the device without delay! High risk of leakage!
Never expose batteries to excessive heat such as sunlight, fire or similar!
Always replace all batteries at the same time.
Only use batteries of the same type. Do not use different types or used and new batteries together.
Remove batteries from the device when unused for long periods.

	Function Description	Technical parameter
	ON/OFF switch of CCT / RGB	Memory function for all, Default: 100%@coolwhite
	Switch mode white – / RGB control	Switching mode function between white and RGB control when both lighting modes are on. ! NOTE ! Either RGB colors or white colors can be controlled. This button switches the function of the 4 buttons on the control ring to the corresponding mode.
	CCT Color temperature changing (warmwhite — coolwhite)	10 Steps color changing. PWM(5KHz):100%,90%,80%,70%, 60%,50%, 40%,30%,20%,10%,0%
	CCT or RGB Brightness dimmable (10%-100%)	9 steps brightness dimming. PWM(5KHz):100%,90%,80%, 70%,60%,50%,40%,30%,20%,10%
	RGB hue saturation changing	Red/Purple/Blue/Cyan/Green/Yellow/Red Red/Yellow/Green/Cyan/Blue/Purple/Red
	Smooth RGB color changing automatically	Color changing: Red/Yellow/Green/Cyan/Blue/White/Yellow/Purple/Cyan/White
	Flash RGB color changing automatically	Color changing: Red/Green/Blue/Yellow/Purple/Cyan/White
	Night light function	10% @warmwhite + 30% @ redlight

• Paring & disparing
  1. Press and hold “ ” 3 second,after light blinking, the remote control will pare with device;
  2. Press and hold “ ” 3 second, after light blinking, the remote control will dispare with device;
• Wall-switch function:
  2. Wall switch color temperature control: switch cycle warmwhite/naturewhite/coolwhite,
  1. Memory function; memory the light condition before last switch off, wait ≥ 10 second. each step wait ≤ 2 second

Hereby, Brilliant AG declares that the radio equipment type Alfie AEG191214 is in compliance with Directive 2014/53/EU. The full EU declaration of conformity can be requested at the following internet address: www.aeg-lighting.de
