Filters General Pump
Owner’s Manual

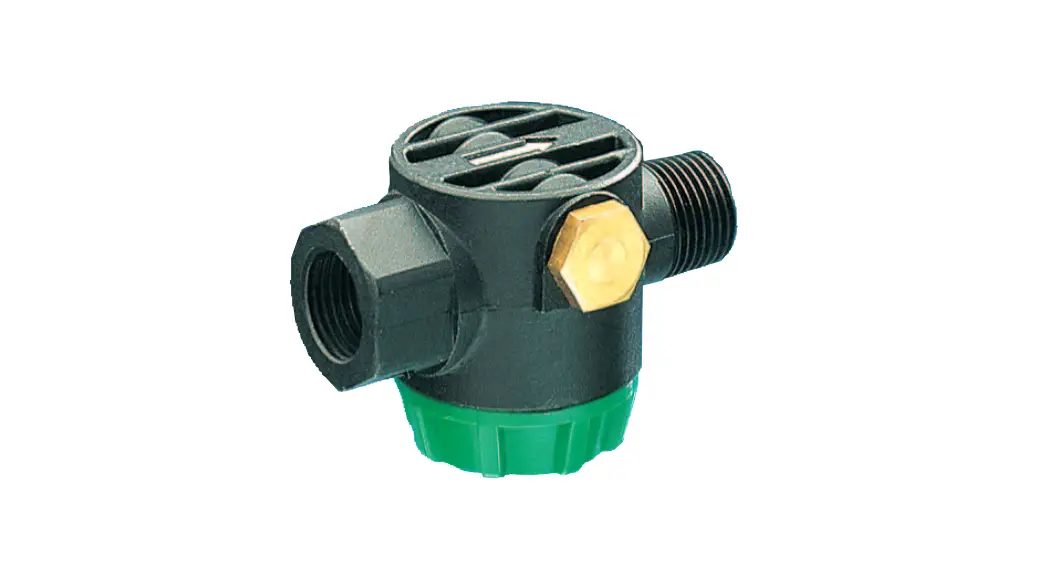

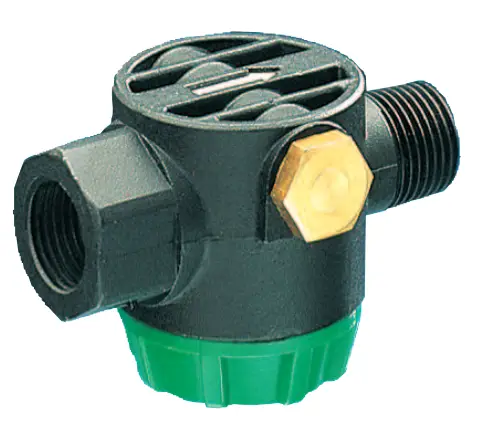

FEATURES
- Low-pressure in-line filter
- Rigid construction
- Stainless Steel mesh filter
- Die cast aluminum (anodized) housing and plastic cap
- No tools required for cleaning
- Ports for bypass hose and gauge
SPECIFICATIONS
| Part Number | ZMFIL |
| Maximum Volume | 5.8 GPM |
| Maximum Pressure | 145 PSI |
| Temperature | 176°F |
| Port Sizes: Inlet Outlet (to pump) Accessory (2) | 1/2-14 BSP-F 1/2-14 BSP-M 1/4-19 BSP-F |
| Filter Opening | 40 mesh – 0.15″ |
| Micronic Filter Rating | 350 micron |
| Dimensions | 2.25″ x 3.25″ |
| Weight | .4 lb. |
| Material | Aluminum, Brass, Plastic, Buna-N |

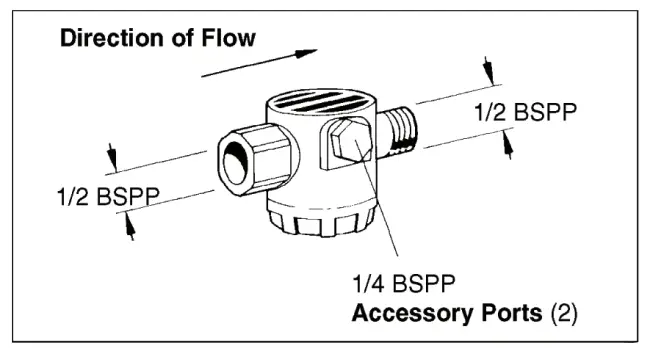

INSTALLATION

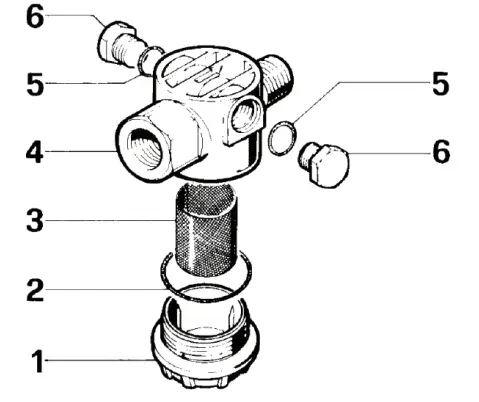

PARTS LIST
| No. | Part No. | Description | Qty. |
| 1 | 10016651 | Cap | 1 |
| 2 | 90387100 | O-ring, 1.362 x .103 | 1 |
| 3 | 10016776 | Filter | 1 |
| 4 | 10016522 | Body | 1 |
| 5 | 90358500 | O-ring, .426 x .070 | 2 |
| 6 | 98204100 | Plug | 2 |

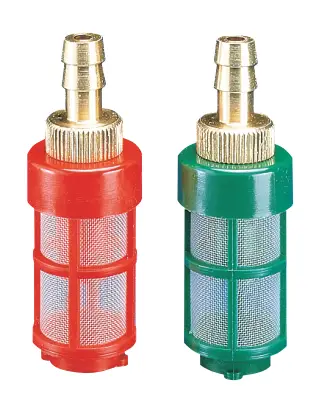

CHEMICAL FILTER
Features rigid contruction, plastic housing and mesh filter, brass hosbarb fitting. No tool required for cleaning. Available with or without stainless steel check.
SPECIFICATIONS
| Part Number | ZF1, w/o check valve, Red ZF2, with check valve, Green |
| Dimensions | 1” x 3.25” |
| Hose Barb Size | Use 1/4” I.D. Hose |
| Material | Plastic, Brass Viton, Stainless Steel |
General Pump is a member of the Interpump Grou.
GENERAL PUM
- 1174 Northland Drive
- Mendota Heights, MN 55120
Phone: (651)686-2199
Fax: (800)535-1745
email: [email protected]
www.generalpump.com
