AR82.20-P-1000GM REMOVE/INSTALL OVERHEAD CONTROL PANEL CONTROL UNIT
AR82.20-P-1000GM Remove/Install Overhead Control Panel Control Unit
MODEL 463.222 /243 /244 /245 /246 /247 /248 /249 /250 /254 /270 /271 /303 /306 /309 /322 /323 /332 /333 /336 /340 /341
MODEL 463.202 /236 /237 /346 up to model year 2013 /model refinement package 2012
N70 Overhead control panel control unit
| [g] [ll] | Remove/install | ||
| 1 | Activate service mode in Telematic Alarm Identification on Demand (emergency call system) (TELE AID) | ITJ Only on model 463.243/244/245/250/309/ 322/323/332/333 with code (ET2) TELE AID car telephone emergency call system, | AR82.95-P-0005-03GR |
| 463.247/248/254/270 up to 1 407 with code (ET2) TELE AID car telephone emergency call system | |||
| [I] | Notes regarding the TELE AID emergency call system | Model 463.243/244/245/250/309/322/323/ 332/333, | AH82.95-P-0001-01GA |
| Model 463.247/248/254/270 up to 1.4.07 | |||
| & Danger! | Risk of explosion caused by escaping oxyhydrogen gas. Risk of injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte (contains | No fire, sparks, open flames or smoking. Wear acid-resistant gloves and clothing and safety glasses with side guards. Do not place any conductive objects on the | AS54.10-Z-0001-01 A |
| diluted sulfuric acid) or metal spatter due to short circuit Risk of burn injuries caused by short circuit. Risk of poisoning caused by swallowing battery electrolyte (contains diluted sulfuric acid) or absorption of lead | battery and avoid any short circuit from battery positive to ground. Only pour liquid battery electrolyte (diluted sulfuric acid) into suitable and appropriately marked containers. | ||
| over the skin or orifices | |||
| 2 | Disconnect battery ground line | Except model 463.236/248 with code (979) Special protection version | AR54.10-P-0003G |
| Model 463.236/248 with code (979) Special protection version, with code (ZS6) Special protection version FB6, | AR54.10-P-0003PM | ||
| with code (E26) Additional battery 100 Ah incl. cutoff relay Model 463.236/248 with code (979) Special protection version, with code (ZS?) Special protection version FB7, | |||
| with code (E26) Additional battery 100 Ah incl. cutoff relay | |||
| @ | Notes on battery | All models | AH54.10-P-0001-01A |

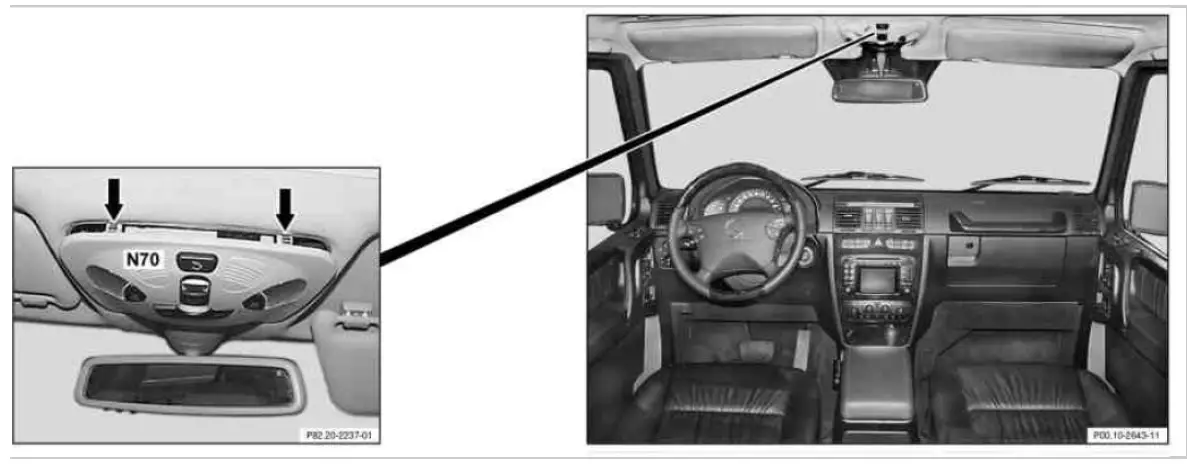

| 3 | Pry out overhead control panel control unit (N70) at rear (arrows) | ·115589035900 | |
| 4 | Swivel overhead control panel control unit I (N70) downwards bv about 45° | ||
| 5 | Pull overhead control panel control unit (N70) from the front guide | ||
| 6 | Disconnect electrical connectors from overhead control panel control unit (N70) | ||
| 7 | Install in the reverse order | ||
| 8 | Deactivate service mode in Telematic Alarm Identification on Demand | ITJ Only on model 463.243/244/245/250/309/ 322/323/332/333 with code (ET2) TELE AID car telephone emergency call system, 463.247/248/254/270 up to 1 407 with code (ET2) TELE AID car telephone | AR82.95-P-0005-03GR |
| emergency call system | |||
| [I] | Notes regarding the TELE AID emergency call system | Model 463.243/244/245/250/309/322/323/ 332/333, Model 463.247/248/254/270 up to 1.4.07 | AH82.95-P-0001-01GA |
| 9 | Check all functions of the overhead control panel control unit (N70l | ||
| 10 AD | Read out fault memory, erase if necessary Connect STAR DIAGNOSIS and read out fault memory | ITJ Stored faults which may be caused by assembly work, test work, removed lines or a simulation, must be processed and erased in fault memories after completing the work. | AD00.00-P-2000-04A |

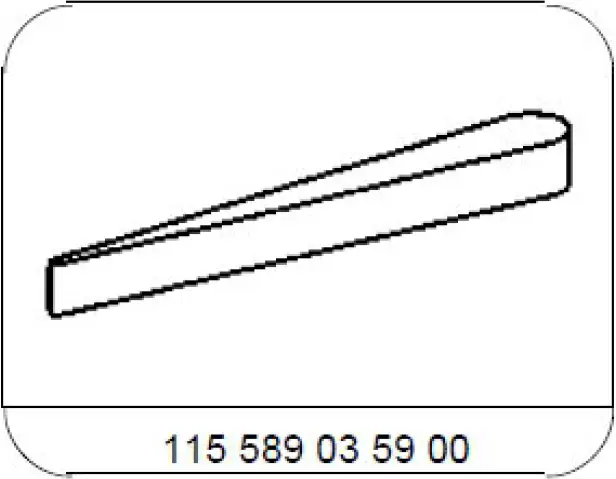

- Long wedge
