babytrend WG02XXXA Tour LTE 2 in 1 Stroller Wagon

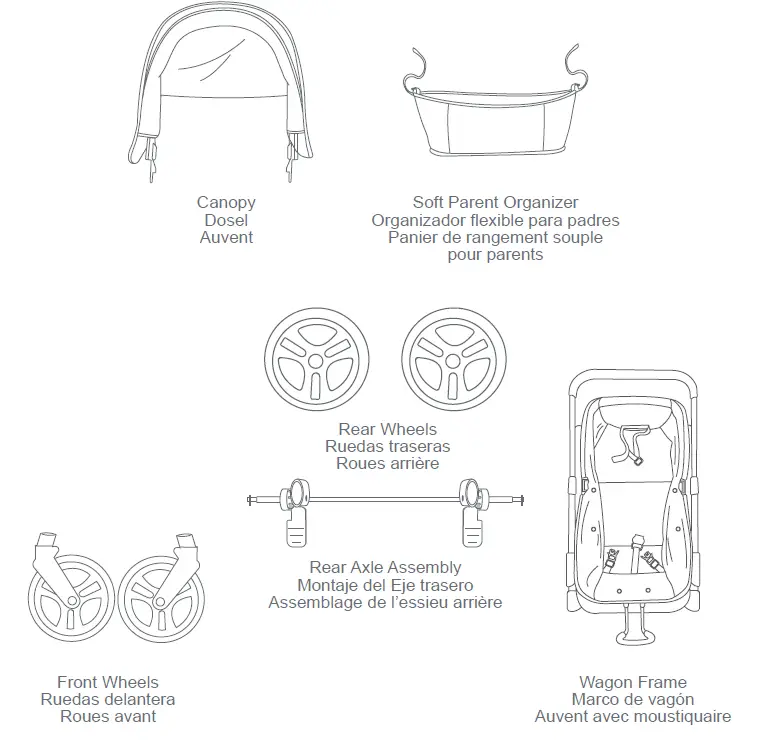

PARTS

Check that you have all the parts for this model before assembling the stroller.

WARNING: Please follow all of these instructions to ensure the safety of your child. Keep these instructions for future reference.
WARNING: Failure to follow these instructions could result in serious injury or death. Avoid serious injury from falling or sliding out, always use the safety harness and ensure that the children are properly positioned according to these instructions.
WARNING: Never leave children unattended.
WARNING: Care must be taken when folding and unfolding the stroller to prevent finger entrapment.

• CAUTION: This stroller is designed for upto 2 children only. Use with more than 2 children may cause an unbalanced condition which can injure/harm your child. Children must be at least 6 month old and be able to sit upright unassisted.
• Purses, shopping bags, parcels, diaper bags or accessory items may change the balance of the stroller and cause a hazardous, unstable condition.
• Be certain the stroller is completely opened and locked in place before allowing a child near the stroller.
• The maximum weight that can be carried in the soft parent organizer is 2 lbs (0.90 kg). The maximum weight that can be carried in each side pocket is 1 lb (0.45 kg).
• The maximum weight capacity of the stroller is 45 lbs (20.41 kg) for each child. The maximum weight capacity of the stroller in combination with any accessories is 94 lb (42.63 kg) total. Exceeding the weight limit will cause excessive wear and stress on the stroller and may cause a hazardous unstable condition to exist.
• NEVER use the stroller on stairways or escalators.
• NEVER use the stroller with roller skates, in-line skates, skateboards or bicycles.
• NEVER allow your stroller to be used as a toy.
• To clean use only mild household soap or detergent and warm water on a sponge or clean cloth.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or repair parts as needed.
• Discontinue use of stroller should it malfunction or become damaged.

ASSEMBLY

IMPORTANT! To ensure safe operation of your product, please follow these instructions carefully. Please keep these instructions for future reference.
IMPORTANT! Before assembly and each use, inspect this product for damaged hardware, loose joints, missing parts or sharp edges. NEVER use if any parts are missing or broken.
IMPORTANT! Adult assembly is required.
WARNING: Care must be taken when unfolding the stroller to prevent finger entrapment.
CAUTION: Do not allow children near stroller while unfolding.

FRAME SETUP

To attach the wheels, unfold stroller as described in the following section:

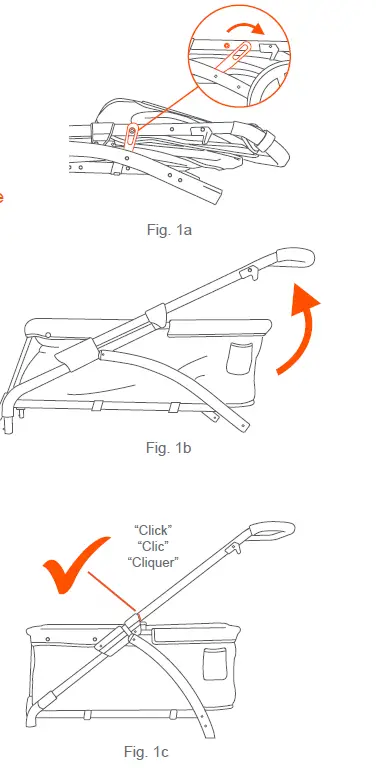

1. Release the fold latch (Fig. 1a).
   • Unfold the stroller frame by pulling the stroller handle upward until it clicks into a locked position (Fig. 1b).
   • The frame joint will click into position.
     NOTE: Check the GREEN indicators are visible to ensure the frame is securely locked before continuing (Fig. 1c).

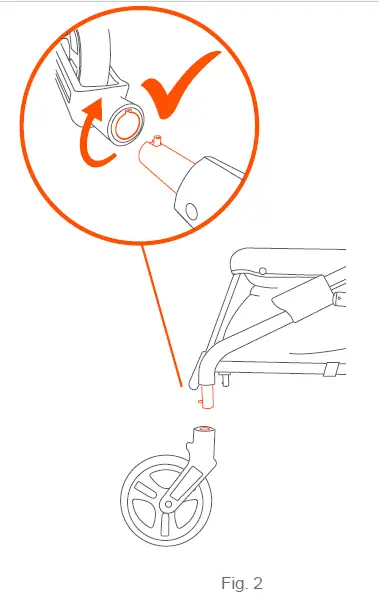

2. First rotate the wheel to point the pin hole upward. Push each front wheel assembly into the front wheel post until they lock into place (Fig. 2).
   NOTE: Pull on the wheel assembly to ensure that it is securely attached to the stroller.REAR AXLE-WHEELS
3. Attach the rear axle assembly and wheels as follows:

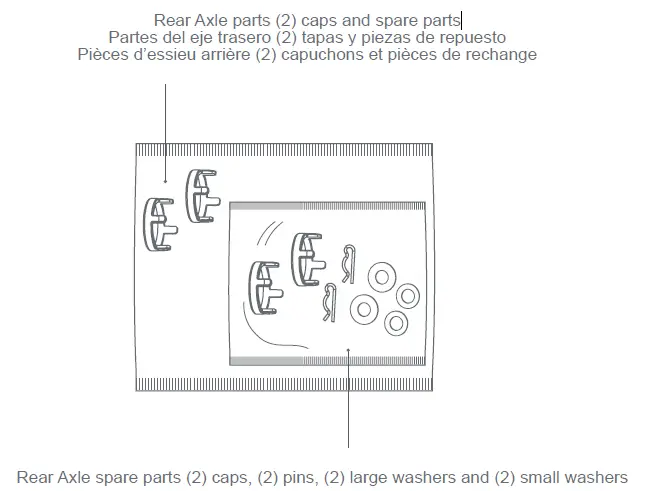

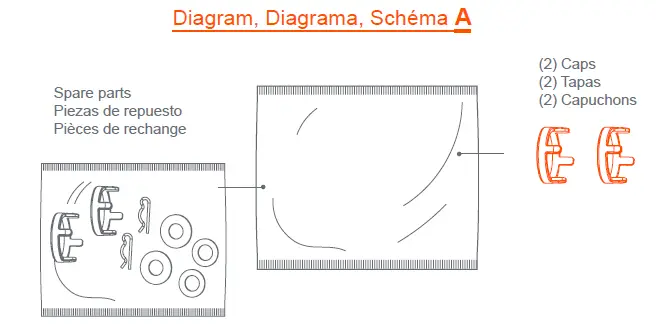

   • Diagram A: Remove all the rear axle parts from the bag. The bag includes 2 caps and a spare parts bag.
     NOTE: Ensure you have all parts in the bag and set the spare parts aside.
   • Diagram B: Refer to this diagram to remove the pin and washers from both ends of the rear axle parts.

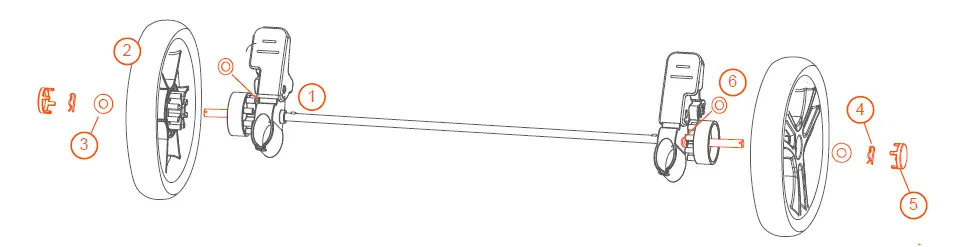

   • Diagram C: Refer to this diagram for the correct order of assembly.
   • Diagram
     1. Axle
     2. (2x) Rear wheel
     3. (2x) Large washers
     4. (2x) Pins
     5. (2x) Caps
     6. (2x) Small washers (preinstalled)

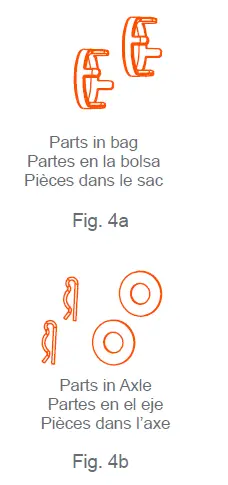

4. Step 1: Remove the 2 caps from the bag as seen on DIagram A (Fig. 4a).
   Step 2: Remove the pins and washers from the axle as seen in Diagram B (Fig. 4b).

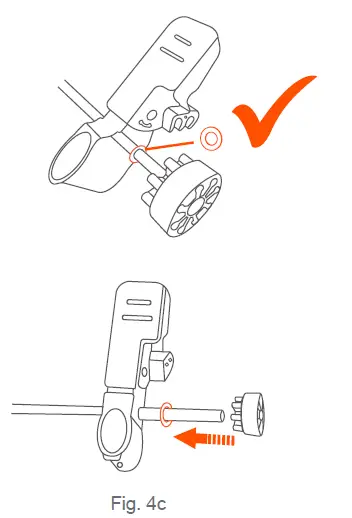

   Step 3: Set up all parts in order as seen in Diagram C. Ensure the small washer is not missing or damaged. Use the spare part small washer if needed (Fig. 4c).

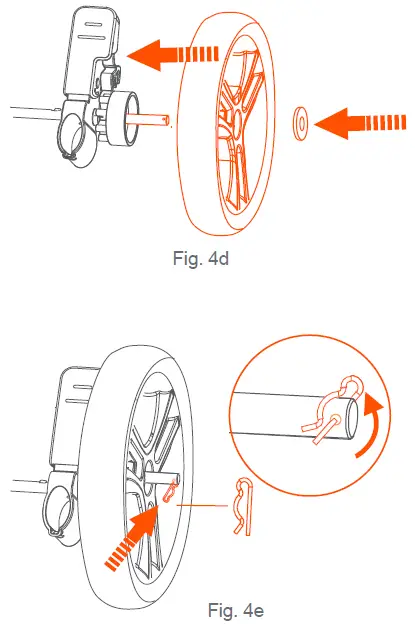

   • Insert the rear wheel into the axle. Push in completely, and insert the large washer (Fig. 4d).
   • Place the pin horizontally into the hole of the axle bar and then rotate into a vertical position (Fig. 4e).

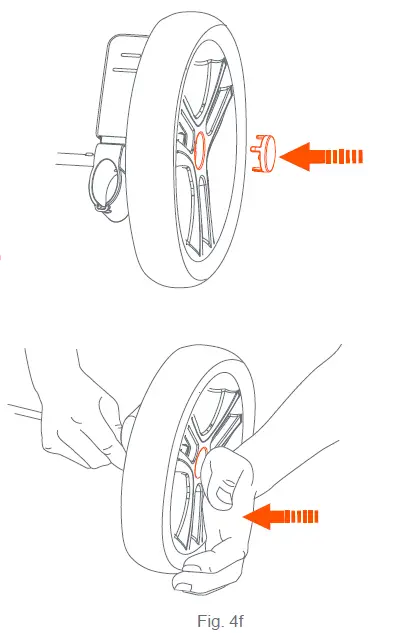

   • Push the cap into the wheel to close the axle assembly.
     NOTE: Press firmly with your palm to press the cap in completely (Fig. 4f).
   • Repeat for the other side.

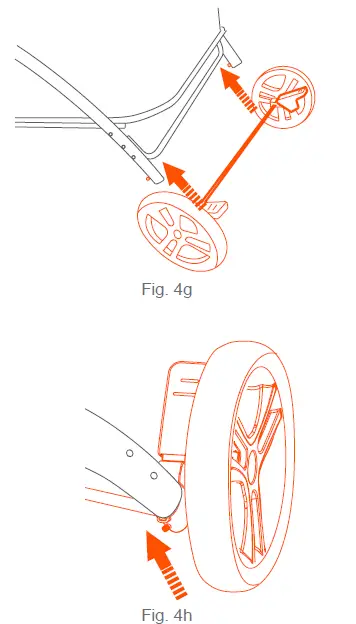

   • Important! always refer to Step 3 and complete (Fig. 4a to Fig. 4f) before proceeding. Insert the rear wheel assembly into the frame bushing from the rear side (Fig 4g).
   • Ensure the pins click completely into rear wheel and attach completely to the wagon frame bushing (Fig 4h).

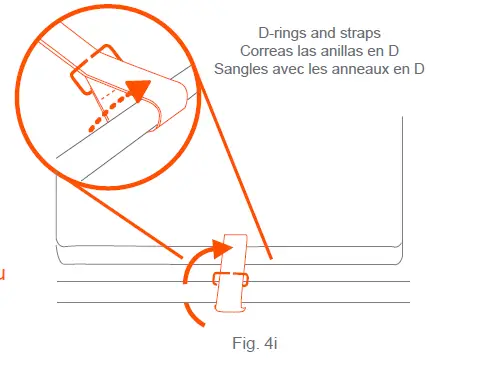

   • NOTE: If assembly required: attach the D-ring on each side of the wagon fabric to the wagon frame (Fig 4i).COMPLETE FRAME VIEW
     Ensure to complete the frame assembly before attaching the accessories that follow:
   • Do Not continue adding the accessories until the frame is securely locked.

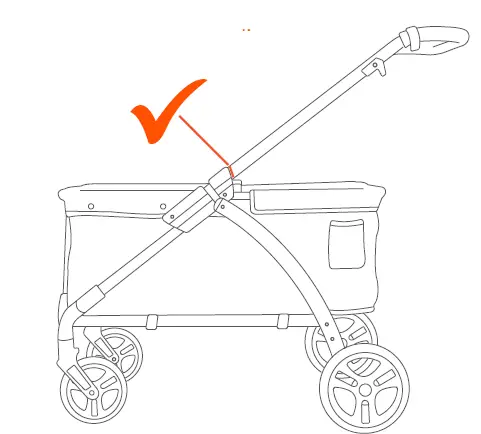

     NOTE: Always check the GREEN indicator is visible before use.
   • SOFT PARENT ORGANIZER
5. Strap In The Soft Parent Organizer:

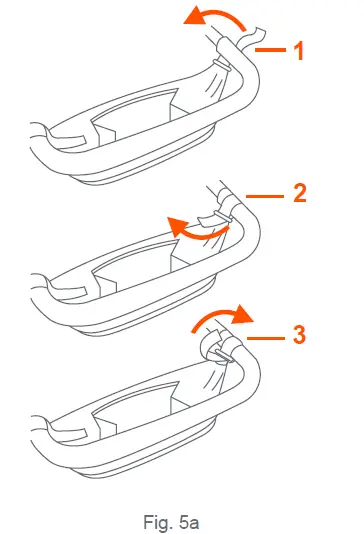

   Use the hook and loop to hang the soft parent organizer onto the stroller handle. Follow illustrations 1 through 3 (Fig. 5a). Be sure to fasten tightly.

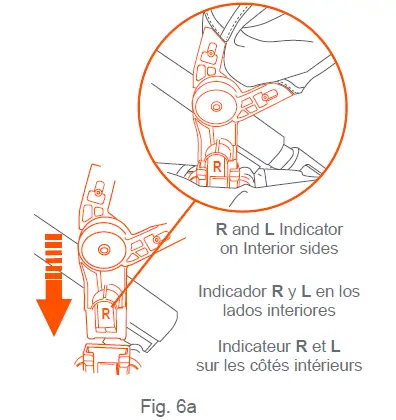

6. • To install the canopy: Locate the (Right) and (Left) indicators on the interior side of the connection. From the wagon pull handle end, insert the R connection then the L connection to the frame. Press in firmly (Fig. 6a) and (Fig. 6c).

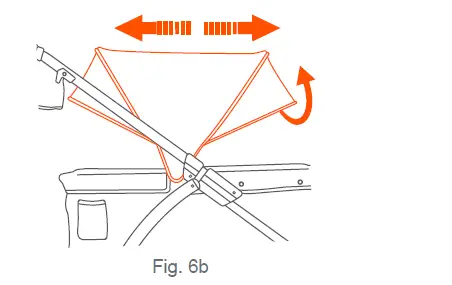

   • To open the canopy: Firmly spread out both sides of the canopy. To use the visors flip outward (Fig 6b).

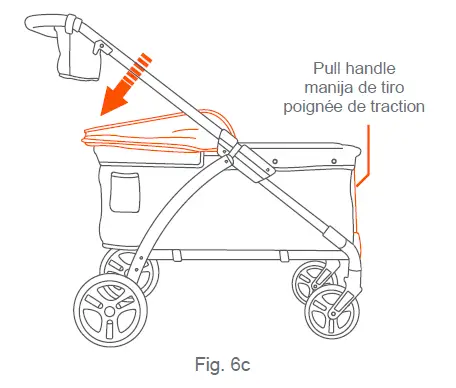

   • To close the canopy: Flip in the visors and push down toward the frame completely (Fig. 6c)
7. TO USE THE HANDLE:

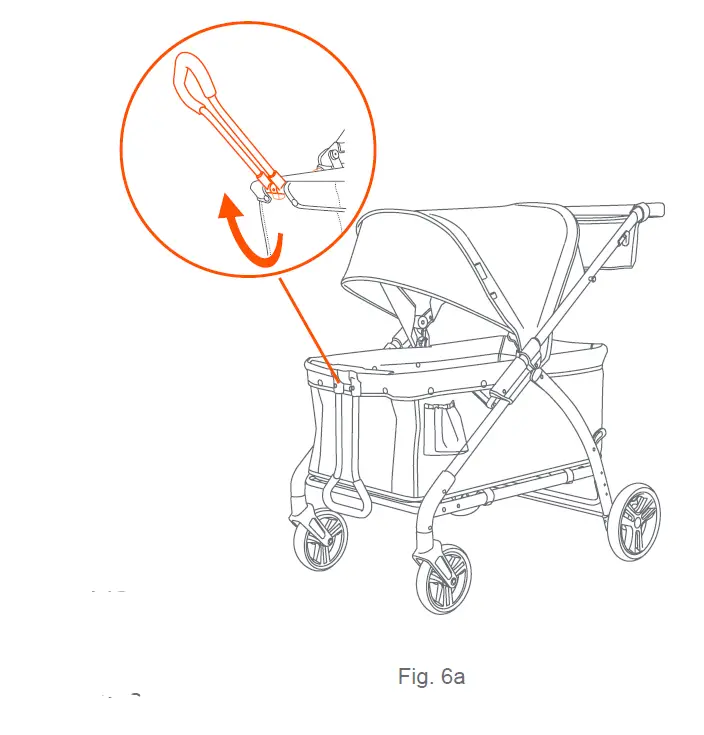

   Locate the pull handle on the front end of the wagon frame Rotate up to desired position (Fig. 7a).
   TO PUT IT AWAY:
   Reverse step (Fig. 7a).
   NOTE: When not in use ensure the handle is it the lowest position resting on the wagon frame (Fig. 7b).
8. TO FOLD STROLLER
   WARNING: Care must be taken when folding the stroller to prevent finger entrapment.
   CAUTION: Do not allow children near stroller while folding.

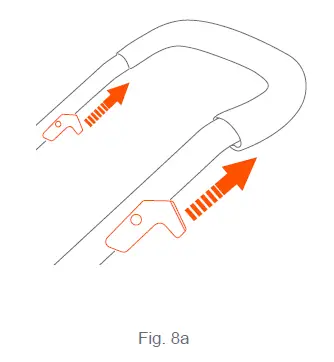

   • Pull both triggers together to fold the wagon (Fig. 8a).
   • Push down on the stroller handle until the stroller is completely folded (Fig. 8b).
   • Ensure to use the fold latch to lock the stroller frame securely (Fig. 8c).
   • For a compact fold ensure all fabric parts are tucked in neatly (Fig. 8d).
9. TO UNFOLD STROLLER

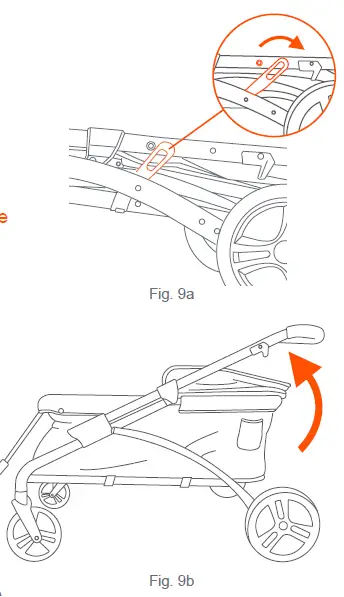

   • Release the fold latch (Fig. 9a). Unfold the stroller frame by pulling the stroller handle upward until it clicks into locked position (Fig. 9b).
     NOTE: Check the GREEN indicators are visible to ensure the frame is securely locked before continuing.
10. Stay near and watch child during use NEVER leave child unattended.

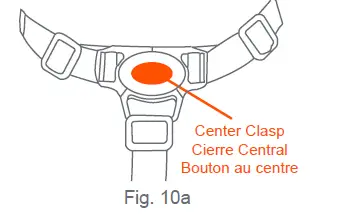

    • Place the crotch strap between your child’s legs. Insert the Harness Buckles into the Center Clasp with the Button.

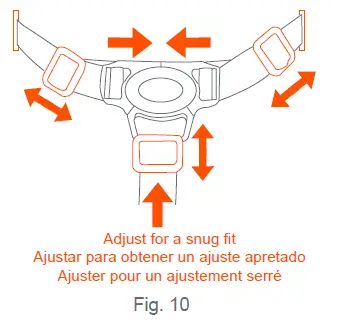

    • Adjust waist straps for your child’s comfort and safety by sliding buckles in either direction. Safety straps are to fit snug around your child (Fig. 10).
11. Push Button on Center Clasp, the two Harness Buckles will pop free (Fig. 11).

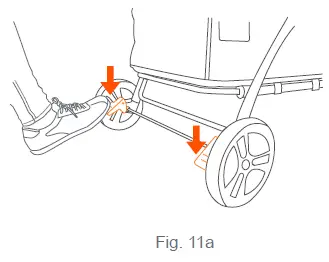

12. To engage brakes, apply light downward pressure to the brake levers of the rear axle. The stroller may require slight forward or rearward movement in order to line up the teeth on the brake with each wheel brake cluster (Fig. 12).
    NOTE: Check that the stroller will not move and that both brakes are properly applied.

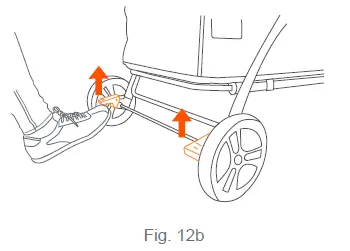

    To release, gently lift up on the brake lever (Fig 12).
    MAINTENANCE
13. To remove the canopy: Press the tabs on both interior sides of the canopy and pull up to remove (Fig. 13).
    FRONT WHEEL REMOVAL

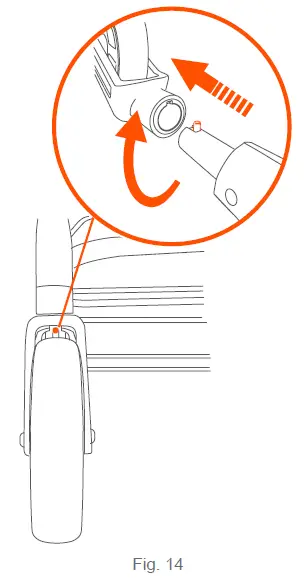

14. First rotate the wheel upward to view the pin hole. Push in release button on the inside of the wheel hub and pull wheel assembly from hub (Fig. 14).

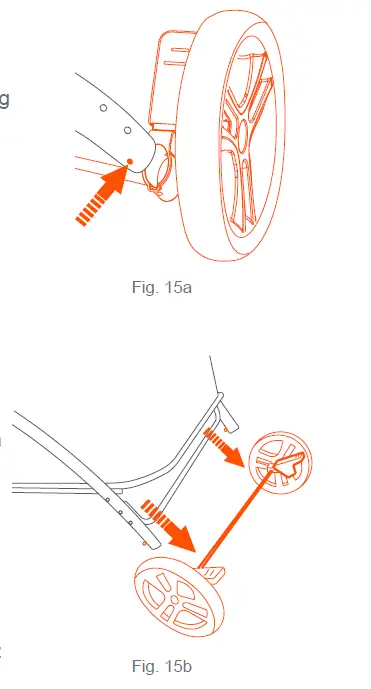

15. To release the entire rear wheel assembly, push in the rear wheel pin. The wheel assembly easily detaches from the bushing (Fig. 15a).
    • If replacing the rear axle, press the pin on each side behind the wheel hub. Pull the rear axle out from the hub (Fig. 15b)
      NOTE: NEVER use stroller if wheels do not lock into place. If you need assistance, please contact our customer service department at 1-800-328-7363, M-F, between 8am and 4:30pm, PST

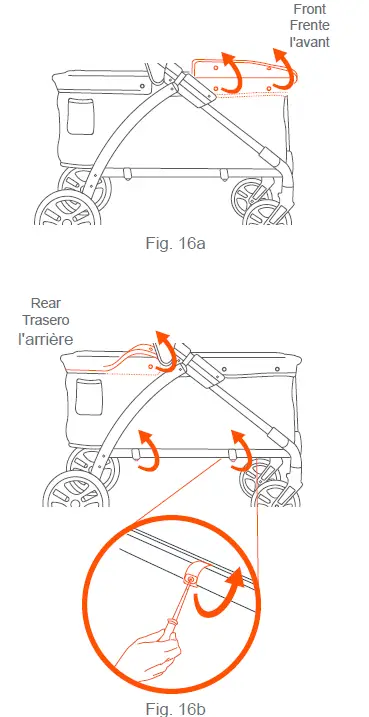

16. If replacing the wagon fabric, undo the snap buttons on the fabric on the front end of frame (Fig. 16a).
    • Remove the screws from the bottom of the frame (Fig. 16b).
    • Undo the hook and loop on the rear end of the frame (Fig. 16b).
    • Repeat for the other second side.
      NOTE: To reattach the wagon fabric, (reverse step 16), and insert the crotch buckles into the slots.

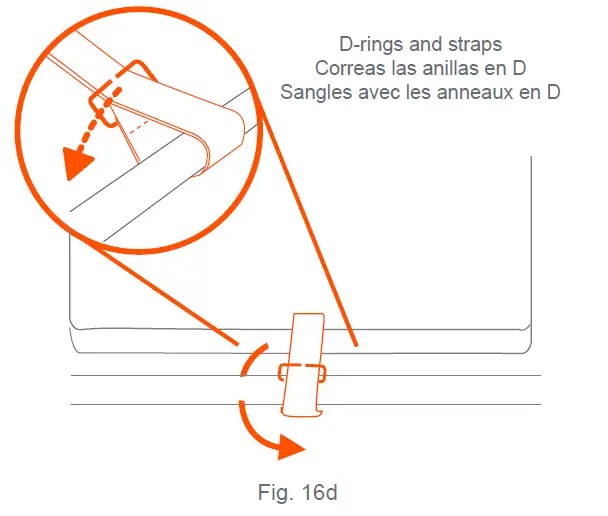

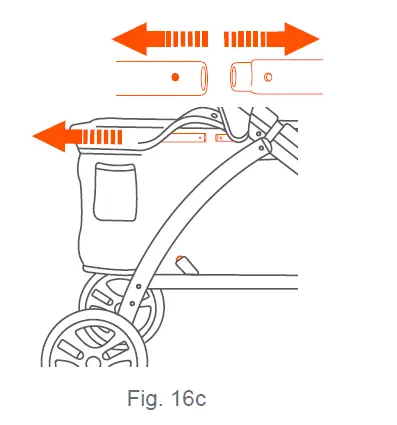

    • Press the pin to remove the rear frame bar and pull the fabric away from the frame. Remove the the bar from the fabric (Fig. 16c) and remove the D-ring on each side (Fig. 16d).

MAINTENANCE

NOTE: NEVER use stroller if wheels do not lock into place. If you need assistance, please contact our customer service department at 1-800-328-7363, M-F, between 8am and 4:30pm, PST

• Cleaning Seat Pad: Spot clean only – Surface wash small spots with mild solution of soap and water. Rinse with water to remove soap solution. Wipe or air dry.
• Cleaning Stroller: Surface wash stroller frame, plastic parts and fabric with mild solution of soap and water. Wipe surfaces with water to remove soap solution. Wipe or air dry.
• Check your stroller for loose screws, worn parts, torn material or stitching on a regular basis. Replace or repair parts as needed.

BABY TREND® CUSTOMER SERVICE
The Customer Service Department can be contacted at 1 (800) 328-7363 Monday through Friday between 8:00 a.m. and 4:30 p.m. (PST). Return Authorizations are required prior to returning product(s) to Baby Trend®.
