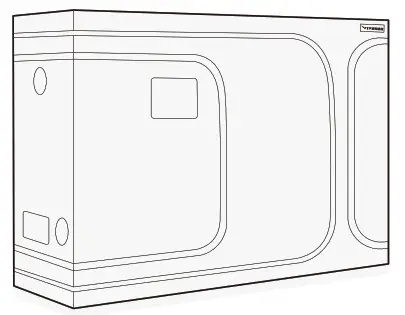

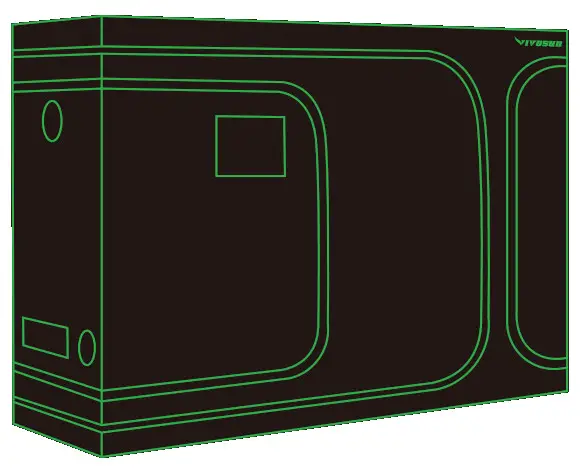

Vivosun 108x48x80 Inch Grow Tent Instruction Manual

Grow Tent
108″x 48″x 80″

Assembly Instructions
© VIVOSUN 2021

108X48X80 Inch Grow Tent

Love what you grow™
Welcome to
Thank you for choosing VIVOSUN. We are committed to product quality and friendly customer service. If you have any question or suggestion, please don’t hesitate to contact us.

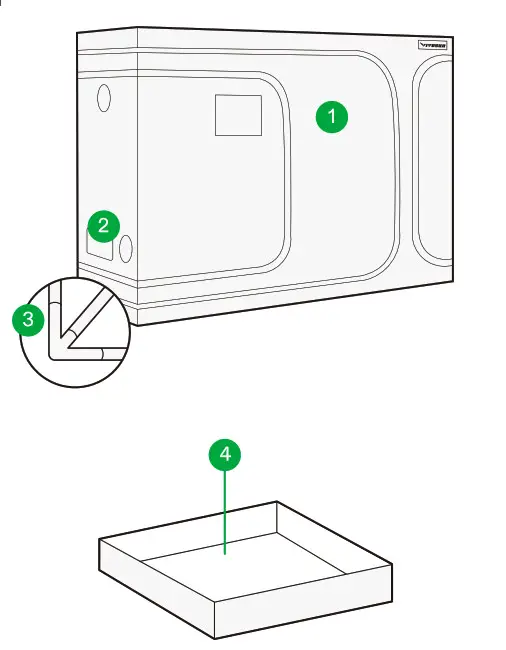

KEY FEATURES

1. High-Density Canvas The exterior is Mylar Canvas with 100% light-proof 600D density rating while the interior is lined with light amplifying diamond-patterned reflective material.
2. Viewing Window A transparent window covered by flap offers you a clear view of the interior without needing to open and compromise your plants’ environment
3. Heavy-duty Frame Thick 19mm steel tubes and connectors provide the tent with a sturdy structure. Can hold fans and lights up to 165 pounds.
4. Floor Tray The floor tray with reflective waterproof lining catches water, soil, and other debris to prevent leakage inside the grow tent.

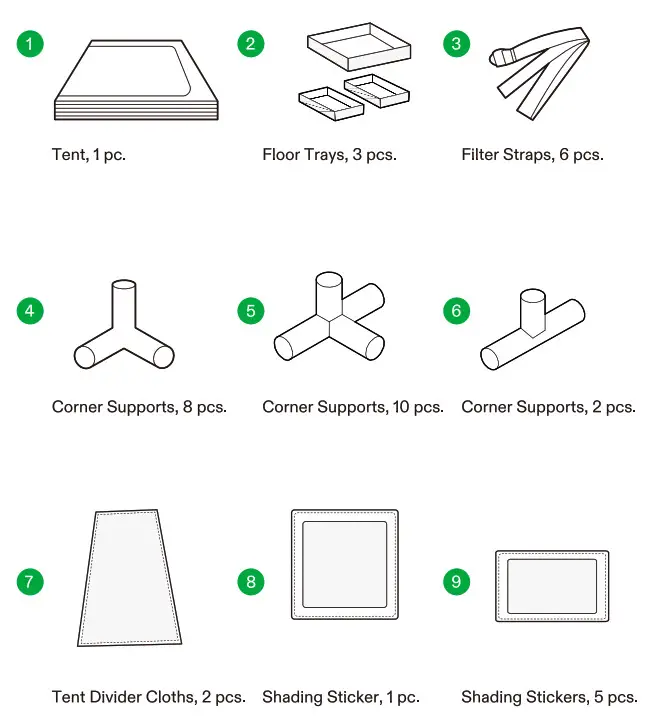

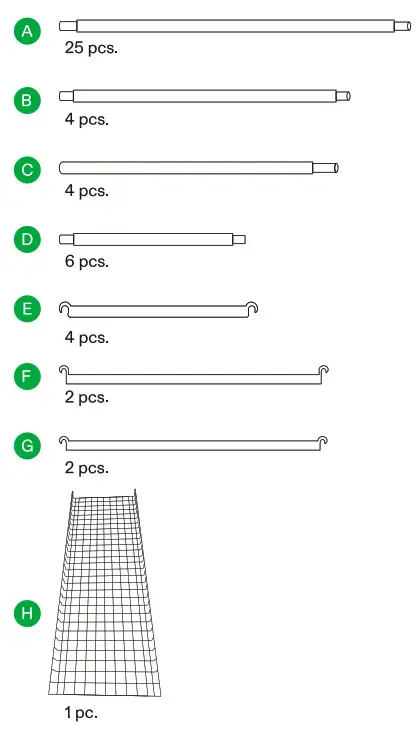

PRODUCT CONTENTS

TENT SETUP

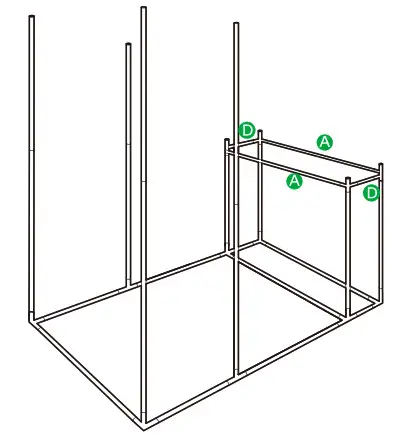

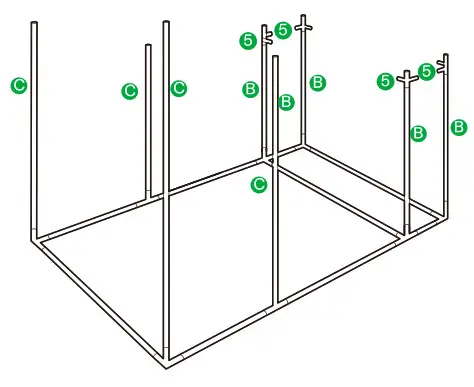

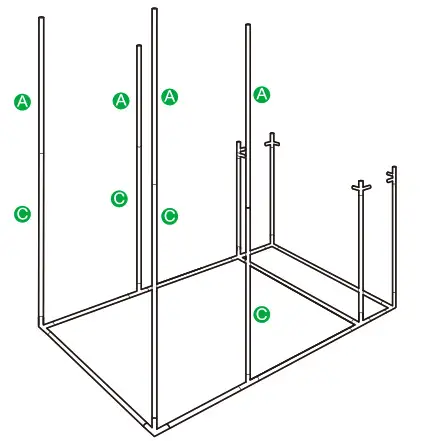

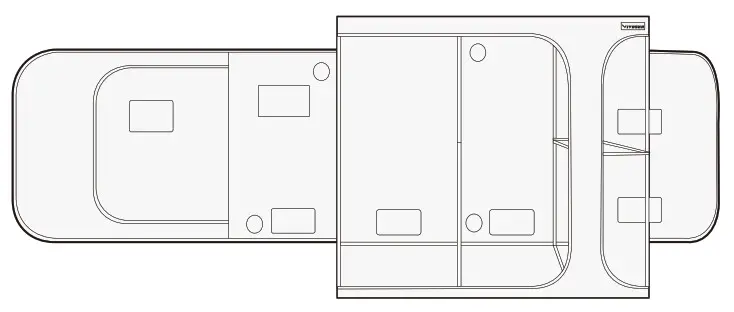

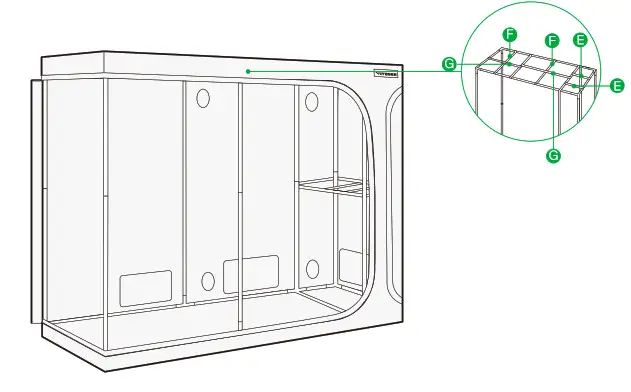

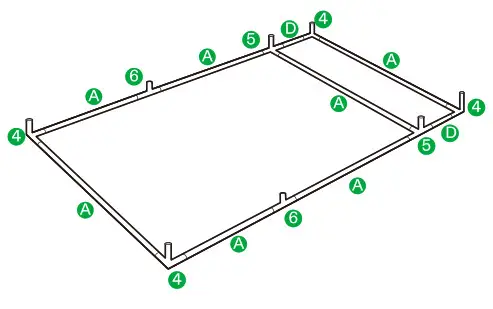

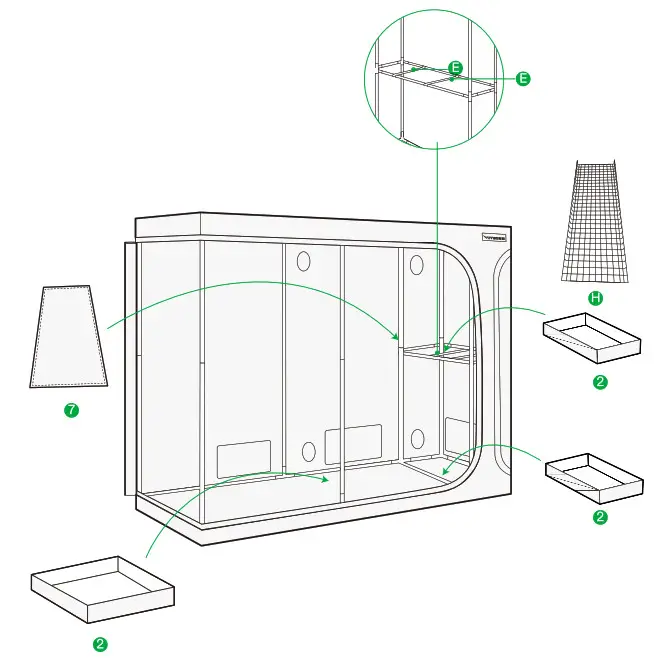

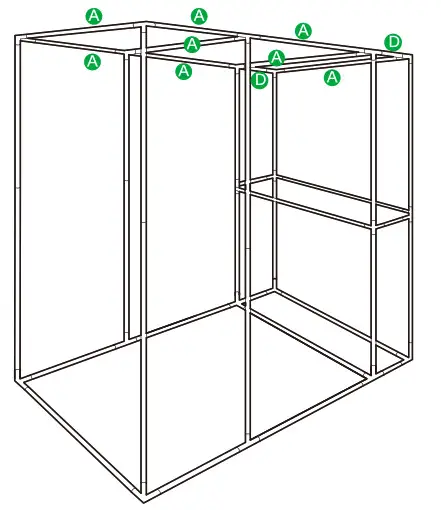

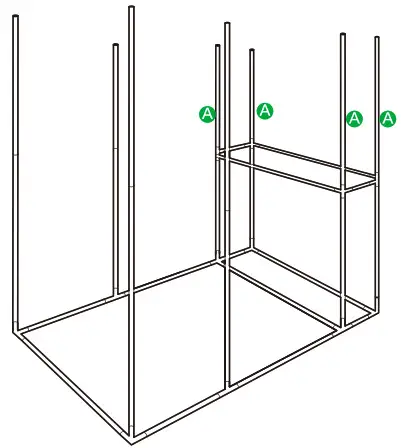

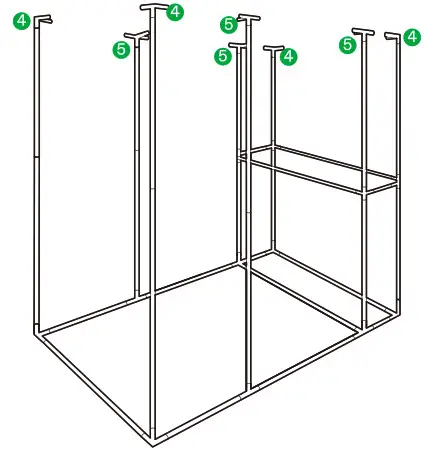

STEP 1 Connect the A-Poles (7 pcs.) and the D-Poles (2 pcs.) to the 4-Corner Supports (4 pcs.), the 5-Corner Supports(2 pcs.), and the 6-Corner Supports (2 pcs.), as shown in the picture.STEP 2 Install the B-Poles (4 pcs.) and the C-Poles (4 pcs.), and affix the 5-Corner Supports (4 pcs.) to the tops of the B-Poles as shown in the picture. STEP 3 Connect the A-Poles (4 pcs.) to the C-Poles (4 pcs.), as shown in the picture.STEP 4 Install the A-Poles (2 pcs.) and the D-Poles (2 pcs.) in the positions indicated in the picture.STEP 5 Install the A-Poles (4 pcs.) in the positions shown in the picture.STEP 6 Install the 4-Corner Supports (4 pcs.) and the 5-Corner Supports (4 pcs.) in the positions shown in the picture.STEP 7 It is important that you complete the following instructions in order. First, install the A-Poles (8 pcs.) as shown. Second, install the D-Poles (2 pcs.) as shown.STEP 8 Fix the installed frame to the bottom of the tent, and then fix the top to the frame.STEP 9 Install the E-Poles (2 pcs.), the H-Shelf (1 pc.), the 2-Trays (3 pcs.) and the 7-Tent Divider Cloth (1 pc.) in their appropriate positions as shown. STEP 10 Place the E-Poles (2 pcs.), F-Poles (2 pcs.) and G-Poles (2 pcs.) at the top of the frame.STEP 11 Close the door and zip up the tent.

VENTILATION GUIDE

Inline Fan & Grow Light
First hang your inline duct fan by the roof support beams. Position the fan on the opposite end of your intake hole to optimize airiow. If you are installing a carbon filter inside, use the included straps to hang the carbon filter.
Then install your grow light. You may use rope clip hangers to install these products.
Double-sided Cinches
Install any necessary duct tubes onto the ducting ports. Use the cinches on either end to secure the duct tubes onto the grow tent.Intake Holes
Introduce fresh air by using one of the two ventilation holes at the bottom of the grow tent. Open a passive intake screen or create active intake by attaching an additional inline fan to a duct port.

COMPLETE YOUR SETUP

Inline Fan with Control Panel & Plate
The VIVOSUN Inline Duct Fan helps with ventilation for horticultural, industrial, or household use. Its durable plastic fan housing and blades deliver powerful airflow while operating at extremely low noise levels.
The control panel with humidity/temperature setting is a perk as a result of upgradation.Carbon Filter
The VIVOSUN Carbon Filter is an essential part of any ventilation system. It uses Australian virgin activated charcoal, with each carbon molecule magnetically charged to attract passing particles. It helps eliminate undesirable odors, pungent smells and particulate matter from indoor grow tents, hydroponics grow rooms and other enclosed spaces.Ducting Tubes
With flame-retardant coating, the VIVOSUN Three-Layered Aluminum Air Ducting Tube can endure extreme temperatures. It is sturdy and flexible, making it the perfect choice for ducting attached to exhaust fan blowers or inline fans. It can easily be used in multiple settings including HVAC, green houses, grow rooms, grow tents, and anywhere else you might need high-quality ducting.LED Light
The LED light is a very powerful tool for plant growers who manipulate photoperiodic responses to help the plant to grow better. The VS series has plenty to like, such as the advanced lamp beads from Samsung, dimmable ballast, full-spectrum lighting, etc. The well-selected Samsung LM301H Diodes and Sosen ballast offer outstanding perfor-mance for long-term illumination. In addition, multiple dimmable lights are supported to meet the different needs in different growth stages.Elastic Trellis Netting
Why it’s good for growers to choose the trellis netting? It’s made of a braided polyester string that is very pliable, soft and strong. It works well to support plants in their natural form or train them to maximize yields. Trellis your garden and crops for big gains: higher yields, faster harvest, and improved quality.Grow Bags
There are many advantages for you to use fabric grow bags to enjoy the fun of garden-ing! Sturdy nylon handles make it easy to move to the sunniest spot, or to a protected location on chilly nights. Its made from patented fabric that air-prunes roots for stronger, healthier plants. The fabric also aerates the soil, prevents heat build-up, and allows excess water to drain away. Grow bags fold for storage and are reusable year after year.

WARRANTY

Warranty The VIVOSUN warranty program is our commitment to you. That the product sold by VIVOSUN will be free from defects in manufacturing for a period of two years from the date of purchase. If a product is found to have a defect in material or workmanship within one years of the date of purchase, we will take the appropriate actions as defined in this warranty to resolve any issues.
This warranty program applies to any order, purchase, receipt, or use of any products sold by VIVOSUN or our authorized dealerships. The program covers products that have become defective, malfunctioned, or has otherwise become unusable. The warranty program goes into effect on the date of purchase and expires two years from the date of purchase. If your product becomes defective during that period VIVOSUN will replace your product with a new one or issue a full refund. This warranty program does not cover defects arising from abuse or misuse.
This includes physical damage, submersion of the product in water, incorrect installation such as use with the wrong voltage, or misuse for any reason other than the products intended purpose. VIVOSUN is not responsible for consequential loss or incidental damage of any nature caused by the product.
We will not warrant damage from normal wear such as scratches and dings.
If you run into any issues with this product, contact us and we’ll happily issue a replacement or a full refund!

SPECIFICATIONS

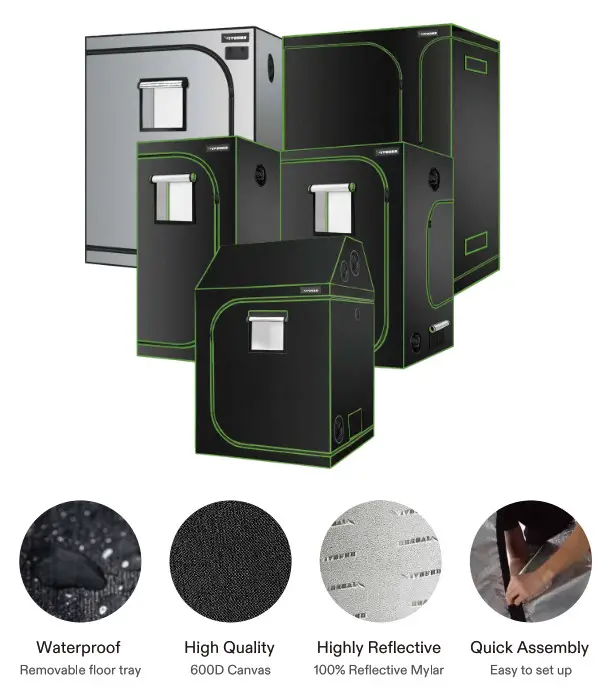

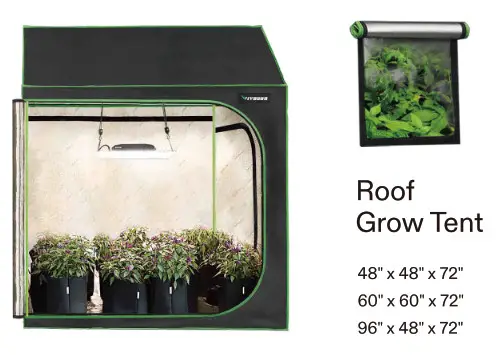

GROW TENT COLLECTION

VIVOSUN is an expert in professional indoor gardening and hydroponic equipment. We are committed to being your best, most trusted partner and provider of the professional-grade grow tents and equipment.

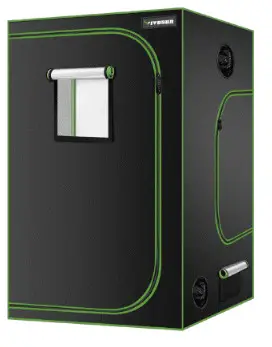

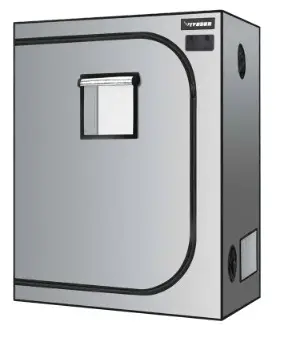

Space Gray Grow Tent
36″ x 36″ x 72″
48″ x 24″ x 60″
48″ x 48″ x 72″
60″ x 60″ x 80″

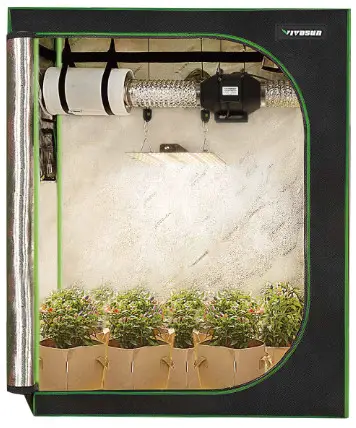

96″ x 48″ x 80″The Classic Grow Tent

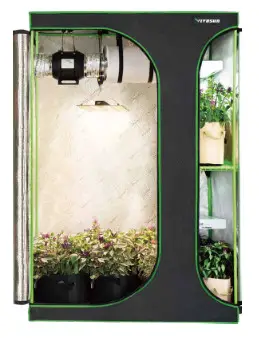

2-in-1 Grow Tent
36″ x 24″ x 53″
48″ x 36″ x 72″
60″ x 48″ x 80″
108″ x 48″ x 80″Complete Kit Grow Tent
