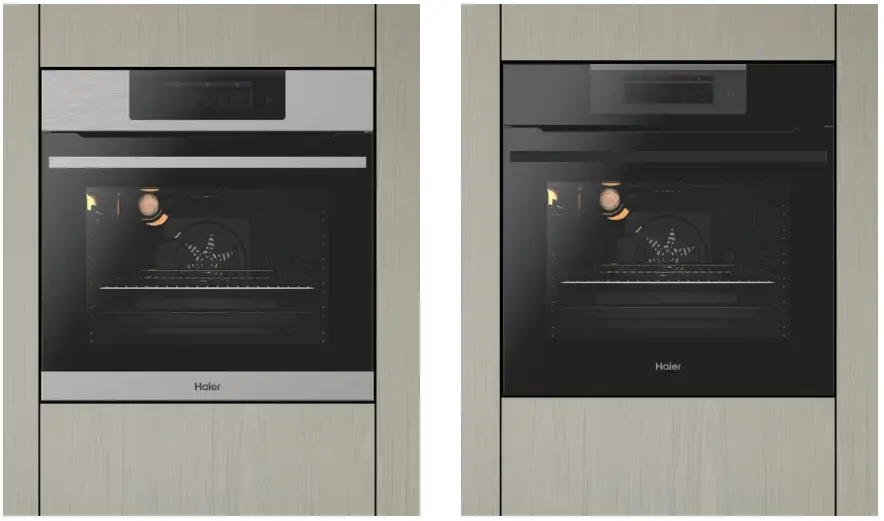

HWO60S14EPX4 Oven, 60cm, 14 Function, Self Cleaning and Air Fry
Owner’s Manual
HWO60S14EPX4, HWO60S14EPB4
Oven, 60cm, 14 Function,
Self-cleaning and Air Fry
HWO60S14EPX4 Oven, 60cm, 14 Function, Self Cleaning and Air Fry
Height………….. 595mm
Width………………. 595mm
Depth……………………. 568mm
Weight (Packaged)………………40 kg
Weight (Product)………………….38 kg
FEATURES
- Elevated design to pair with the Haier family of kitchen appliances in matching stainless steel or black glass
- Removable oven door and inner glass for greater access when cleaning
- 14 oven functions including Air Fry, Rotisserie, Pastry Plus and Maxi Grill
- Refined, square handle design
- Clever Rotisserie accessory for a succulent roast
- Two Pyrolytic Self-cleaning oven functions plus Hydro Easy Clean
- Sleek touch control panel with intuitive cooking options such as delay start
- Even convection heating on every shelf
- Triple-glazed glass door for safety
- Soft-close door for effortless handling
- Telescopic shelf runners for easy removal of hot dishes
ACCESSORIES
- Air Fry tray
- Roasting dish
- Telescopic runners
- Rotisserie set
- 2x Wire racks/wire shelves
Product overview

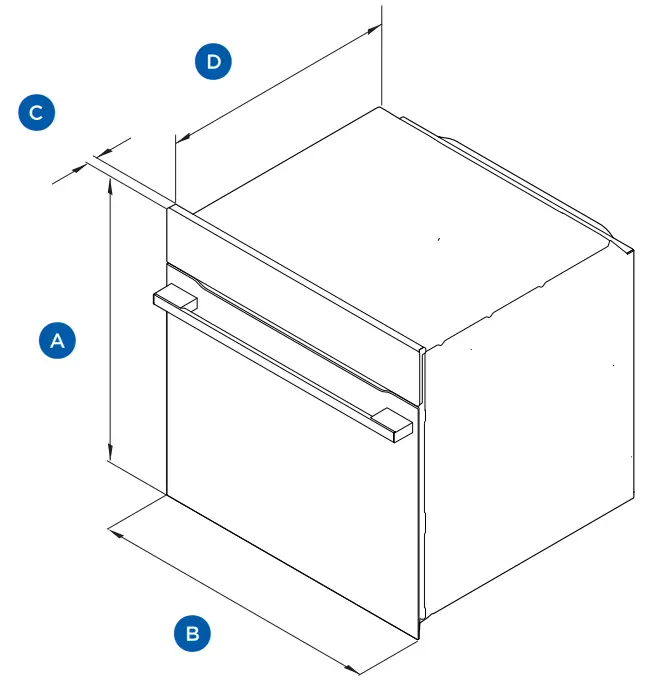

PRODUCT DIMENSIONS
| mm | ||
| A | Overall height | 595 |
| B | Overall width | 595 |
| C | Chassis depth | 548 |
| D | Depth from front frame | 20 |

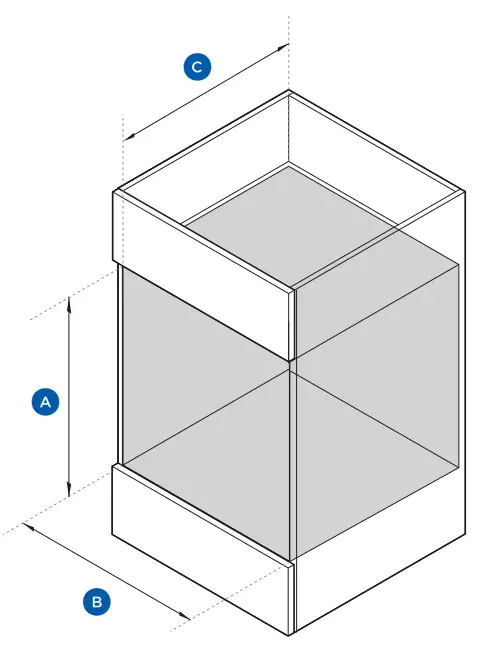

CAVITY DIMENSIONS
| A | Overall height of cavity | 595 |
| B | Overall width of cavity | 560 |
| C | Minimum depth of cavity | 560 |
SERVICES
| • Supply | 220-240V, 50Hz |
| • Rated Current | 10 – 10.9 A |
| • Connection | Hard wired |
90002977 The models shown in this Specification Guide (SG) may not be available in all markets and are subject to change at any time. Product specifications may vary from
those shown. This SG should not be used as installation guidance for any product. Further information is required to safely and correctly install the products featured here.
Specific installation guidance will be available with the product on delivery and on our website haier.com
