CECI
IN-GROUND
MODEL:
Ceci 160
Ceci 160 LED in-ground luminaire
CAUTION! Installation and maintenance procedures must be carried out only a tier switching off the electricity supply. Use energy-saving lamps only. If present, fit the gasket properly inside the diffuser, to ensure protection. Fumagalli Srl accepts no responsibility whatsoever for damages caused by incorrect installation, misuse, or when used by combining it with-original spare parts. If in doubt, consult a qualified electrician. Keep the instructions.
CECI 120 – CECI 160 GX53 LED
GROUND INSTALLATION

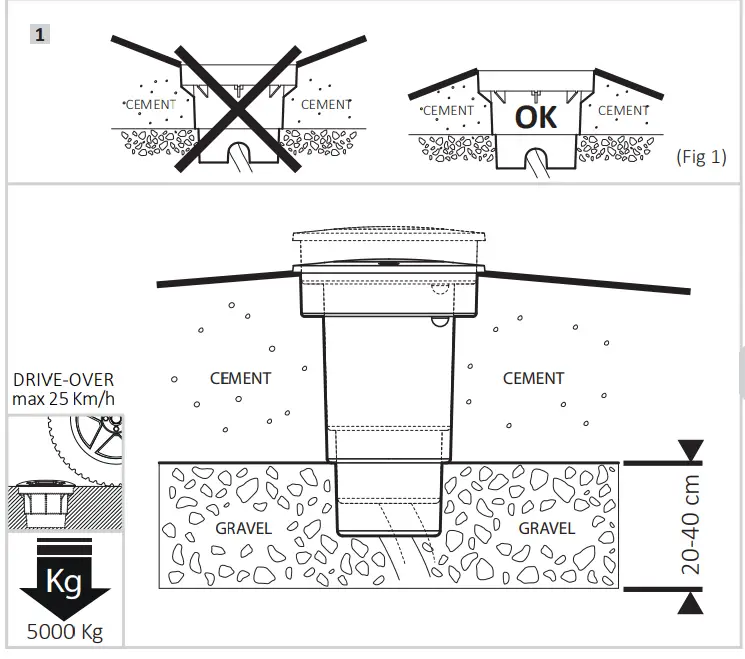

To ensure good drainage and to avoid water stagnation, provide a 30 cm draining gravel layer or a draining pipe system. Caution! Do not install the luminaire on hollow areas or on standing water areas (Fig. 1).

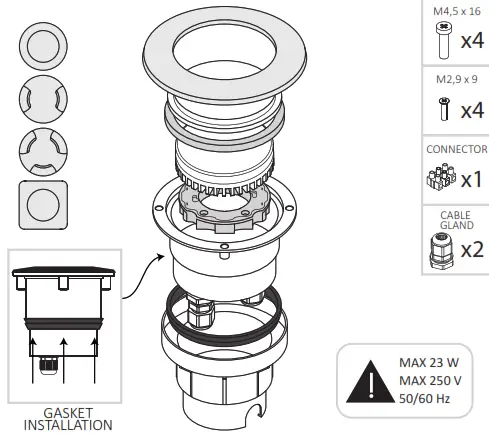

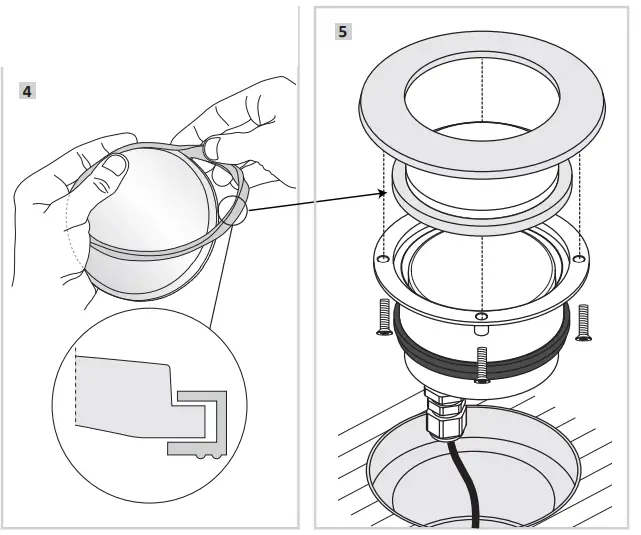

HOW DO FIT THE GASKET

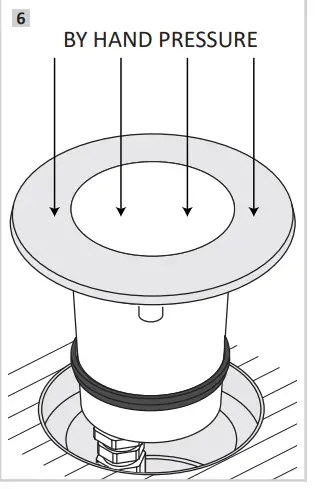

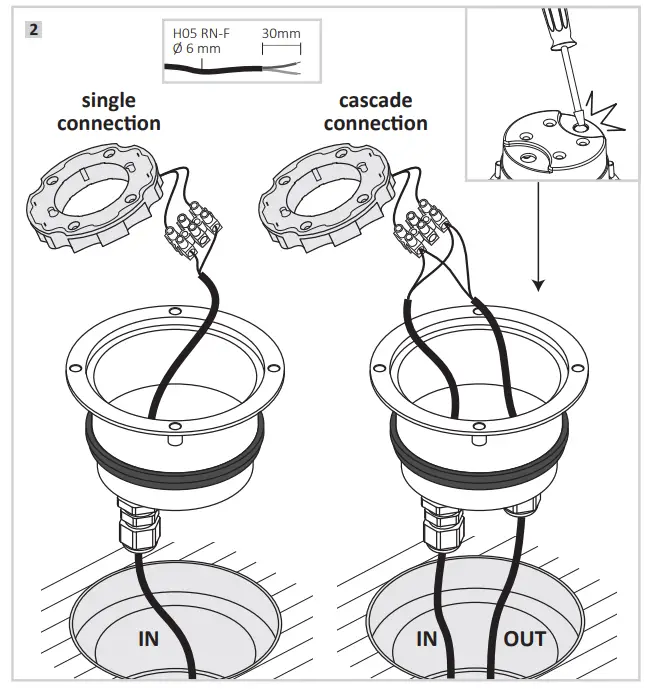

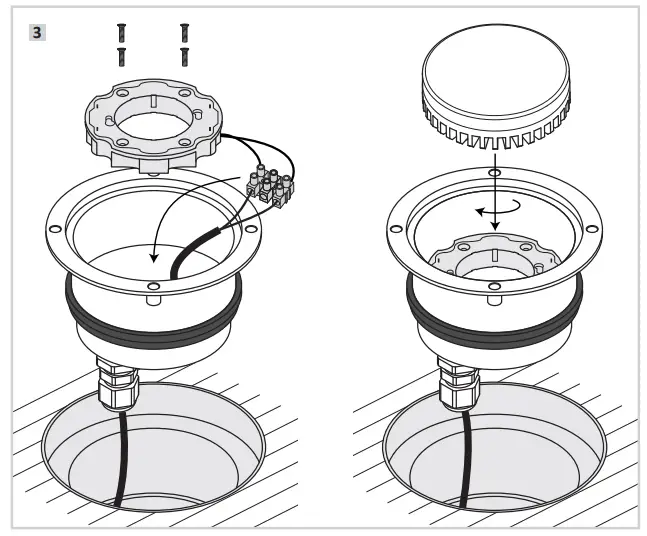

INSTALLATION

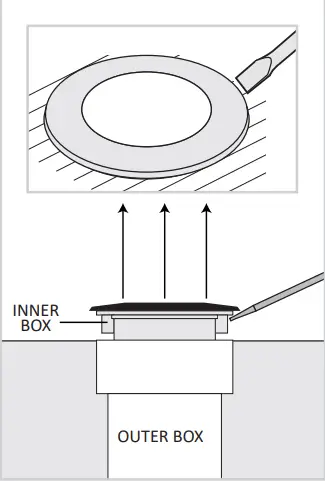

REMOVAL

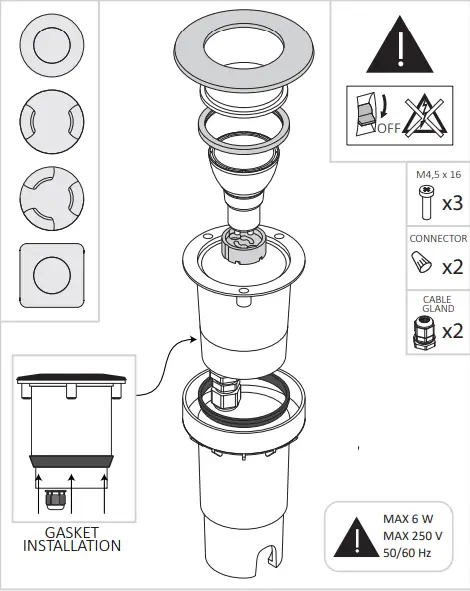

CECI 90 GU10 LED
GROUND INSTALLATION
To ensure good drainage and to avoid water stagnation, provide a 30 cm draining gravel layer or a draining pipe system. Caution! Do not install the luminaire on hollow areas or on standing water areas (Fig. 1).

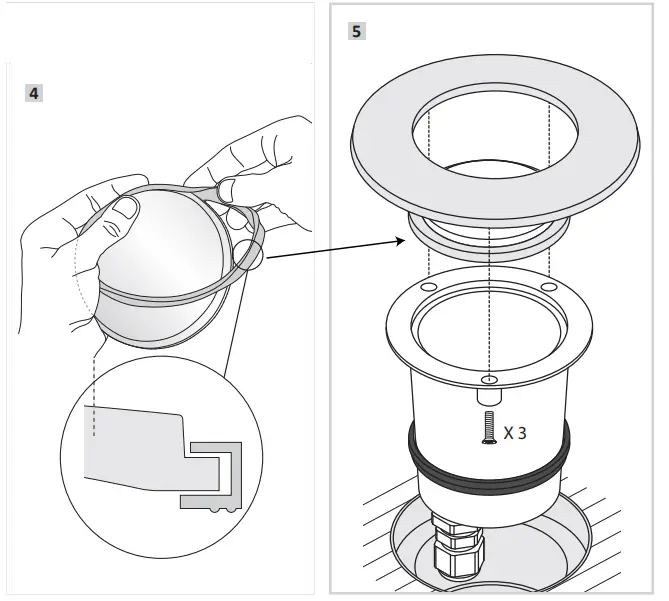

HOW TO FIT THE GASKET

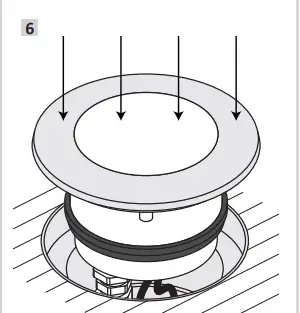

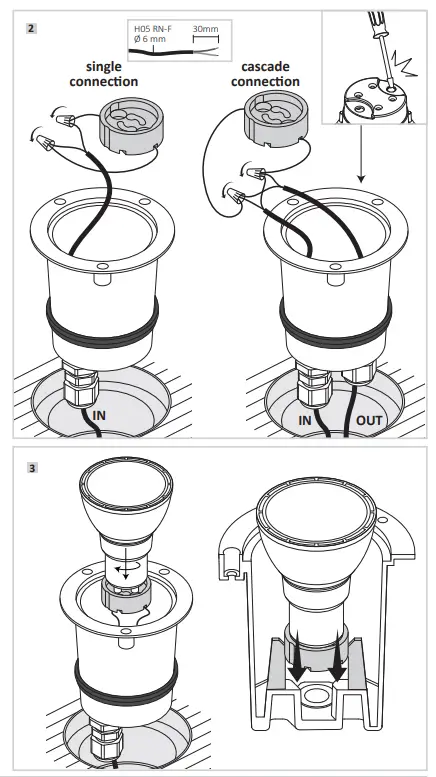

INSTALLATION

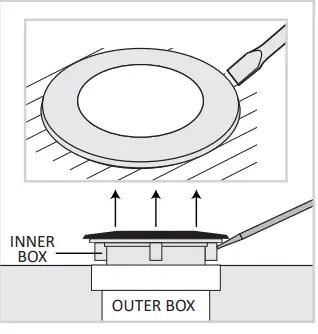

REMOVAL
[WARRANTY]
Fumagalli products are C-marked. Declaration C of conformity is available at www.fumagalli.it/company. The warranty of the Fumagalli products is of 1 year. In case of evident manufacturing faults, Fumagalli Srl according to his unquestionable judgment, will proceed to the repair or the replacement. This warranty does not cover any cost neither regarding the transport, the uninstallation, the re-installation, nor the dismantlement of the material.
MADE IN ITALY
www.fumagalli.it
