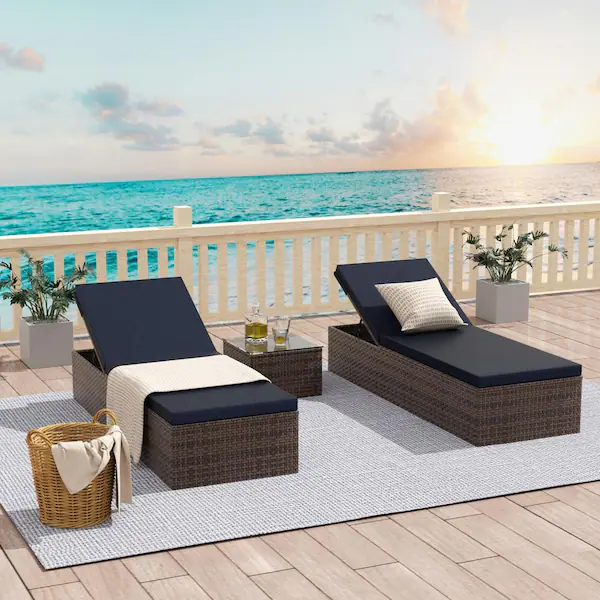

WESTIN OUTDOOR OP4001 Sun Lounger Set With Cushions And Table
NOTICE
Do not overtighten screws. (Insert all screws before tighten screws.)

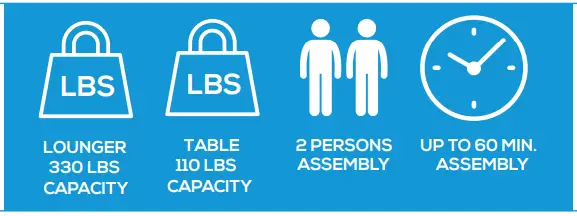

- Please do not exceed the weight limitations of this item.
- Do not stand on or use any part of this item as a step ladder.
- Firmly secure all bolts, screws and nuts before use.
- Reconfirm that all bolts, screws, and nuts are secure every 90 days.
- Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
- Be aware that some parts are heavy and have sharp edges.
TOOLS REQUIRED

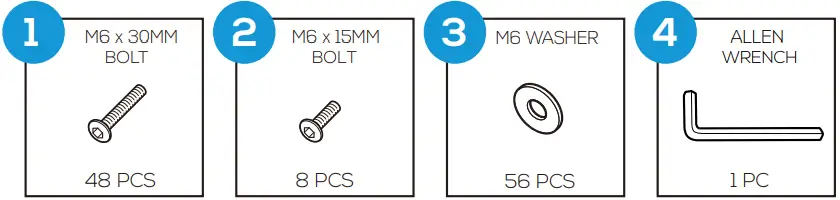

HARDWARE

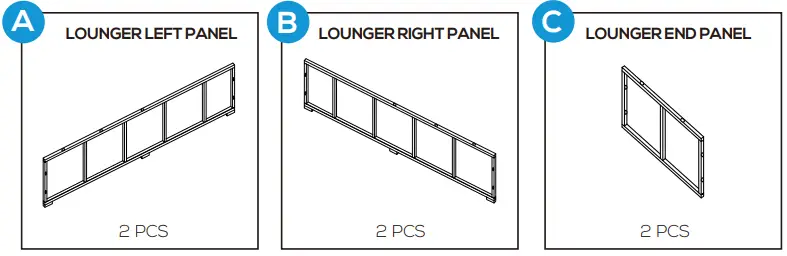

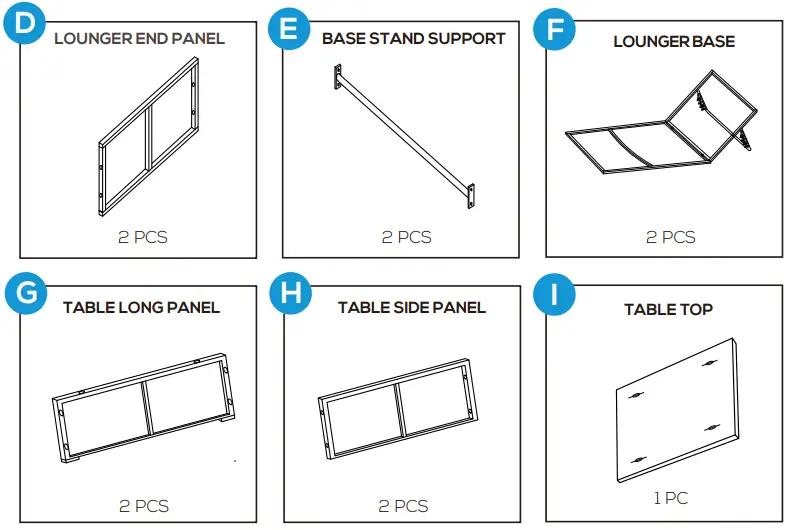

PARTS

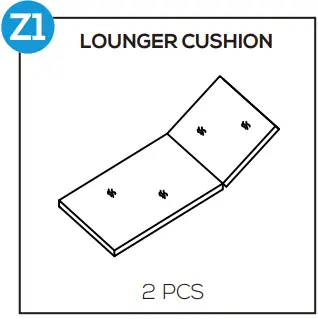

CUSHION

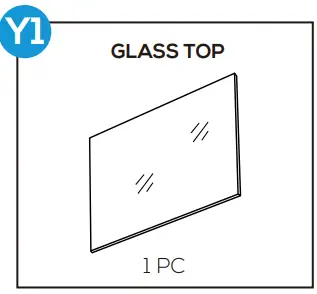

GLASS
PRODUCT ASSEMBLY – LOUNGER

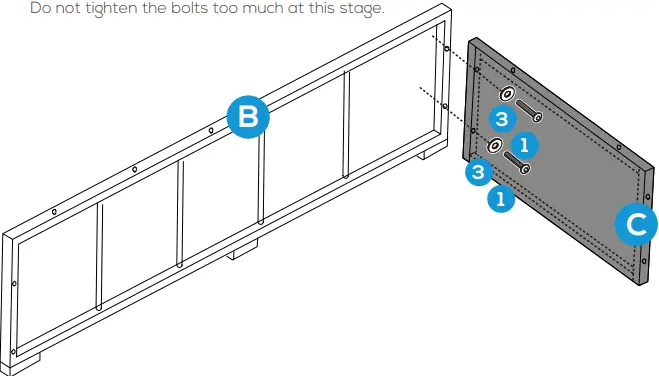

- Attach part C Lounger End Panel to part B Lounger Side Panels with 2 PCS of part 1 Bolt and part 3 Washer.

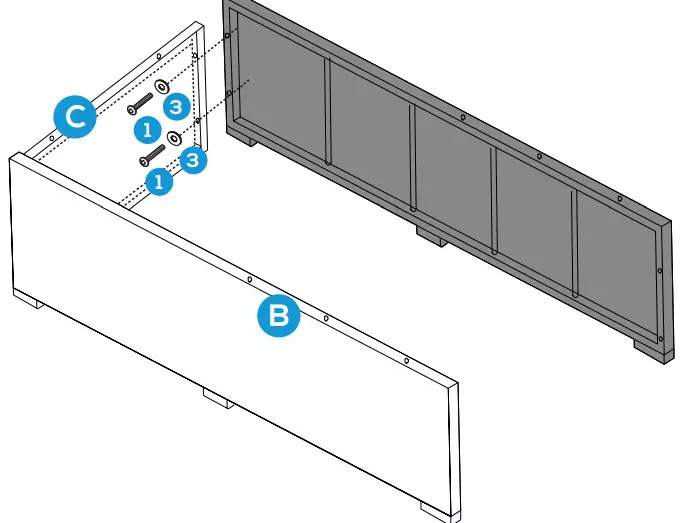

- Attach part A Lounger Side Panel to part C Lounger End PaneL with 2 PCS of part 1 Bolt and part 3 Washer.

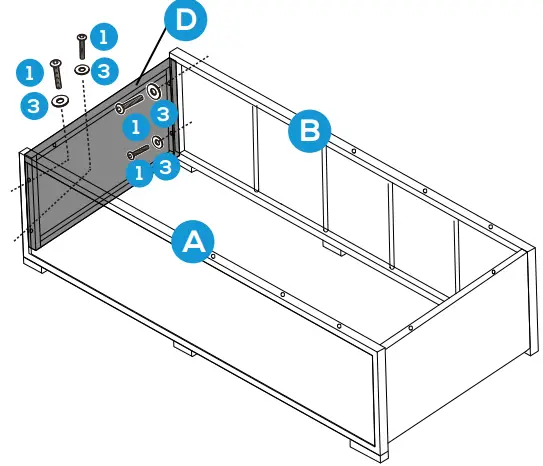

- Attach part D Lounger End panel to part A and B Lounger Side Panels with 4 PCS of part 1 Bolt and part 3 Washer.

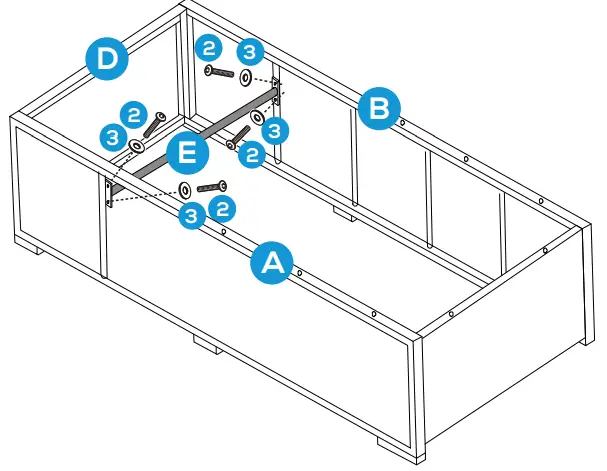

- Attach part E Base Stand Support to part A and B Lounger Side Panels with 4 PCS of part 2 Bolt and part 3 Washer.

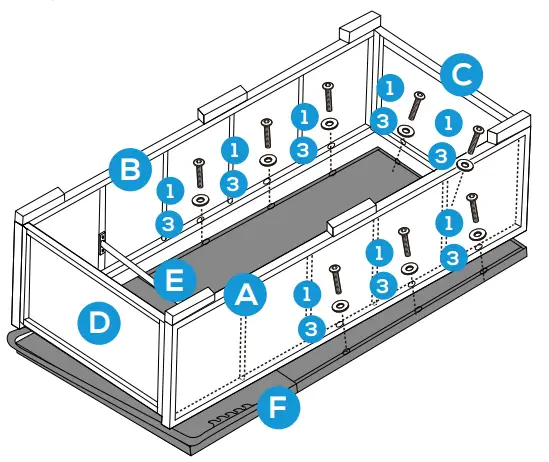

- Attach part F Lounger Base to Lounger Body (combimed part A+B+C+D) with 8 PCS of part 1 Bolt and part 3 Washer.

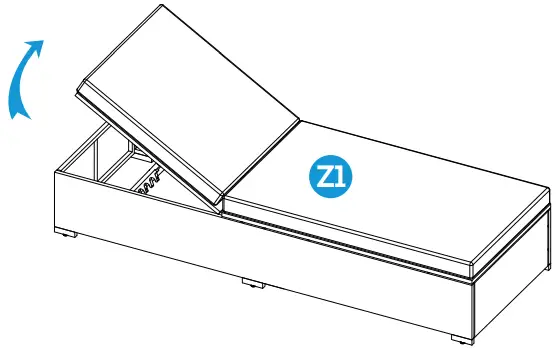

- Pull the end of the Lounger Base upward and attach the teeth onto part E Stand Support. Place the Cushion onto the Lounger Base to finish the assembly.
Do the same to assemble another Lounger.

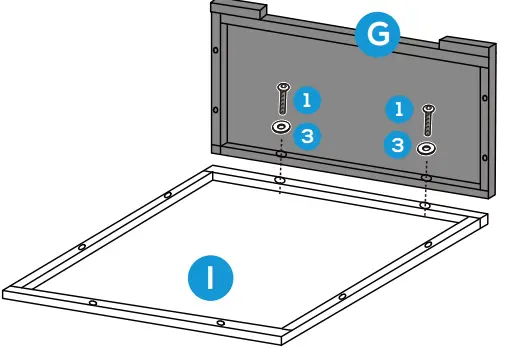

- Attach part G Table Long Panel to part I Table top with 2 PCS of part 1 Bolt and part 3 Washer.
Do not tighten the screws too much at this stage.

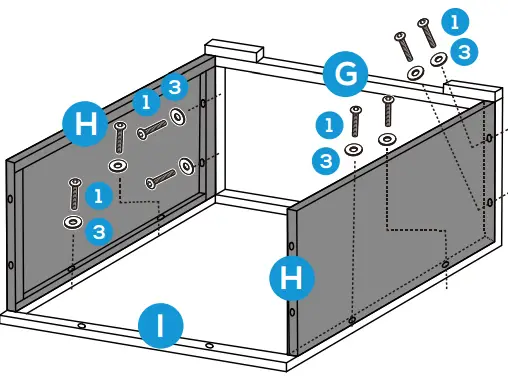

- Attach 2 PCS of part H Table Side Panels to part G Table Long Panel and part I Table Top with 8 PCS of part 1 Bolt and part 3 Washer.
- Attach part G Table Long Panel to part I Table top and part H Table side panels with 6 PCS of part 1 Bolt and part 3 Washer.
Check and tighten all bolts again to ensure this table is steady enough.

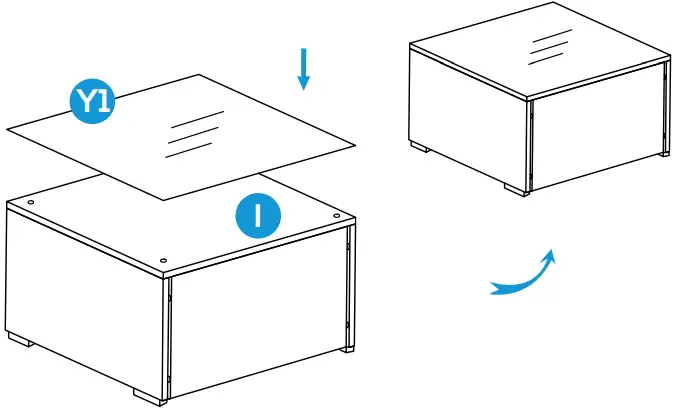

- Place part Y1 Glass onto the coffee table to finish the assembly.
