QUICK REFERENCE GUIDE > RF170WLKUX6

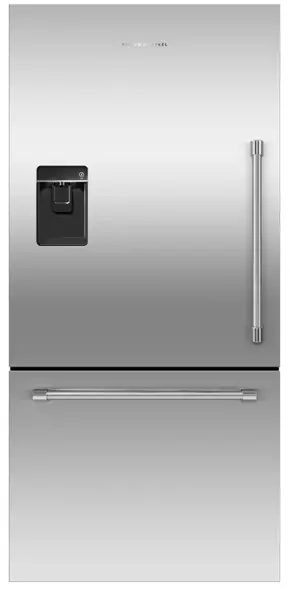

Freestanding Refrigerator Freezer, 32″, 17.5 cu ft, Ice & Water
Series 7 | Professional Stainless Steel | Left hinge
This stylish left hinge refrigerator has a large capacity and comes in timeless stainless steel.
- ActiveSmart™ technology helps keep food fresher for longer by constantly maintaining the ideal temperature
- Door water dispenser and internal ice maker
- The spacious bottom freezer with a full extension drawer gives easy access to frozen goods
DIMENSIONS
| Height | 67 1/2″ |
| Width | 31 3/32″ |
| Depth | 27 3/8″ |
FEATURES & BENEFITS
ActiveSmart™ Foodcare
Every time you open your refrigerator, the temperature around your food changes. ActiveSmart™ food care adjusts airflow to create a stable temperature, helping your food stay fresher for longer.
Easy cleaning
No more permanent dirty marks with our EZKleen feature for stainless steel refrigerators. Anti-fingerprint coating means you simply wipe clean any marks. Spill-safe secure glass shelves easily capture any drips or leaks.
Design quality
Our refrigerators are designed and built using quality materials. We use real stainless steel on our refrigerators and solid glass for shelving.
Water on tap
The slimline dispenser makes it easy to fill almost any sized jug or vessel with cool filtered water and doesn’t take up any storage space in your refrigerator.
Ice maker
Fresh ice is always available for you in a dedicated freezer bin. Simply turn it off to free up freezer space or during busy times, you can boost ice production by up to 30%.
SPECIFICATIONS
Accessories
| Joiner kit | 819264 |
| Replacement water filter | 847200 |
| Surround Kit (Joined left/right | Part number 24476 |
Capacity
| Total gross capacity | 17.1cu ft |
| Volume freezer | 4.8cu ft |
Consumption
| Energy usage | 535kWh/year |
Features
| Adjustable door shelves | 4 |
| Adjustable glass shelves | 4 |
| Covered door shelves | 2 |
| Door alarm | • |
| Front leveling feet | • |
| Fruit and vegetable bins | 2 |
| LED lighting | • |
| Rear rollers | • |
| SmartTouch control panel | • |
| Stackable bottle holders | 4 |
| Ultra slim water dispenser | • |
| Water Filter | Model number 836848 |
Freezer Features
| Automatic ice maker | • |
| Bottle chill | • |
| Door alarm | • |
| Fast freeze | • |
| Ice Boost | • |
| Ice bin and scoop | • |
Performance
| ActiveSmart™ Foodcare | • |
| Adaptive defrost | • |
| Frost free freezer | • |
| Humidity control system | • |
| Inverter controlled compressor | • |
| Sabbath mode | • |
Power requirements
| Rated current | 3.5A |
| Supply frequency | 60Hz |
| Supply voltage | 110 – 120V |
Product dimensions
| Depth | 27 3/8″ |
| Height | 67 1/2″ |
| Width | 31 3/32″ |
Warranty
| Parts and labor | 2 years |
| Sealed system parts and labor | additional 3 years |
| SKU | 26301 |
The product dimensions and specifications on this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
