PIE MERCHANDISER
CARTER-HOFFMANN MODELS MDPM2 & MDPM4MDPM2

INTRODUCTION

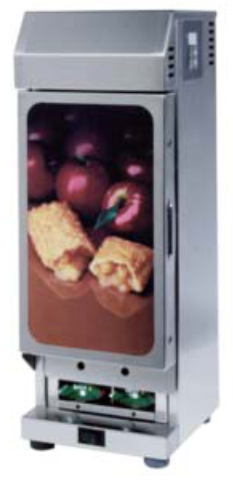

The MDPM2 & MDPM4 Pie Merchandisers are designed to hold pies at serving temperature. The cabinets have a programmable controller with a low temperature alarm. The controller is factory pre-set for a holding temperature of 165 o F (74 o C) for baked pies or 155 o F (69 o C) for fried pies, and a low temperature alarm of 140 o F (60 o C). The heater can be accessed for service by removing the top cover. There is also a bottom panel to access the wiring and the switch. Each cabinet includes a removable pie caddy that holds individually boxed and stacked pies.

SAFETY

Knowledge of proper installation, operation and maintenance procedures is essential to ensure safe operation of any equipment.

1. Always have dry hands prior to turning the ON/OFF switch ON or OFF.
2. Turn OFF the ON/OFF switch any time the cabinet is not in use.
3.  If an electrical shock is felt when touching the cabinet, disconnect the power immediately and call CarterHoffmann’s Technical Service Department for assistance and service.
4. If you find the power cord is frayed or the plug damaged, DO NOT PLUG IT INTO THE ELECTRICAL RECEPTACLE. IF IT IS ALREADY PLUGGED IN, SHUT OFF THE MAIN CIRCUIT BREAKER, LOCATED IN THE BREAKER BOX AT THE REAR OF THE STORE. THEN DISCONNECT THE PLUG.
5. DISCONNECT THE POWER CORD BEFORE ATTEMPTING ANY REPAIRS TO THE CABINET AND/OR CLEANING THE UNIT.
6. DO NOT SUBMERGE THE CABINET. ELECTRICAL COMPONENTS AND WIRING PRESENT A HIGH SHOCK HAZARD WHEN WET.

Carter-Hoffmann, LLC All Rights Reserved
Printed in April, 2013
Part #s: 18400-3065
Printed in
The United States of America

INSTALLATION

1. Remove the cabinet from shipping carton making sure all packing materials are removed from the carton and cabinet.
2. Check to ensure all components are included: Cabinet, Pie Caddy, Equipment Manual
3. Read this equipment manual completely before operating the cabinet.
4. Locate cabinet on clean, dry surface.
5. Clean cabinet thoroughly before use. See PAGE 3.
6. Connect the cabinet power cord to a correctly-wired and protected power source.

OPERATION

1. The power switch is located at the base of the cabinet, underneath the door.
   Turn the power switch on. Preheat cabinet for 30 minutes. When the cabinet is turned on, the air heater will operate until the cabinet reaches the air temperature setpoint. The display will read the actual cabinet temperature.
   The heat “ON” light will illuminate when the cabinet air temperature is below the air temperature setpoint. The controller display will flash alternately LO and the actual cabinet air temperature until it reaches the low temperature alarm temperature setpoint.
2. After preheat, load cooked/baked, boxed pies into cabinet.
3. Cabinet dispenses pies from the bottom, underneath the door.
4. When cabinet is not in use, turn power off.
5. This cabinet must be cleaned DAILY. See PAGE 3
   NOTE: The pie caddy has a reserve storage of 12 or 18 pies. This reserve is intended to provide additional pies while a new batch of pies are being baked. Holes beneath the door provide visual indication of low pie level in the cabinet.

PROGRAMMING INSTRUCTIONS

The controller has been factory pre-set for a holding temperature of 165 o F (74 o C) for baked pies, 155 o F (69 o C) for fried pies, and a low temperature alarm of 140 o F (60 o C). In most cases, the temperature will not need to be changed. However, if changes are necessary, the controller is programmable.
To View or Change the Temperature Setpoints:
Turn the power on. To view the temperature setpoint, press and hold the temperature set button.
To change the temperature setpoints, press and hold the temperature set button, press the up or down arrow button until the desired air temperature is displayed. The display will advance in 1 o increments.
To View or Change Alarm Setpoints:
Turn the power on. To view the alarm setpoint, press and hold the alarm reset button.
To change the alarm setpoint, press and hold the alarm reset button, press the up or down arrow button until the desired alarm temperature is displayed. The display will advance in 1 o increments.
To View or Change Temperature Scale:
The cabinet is programmable for a temperature scale in degrees Fahrenheit and Centigrade (Celsius). Turn power off. Hold down both arrow buttons. Turn power back on while holding both arrows. Display will show current scale (C or F). If desired, push the up or down arrow to change the scale. Turn power off to save change.

NON-SCHEDULED MAINTENANCE

Changing Illuminated Front Graphic on Door:
Tools: Phillips Screwdriver
Remove the four screws on the sides of the door and remove the door trim. Slide the POP graphic out. Slide new
POP graphic in, making sure to leave white diffuser backround panel in place. Replace the door trim and secure
with screws.
Changing the Light Bulb in the Door:
Tools: Phillips Screwdriver
The POP graphic on the front door is illuminated by one flourescent bulb. If a bulb burns out, turn off the cabinet.
Remove the four screws on the sides of the door and remove the door trim. Replace the burned out bulb, replace door trim, and secure with screws. Turn the power switch on.
NOTE: Lamp contains mercury. Manage in accordance with disposal laws.

Maintenance & Cleaning

Maintenance

Equipment:Carter-Hoffmann Pie Merchandiser: Models MDPM2 & MDPM4
Precaution: CAUTION: Cleansers, detergents, degreasers, sanitizers or bleaching agents that contain chlorides or phosphates will cause permanent damage to stainless steel
products. The damage appears as pits, eruptions, voids, small holes, cracks, severe discoloration, or dulling of the metal finish. Water with high chloride content can also damage stainless steel. If you are uncertain of your water quality, we recommend you have it tested. THIS DAMAGE IS PERMANENT, COSTLY TO REPAIR, AND IS NOT COVERED BY THE WARRANTY.
Warning:DO NOT SPRAY WITH WATER DURING CLEANING
Daily and As Needed Cleaning Tools: See Precaution above, regarding the care and cleaning of stainless steel. Use only cleaners approved for use on stainless steel, and only in recommended concentrations. Do not use steel wool or other scrubbers that may scratch the finish of the cabinet.
WARNING: Be sure cabinet is cool and unplugged before cleaning. The heater components should not be exposed to direct contact with water or cleaning sprays. DO NOT SPRAY WITH WATER DURING CLEANING. Permanent damage to the electrical components will result.

1. Remove all food products and containers from the cabinet. Turn the power switch to OFF. Unplug cabinet and allow it to cool.
2. Remove the pie caddy and bring to back sink. Wash in back sink, rinse and sanitize. Use a NO-SCRATCH TM pad on heavy soils.
3. Clean the interior and exterior of cabinet with a clean, sanitized towel. Use a NO-SCRATCH TM pad on heavy soils.
4. After the cabinet and pie caddy have been thoroughly air-dried, place the pie caddy back in the cabinet.
5.  Reconnect power cord.

Semi-Annually Tools: Temperature Verification
·Digital thermometer with oven probe
Note: The pie merchandiser can be be empty or full to conduct this check.

1.  Ensure that the pie merchandiser has been turned on and in operation for at least 30 minutes.
2. Clip the oven probe to the pie caddy where the wire guides intersect. Close door.
3. After the oven probe has been in place for at least five (5) minutes, compare the digital thermometer temperature to the controller temperature.
   Note: The measured temperature must reflect the controller display temperature within +/- 10 o F (6 o C). 4.
4. The temperature verification is complete. If the unit does not pass the verification test, turn the power switch to OFF and do not use the cabinet. Contact CarterHoffmann Technical Service at (800)323-9793.

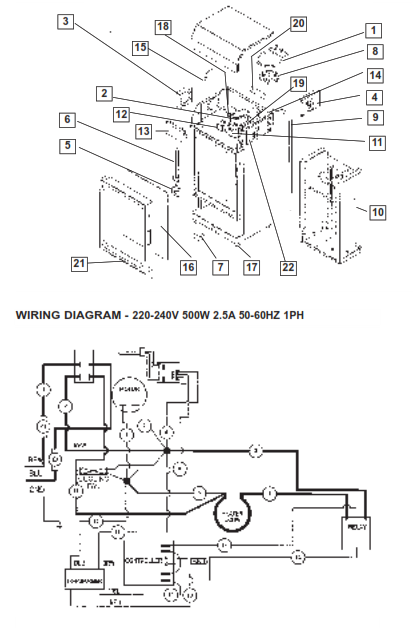

WIRING DIAGRAMS & REPLACEMENT PARTS

REPLACEMENT PARTS – 220-240V 500W 2.5A 50-60HZ 1PH

*WEEE Parts & Locations
**Not Shown

TROUBLESHOOTING

* These procedures must be performed by a qualified technician. Contact Carter-Hoffmann Technical Service at (800)323-9793, 847-362-5500 or your local service agent.
