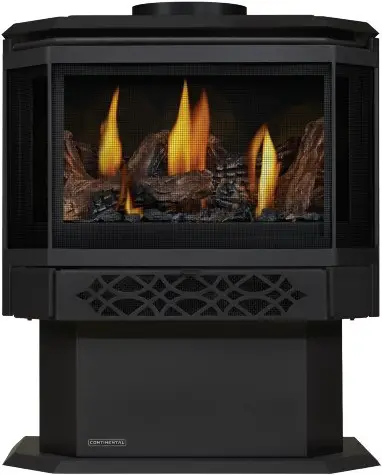

CONTINENTAL CDVS280 Direct Vent Gas Stove Instruction Manual
Advanced Burner System
Produces realistic unique flames for a warm, inviting glow.
Variable Heat Range
Control the exact amount of heat needed with up to 30,000 BTU’s aided by a heat activated variable blower system that is included
Electronic Ignition
Fuel-saving electronic ignition with battery back-up so you can stay problem-free when power-free
FEATURES
- 280 sq. in. viewing area
- 100% SAFE GUARDTM automatic gas shut off for your peace of mind
- Easy clean hinged door
- Exclusive PHAZERTM log set with traditional glowing charcoal embers

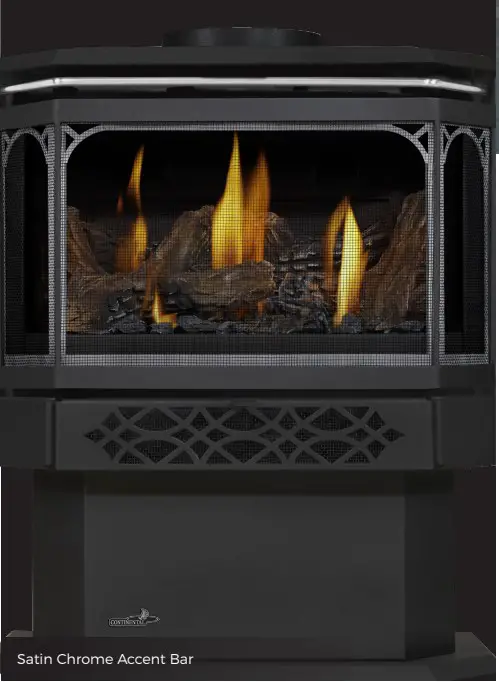

- Metallic black accent bar, ornamental inset and trivet are standard features
- Door available in metallic black or satin chrome plated finishes
- Optional remote

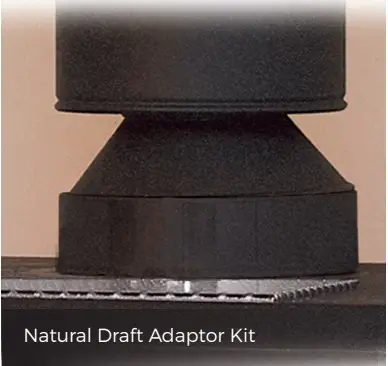

- Optional Natural Draft Adapter Kit
SPECIFICATIONS
BTU’s (Input) 30,000
VentingTop* 4” / 7”
Glass Type Ceramic
Mobile Home Certified Yes
MAXIMUM CLEARANCES
Corner 1”
Rear 2”
Side 7”
GLASS VIEWING AREA
Height 11 3/8”
Width 24 1/2”

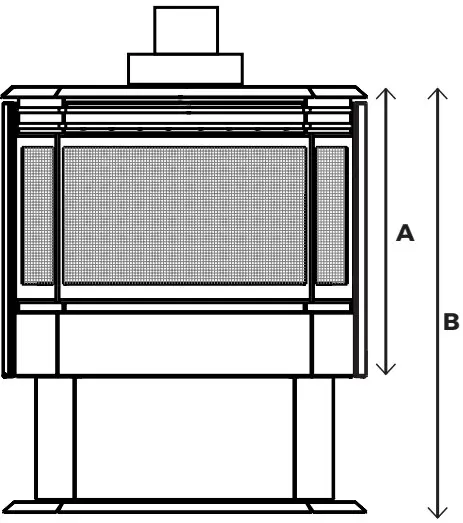

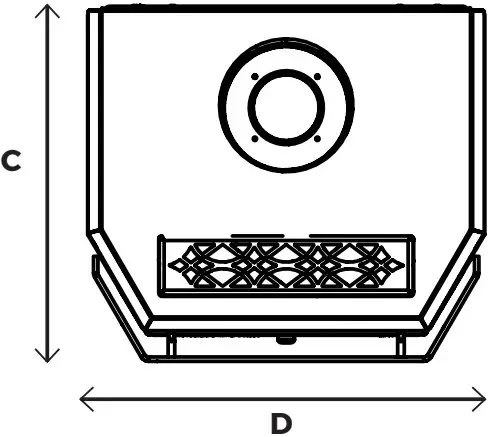

OVERALL UNIT
A 17 3/4”
B 26 3/4”
C 22 1/2”
D 18 1/2”
Finishing flange depth (The finishing flange defines the perimeter of the fireplace opening). Framing or finishing materials must NEVER encroach inside the finishing flange.
MEDIA OPTIONS
Panels and Brick Kits

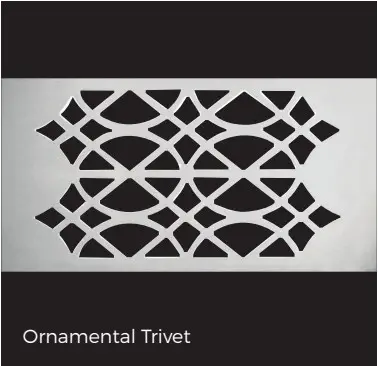

Choose one panel: Black Door or Satin Chrome Door Optional Accent Bar, Ornamental Trivet, Natural Draft Adapter Kit.
