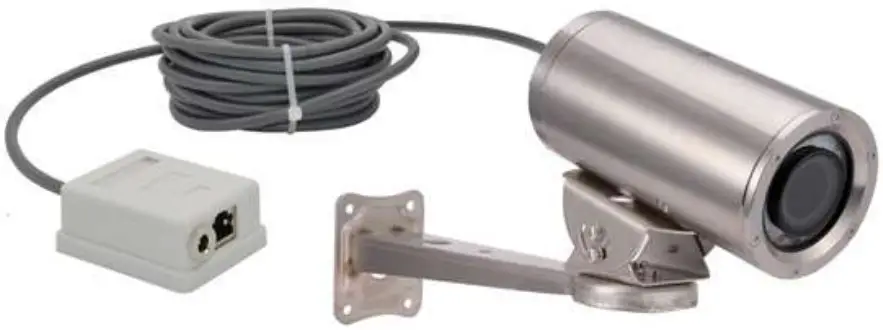

AP-W2020 Underwater Camera
Instructions
Product name: AP-W2020
Description:
The underwater camera has a resolution of 2 megapixels and is suitable for underwater use up to a depth of 30 meters (The permissible pressure is 400Kpa).
It is equipped with a 5 meter long, water and corrosion resistant cable, at the end of which the POE converter is located. Thus, this camera requires only one cable connection, over which the data and the power supply are sent.
There are 2 different lens focal lengths available: 3,6mm with a horizontal angle of 90° and 2,8 – 12mm with a viewing angle of 95° – 30°.
4 IR LEDs ensure clear images even at night (please note that if you plan underwater videos in the dark, water quality plays a very important role). If the results with the IR illumination as the only source are not satisfactory, then only an additional white light can help.
3 white LED built-in can be used for providing additional light.
Application examples include koi ponds, carp ponds, swimming pool installations, instructional videos for divers, lifeguards, monitoring of cooling pools, live recordings for aqua zoos.
Camera specification:
- Resolution: 1920 x 1080P Full HD IMX291 CMOS sensor, 0.1Lux at QF F1.2
- Lens: AP-W2020: 3,6mm lens, viewing angle of 90° AP-W2028: 2,8mm – 12mm, viewing angle of 95° – 30°
- Dimension: 70mm x 70mm x 140mm
- Camera material: high quality aluminium, IP68 waterproof design, corrosion resistant, durable, solid underwater use, long-term use in wet areas.
- Pressure: Maximum pressure 400 Kpa, corresponds to a water depth of 30 meters
- Camera cable: cable length of 5 meters (special wire, anti-aging, anti-stretch, hydrolysis resistance.)
- Remote Access: Remote Monitoring with Mobile or Tablet (iOS, Android)
- Browser Access: Supported
- Software: Free software for PC and as App`s
- ONVIF: Supported (connection of DVR / NVR)
- SDK Support: Yes
- RTSP Stream: Supported
- Power Supply: DC12V 2A / POE 48V-54V IEEE.802.af,
Power Supply Pin: Mode-A 1.2 (+) / 3.6 (-)
Package contents:
- 1 camera
- 1 CD
- 1 manual
| Model | AP-W2020 | AP-W2028 |
| Resolution | 2 MP 1920*1080P 1/2.8″ SONY 291 CMOS sensor ,color 0.001Lux F1.2,black/white 0.0001Lux F1.2 | |
| Frame rate | 25fps | 25fps |
| Lens | 3,6mm (H.FOV:90° ）lens | 2.8-12mm（H.FOV:95-30°）electric zoom lens |
| White light | 3x Sensor controlled white light, brightness settings 10 level | |
| IR light | 4x Sensor controlled IR light, brightness settings 10 level | |
| Image color | Two color modes:1: Manually set full color / black; 2: Automatic color transfer to black | |
| Supporting device | Support iOS, Android, computer, NVR.Compatible with Hikvision, Dahua, proprietary protocol.(Only support windows-IE browser for camera internal parameter setting) | |
| Protocol | RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/ONVIF;SDK Secondary development | |
| Material | Aluminium, anti-corrosion | |
| Waterproof | IP68（permanent installation under water） | |
| Water pressure | Maximum 400Kpa (Water Pressure resistance 30M) | |
| Cable | The default length is 5 meters (the longest is no more than 100 meters), PU material ,diameter 6.3MM. Resistance to 60KG pull, anti- aging, anti-friction, resistance to seawater corrosion, special underwater | |
| Camera wire | wire | |
| Environment | Underwater | |
| Working humidity | 0%-100% | |
| working temperature | -20°C – 55°C | |
| powered by | Line length 5 meter, DC12V/POE | |
| Dimension | 70mm x 140mm | |
| Weight | 2,5Kg | |
| Content | Camera Camera bracket CD instruction and software | |
