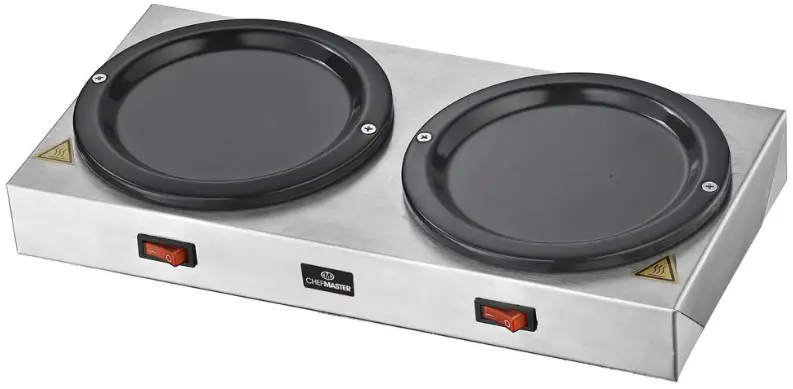

Chefmaster Coffee Jug Hotplates
Instruction Manual
Model -HEB087
Thank you for purchasing your Chefmaster Coffee Jug Hotplates. To make full use of the product please read this manual carefully before using product and keep it safe for future reference.
Safety Tips
- If you find any damage when the product is unpacked, contact your Chefmaster supplier within 24 hours of receipt of the goods.
- Always position the appliance on a flat stable surface.
- Plates become hot during operation – DO NOT TOUCH!
- This product is not designed to be used by persons with reduced physical or mental capabilities, lack of experience or knowledge, unless they are given suitable supervision, this includes children.
- DO NOT immerse the appliance in water or any other liquids.
- Always switch off and disconnect from the main power if not in use or before cleaning.
Pack of contents
Coffee jug hotplates
Instruction Manual
Operation
The two hotplates work independently of each other.
- Remove the appliance from the packaging. Ensure that all protective plastic film and coating are removed thoroughly from all surfaces.
- Connect the appliance to the main power supply.
- Place the coffee jug (s) on the hotplate(s).
- Turn the relevant power switch to the On position (–).
Cleaning, Care & Maintenance
- Always turn off and disconnect the appliance from the power supply before cleaning.
- Use soapy water and a damp cloth to clean the exterior of the appliance.
- Dry thoroughly after cleaning.
Troubleshooting
| Fault | Possible Cause | Solution |
| The unit is not working | The unit is not switched on | Check the unit is plugged in correctly and switched on |
| Plug and lead are damaged | Call Chefmaster distributor or qualified technician | |
| The fuse in the plug has blown | Replace the plug fuse | |
| Power supply | Check power supply |
Technical Information
HEB087 Chefmaster Coffee Jug Hotplates
Voltage 230V 50Hz
Power 120W (60W+60W)
Weight 1.6kg
Material Steel
Hot Plate Diameter 130mm
Dimensions 355mm x 180mm x 70mm (Lx W x H)
- Chefmaster Coffee Jug Hotplates is supplied with a 3-pin plug and lead with a 13 amp fuse
- The appliance must be earthed
- If in doubt contact a qualified electrician or your Chefmaster distributor
Disposal
Under WEEE regulations this product must not be disposed of as household waste. To prevent damage to the environment and humans this product must be disposed of in an approved and environmentally friendly recycling process. For more information on how to dispose of this correctly please contact your Chefmaster distributor or local authority responsible for waste disposal.
Compliance
All Chefmaster parts and products have undergone a stringent testing process to ensure that comply with all European standards and specifications. All Chefmaster products carry the CE approval symbol.
