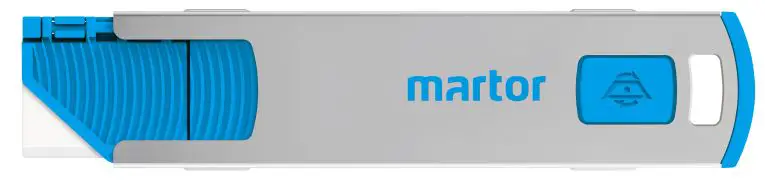

martor Secunorm 185 Robust Safety Knife

martor-Secunorm-185-Robust-Safety-Knife-product

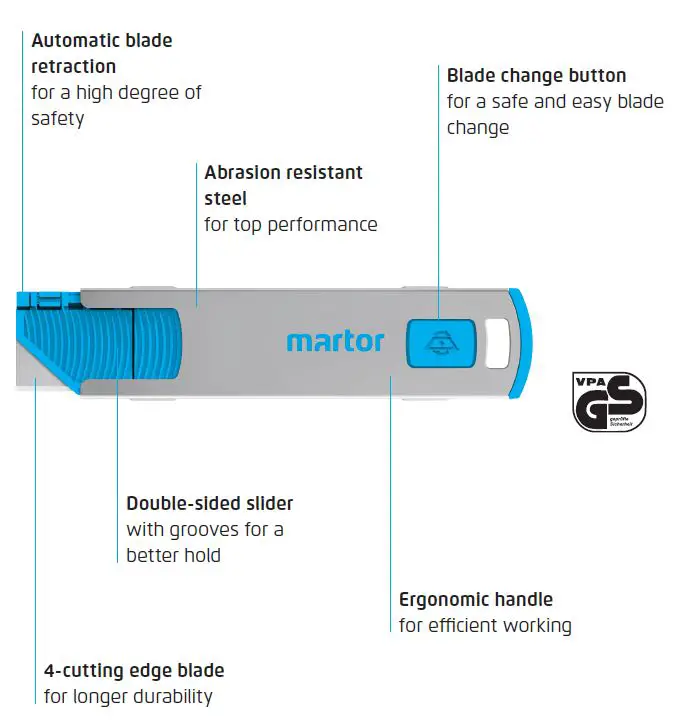

Overviewmartor-Secunorm-185-Robust-Safety-Knife-fig-1

USAGE

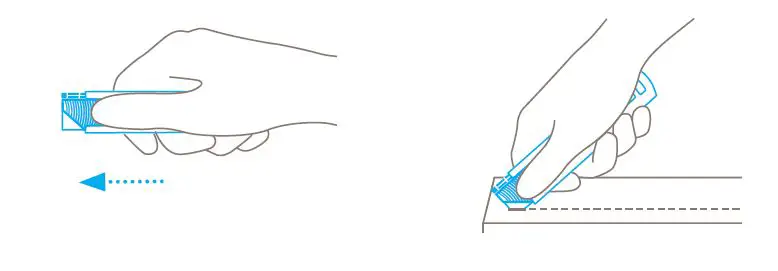

  • Use the slider to engage the blade for cutting.
  • Pierce into the cutting material to cut.martor-Secunorm-185-Robust-Safety-Knife-fig-2

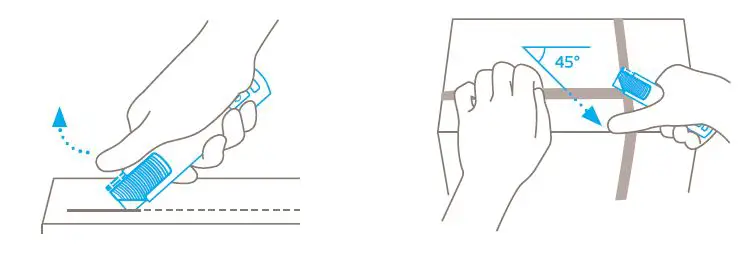

  • Always remove your thumb from the slider to ensure automatic blade retraction.
  • For best results, cut plastic strapping band diagonally (at a 45° angle).martor-Secunorm-185-Robust-Safety-Knife-fig-3

BLADE CHANGE

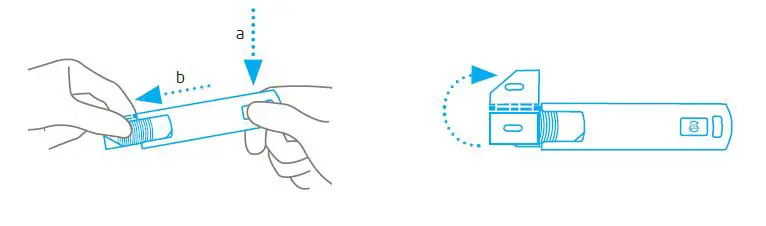

  • Press the blade change button downwards and at the same time pull out the slider all the way from the front.
  • Open up the blade cover.martor-Secunorm-185-Robust-Safety-Knife-fig-4

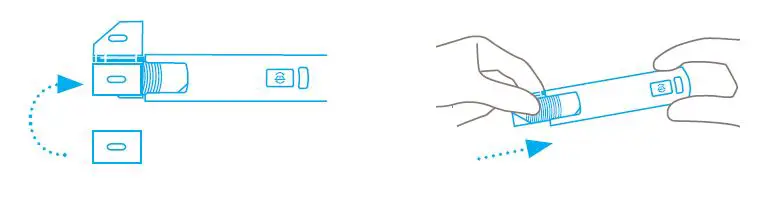

  • Reverse or replace the blade. Make sure you position the blade exactly over the location lobes. Close the cover.
  • Finally, re-insert the slider and blade fully into the handle.martor-Secunorm-185-Robust-Safety-Knife-fig-5

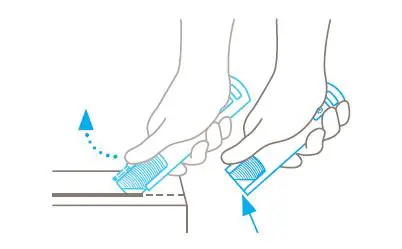

PROTECTION OF USERmartor-Secunorm-185-Robust-Safety-Knife-fig-6

Following cutting, the blade immediately re-tracts into the handle. Condition: you have released hold of the slider.

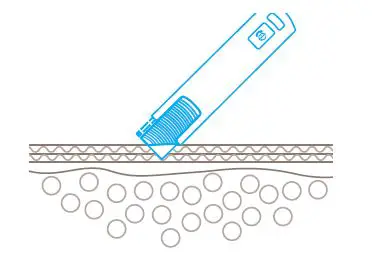

PROTECTION OF GOODSmartor-Secunorm-185-Robust-Safety-Knife-fig-7

An appropriately small cutting depth serves to protect your goods.

DISPOSAL

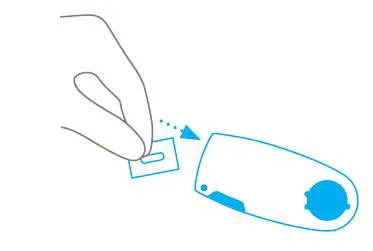

  • Your SAFEBOX is the best place to store used blades.martor-Secunorm-185-Robust-Safety-Knife-fig-8

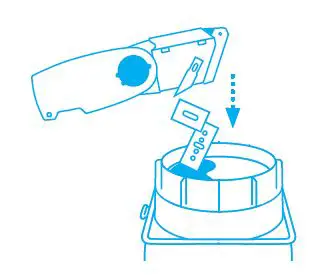

  • When the SAFEBOX is full, empty all contents into your USED BLADE CONTAINER.martor-Secunorm-185-Robust-Safety-Knife-fig-9

Please note: To ensure your product always functions flawlessly, regularly remove any impurities. For additional safety, we recommend wearing gloves.
