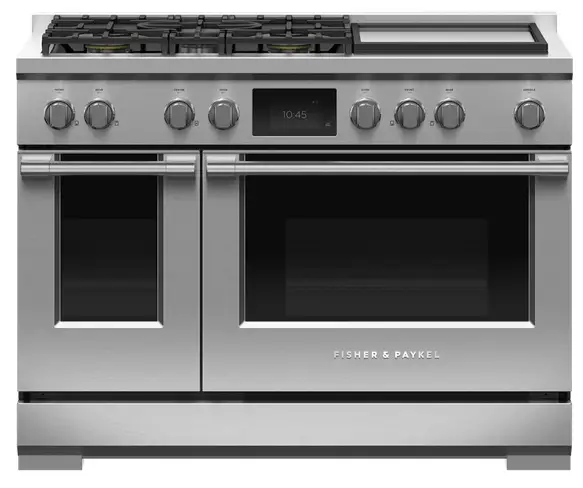

RDV3-485GD-L 48 Inch 5 Burners Self Cleaning Dual Fuel Range with Griddle
User Guide
Series 9 | Professional
Stainless Steel | LPG

Contents hide

1 RDV3-485GD-L 48 Inch 5 Burners Self Cleaning Dual Fuel Range with Griddle

2 FEATURES & BENEFITS

3 SPECIFICATIONS

4 Documents / Resources

4.1 References

5 Related Posts

RDV3-485GD-L 48 Inch 5 Burners Self Cleaning Dual Fuel Range with Griddle

With intuitive touchscreen and specialized cooking functions across two ovens, this range is a stand-out addition to your kitchen.

Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
Gas cooktop with a griddle and five burners that deliver up to 19,000 BTU for fast boiling
6.9 cu ft total oven capacity across two oven cavities
Beautiful LED halo-illuminated dials provide information at a glance

DIMENSIONS

Height	35 3/4 – 36 3/4″
Width	47 7/8″
Depth	29 1/8″

FEATURES & BENEFITS

Cook with confidence
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favourite method, a hero ingredient, or a go-to cooking function or recipe. The screen tilts for improved ergonomics and optimal visibility while cooking.
Generous capacity
Two independently operating cavities provide a large total capacity of 4.8 cu. ft. in the main cavity and 2.1 cu. ft. in the secondary. That’s enough room for a 32 lb turkey in one oven, and your sides in the other.
Cooking flexibility
No matter what you’re cooking, you’ve got the right heat to get perfect results. Each of the 15 oven functions in the main cavity and 11 in the secondary have been extensively researched and carefully designed to cater to a broad range of dishes and cooking styles. The handy food probe helps you monitor your progress.
Cooktop power
Sealed dual flow burners deliver cooktop power up to 19,000 BTU for seriously fast boiling, and precise 140°F full surface, low temperature cooking with the gentlest of flames.
Design quality
This range has craftsmanship in every detail, with real stainless steel, cast-iron grates, and beautifully weighted, halo illuminated dials. Each cavity features incandescent lights and full extension telescopic racks. From the robust legs to the powerful cooktop, this Range is built to last.
Easy to clean
The oven features a self-cleaning function and self-clean proof side racks, which don’t need to be removed when using this function.

SPECIFICATIONS

Accessories
Square handle option	AH-R 48
Burner ratings
Maximum burner power	19000 BTU
Power back left	11500 BTU
Power back right	11500 BTU
Power centre	19000 BTU
Power front left	15000 BTU
Power front right	15000 BTU
Power griddle	24000 BTU
Total cooktop power	96000 BTU
Capacity
Shelf positions	5
Shelf positions	5
Total capacity second oven	2.1 cu ft
Cleaning
Dishwasher proof grates	•
Pyrolytic self-clean	•
Controls
Dial with illuminated halo	•
Electric circuit	4 wire
High resolution display	•
Metal illuminated dials	•
Multi-language interface	•
Precise cooking with food	•
Recipe and food based	•
Sabbath mode	•
Tilting touch screen interface	•
Wi-Fi connectivity	•
Gas Requirements
Fitting and pipe	½ NPT, min. ⅝” flex line
Supply Pressure (LPG)	11″ to 14″ W.C
Oven features
Concealed element	•
Electronic oven control	•
Full extension telescopic	•
Internal light	•
Titanium coated, illuminated	•
Oven functions
Dehydrate	•
Pastry bake	•
Warm	•
Oven performance
Bake power	4600
Broil	3600 W
Main oven – True convection	2500 W
Power requirements
Amperage	50 A
Rated current	50 A
Supply frequency	60 Hz

Product dimensions
Depth	29 1/8″
Height	35 3/4 – 36 3/4″
Width	47 7/8″
Range top features
Sealed Dual Flow Burners™	5
Sealed range top	•
Vent trim included	•
Recommended Back Guards Ventilation
Combustible situation	BGRV3-3048H
Non combustible situation	BGRV2-3048 / BGRV2-1248
Recommended hood	HCB48-12_N (48″”
Safety
ADA compliant	•
Secondary oven features
3/4 Extension racks	2
Concealed element	•
Electronic oven control	•
Food probe	•
Internal light	•
Secondary oven functions
Air fry	•
Bake	•
Classic bake	•
Convection bake	•
Convection broil	•
Maxi broil	•
Number of secondary oven	11
Pastry bake	•
Pizza bake	•
Rapid proof	•
Roast	•
Warm	•
SKU	81895

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
