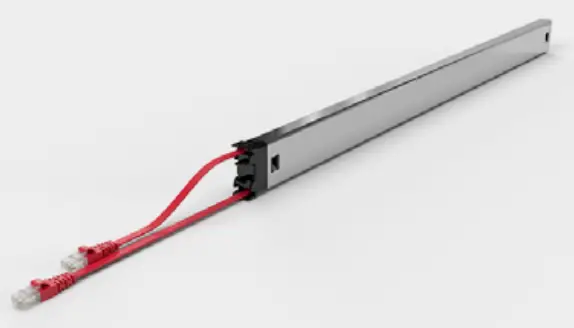

Patchbox 8544 4210 Plus+ Long Range Cassettes User Manual

8544 4210 Plus+ Long Range Cassettes
User Manual

Plus+ Long Range Cassettes

The PATCHBOX® is the most modern cabling system for network cabinets.
It makes conventional cable guides and patch cables simply look old. Thousands of satisfied customers worldwide rely on this patented innovation to make their IT more efficient, faster, and more economical.

Technical Specification

STP Cable
Flat Cat.6a U/FTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG36, 100% stranded copper, PVC jacket, PoE (802.3af), RoHS compliant
UTP Cable
Flat Cat.6a U/UTP, ISO/IEC 11801 Channel Class Ea, ANSI/EIA/TIA-568 Cat 6A Channel, 500MHz, AWG30, 100% stranded copper, PVC jacket, PoE++ (802.3bt, Type 3 (60 W)), RoHS compliant
Connector
RJ45 shielded plug, pins gold plated, Snagless booted
Cable length
2.5m cover 46 RU:
1.8m extractable + 0.7m overlength non-retractable
Cassette Profiles
Stainless steel, laser-welded
Plastic Parts
Polyoxymethylene POM
Operating Temperature Range
-20°C — 60°C
Ambient Humidity Non-Condensing
10% – 90%
Gross Weight
0.42kg
Packaging Dimensions
690mm x 50mm x 50mm WxDxH
HS-Code
8544 4210
For Customers in Australia & New Zealand
STP patch cords are compliant with AS/CA S008:2010
A1:2014

Items included

1 x PATCHBOX Plus+ STP / UTP Long Range Cassette with Cat.6a cable

Shielded Twisted Pair (STP) Variants

Unshielded Twisted Pair (UTP) Variants

5 YEARS OF WARRANTY
EU MADE IN THE

All rights reserved. Specifications are subject to change.
© MATCHBOX.
PATCHBOX GmbH, Hernalser Gürtel 1/12, 1170 Vienna, Austria.
+43 1 99 71 960,
[email protected],
www.patchbox.com.
© PATCHBOX 2021
