User Guide

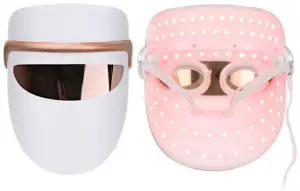

7 COLOUR LED LIGHT PHOTON THERAPY REJUVENATION MASK
ES3LEDPHMKA
SAFETY & WARNINGS
- Do not use whilst pregnant.
- Do not use on people with epilepsy. Some light wavelengths and frequencies may cause seizures.
- Do not use if you are taking any thyroid sputum medication.
Cautions
- Gently wipe with a cotton pad after use. Do not press too firmly as this may damage and deform the mask.
- Do not clean using any corrosive solvents, as this will damage the appearance or cause malfunction.
- Store in a cool and dry place after use away from direct sunlight.
- Do not attempt to disassemble this product.
IN THE BOX
- LED chromotherapy beauty mask
- USB controller power cord (power adapter not included)
- User guide

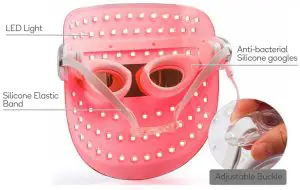

OVERVIEW
OPERATION
How to use
- After cleansing, dry face and adjust the band to the desired tightness.
- Connect the USB controller power cord to a (5V 1A-2A or more current output) power supply to turn on.
- Place the mask on your face. For optimal results, apply skin care products before placing the mask on your face. You can use for up to 10-20 minutes per application.

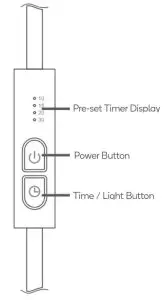

Instruction for buttons
Power
- Press and hold the Power button for 1 second to turn ON. The following functions are available (LED chromotherapy).
- Press and hold the Power button for 1 second to turn OFF.
Time / Light Button
- Quick press the Time/Light button to cycle between the pre-set timers (10mins, 15mins, 20mins and 30mins respectively).
- Press and hold the Time/Light button to cycle between the 7 different LED colours.
LED Chromotherapy
The mask features LED Bio-colour therapy which plays a significant role in skin care.
| LED Colour | Light Frequency | Benefit |
| Red | 620-635nm | Increase the activity of cells, promote cell metabolism and regeneration of collagen. This aids in filing the collagen gap lost by the skin, promoting blood circulation, increasing skin elasticity and enhance overall skin vitality. |
| Green | 515-525nm | Helps improve pigmentation and anti-aging. The effect of neutralizing and calming the skin, soothes and balances the skin in water to oil ratio. |
| Blue | 460-470nm | Reduce bacteria that causes skin inflammation, improve acne and redness. Effectively calms sensitive skin. |
| Orange | 565-590nm | Anti-wrinkle firming, reduce redness, promote cell renewal and collagen development. Assist in effective absorption of skin care products. |
| Purple | 400-420nm | Repair acne marks, relaxing, improves lymph metabolism and can reduce scarring. |
| Cyan | 500-520nm | Helps enhances cell energy, soothe the skin and promote the skin’s metabolism. |
| White | 390-780nm | Helps promote the metabolism of active tissues, improve fine lines and skin sagging. |
Note: White light is not monochromatic light, it is light projected by the wavelengths of various bands together, it is composite light, and the wavelength is 390-780nm.
SPECIFICATIONS
Rated power: 9W
Time: 20min
Input voltage: 5V-2A
