OWNER’S MANUAL

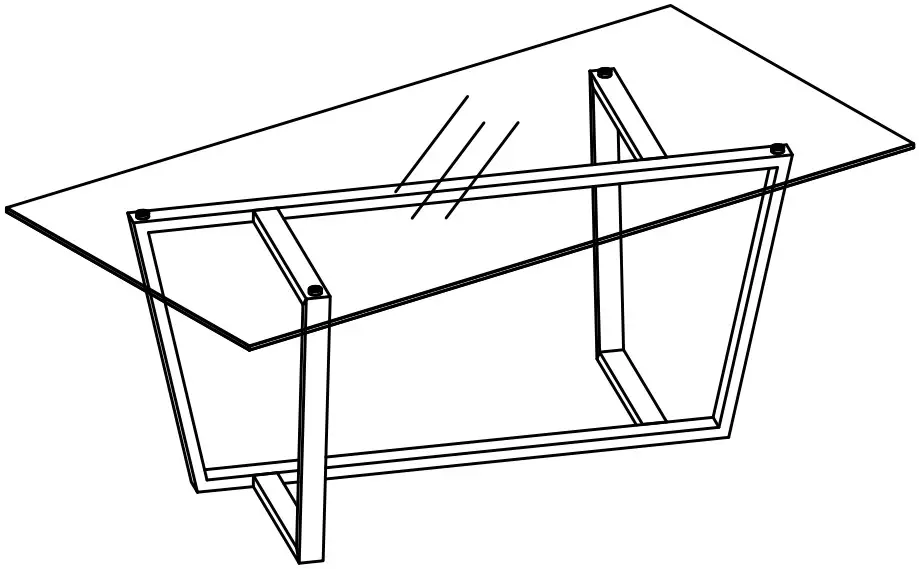

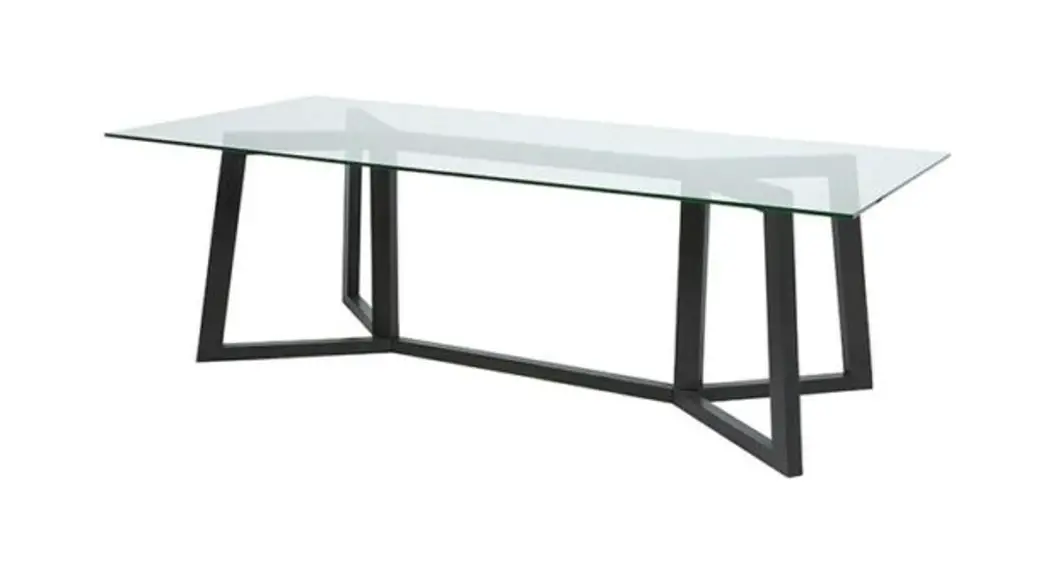

DAPHNE DINING TABLE
LIVING SPACES SKU: 267690 / 267691
VENDOR ITEM NO.: 4HM360B / 4HM360T
ASSEMBLY PARTS LIST
| BOX 1 (SKU 267690) Main Frame | |||
| SKU # | IMAGE | DESCRIPTION | QUANTITY |
| 267690-1 |  | MAIN FRAME | 1 |

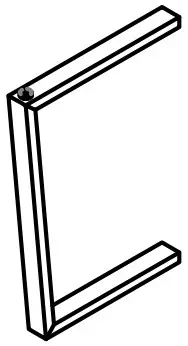

| 267690-2 |  | SECONDARY FRAME | 2 |
| BOX 2 (SKU 267691) Glass Top | |||
| SKU # | IMAGE | DESCRIPTION | QUANTITY |
| 267691 |  | GLASS TOP | 1 |
| HARDWARE KIT PACKED IN BOX 1 SKU: 4HZZ6OHW | |||
| 4HZZ6OHW-1 |  | ALLEN BOLT (5/16″ x 20MM) | 4 |
| 4HZZ6OHW-2 |  | LOCK WASHER (5/16″) | 4 |
| 4HZZ6OHW-3 |  | FLAT WASHER (5/16″) | 4 |
| 4HZZ6OHW-4 |  | ALLEN KEY | 1 |
PRE-ASSEMBLED PARTS LIST
| SKU # | IMAGE | DESCRIPTION | SKU # | IMAGE | DESCRIPTION |
| 4HZZ60LV |  | LEG LEVELER | |||
| 4HZZ60GP |  | GLASS TOP PUCK |

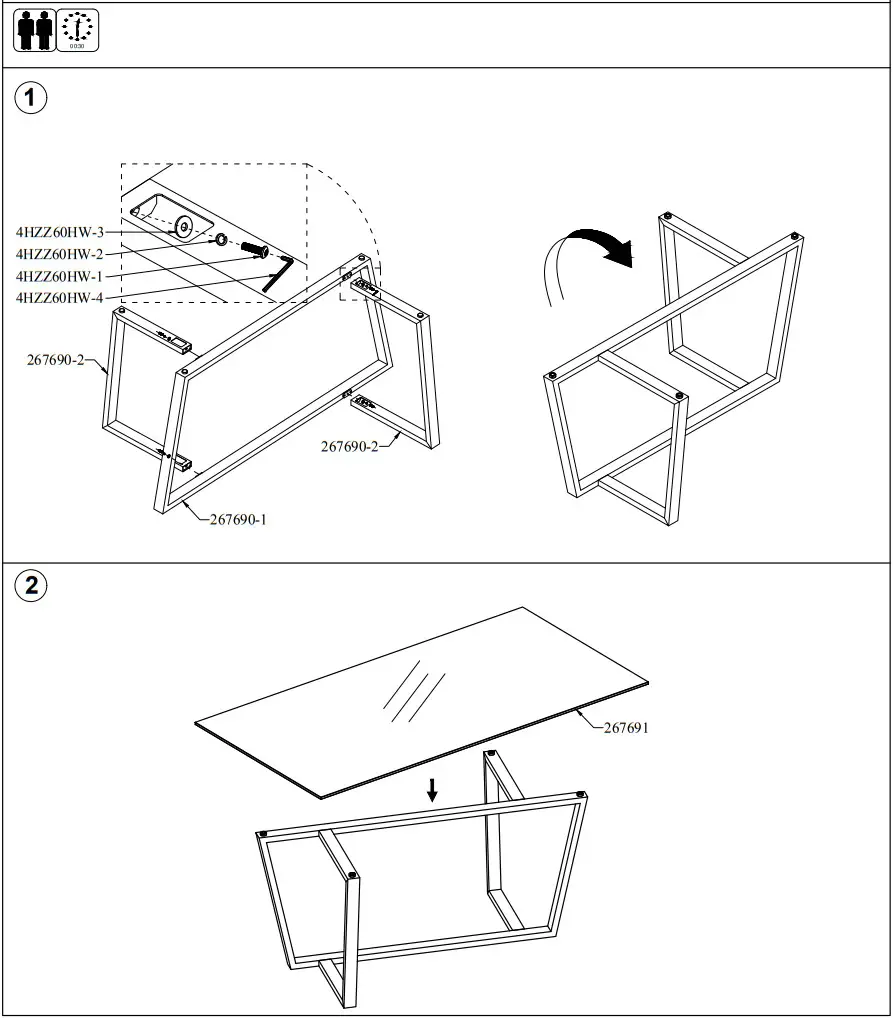

ASSEMBLY INSTRUCTIONS
WARNING:
– Sitting or standing on this product may result in damage or injury
Maximum distributed load 354 lbs (ANSI/SOHO S6.5-2008 section 5.2)
Maximum concentrated load 200 lbs (ANSI/SOHO S6.5-2008 section 5.3)
This product meets the requirements of ANSI/SOHO S6.5-2008 section 4.2
Stability Under Vertical Load but may become unstable under heavier edge loads. Use caution when placing heavy objects on this product.
ROUTINE MAINTENANCE:
Periodically tighten all fittings, which can loosen over time. If uneven, the table can be leveled by adjusting the levelers under the base.
CARE AND CLEANING:
GLASS – Clean with a slightly damp cloth and dry immediately with a lint-free cloth.
Use only mild detergents and cleaning solutions which are recommended for cleaning glass. Use coasters and placemats to prevent marking on the surface of your product.
METAL – Dust frequently with a clean, damp, lint-free cloth soaked in mild soap and water. Avoid the use of chemical and abrasive cleaners, as they can damage the finish.
To restore the shine to your metal, soak a cheesecloth in a nonabrasive cleaner (like liquid dish soap) and rub the chrome component lightly until the original luster reappears. Dry the component with a clean soft cloth to remove any soap residue.
Iron or steel frames will rust if the finish is scratched or if your furniture is exposed to excessive humidity, particularly in coastal areas.
http://bit.ly/3OP59YF?r=qr
Scan QR code to view assembly video
