Aivituvin Sky2609 Kids Wooden Outdoor Sandbox Instructions (+ PDF)

SKY2609 Kids Wooden Outdoor Sandbox

INSTRUCTION
MANUAL
AIR 77

www.aivituvin.com

NOTICE

Please retain these instructions for future reference.

Firmly secure all bolts, screws and knobs before use.
Reconfirm that all bolts, screws, and knobs are secure every 90 days.
Fasten screws loosely during initial assembly. Do not fully tighten screws until the item is completely assembled.
Do not use or store this item in the proximity of open flame or flammable/combustible chemicals.
Be aware that some parts are heavy and have sharp edges.
Be aware that moving parts can injure, crush and cut.
If any parts are missing, broken, damaged, or worn, stop using this product until repairs are made and/or factory replacement parts are installed.
Do not use this item in a way inconsistent with the manufacturer’ s instructions as this could void the product warranty.

TOOLS REQUIRED

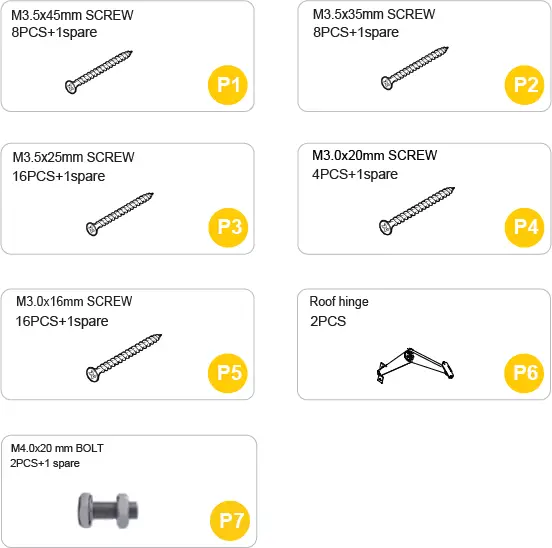

HARDWARE

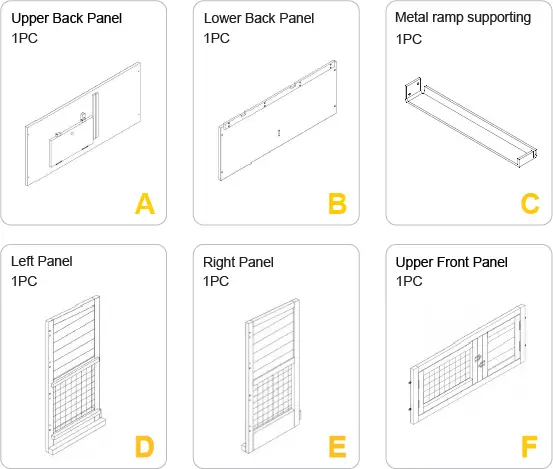

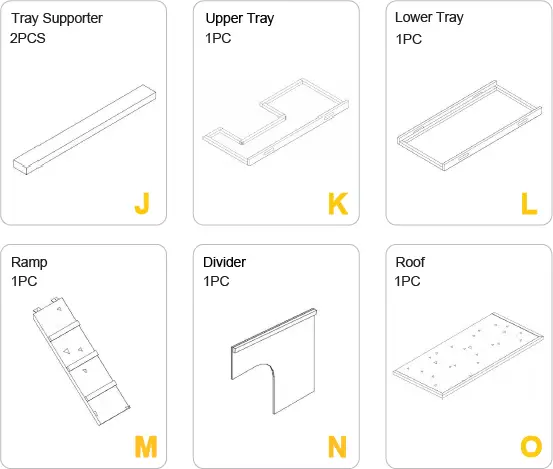

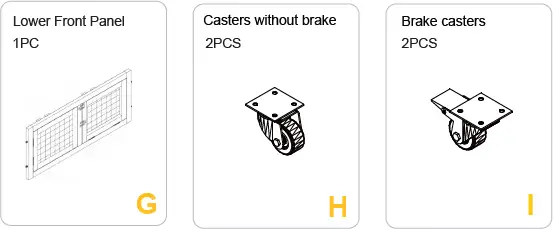

PARTS

PRODUCT ASSEMBLY

01

Attach the back panel Part A and B by 4XP4 screws.
Attach the ramp supporter Part C

02

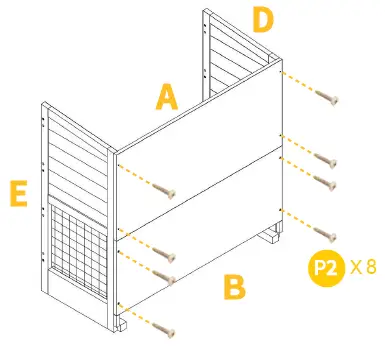

Attach the back panel to the side panels Part D & E by 8XP2 screws.

03

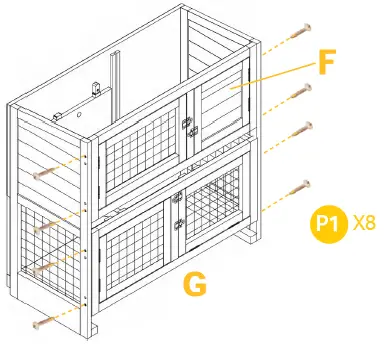

Attach the front panel Part F & G by 8XP1 screws.

04

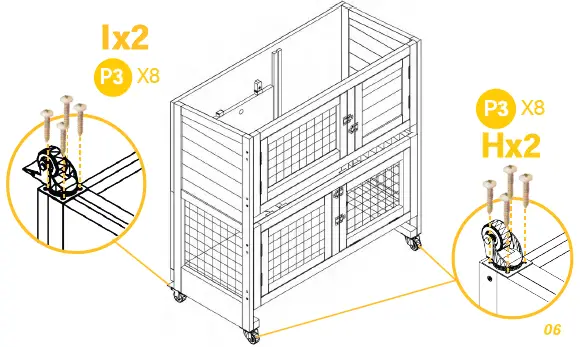

Attach the caster Part H & I by 4XP3 screws each.

05

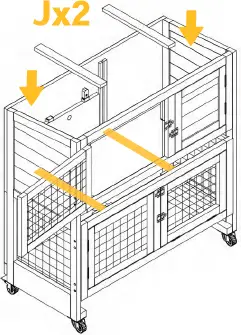

Put the tray supporter Part J into the slot.

06

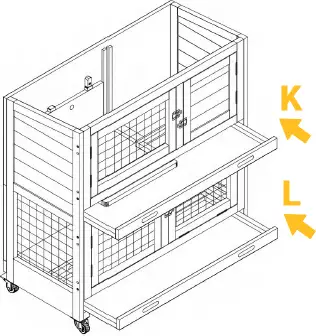

Slide in the tray Part K & L.

07

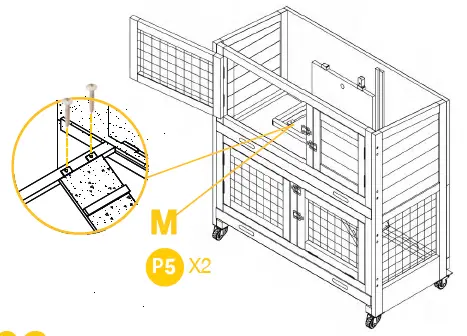

Attach the ramp Part M by 2XP5 screws.

08

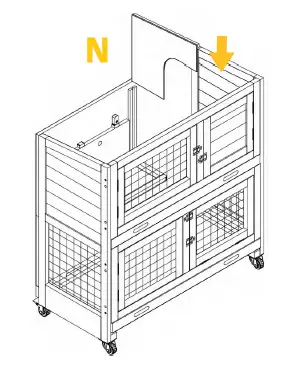

Put in the divider Part N.

09

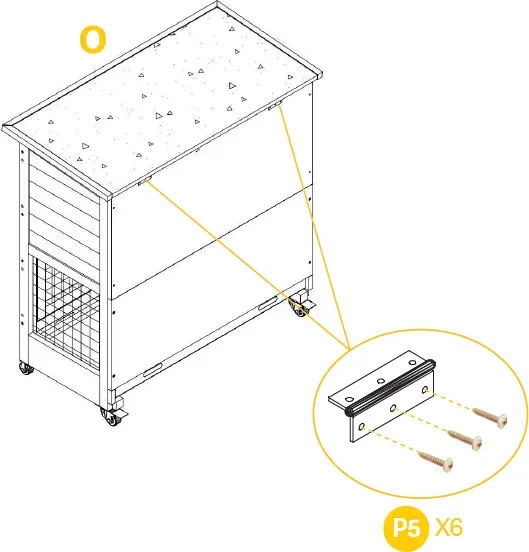

Attach the roof Part O by 6XP5 screws.

10

Attach the roof hinge P6 by 4XP5 screws.

WARNING

Manufacturer and seller expressly disclaim any and all liability for personal injury, property damage or loss, whether direct, indirect, or incidental, resulting from the incorrect attachment, improper use, inadequate maintenance, or neglect of this product.
