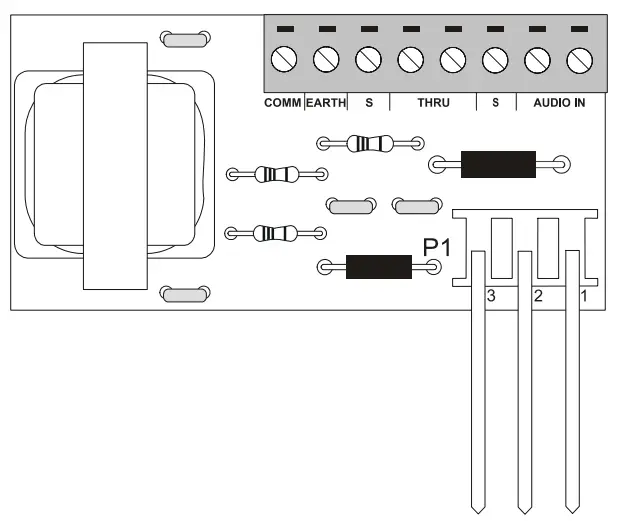

ACT-2
Audio Coupling Transformer
General
The ACT-2 Audio Coupling Transformer is used with the DVC-AO/RM-1 and AA-30, AA-100, or AA-120 to provide a means to drive multiple amplifiers in large audio system applications. It provides the following functions:
- Attenuates high-level amplifier output to create low-level input for additional amplifiers.
- Isolates input from output.
- Provides CMNR (Common Mode Noise Rejection).
Suitable Configurations
To drive AA-120/120E, AA-100, and/or AA-30/30E audio amplifiers: The ACT-2 provides electrical isolation between its input and output and attenuates the signal from high-level audio to low-level audio. Ground fault detection is not provided for output wiring on the ACT-2. Up to 40 audio amplifiers may be fed by the output of an ACT-2 as long as the wiring does not exceed 200 feet (61 meters), 18 to 12 AWG (0.78 to 3.1 mm²). The DVC-AO/RM-1 low-level signal is first fed into a single AA-30 amplifier. The high-level output of this amplifier will support a Class A or Class B wiring arrangement and can be fed to the input of up to 500 ACT-2 units. The outputs of each of the 500 ACT-2 transformers may then be used to feed a lowlevel audio signal to the input of as many as 40 additional AA Series amplifiers. The output of an ACT-2 supports Class B wiring only. Where Class A wiring is required, all amplifiers served by an ACT-2 must be housed in the enclosure containing the ACT-2.
Agency Listings and Approvals
In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
- UL Listed: S635.
- MEA: 447-99-E; 128-07-E; 345-02-E; 232-06-E; 317-01-E (correction).
- CSFM: 7170-0028:216; 7170-0028:223; 7170-0028:244.
- FM Approved.
Product Line Information
ACT-2: Audio Coupling Transformer. Includes installation manual. Mounts to AA Series amplifier.
NOTE: Refer to the DVC (Digital Voice Command) data sheet (DN7045)for further information on system components.
Notifier® is a registered trademark of Honeywell International Inc.
©2009 by Honeywell International Inc. All rights reserved. Unauthorized use of this document is strictly prohibited.
This document is not intended to be used for installation purposes.
We try to keep our product information up-to-date and accurate.
We cannot cover all specific applications or anticipate all requirements.
All specifications are subject to change without notice.
For more information, contact Notifier. Phone: (203) 484-7161, FAX: (203) 484-7118.
www.notifier.com
