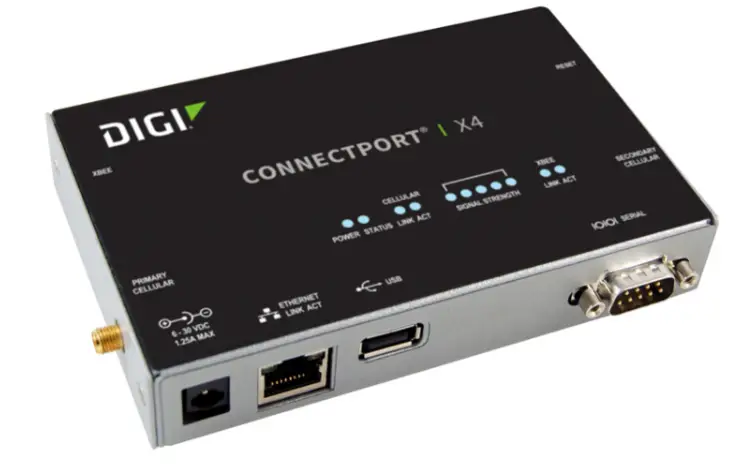

DIGI CONNECTPORT X4 FAMILY
Remote M2M networking gateways designed for commercial grade and rugged outdoor applications
ConnectPort® X4 customizable cellular M2M gateways offer a variety of LAN/WAN interface options for end-to-end networking of remote devices. The gateways include comprehensive IP protocols and IPSec VPN support for high-end routing and security. The easy DIA/Python development environment enables custom applications to run locally while interfacing across cellular networks for WAN connectivity to a centralized server. ConnectPort X4 gateways feature a compact commercial-grade enclosure or an optional outdoors IP66/NEMA 4X enclosure. Interface options include Ethernet, serial, and Zigbee/RF for flexible connectivity to virtually any remote device.
All ConnectPort X4 gateways feature an end-to-end development environment using comprehensive Digi ESP™ IDE and DIA/Python programming languages. Digi Remote Manager® adds secure, scalable cloud-based management and web services integration for a complete remote asset platform across all locations.
BENEFITS
- WAN connectivity via LTE or 3G HSPA+ Networks
- Local wireless connectivity through Zigbee/802.15.4
- Local wired connectivity through RS-232/422/485,
- 2 analog inputs and 2 digital inputs
- Small commercial-grade enclosure or NEMA 4X/IP66 case
- Full routing/IP filtering plus IPsec/SSL VPNs with DES, 3DES, or AES encryption
- Easy development environment via DIA and Python scripting as part of Digi ESP IDE
- Support for Modbus/Modbus TCP
- Digi Remote Manager® support for secure, scalable access to an unlimited number of remote assets
- Digi Foundations™ 1-, 3- or 5-year subscription available

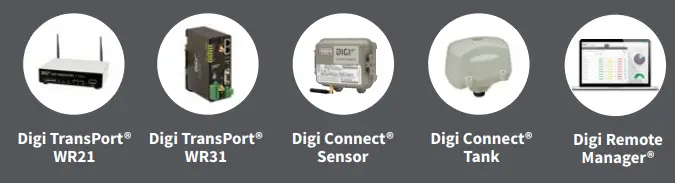

RELATED PRODUCTS

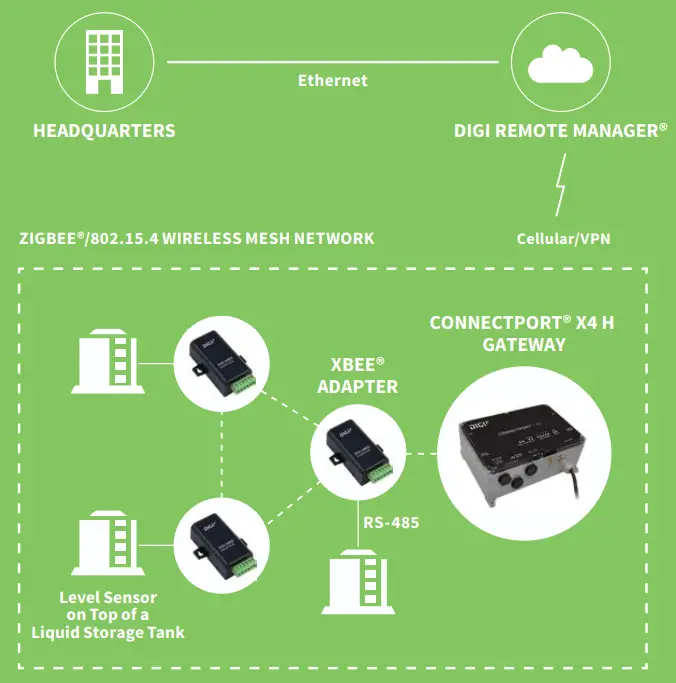

APPLICATION EXAMPLE
SPECIFICATIONS
| SPECIFICATIONS | ConnectPort® X4 | ConnectPort® X4 IA | ConnectPort® X4 H |
| WIRELESS INTERFACES WWAN** | |||
| LTE CAT 1 | N/A | N/A | Verizon: bands 2,4,14 AT&T & T-Mobile: bands 2,4,5 with 3G/2G fallback |
| HSPA+ (U9) | 850/900/1700 (AWS)/1900/2100 MHz; Transfer rate (max): 5.76 Mbps up, 21 Mbps down | ||
| CDMA 1XRTT (BX) | 800/1900 MHz; Transfer rate (max): 153 Kbps up/down | ||
| CONNECTOR | 1 or 2 x SMA (center pin – on device: female; on antenna: male) | 1 or 2 x SMA (center pin – on device: female; on antenna: male) | |
| SIM SLOTS | 2 or 0 (CDMA varients) | 1 | |
| SIM SECURITY | SIM slot cover plate | Internal SIM slot | |
| RF | |||
| STANDARD | Zigbee (2.4 GHz), DigiMesh® (2.4 GHz or 900 MHz), Digi XBee-PRO® 900HP, 802.15.4 or 868 | ||
| CONNECTOR | 1 x RP-SMA (center pin – on device: male; on antenna: female) | ||
| WIRED INTERFACES | |||
| SERIAL | |||
| PORTS | 1 | ||
| STANDARD | RS-232 | RS-232/422/485 (software selectable) | |
| DTE/DCE | DTE | ||
| SIGNAL SUPPORT | TXD, RXD, RTS, CTS, DTR, DSR and DCD | ||
| FLOW CONTROL | Hardware and software flow control | ||
| COM PORT REDIRECTOR | RealPort® | ||
| THROUGHPUT | Up to 230 Kbps | ||
| CONNECTOR | DB-9 Male | Screw-down terminal block | |
| ETHERNET | |||
| PORTS | 1 | ||
| STANDARD | IEEE 802.3 | ||
| PHYSICAL LAYER | 10/100 Base-T | ||
| DATA RATE | 10/100 Mbps (auto-sensing) | ||
| MODE | Full or Half duplex (auto-sensing) | ||
| INTERFACE | Auto MDI/MDIX | ||
| CONNECTOR | RJ-45 | ||
| I/O | |||
| PORTS | N/A | 2 analog and 2 digital | |
| CONNECTOR | N/A | Screw-down terminal block | |
| USB | |||
| PORTS | 1 | ||
| STANDARD | USB 1.1 | ||
| SIGNALING | Full-speed | ||
| CONNECTOR | Type A | ||
| SOFTWARE/MANAGEMENT | |||
| MANAGEMENT (CLOUD-BASED) | Digi Remote Manager® | ||
| MANAGEMENT (LOCAL) | Web Interface via HTTP/HTTPS, password access control, IP service port control; CLI via serial port, Telnet, Python scripting; Digi SureLink™ “always-on” connection | ||
| SECURITY | SSL tunnels, SSHv2, FIPS 197 (IPsec, HTTPS) | ||
| NETWORK PROTOCOLS | UDP/TCP, DHCP, SNMPv1/v2 | ||
| VPN | IPsec with IKE/ISAKMP; multiple tunnel support; DES, 3DES, and up to 256-bit AES encryption; VPN pass-through, GRE forwarding; Simple Certificate Enrollment Protocol (SCEP) for X.509 certificate | ||
| ROUTING | NAT, NAT-T (NAT traversal) VPN tunneling, port forwarding, VPN/GRE pass-through; access control lists (IP filtering), IP pass-through, Virtual Router Redundancy Protocol (VRRP) per RFC 3768 | ||
| INDUSTRIAL PROTOCOL SUPPORT | Modbus bridge enables Modbus serial to Modbus/TCP conversion; integrated Python code allows the gateway to act as Modbus client/master or Modbus server/slave; functions like an Ethernet to the serial bridge, but uses Digi XBee to transport serial data; handles unique timing issues per Modbus protocol rules; uses Modbus Unit ID to look up IP or mesh MAC address | ||
| REAL-TIME CLOCK | Yes | ||
| MEMORY | 16 MB Flash, 32 MB RAM | ||
| POWER | |||
| INPUT | 6-30 VDC | 100-240 VAC | |
| CONSUMPTION | Idle: 1.5 W, Max: 10.4 W | Approx. 15 W | |
| PROTECTION | 4 kV burst (EFT) per-4-4, 2 kV surge per EN61000-4 | 2 kV burst (EFT) (with included power supply) | |
| CONNECTOR | Locking barrel | Compression terminal block | Pigtail AC power cord |
| DC POWER CORD* | Available upon request | N/A | N/A |
| AC POWER SUPPLY* | 12 VDC power supply for 0º C to 40º C (32º F to 104º F) included; extended temperature power supply available separately | N/A | Internal |
| BATTERY BACKUP | N/A | ||
| PHYSICAL | |||
| DIMENSIONS (L X W X H) | 13.33 cm x 8.50 cm x 2.54 cm (5.25 in x 3.35 in x 1.00 in) | 240 mm x 160 mm x 95 mm (9.50 in x 6.25 in x 3.75 in) | |
| WEIGHT | 0.20 kg (0.44 lb) | 1.41 kg (3.10 lb) | |
| STATUS LEDS | Ethernet status, power, cellular link/activity, signal strength (4 bars), Digi XBee link/activity | Ethernet status, power, cellular link/ activity, signal strength (5 bars), Digi XBee® link/activity | |
| ENCLOSURE MATERIAL | Industrial (metal) | NEMA 4X | |
| ENCLOSURE RATING | N/A | IP66 | |
| MOUNTING | Wall-mount brackets sold separately | DIN rail bracket included | 4x mounting feet on the unit’s flange |
| ENVIRONMENTAL | |||
| OPERATING TEMPERATURE *** | -30º C to 75º C (-22º F to 167º F) | ||
| STORAGE TEMPERATURE | -40 to 85C (-40º F to 185º F) | ||
| RELATIVE HUMIDITY | 5% to 95% (non-condensing) | N/A (enclosure is water-tight) | |
| ETHERNET ISOLATION | 1500 VAC min per IEEE 802.3/ANSI X3.263 | ||
| SERIAL PORT PROTECTION (ESD) | +15 kV Air Gap and +8 kV contact discharge per IEC 1000-4-2 | ||
| HAZARDOUS (CLASS 1 DIV 2) | No | Yes | No |
| APPROVALS | |||
| GSM/UMTS | PTCRB, NAPRD.03, GCF-CC, R&TTE, EN 301 511 | ||
| CDMA/EV-DO | CDG, TIA/EIA-690, TIA/EIA-98-E | ||
| CELLULAR CARRIERS | Certified by most major carriers. See www.digi.com for a current listing | ||
| SAFETY | UL 60950, CSA 22.2 No. 60950, EN60950; Class 1 Div 2 (IA model only) | ||
| EMISSIONS/IMMUNITY | CE, FCC Part 15 (Class A), AS/NZS CISPR 22, EN55024, EN55022, Class A | ||
| WARRANTY | |||
| PRODUCT WARRANTY | 3-year + Digi Foundations**** | ||

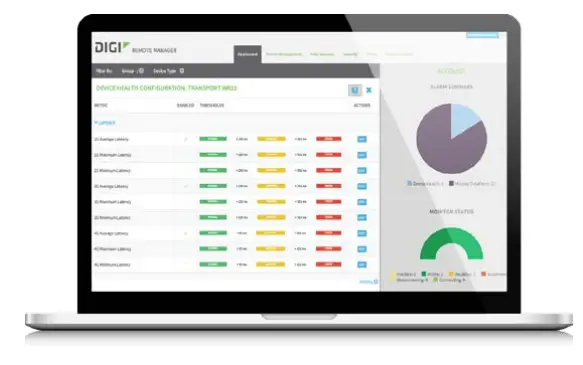

DIGI REMOTE MANAGER
CAPABILITIES
- Centralized management of remote devices over 3G/4G LTE
- Define standard configurations and automatically monitor individual devices for PCI security compliance
- Report and alert on performance statistics, including connection history, signal quality, latency, data usage, and packet loss
- No servers or applications to operate and maintain
- Complete tasks for your entire device network in minutes
- Edit configurations and update firmware for your individual devices or groups
- Monitor the status and location of your remote device via a web browser
- Active or deactivate cellular lines and monitor data to ensure you never incur overage charges
SECURITY
- Certified SSAE-16 facilities
- Member of the Cloud Security Alliance
- Over 175 security controls are in place to protect your data
- Enables compliance with security frameworks like PCI, HIPAA, NIST, and more
- Earned SkyHigh’s Cloud Trust Program highest ranking of Enterprise-Ready
INFRASTRUCTURE
- Hosted in a commercial-grade SAS 70-certified environment
- Superior availability, operating to 99.9% or greater
- Open APIs available to support application development

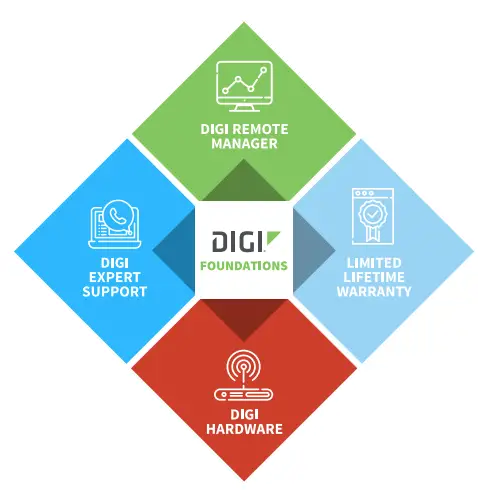

DIGI FOUNDATIONS™
IT’S TIME TO CONNECT WITH CONFIDENCE
The convenient, comprehensive, and secure way to integrate IoT communications hardware, device management software, global support, and lifetime warranty protection into a connectivity solution to simplify your IoT network growth.
- Digi Remote Manager® (DRM) gives you a single point of contact, command, and control with sophisticated remote device monitoring and management tools.
- Digi Expert Support is available around the clock, seven days a week, around the world with experts ready to provide technical support by phone, email, or online.
- Digi Limited Lifetime Warranty lowers the total cost of ownership with hardware protection and equipment upgrades to expand your network as needs evolve.
Digi Foundations, with DRM, simplifies network and device management – for hundreds or hundreds of thousands of Digi or third-party devices – with options to upgrade as technology evolves. Isn’t it time you got better connected?
For more information visit: digi.com/foundations
PART NUMBERS: DESCRIPTION
| ConnectPort X4 H – Zigbee | |
| X4H-Z1U-L301-US | ConnectPort X4 H -Digi XBee Zigbee to Ethernet & cellular (LTE) |
| X4H-Z1U-B101-US | ConnectPort X4 H – Digi XBee Zigbee S2B to Ethernet & cellular (1xRTT Sprint) |
| ConnectPort X4 – Zigbee | |
| X4-Z11-E-A | ConnectPort X4 – Digi XBee Zigbee to Ethernet |
| X4-Z11-E-W | ConnectPort X4 – Digi XBee Zigbee to Ethernet (International) |
| X4-Z1J-U901-W | ConnectPort X4 – Digi XBee Zigbee to Ethernet & cellular (HSPA+) (International) |
| X4-Z1U-U901-A | ConnectPort X4 – Digi XBee Zigbee to Ethernet & cellular (HSPA+) |
| ConnectPort X4 – DigiMesh 2.4 GHZ | |
| X4-M11-U901-A | ConnectPort X4 – Digi XBee (Digi Mesh 2.4GHS) to Ethernet & cellular (HSPA+) |
| X4-M11-U901-W | ConnectPort X4 – Digi XBee (DigiMesh 2.4 GHz) to Ethernet & cellular (HSPA+) (International) |
| ConnectPort X4 – 900 MHZ | |
| X4-HMU-B201-A | ConnectPort X4 – Digi XBee (Digi XBee-PRO 900HP) to Ethernet & cellular (1xRTT Verizon) |
| X4-HMU-E-A | ConnectPort X4 – Digi XBee (Digi XBee-PRO 900HP) to Ethernet |
| X4-HMU-U901-A | ConnectPort X4 – Digi XBee (Digi XBee-PRO 900HP) to Ethernet & cellular (HSPA+) |
| ConnectPort X4 IA – Zigbee | |
| X4-Z1J-U905 | ConnectPort X4 IA – Digi XBee Zigbee to Ethernet & cellular (HSPA+) (International) |
| X4-Z1U-U905 | ConnectPort X4 IA – Digi XBee Zigbee to Ethernet & cellular (HSPA+) |
| ConnectPort X4 IA – 802.15.4 | |
| X4-A1J-U905 | ConnectPort X4 IA – Digi XBee (802.15.4) to Ethernet & cellular (HSPA+) (International) |
| X4-A1U-U905 | ConnectPort X4 IA – Digi XBee (802.15.4) to Ethernet & cellular (HSPA+) |
DIGI FOUNDATIONS: AVAILABLE FOR DIGI CONNECTPORT X4 FAMILY
