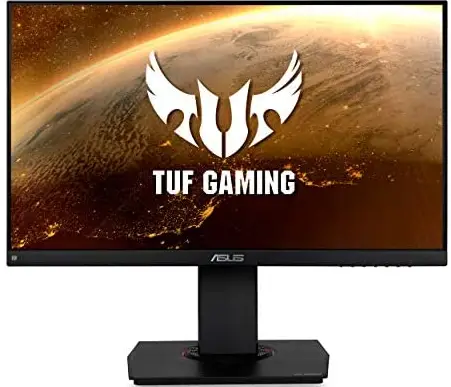

ASUS VG29Q1R TUF USB-C Gaming Monitor
KEY FEATURES
- 220Hz (overclocking) refresh rate for ultra fast and smooth gameplay
- Fast IPS Display allows the display’s liquid crystal elements to switch up to 4X faster than conventional IPS panels for improved response.
- Monitor can operate in VRR at any game frame rate and offers the gamer a seamless experience by enabling VRR by default.
- 2560×1080 21:9 ultra wide view for immersive experience
- Enables ELMB together with VRR, eliminating ghosting and tearing for sharp gaming visuals
- Synchronizing up lighting effects between all Aura-capable peripherals.
- With a 1ms gray-to-gray response time, smearing and motion blur are virtually eliminated.
- It can serve as a USB hub, meaning that you can connect your device to your peripherals with clutter-free set-up
- When two devices are connected to the monitor, the KVM switch lets you control both using just one keyboard and mouse.
ROG Strix XG309CM has undergone stringent performance tests and is certified Flicker-free and Low Blue Light by TÜV Rheinland laboratories, a global provider of technical, safety, and certification services
SPECIFICATION
|
Display | Panel Size (diagonal) | 29.5″(74.93cm) Ultra Wide Screen (21:9) | |
| Display Viewing Area | 690.43x 291.28mm | ||
| Panel Backlight/ Type | Fast IPS | ||
| Refresh rate | 220Hz (overclocking) | ||
| Display Surface | Non-glare | ||
| Color Saturation | sRGB 110% | ||
| Resolution | 2560×1080 | ||
| Pixel Pitch | 0.270mm | ||
| Brightness | 300cd/㎡ | ||
| Contrast Ratio | 1000:1 | ||
| Viewing Angle (CR≧10) | 178°(H) / 178°(V) | ||
| Display Colors | 16.7M | ||
| Response Time | 1ms(GTG) | ||
| HDR (High Dynamic Range) Support | Yes, HDR 10 | ||
|
Video Features | Factory pre-calibration | Yes | |
| GameVisual | Scenery, Racing, Cinema, RTS/RPG, FPS, sRGB, MOBA, User mode | ||
| GamePlus | Stopwatch / Crosshair / Timer / FPS counter / Display Alignment | ||
| ELMB SYNC | Yes | ||
| Variable Overdrive | Yes | ||
| Adaptive-Sync | G-Sync compatible (in process), FreeSync premium | ||
| PBP | Yes | ||
| Input / Output | DP (v1.2)x1, HDMI (v2.0)x1, USB Type-C x1, 2x USB 3.2 Gen1 Type-A, 1x USB 3.2 Gen1 Type-B, Earphone Jack | ||
| Speaker | 2W x 2 stereo, RMS | ||
| KVM switch | Yes | ||
| Signal Frequency | Digital Signal Frequency | HDMI: 30~230 KHz(H) / 48~200 Hz (V) (OC) DP/USB-C: 30~240 Khz (H) / 48~200 Hz (V) (Normal); 30~250 Khz (H) / 48~220 Hz (V) (OC) | |
|
Power | Power Consumption | Power On: <28W* Power Saving Mode: <0.5W Power Off Mode: <0.3W | |
| Voltage | 100–240V, 50 / 60 Hz | ||
|
Mechanical Design | Tilt | -5°~+20° | |
| Swivel | -25°~+25° | ||
| Height Adjustment | 0~110 mm | ||
| VESA Mount | Yes | ||
| Dimension | Phy. Dimension | 707.33 x (376.14~486.14) x 264.93 mm (with stand) 707.33 x 320.68 x 73.82 mm (without stand) 940 x 412 x 226 mm (box) | |
| Weight | 7.5 kg (net); 4.56 kg (net without stand); 11.16 kg (gross) | ||
| Special features | ASUS Variable Overdrive, KVM, ELMB SYNC, DisplayWidget, ASUS Aura Sync technology | ||
| Accessories | Power adapter, Power cord, DisplayPort cable, HDMI cable, USB Type-C cable, USB cable, Warranty Card, QSG, Calibration report, ROG sticker, ROG pouch | ||
| Compliance and Standards | TUV-flicker free, TUV-low blue light | ||
G-Sync compatible in process
measuring a screen brightness of 200 nits without audio/ USB/ Card reader connection
