Z10 SE 4K HDR Receiver Media Streamer Android OTT
User Guide
Installation Guide

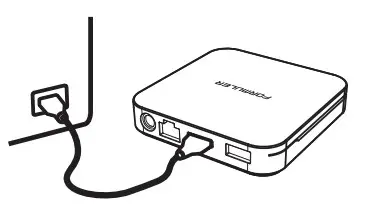

- Connect your FORMULER to your TV with an HDMI cable.

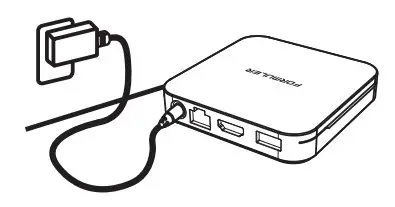

- Connect your FORMULER to power using the power cord.
- Turn on your TV and switch to the correct HDMI input.
- Set up your FORMULER and connect to your local network.
- Install your favorite apps to enjoy streaming content*.

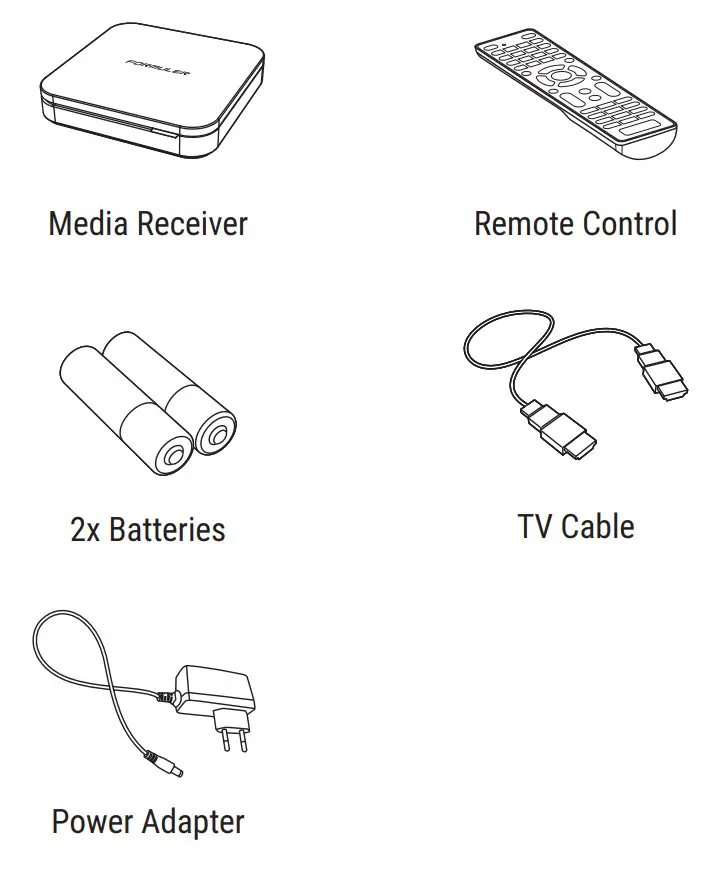

What’s in the Box?
RED Declaration
FORMULER hereby declares that this wireless device complies with all material requirements and other relevant provisions of the 2014/53/EU Directive. A copy of the Declaration of Conformity may be obtained directly from COBOPLUS [C/ INDEPENDENCIA, N2 BAJO DERECHA A y B, 28013, MADRID, SPAIN]
For technical support, regulatory compliance information, and a user guide, visit https://support.formuler.tv
SAFETY INFORMATION
FORMULER products are designed to operate safely when installed and used according to the product instructions and general safety practices. The guidelines included in this document explain the potential risks associated with equipment operation and provide important safety practices designed to minimize these risks. By carefully following the information contained in this document, you can protect yourself from hazards and create a safer environment.
Retain and follow all product safety and operating instructions. Always refer to the documentation supplied with your equipment. Observe all warnings on the product and in the operating instructions.
Note: Read all safety information below and operating instructions before using FORMULER to avoid injury.
WARNING: FAILURE TO FOLLOW THESE SAFETY INSTRUCTIONS COULD RESULT IN FIRE, ELECTRIC SHOCK, OR OTHER INJURY OR DAMAGE. ELECTRICAL EQUIPMENT CAN BE HAZARDOUS IF MISUSED.
OPERATION OF THIS PRODUCT, OR SIMILAR PRODUCTS, MUST ALWAYS BE SUPERVISED BY AN ADULT.
DO NOT ALLOW CHILDREN ACCESS TO THE INTERIOR OF ANY ELECTRICAL PRODUCT AND DO NO PERMIT THEM TO HANDLE CABLES.
SYMBOLS ON THE EQUIPMENT
This is a universal recycling symbol indicating that the battery cannot be disposed of in the trash and must be recycled according to the regulations and/or ordinances of the local community.
To reduce the risk of personal injury, electric shock, fire, or damage to the equipment, observe the following precautions:
Follow all cautions and instructions marked on the equipment
- Do not bend, drop, crush, puncture, incinerate, or push objects into openings of FORMULER.
- Do not connect or disconnect any cables or perform maintenance or reconfiguration of this product during an electrical storm.
- Do not use FORMULER in wet locations. In case FORMULER gets wet, unplug all cables and turn off before cleaning, and allow it to dry thoroughly before turning it on again.
- Never turn on any equipment when there is evidence of fire, water, or structural damage.
- Place the product away from heat sources.
- Never force a connector into a port. Make sure the connector matches the port before inserting.
- Always use a FORMULER-approved power adapter. Do not connect or disconnect the AC Power
Adapter with wet hands. The power adapter is intended for indoor use only. - Operate the AC adapter in a ventilated area.
- Do not make mechanical or electrical modifications to the equipment.
- Never attempt to repair FORMULER yourself. Do not attempt to open, or disassemble the device.
You run the risk of electric shock. - Operate FORMULER in a place where the temperature is always between 5 and 30 degrees Celsius.
- Use this product only with approved equipment and/or accessories.
POWER RATING: 12 VDC, 1.0A
RF Frequency and Max Power
RF Frequenz und Maximale Leistung
| Model | Technology | Frequency | RF Power[MAX] |
| Z10 SE | WLAN |
- Operation in the 5150 5350 MHz frequency band is restricted to Indoor Use Only.
- This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body.
Need more help?
Get the most out of your FORMULER Set Top Box.
Check out our FAQs, instructional videos, and user forums.
 | https://support.formuler.tv Help Desk |
| https://www.formuler-support.tv Official Forums |
 | https://www.youtube.com/formuler-official Youtube |
 | @FormulerTV |
 | @FormulerOfficial |
*Requires Internet connection. *Availability of services varies by country and language.
*Subscriptions for services may be required.
Memo
© Aloys Inc. All rights reserved. FORMULER and the FORMULER logo are trademarks of Aloys Inc. Other brand and product names are trademarks or registered trademarks of their respective holders. FCC ID: 2AV9UZ10SE
Manufacturer: Aloys Inc.
4-5, Yanghyeon-to 405beon-Gil, Seongnam-si, Gyeonggi-do, 13438, Rep. of Korea EU Importer: Coboplus S.L.U.
C/ INDEPENDENCIA, N2 BAJO DERECHA A y B, 28013, MADRID, SPAIN
The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by the manufacturer could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
RF Exposure Information
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.
