GE Profile PEP9036DT 36 Inch Built-In Touch-Control Electric Cooktop Installation Guide

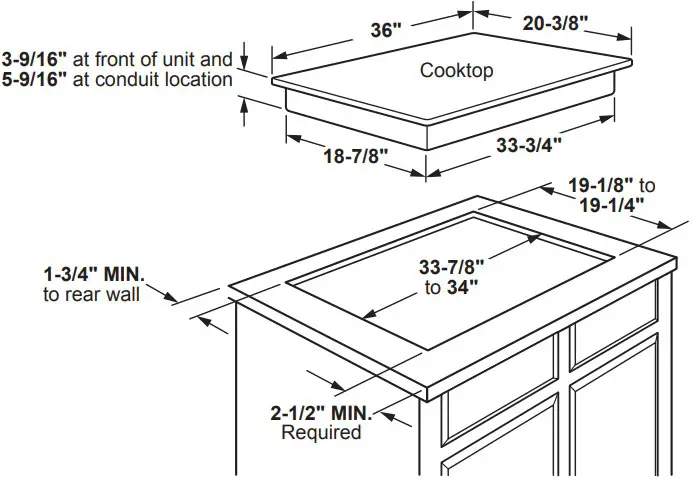

DIMENSIONS AND INSTALLATION INFORMATION (IN INCHES)

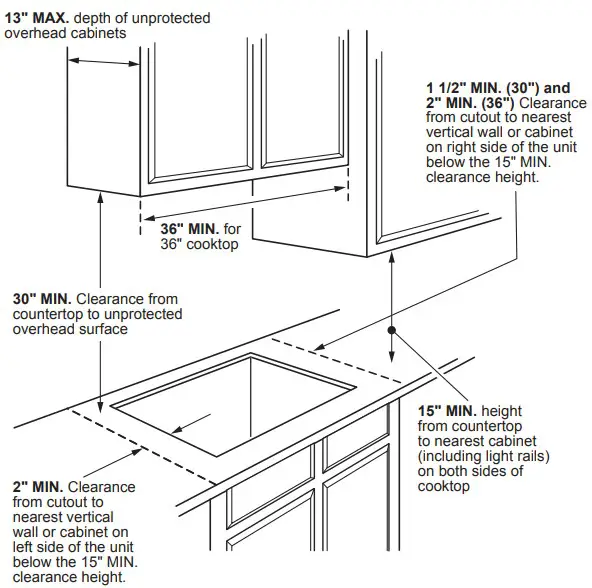

IMPORTANT: Requires a 5″ free area between the bottom of the cooktop to any combustible material, i.e., shelving. Free area not required when installing wall oven underneath cooktop. Refer to installation instructions. Requires a 15″ minimum from cooktop to adjacent overhead cabinets. Units are furnished with a 48″ flexible armored cable.

NOTE: 36″ Ribbon cooktops are approved for use over select GE 30″ Single Wall Ovens and Warming Drawers. Refer to cooktop and wall oven/warming drawer installation instructions packed with product for current dimensional data. If installed with a GE Telescopic Downdraft System, consult both the cooktop and downdraft installation instructions packed with product before installing. Cooktop gas/ electric supply may need to be re-routed to install downdraft. The countertop cutout requires 23-1/2″ minimum flat countertop surface and 25″ minimum total countertop depth. In addition, other clearances to front edge of the countertop must be considered.
Before installing, consult installation instructions packed with product for current dimensional data.

APPROXIMATE COOKING DIMENSIONS

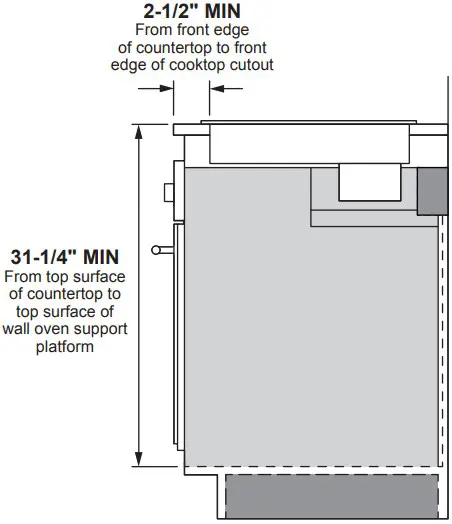

INSTALLATION ABOVE A WALL OVEN INSTALLATION ABOVE A WALL OVEN

For answers to your Monogram, GE Café™, GE Profile™ or GE Appliances product questions, visit our website at geappliances.com or call GE Answer Center® Service, 800.626.2000.

NOTE: Check local codes for required breaker size.

FEATURES AND BENEFIT

• Power Boil on Tri- and Dual-Ring Elements
• Precision Temperature Control
• Guided Cooking
• Glide Touch Controls – 19 Control Levels
• Easy Clean Surface
• Smart Cookware Rebate for 11″ Smart Pan
• Built-in WiFi
• Synchronized Elements
• Chef Connect
• Keep Warm Setting
• Control Lock
• Hot Surface Indicator Lights
• Fit Guarantee
• Model PEP9036DTBB – Black on blac
