Lenovo Mellanox ConnectX-6 HDR/200GbE VPI Adapters

ThinkSystem Mellanox ConnectX-6 HDR/200GbE VPI Adapters

Product Guide
The ThinkSystem Mellanox ConnectX-6 HDR/200GbE VPI Adapters offer 200 Gb/s Ethernet and InfiniBand connectivity for high-performance connectivity when running HPC, cloud, storage and machine learning applications.

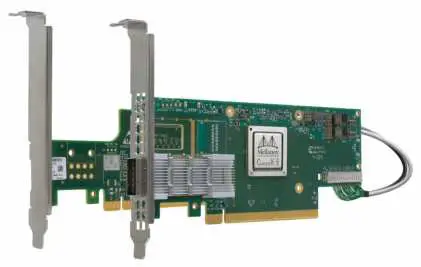

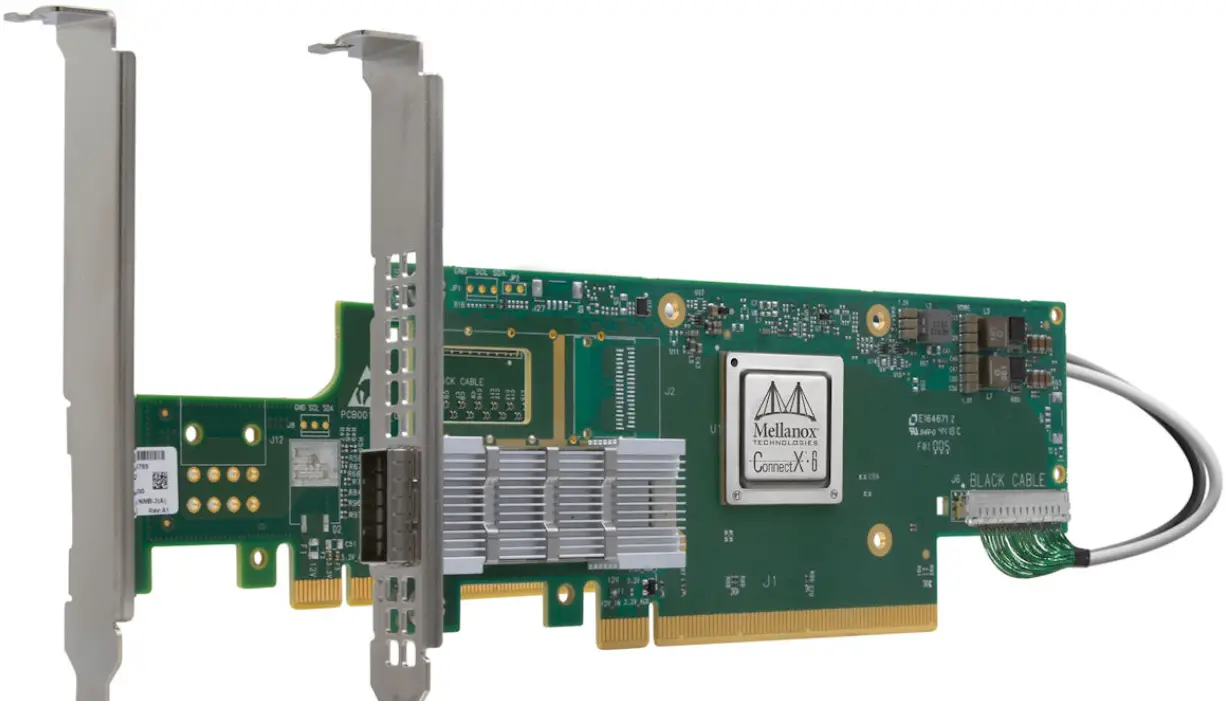

The following figure shows the ThinkSystem Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter connected to the ThinkSystem Mellanox HDR/200GbE Aux Adapter (the standard heat sink has been removed in this photo).

Figure 1. ThinkSystem Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter (right) and ThinkSystem Mellanox HDR/200GbE Aux Adapter (left)

Did you know?
Mellanox ConnectX-6 brings new acceleration engines for maximizing High Performance, Machine Learning, Storage, Web 2.0, Cloud, Data Analytics and Telecommunications platforms. ConnectX-6 HDR adapters support up to 200 Gb/s total bandwidth at sub-600 nanosecond latency, and NVMe over Fabric offloads, providing the highest performance and most flexible solution for the most demanding applications and markets. ThinkSystem servers with Mellanox adapters and switches deliver the most intelligent fabrics for High Performance Computing clusters.
ThinkSystem Mellanox ConnectX-6 HDR/200GbE VPI Adapters

CTO orders: For configure-to-order builds, these adapters are only available when you select one of the HPC & AI modes in the DCSC configurator. Not available in General Purpose mode of DCSC.

Table 1. Ordering information

Part number 4C57A15326 includes the following:

• One Mellanox adapter with full-height (3U) adapter bracket attached
• Low-profile (2U) adapter bracket
• Documentation

Part number 4C57A14179 includes the following:

• One Mellanox adapter with full-height (3U) adapter bracket attached
• Low-profile (2U) adapter bracket
• 350mm cable
• Documentation

Note: 4C57A15326 was previously named ThinkSystem Mellanox ConnectX-6 HDR QSFP56 1-port PCIe 4 InfiniBand Adapter

Supported transceivers and cables

The adapter has an empty QSFP56 cage for connectivity. The following table lists the supported transceivers.
Table 2. Transceivers

* 7G17A03539 also supports 40Gb when installed in a Mellanox adapter.
The following table lists the supported fiber optic cables and Active Optical Cables.

Table 3. Optical cables

The following table lists the supported direct-attach copper (DAC) cables.

Table 4. Copper cables

Features

Machine learning and big data environments
Data analytics has become an essential function within many enterprise data centers, clouds and hyperscale platforms. Machine learning relies on especially high throughput and low latency to train deep neural networks and to improve recognition and classification accuracy. ConnectX-6 offers an excellent solution to provide machine learning applications with the levels of performance and scalability that they require.
ConnectX-6 utilizes the RDMA technology to deliver low-latency and high performance. ConnectX-6 enhances RDMA network capabilities even further by delivering end-to-end packet level flow control.

Security

ConnectX-6 block-level encryption offers a critical innovation to network security. As data in transit is stored or retrieved, it undergoes encryption and decryption. The ConnectX-6 hardware offloads the IEEE AES-XTS encryption/decryption from the CPU, saving latency and CPU utilization. It also guarantees protection for users sharing the same resources through the use of dedicated encryption keys.
By performing block-storage encryption in the adapter, ConnectX-6 excludes the need for self-encrypted disks. This allows customers the freedom to choose their preferred storage device, including those that traditionally do not provide encryption. ConnectX-6 can support Federal Information Processing Standards (FIPS) compliance.
ConnectX-6 also includes a hardware Root-of-Trust (RoT), which uses HMAC relying on a device-unique key. This provides both a secure boot as well as cloning-protection. Delivering best-in-class device and firmware protection, ConnectX-6 also provides secured debugging capabilities, without the need for physical access.

Storage environments

NVMe storage devices offer very fast access to storage media. The evolving NVMe over Fabric (NVMe-oF) protocol leverages RDMA connectivity to remotely access NVMe storage devices efficiently, while keeping the end-to-end NVMe model at lowest latency. With its NVMe-oF target and initiator offloads, ConnectX-6 brings further optimization to NVMe-oF, enhancing CPU utilization and scalability.

Cloud and Web 2.0 environments

Telco, Cloud and Web 2.0 customers developing their platforms on software-defined network (SDN) environments are leveraging the Virtual Switching capabilities of server operating systems to enable maximum flexibility in the management and routing protocols of their networks.
Open V-Switch (OVS) is an example of a virtual switch that allows virtual machines to communicate among themselves and with the outside world. Software-based virtual switches, traditionally residing in the hypervisor, are CPU intensive, affecting system performance and preventing full utilization of available CPU for compute functions.
To address such performance issues, ConnectX-6 offers Mellanox Accelerated Switching and Packet
Processing (ASAP ) Direct technology. ASAP offloads the vSwitch/vRouter by handling the data plane in the NIC hardware while maintaining the control plane unmodified. As a result, significantly higher
vSwitch/vRouter performance is achieved minus the associated CPU load.
The vSwitch/vRouter offload functions supported by ConnectX-5 and ConnectX-6 include encapsulation and de-capsulation of overlay network headers, as well as stateless offloads of inner packets, packet headers re-write (enabling NAT functionality), hairpin, and more.
In addition, ConnectX-6 offers intelligent flexible pipeline capabilities, including programmable flexible parser and flexible match-action tables, which enable hardware offloads for future protocols.

Socket Direct

Mellanox’s Socket Direct technology improves the performance of dual-socket servers in numerous ways, such as by enabling each of their CPUs to access the network through a dedicated PCIe interface. As the connection from each CPU to the network bypasses the QPI (UPI) and the second CPU, Socket Direct reduces latency and CPU utilization. Moreover, each CPU handles only its own traffic (and not that of the second CPU), thus optimizing CPU utilization even further.
Socket Direct also enables GPUDirect RDMA for all CPU/GPU pairs by ensuring that GPUs are linked to the CPUs closest to the adapter card. Socket Direct enables Intel DDIO optimization on both sockets by creating a direct connection between the sockets and the adapter card.
Socket Direct technology is enabled by a main card housing the ConnectX-6 and an auxiliary PCIe card bringing in the remaining PCIe lanes. The ConnectX-6 Socket Direct card is installed into two PCIe x16 slots and connected using the supplied 350mm cable.
The two PCIe x16 slots may also be connected to the same CPU. In this case, the main advantage of the technology lies in delivering 200Gb/s to servers with PCIe Gen3-only support.

SharedIO
An implementation of Sockets Direct is SharedIO (Shared I/O), where a Mellanox VPI adapter is installed in one slot in one server and an auxiliary adapter is installed in a slot in second server in the same enclosure.
The result is that the two servers or processors share the network connection of the VPI adapter with significant savings both in the cost of the adapters but also the cost of switch ports.

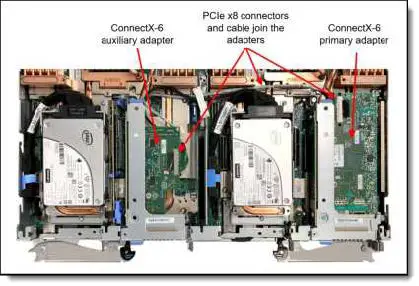

The following figure shows the Mellanox SharedIO Adapter and Auxiliary Card installed in two ThinkSystem SD650 V2 servers in the same tray.

Figure 2. SharedIO adapters installed in the two SD650 V2 servers on a tray

Technical specifications

The adapters have the following technical specifications.

Form factor

• Single-slot low-profile main adapter (6.6-inch x 2.71 in.)
• Single-slot low-profile auxiliary adapter

PCI Express Interface

• Supports PCIe 4.0 or PCIe 3.0
  • In PCIe 4.0 servers, the ConnectX-6 adapter is used by itself to connect 16 PCIe lanes. For two-socket servers, the adapter can be used with the Aux adapter to enable the Socket
    Direct feature.
  • In PCIe 3.0 servers, the ConnectX-6 adapter is used with the Aux adapter to connect 32 PCIe lanes. For two-socket servers, the adapter can be used with the Aux adapter to enable the Socket Direct feature.
• PCIe Atomic
• TLP (Transaction Layer Packet) Processing Hints (TPH)
• PCIe switch Downstream Port Containment (DPC) enablement for PCIe hot-plug
• Advanced Error Reporting (AER)
• Access Control Service (ACS) for peer-to-peer secure communication
• Process Address Space ID (PASID) Address Translation Services (ATS)
• IBM CAPIv2 (Coherent Accelerator Processor Interface)
• Support for MSI/MSI-X mechanisms

Connectivity

• One QSFP56 port
• Supports passive copper cables with ESD protection
• Powered connectors for optical and active cable support

InfiniBand

• Supports interoperability with InfiniBand switches (up to HDR, as 4 lanes of 50Gb/s data rate)
• Total connectivity is 200 Gb/s:
  • One port adapter supports a single 200 Gb/s link
• HDR / HDR100 / EDR / FDR / QDR / DDR / SDR
• IBTA Specification 1.3 compliant
• RDMA, Send/Receive semantics
• Hardware-based congestion control
• Atomic operations
• 16 million I/O channels
• 256 to 4Kbyte MTU, 2Gbyte messages
• 8 virtual lanes + VL15

Ethernet (requires firmware 20.28.1002 or later)

• Support interoperability with Ethernet switches (up to 200GbE, as 4 lanes of 50Gb/s data rate)
• Total connectivity is 200 Gb/s:
  • One port adapter supports a single 200 Gb/s link
• Supports 200 GbE / 100GbE / 50GbE / 40GbE / 25GbE / 10GbE / 1GbE
• IEEE 802.3bj, 802.3bm 100 Gigabit Ethernet
• IEEE 802.3by, Ethernet Consortium 25, 50 Gigabit Ethernet, supporting all FEC modes
• IEEE 802.3ba 40 Gigabit Ethernet
• IEEE 802.3ae 10 Gigabit Ethernet
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3ap based auto-negotiation and KR startup
• IEEE 802.3ad, 802.1AX Link Aggregation
• IEEE 802.1Q, 802.1P VLAN tags and priority
• IEEE 802.1Qau (QCN) – Congestion Notification
• IEEE 802.1Qaz (ETS)
• IEEE 802.1Qbb (PFC)
• IEEE 802.1Qbg
• IEEE 1588v2
• Jumbo frame support (9.6KB)
• IPv4 (RFQ 791)
• IPv6 (RFC 2460)

Enhanced Features

• Hardware-based reliable transport
• Collective operations offloads
• Vector collective operations offloads
• PeerDirect RDMA (GPUDirect) communication acceleration
• 64/66 encoding
• Enhanced Atomic operations
• Advanced memory mapping support, allowing user mode registration and remapping of memory (UMR)
• Extended Reliable Connected transport (XRC)
• Dynamically Connected transport (DCT)
• On demand paging (ODP)
• MPI Tag Matching
• Rendezvous protocol offload
• Out-of-order RDMA supporting Adaptive Routing
• Burst buffer offload
• In-Network Memory registration-free RDMA memory access

CPU Offloads

• RDMA over Converged Ethernet (RoCE)
• TCP/UDP/IP stateless offload
• LSO, LRO, checksum offload
• RSS (also on encapsulated packet), TSS, HDS, VLAN and MPLS tag insertion/stripping, Receive flow steering
• Data Plane Development Kit (DPDK) for kernel bypass applications
• Open VSwitch (OVS) offload using ASAP 2
  • Flexible match-action flow tables
  • Tunneling encapsulation / de-capsulation
• Intelligent interrupt coalescence
• Header rewrite supporting hardware offload of NAT router

Storage Offloads

• Block-level encryption: XTS-AES 256/512 bit key
• NVMe over Fabric offloads for target machine
• Erasure Coding offload – offloading Reed-Solomon calculations
• T10 DIF – signature handover operation at wire speed, for ingress and egress traffic
• Storage Protocols: SRP, iSER, NFS RDMA, SMB Direct, NVMe-oF

Overlay Networks

• RoCE over overlay networks
• Stateless offloads for overlay network tunneling protocols
• Hardware offload of encapsulation and decapsulation of VXLAN, NVGRE, and GENEVE overlay networks

Hardware-Based I/O Virtualization

• Single Root IOV
• Address translation and protection
• VMware NetQueue support
• SR-IOV: Up to 512 Virtual Functions
• SR-IOV: Up to 16 Physical Functions per host Virtualization hierarchies (network partitioning, NPAR)
  • Virtualizing Physical Functions on a physical port
  • SR-IOV on every Physical Function
• Configurable and user-programmable QoS
• Guaranteed QoS for VMs

HPC Software Libraries
HPC-X, OpenMPI, MVAPICH, MPICH, OpenSHMEM, PGAS and varied commercial packages

Management and Control

• NC-SI, MCTP over SMBus and MCTP over PCIe – BMC interface
• PLDM for Monitor and Control DSP0248
• PLDM for Firmware Update DSP0267
• SDN management interface for managing the eSwitch
• I2C interface for device control and configuration
• General Purpose I/O pins
• SPI interface to Flash
• JTAG IEEE 1149.1 and IEEE 1149.6

Remote Boot

• Remote boot over InfiniBand
• Remote boot over Ethernet
• Remote boot over iSCSI
• Unified Extensible Firmware Interface (UEFI)
• Pre-execution Environment (PXE)

NVIDIA Unified Fabric Manager

NVIDIA Unified Fabric Manager (UFM) is InfiniBand networking management software that combines enhanced, real-time network telemetry with fabric visibility and control to support scale-out InfiniBand data centers.

The two offerings available from Lenovo are as follows:

• UFM Telemetry for Real-Time Monitoring
  The UFM Telemetry platform provides network validation tools to monitor network performance and conditions, capturing and streaming rich real-time network telemetry information, application workload usage, and system configuration to an on-premises or cloud-based database for further analysis.
• UFM Enterprise for Fabric Visibility and Control
  The UFM Enterprise platform combines the benefits of UFM Telemetry with enhanced network monitoring and management. It performs automated network discovery and
• provisioning, traffic monitoring, and congestion discovery. It also enables job schedule provisioning and integrates with industry-leading job schedulers and cloud and cluster managers, including Slurm and Platform Load Sharing Facility (LSF).

The following table lists the subscription licenses available from Lenovo.

Table 5. NVIDIA Unified Fabric Manager subscriptions

For more information, see the following web page:
https://www.nvidia.com/en-us/networking/infiniband/ufm/

Server support

The following servers offer a PCIe 4.0 host interface. All other supported servers have a PCIe 3.0 host interface.

• ThinkSystem SR635
• ThinkSystem SR655
• ThinkSystem SR645
• ThinkSystem SR665

The following tables list the ThinkSystem servers that are compatible.

Table 6. Server support (Part 1 of 2

Table 7. Server support (Part 2 of 2)

Operating system support
The adapters support the operating systems listed in the following tables.

• ThinkSystem Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter, 4C57A15326
• ThinkSystem Mellanox HDR/200GbE 2x PCIe Aux Kit, 4C57A14179

Tip: These tables are automatically generated based on data from Lenovo ServerProven.

Table 8. Operating system support for ThinkSystem Mellanox ConnectX-6 HDR/200GbE QSFP56 1-port PCIe 4 VPI Adapter, 4C57A15326

1.  RHEL 7.6 Not support with EPYC 7003 processors.
2. RHEL7.7 Not support with EPYC 7003 processors.
3. RHEL7.8 Not support with EPYC 7003 processors
4. RHEL7.9 Not support with EPYC 7003 processors.
5. RHEL8.0 Not support with EPYC 7003 processors.
6. RHEL8.1 Not support with EPYC 7003 processors.
7. RHEL8.2 Not support with EPYC 7003 processors.
8. SLES15 SP1 Not support with EPYC 7003 processors
9. VMware 7.0 Not support with EPYC 7003 processors.
10. VMware 7.0 U1 Not support with EPYC 7003 processors.
11. RHEL7.6 Not support with EPYC 7003 processors
12. RHEL7.7 Not support with EPYC 7003 processors
13. RHEL7.9 Not support with EPYC 7003 processors
14. RHEL8.1 Not support with EPYC 7003 processors
15. RHEL8.2 Not support with EPYC 7003 processors
16. VMware 7.0 Not support with EPYC 7003 processors
17. ISG will not sell/preload this OS, but compatibility and cert only.
18. RHEL8.0 Not support with EPYC 7003 processors
19. VMware 7.0 U1 Not support with EPYC 7003 processors
20. RHEL7.6 Not support with EPYC 7003 processors.

Table 9. Operating system support for ThinkSystem Mellanox HDR/200GbE 2x PCIe Aux Kit, 4C57A14179

1. RHEL7.6 Not support with EPYC 7003 processors
2. RHEL7.7 Not support with EPYC 7003 processors
3. RHEL7.8 Not support with EPYC 7003 processors
4. RHEL7.9 Not support with EPYC 7003 processors
5. RHEL8.1 Not support with EPYC 7003 processors
6. RHEL8.2 Not support with EPYC 7003 processors
7. SLES15 SP1 Not support with EPYC 7003 processors
8. VMware 7.0 Not support with EPYC 7003 processors
9. RHEL7.6 Not support with EPYC 7003 processors.

Regulatory approvals

The adapters have the following regulatory approvals:

• Safety: CB / cTUVus / CE
• EMC: CE / FCC / VCCI / ICES / RCM / KC
• RoHS: RoHS Compliant

Operating environment
The adapters have the following operating characteristics:

• Typical power consumption (passive cables): 19.3W
• Maximum power available through QSFP56 port: 5W
• Temperature
  • Operational: 0°C to 55°C
  • Non-operational: -40°C to 70°C
• Humidity: 90% relative humidity

Warranty

One year limited warranty. When installed in a Lenovo server, the adapter assumes the server’s base warranty and any warranty upgrades.

Related publications
For more information, refer to these documents:

• Networking Options for ThinkSystem Servers:
  https://lenovopress.com/lp0765-networking-options-for-thinksystem-servers
• ServerProven compatibility:
  http://www.lenovo.com/us/en/serverproven
• Mellanox InfiniBand product page:
  https://www.nvidia.com/en-us/networking/infiniband-adapters/
• ConnectX-6 VPI user manual:
  https://docs.nvidia.com/networking/display/ConnectX6VPI

Related product families
Product families related to this document are the following:

• Ethernet Adapters
• InfiniBand & Omni-Path Adapters

Notices
Lenovo may not offer the products, services, or features discussed in this document in all countries. Consult your local Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead. However, it is the user’s responsibility to evaluate and verify the operation of any other product, program, or service. Lenovo may have patents or pending patent applications covering subject matter described in this document. The furnishing of this document does not give you any license to these patents. You can send license inquiries, in writing, to:

• Lenovo (United States), Inc.
• 8001 Development Drive
• Morrisville, NC 27560
• U.S.A.

Attention: Lenovo Director of Licensing
LENOVO PROVIDES THIS PUBLICATION ”AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some jurisdictions do not allow disclaimer of express or implied warranties in certain transactions, therefore, this statement may not apply to you.
This information could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new editions of the publication. Lenovo may make improvements and/or changes in the product(s) and/or the program(s) described in this publication at any time without notice.
The products described in this document are not intended for use in implantation or other life support applications where malfunction may result in injury or death to persons. The information contained in this document does not affect or change Lenovo product specifications or warranties. Nothing in this document shall operate as an express or implied license or indemnity under the intellectual property rights of Lenovo or third parties. All information contained in this document was obtained in specific environments and is presented as an illustration. The result obtained in other operating environments may vary. Lenovo may use or distribute any of the information you supply in any way it believes appropriate without incurring any obligation to you.
Any references in this publication to non-Lenovo Web sites are provided for convenience only and do not in any manner serve as an endorsement of those Web sites. The materials at those Web sites are not part of the materials for this Lenovo product, and use of those Web sites is at your own risk. Any performance data contained herein was determined in a controlled environment. Therefore, the result obtained in other operating environments may vary significantly. Some measurements may have been made on development-level systems and there is no guarantee that these measurements will be the same on generally available systems. Furthermore, some measurements may have been estimated through extrapolation. Actual results may vary. Users of this document should verify the applicable data for their specific environment.

© Copyright Lenovo 2022. All rights reserved.
This document, LP1195, was created or updated on April 5, 2022.
Send us your comments in one of the following ways:

• Use the online Contact us review form found at:
  https://lenovopress.lenovo.com/LP1195
• Send your comments in an e-mail to:
  [email protected]

This document is available online at https://lenovopress.lenovo.com/LP1195.

Trademarks

Lenovo and the Lenovo logo are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at
https://www.lenovo.com/us/en/legal/copytrade/.
The following terms are trademarks of Lenovo in the United States, other countries, or both:

• Lenovo®
• ServerProven®
• ThinkSystem®

The following terms are trademarks of other companies:
Intel® is a trademark of Intel Corporation or its subsidiaries.
Linux® is the trademark of Linus Torvalds in the U.S. and other countries.
Microsoft®, Windows Server®, and Windows® are trademarks of Microsoft Corporation in the United States, other countries, or both.
Other company, product, or service names may be trademarks or service marks of others.

References

• Welcome | ServerProven
• DCSC - Data Center Solution Configurator
• NVIDIA Networking Docs
• Networking Options for ThinkSystem Servers > Lenovo Press
• ThinkSystem Mellanox ConnectX-6 HDR/200GbE VPI Adapters Product Guide > Lenovo Press
• Ethernet Adapters > Lenovo Press
• InfiniBand & Omni-Path Adapters > Lenovo Press
• Copyright and Trademark Information | Lenovo US | Lenovo US
• Welcome | ServerProven
• NVIDIA InfiniBand Adapters | NVIDIA
• NVIDIA Unified Fabric Manager (UFM) | NVIDIA
