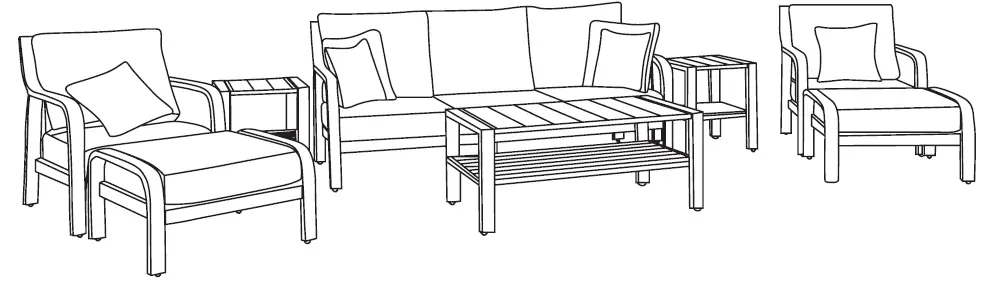

atleisure FRN-310390 Catalina 8PC Cushioned Seating Set
Sofa Package Contents
CAUTION: Do not use sharp tools to remove the protective material, as it may damage the product. Please lay out all parts prior to assembly to make sure all parts are present.
Hardware Contents:
| Part | Description | Quantity |
| AA | M6x20mm Bolt | 4 |
| BB | M6x35mm Bolt | 7 |
| cc | Washer | 11 |
| DD | Wrench |

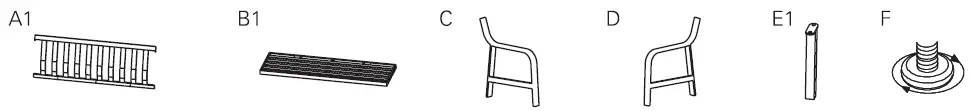

Package Contents:
| Part | Description | Quantity |
| A1 | Back | 1 |
| B1 | Seat | 1 |
| C | Armrest (left) | 1 |
| D | Armrest (right) | 1 |
| E1 Middle Leg | 1 | |
| F Leveling Feet (pre-assembled to armrests) | 5 | |

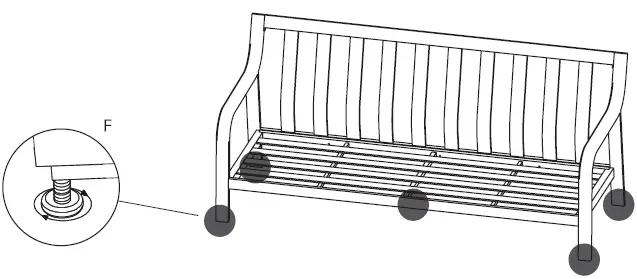

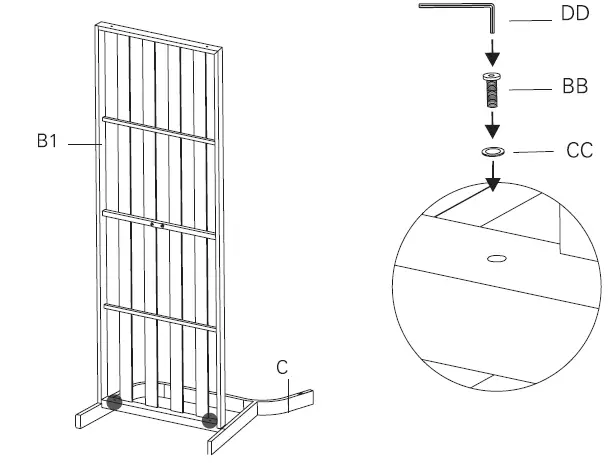

Sofa Assembly
Step 1
Place all parts on level, clean, soft surface.

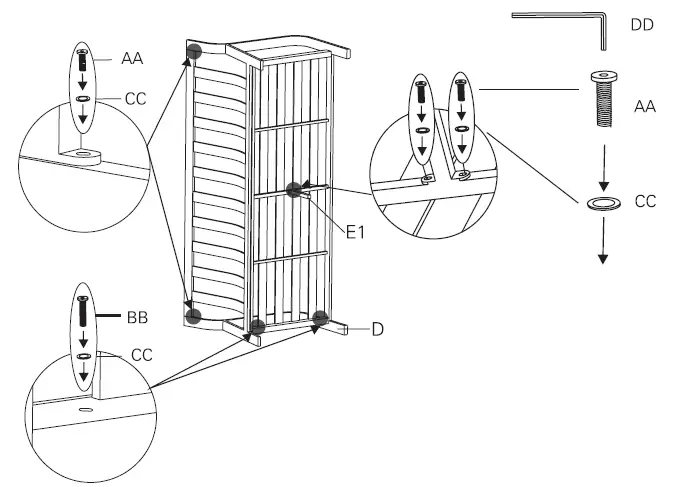

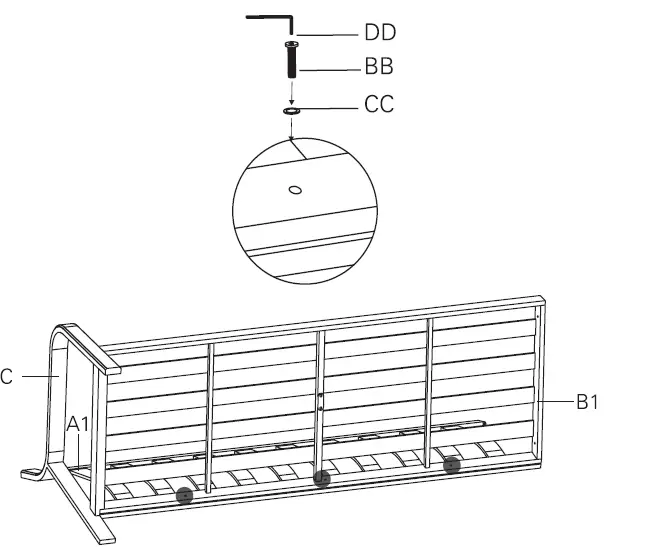

Step 2
Step 3
Step 4
Chair Package Contents
CAUTION: Do not use sharp tools to remove the protective material, as it may damage the product. Please lay out all parts prior to assembly to make sure all parts are present.
Hardware Contents:
| Part | Description | Quantity |
| AA | M6x20mm Bolt | 4 |
| BB | M6x35mm Bolt | 12 |
| cc | Washer | 16 |
| DD | Wrench |
Package Contents:
A2 Back 2
| B2 | Seat | 2 |
| C | Armrest (left) | 2 |
| D | Armrest (right) | 2 |
| F | Leveling Feet (pre-assembled to armrests) | 8 |

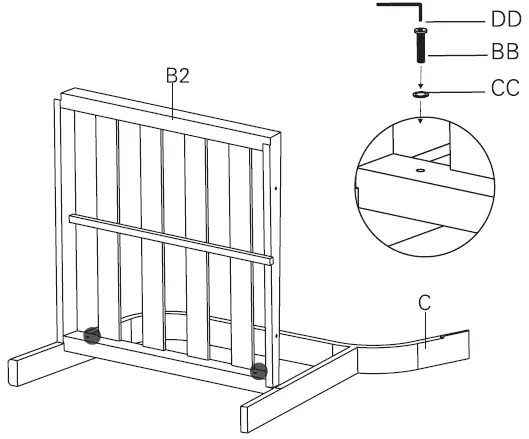

Chair Assembly
Step 1
Place all parts on level, clean, soft surface.

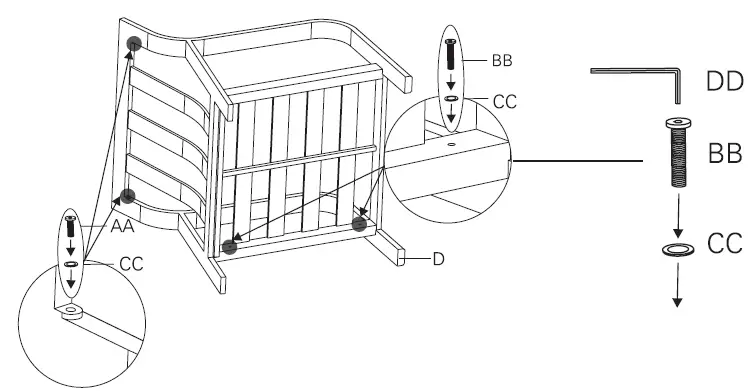

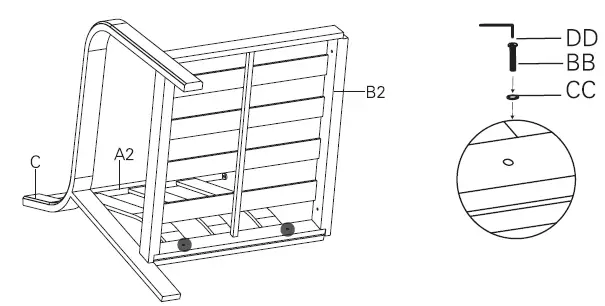

Step 2
Step 3

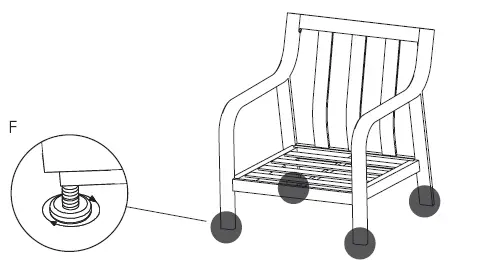

Step 4
Ottoman Package Contents
CAUTION: Do not use sharp tools to remove the protective material, as it may damage the product. Please lay out all parts prior to assembly to make sure all parts are present.
Hardware Contents:
| Part | Description | Quantity |
| AA | M6x35mm Bolt | 16 |
| BB | Washer | 16 |
| cc | Wrench | |
Package Contents:
| Part Description | Quantity | |
| A3 Seat | 2 | |
| B3 | Leg | 4 |
| F | Leveling Feet (pre-assembled to legs) | 8 |

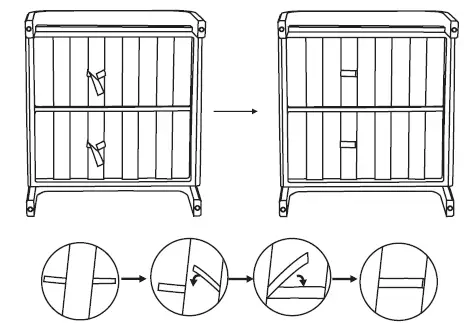

Ottoman Assembly
Step 1
Place all parts on level, clean, soft surface.

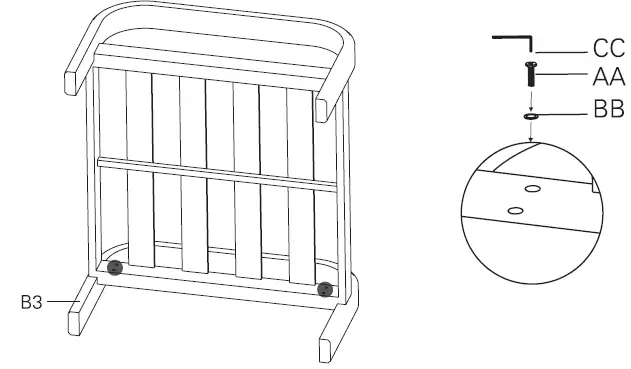

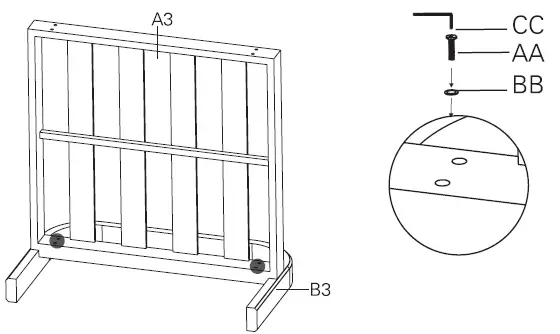

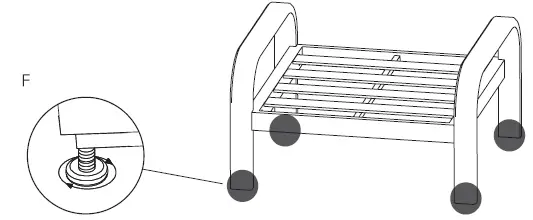

Step 2
Step 3
Step 4
Coffee Table Package Contents
CAUTION: Do not use sharp tools to remove the protective material, as it may damage the product. Please lay out all parts prior to assembly to make sure all parts are present.
Hardware Contents:
| –Part | Description | Quantity |
| AA | M6x15mm Bolt | 8 |
| BB | M6x25mm Bolt | 4 |
| cc | Washer | 12 |
| DD | Wrench | |
Package Contents:
| Part | Description | Quantity | |
| A4 | Table Top | ||
| B4 | Table Shelf | ||
| C4 | Table Leg | 2 | |
| F | Leveling Feet (pre-assembled to legs) | 4 |

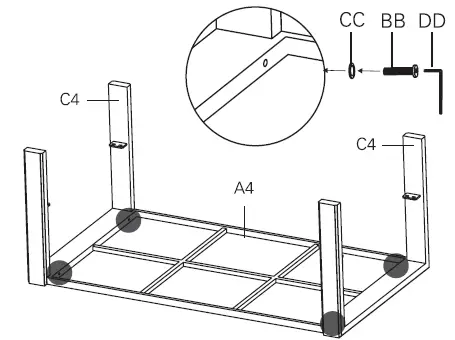

Coffee Table Assembly
Step 1
Place all parts on level, clean, soft surface.

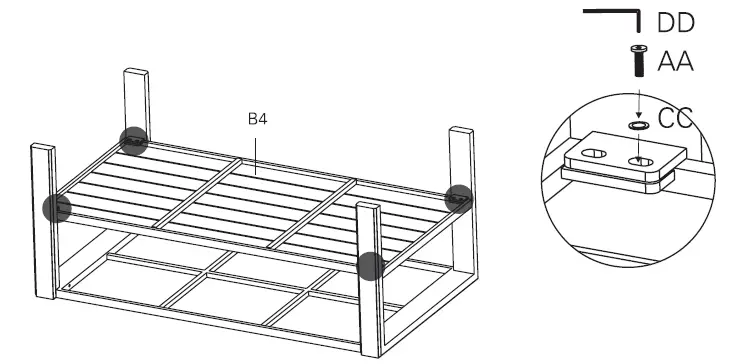

Step 2

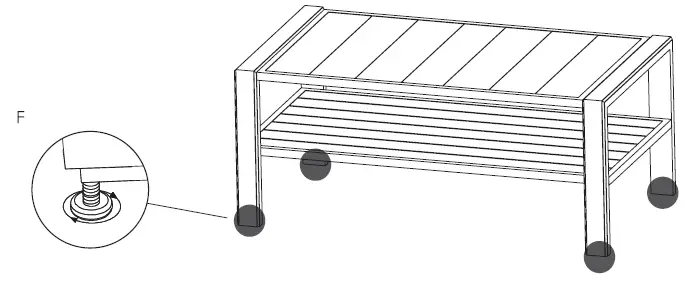

Step 3
Side Table Package Contents
CAUTION: Do not use sharp tools to remove the protective material, as it may damage the product. Please lay out all parts prior to assembly to make sure all parts are present.
Hardware Contents:
| Part | Description | Quantity |
| AA | M6x15mm Bolt | 16 |
| BB | M6x25mm Bolt | 8 |
| cc | Washer | 24 |
| DD | Wrench |
Package Contents:
| Part Description | Quantity | |
| A5 Table Top | 2 | |
| 85 Table Shelf | 2 | |
| C5 | Table Leg | 4 |
| F | Leveling Feet (pre-assembled to legs) | 8 |

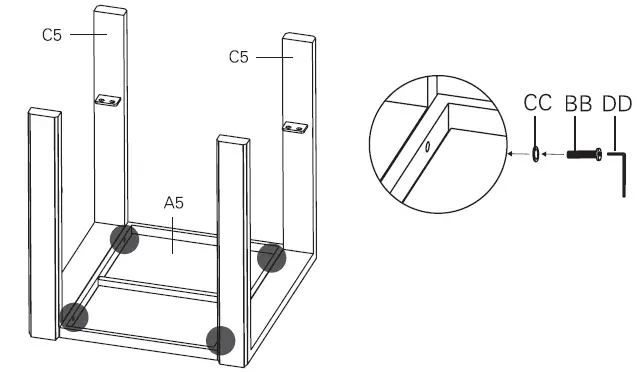

Side Table Assembly
Step 1
Place all parts on level, clean, soft surface.

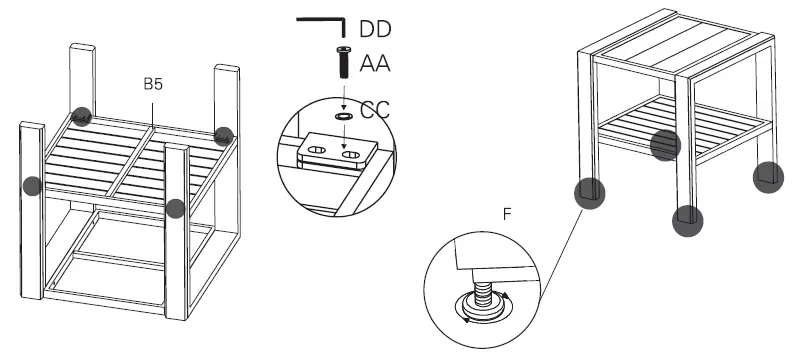

Step 2,3

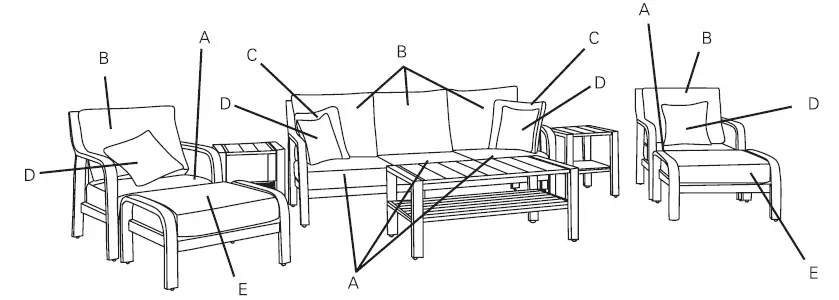

Pillows & Cushions Package Contents
| Part | Description | Quantity |
| A | Seat Cushion | 5 |
| B | Back Cushion | 5 |
| C | Big Pillow | 2 |
| D | Small Pillow | 4 |
| E Ottoman Cushion | 2 | |
Care and Maintenance
- All outdoor furniture is subject to UV rays and weather elements. We suggest using furniture covers or storing your furniture and cushions when not in use.
- See the enclosed Sunbrella® care and cleaning insert for cushion & pillow fabric maintenance.
- In order to keep your furniture vibrant, simply clean with mild soap and water. Rinse and dry thoroughly.
Warnings and Cautions
DANGER: Keep children out of unpacking area.
CAUTION: Use furniture on flat surface only.

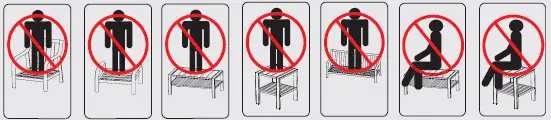

WARNING: Do not stand on chair, loveseat, ottoman, coffee table, or side Lil table. Do not sit on coffee table or side table.
Warranty
2 YEAR WARRANTY
This product is covered under a manufacturer’s 2 year warranty from date of purchase against defects in materials and workmanship. This warranty does not cover damage due to neglect, abuse, or weather related damage. For full warranty disclosure, email us at [email protected], call toll free at
1-855-880-7205 (English) or 1-888-692-1033 (French), or send mail to:
Atleisure, LLC
Customer Service Dept. 1040 Boulevard SE, Ste. B Atlanta, GA 30312 USA
NOT COVERED UNDER WARRANTY
This warranty excludes the following: acts of nature (i.e. wind, fire, or freeze); damage caused by improper assembly, accident, disaster, misuse, abuse, negligence and discoloration or fading of the finish or wicker as a result of exposure to the elements. Product not intended for commercial use. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
AUSTRALIA: Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

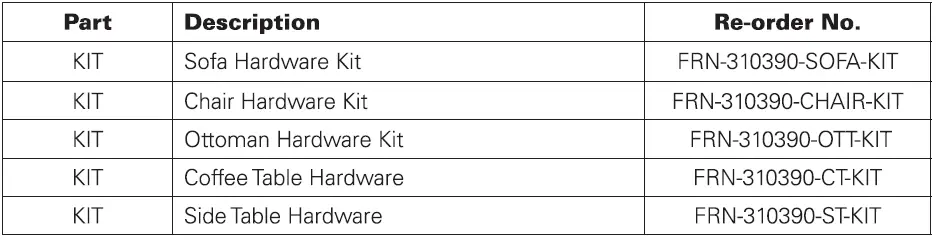

Replacement Parts
For replacement parts, call our customer service department at 1-855-880-7205 8:00 am-5:00pm., EST, Monday-Friday.
