FRESHWATER INSTALLATION

Contents hide

Solix Series Fishfinder

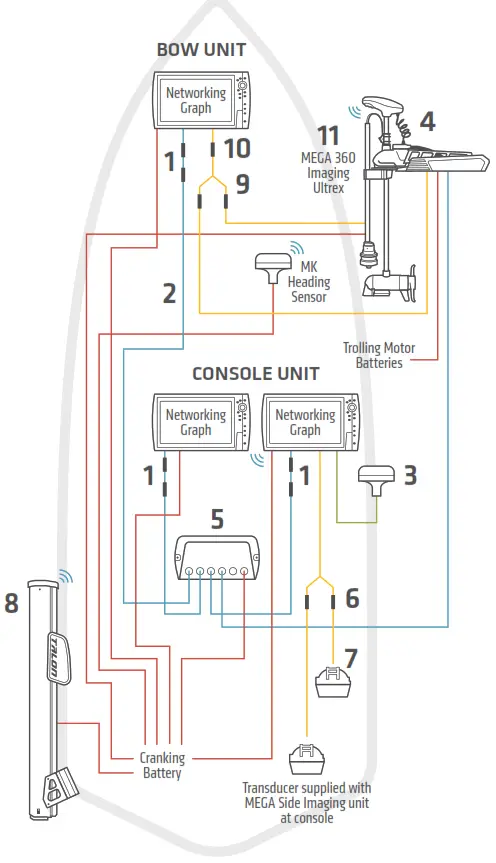

» Minn Kota trolling motor with i-Pilot Link and built-in MEGA Imaging, (1) bow-mounted Humminbird unit, (2) console-mounted Humminbird units, MEGA 360 Imaging – Ultrex, Minn Kota Shallow Water Anchor,with heading sensor GPS puck and high-speed transducer with y-cable.

HELIX SERIES	APEX/SOLIX SERIES
1 Ethernet Adapter Cable (Need 3) AS EC ODE I #720074-1	Ethernet Adapter Cable N/A
2 Ethernet Cable (Need 3) AS EC SE (5′) I #720073-6 AS EC 10E (10′) I #720073-2 AS EC 15E (15′) I #720073-5 AS EC 20E (20′) I #720073-3 AS EC 30E (30′) I #720073-4	Ethernet Cable (Need 3) AS EC SE (5′) I #720073-6 AS EC 10E (10′) I #720073-2 AS EC 15E (15′) I #720073-5 AS EC 20E (20′) I #720073-3 AS EC 30E (30′) I #720073-4
3 GPS + Heading Sensor AS GPS HS I #408400-1	GPS + Heading Sensor APEX: AS GPS HS I #408400-1 AS GPS I #720113-1 SOLIX: AS GPS HS I #408400-1 AS GPS NMEA I #720080-1
4 Minn Kota Ultrex Trolling Motor with i-Pilot Link and built-in MEGA Imaging’	Minn Kota Ultrex Trolling Motor with i-Pilot Link and built-in MEGA Imaging’
5 5-Port Ethernet Switch AS ETH SPXG I #408450-1	5-Port Ethernet Switch AS ETH SPXG I #408450-1 Note: Networks exclusively with APEX units do not require 5-Port Ethernet Switch
6 Transducer Splitter Cable 9 M SlOB Y I #720101-1	Transducer Splitter Cable 14 MID SIDB Y I #720111-1
7 High Speed Transducer (fiberglass hull) XP 9 HWT I #710276-1 High Speed Transducer (aluminum hull) XNT 9 HWT I #710274-1	I. High Speed Transducer (fiberglass hull) XP 14 HWT I #710287-1 High Speed Transducer (aluminum hull) XNT 14 HWT I #710285-1
Minn Kota Talon/Raptor with Bluetooth Talon SWA	` Minn Kota Talon/Raptor with Bluetooth Talon SWA
9 MEGA 360 and MDI/2D Y-Cable 14 M360 2DDI Y I #720108-1	MEGA 360 and MD1/20 Y-Cable 14 M360 2001Y I #720108-1
10 Adapter Cable for MEGA 360 T-Cable AD HELIX M360 (included with MEGA 360)	Adapter Cable for MEGA 360 Y-Cable N/A
11 MEGA 360 Imaging MEGA 360 Imaging – Ultrex I #411250-1	MEGA 360 Imaging MEGA 360 Imaging – Ultrex I #411250-1

*One (1) AS ECX 30E ethernet extension cable included with i-Pilot Link trolling motor.
The accessories and part numbers listed above are valid as of November 2021. Installations shown are for HELIX G3N/G4N and APEX/SOLIX G2/G3 networking models and Minn Kota trolling motors with i-Pilot Link.
