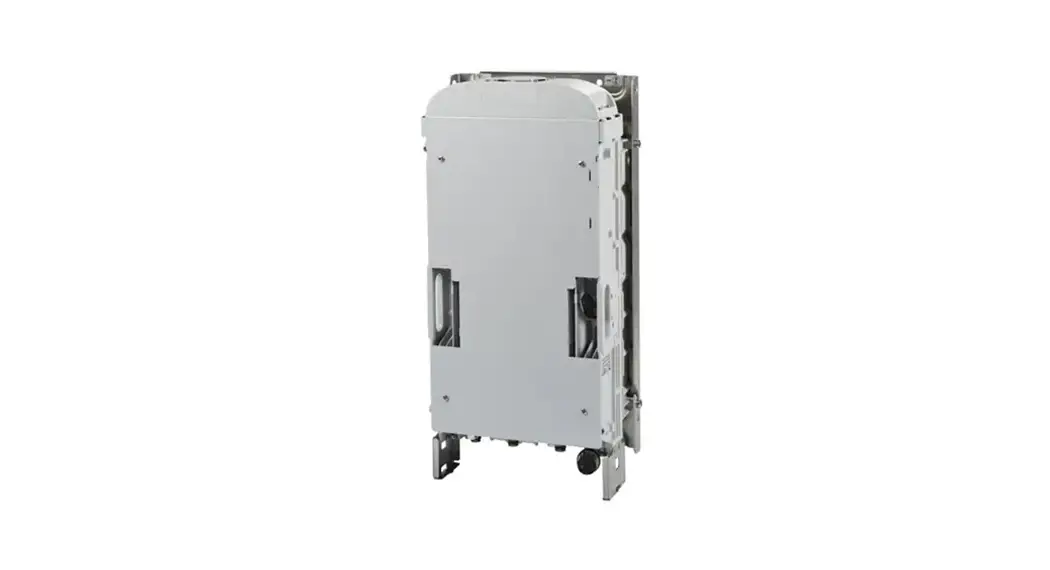

Nokia Airscale Radio Access User Guide (+ PDF)

Nokia AirScale Radio Description
User Guide
RSS-102 Compliance
V_4

ADDENDUM

Following are example minimum separation distances calculated to meet the limits of RSS-102, Issue 5 for deployment of Nokia Solutions and Networks base station products. These calculated distances assume typical antenna gains as shown. For other antenna gains the compliance boundaries must be recalculated.

MIMO operation must be considered (including total output power from multiple ports and directional gain due to multiple antennas) when calculating compliance boundaries. Computing directional gain (including array gain due to multiple antenna) procedures are in ANSI C63.26-2015 clause 6.4. The antenna gain noted in the addendum tables is single antenna gain (does not include the array gain that may occur for MIMO operations). Antenna gain and transmitter power have the same relationship in determining minimum separation distance so a 3dB change in antenna gain has the same effect on the minimum separation distance calculation as a 3 dB change in output power. The minimum separation distance if the antenna gain is 3dB above the value provided in the table can be determined by obtaining the Compliance Boundary value of double the output power.

RSS-102 Issue 5: Compliance Boundaries for Occupational
Power (W)	Frequency Range (MHz)
	420-425	462.5-467.5	617-652	698-960	1452-1492	1710-2690	3400-3800	5150-5250	5725-5850
	Antenna Gain (dBi)
	15	15	15.6	15.8	16.6	17.6	16.5	5.84	5.81
	Compliance Boundary (m)
0.5	0.31	0.3	0.3	0.3	0.27	0.29	0.22	0.06	0.06
1	0.44	0.43	0.42	0.42	0.38	0.41	0.31	0.08	0.08
2	0.62	0.6	0.6	0.6	0.54	0.59	0.43	0.11	0.11
5	0.98	0.95	0.95	0.94	0.86	0.93	0.69	0.18	0.18
8	1.23	120	1.2	1.19	1.09	1.17	0.87	23	0.22
10	1.23	1.35	1.34	1.33	1.22	1.31	0.97	26	0.25
20	1.23	1.9	1.9	1.88	1.72	1.85	1.37	0.36	0.35
30	1.23	2.33	2.33	2.31	2.11	2.27	1.68	0.44	0.43
40	2.76	2.69	2.68	2.66	2.43	2.62	1.94	0.51	0.5
50	3.08	3.01	3	2.98	2.72	2.93	2.17	0.57	0.56
60	3.38	3.3	3.29	3.26	2.98	3.21	2.38	0.63	0.61
70	3.65	3.56	3.55	3.52	3.22	3.47	2.57	0.68	0.66
80	3.9	3.81	3.8	3.77	3.44	3.7	2.75	0.73	0.7
90	4.14	4.04	4.03	4	3.65	3.93	2.92	0.77	0.75
96	4.27	4.17	4.16	4.13	3.77	4.06	3.01	0.8	0.77
100	4.36	4.26	4.24	4.21	3.85	4.14	3.07	0.81	0.79
110	4.57	4.47	4.45	4.42	4.03	4.34	3.22	0.85	0.83
120	4.78	4.66	4.65	4.61	4.21	4.54	3.37	0.89	0.86
128	4.93	4.82	4.8	4.77	4.35	4.69	3.48	0.92	0.89
130	4.97	4.85	4.84	4.8	4.38	4.72	3.5	0.93	0.9
140	5.16	5.04	5.02	4.98	4.55	4.9	3.64	0.96	0.93
150	5.34	5.21	5.2	5.16	4.71	5.07	3.76	0.99	0.97
160	5.52	5.39	5.37	5.33	4.86	5.24	3.89	1.03	1
170	5.69	5.55	5.53	5.49	5.01	5.4	4.01	1.06	1.03
180	5.85	5.71	5.7	5.65	5.16	5.56	4.12	1.09	1.06
190	6.01	5.87	5.85	5.81	5.3	5.71	4.24	1.12	1.09
200	6.17	6.02	6	5.96	5.44	5.86	4.35	1.15	1.11
210	6.32	6.17	6.15	6.1	5.57	6	4.45	1.18	1.14
220	6.47	6.31	6.3	6.25	5.7	6.14	4.56	1.2	1.17
230	6.61	6.46	6.44	6.39	5.83	6.28	4.66	1.23	1.19
240	6.76	6.6	6.58	6.53	5.96	6.42	4.76	1.26	1.22
250	6.9	6.73	6.71	6.66	6.08	6.55	4.86	1.28	1.25
260	7.03	6.87	6.85	6.79	6.2	8.68	4.96	1.31	1.27
270	7.17	7	6.98	6.92	6.32	6.81	5.05	1.33	1.29
280	7.3	7.12	7.1	7.05	6.44	6.93	5.14	1.38	1.32
290	7.43	7.25	7.23	7.17	6.55	7.05	5.23	1.38	1.34
300	7.55	7.37	7.35	7.3	6.68	7.17	5.32	1.41	1.36
310	7.68	7.5	7.47	7.42	8.77	7.29	5.41	1.43	1.39
320	7.8	7.62	7.59	7.53	6.88	7.41	5.5	1.45	1.41
330	7.92	7.73	7.71	7.65	6.99	7.52	5.58	1.47	1.43
340	8.04	7.85	7.83	7.77	7.09	7.64	5.67	1.5	1.45
350	8.16	7.97	7.94	7.88	7.19	7.75	5.75	1.52	1.47
360	8.28	8.08	8.05	7.99	7.3	7.86	5.83	1.54	1.5
370	8.39	8.19	8.17	8.1	7.4	747	5.91	1.56	1.52
380	8.5	8.3	8.28	8.21	7.5	8.07	5.99	1.58	1.54
390	8.61	8.41	8.38	8.32	7.59	8.18	6.07	1.6	1.56
400	8.72	8.52	8.49	8.42	7.69	8.28	6.15	1.82	1.58
41D	8.83	8.62	8.6	8.53	7.79	8.39	6.22	1.64	1.8
420	8.94	8.73	8.7	8.63	7.88	8.49	6.3	1.66	1.81
430	9.04	8.83	8.8	8.73	7.97	8.59	6.37	1.68	1.83
440	9.15	8.93	8.9	8.84	8.07	8.69	6.45	1.7	1.85
450	9.25	9.03	9	8.93	8.16	8.79	6.52	1.72	1.87
460	9.35	9.13	9.1	9.03	8.25	8.88	6.59	1.74	1.69
470	9.46	9.23	9.2	9.13	8.34	8.98	6.66	1.76	1.71
480	9.58	9.33	9.3	9.23	8.42	9.07	6.73	1.78	1.73
640	11.02	10.78	10.73	10.64	9.72	10.47	7.77	2.06	1.99
740	11.85	11.57	11.53	11.45	10.45	11.26	8.35	2.21	2.14

RSS-102 Issue 5: Compliance Boundaries for General Public
Power (W)	Frequency Range (MHz)
	420-425	482.5-487.5	817-652	698-960	1452-1492	1710-2690	3400-3800	5150-5250	5725-5850
	Antenna Gain (dB)
	15	15	16.	16.	17.	18.	17.	6.	6.
	Compliance Boundary (m)
0.5	0.88	0.85	0.83	0.81	0.69	0.73	0.51	0.13	0.13
1	1.24	1.2	1.17	1.15	0.98	1.04	0.72	0.18	0.18
2	1.76	1.7	1.65	1.62	1.38	1.47	1.02	0.26	0.25
5	2.78	2.89	2.61	2.57	2.19	2.32	1.62	0.41	40
8	3.52	3.41	3.31	3.24	2.77	2.94	2.05	0.52	0.5
10	3.94	3.81	3.7	3.63	3.1	3.29	2.29	0.58	0.56
20	5.57	5.39	5.23	5.13	4.38	4.65	3.24	0.82	0.79
30	6.82	6.6	6.4	6.28	5.36	5.69	3.96	1.01	0.97
40	7.87	7.62	7.4	7.26	6.19	6.57	4.58	1.16	1.12
50	8.8	8.52	8.27	8.11	6.92	7.35	5.12	1.3	1.25
60	9.64	9.33	9.06	8.89	7.59	8.05	5.61	1.43	1.37
70	10.41	10.07	9.78	9.6	8.19	8.69	6.06	1.54	1.48
80	11.13	10.77	10.48	10.26	8.78	9.29	6.47	1.65	1.58
90	11.81	11.42	11.09	10.88	9.29	9.86	6.87	1.75	1.68
96	12.19	11.8	11.48	11.24	9.6	10.18	7.09	1.8	1.73
100	12.44	12.04	11.69	11.47	9.79	10.39	7.24	1.84	1.77
110	13.05	12.63	12.26	12.03	10.27	10.9	7.59	1.93	1.88
120	13.63	13.19	12.81	12.57	10.73	11.38	7.93	2.02	1.94
128	14.08	13.62	13.23	12.98	11.08	11.78	8.19	2.08	100
130	14.19	13.73	13.33	13.08	11.17	11.85	8.25	2.1	102
140	14.72	14.25	13.83	13.57	11.59	12.29	8.56	2.18	109
150	15.24	14.75	14.32	14.05	11.99	12.73	8.87	2.25	117
160	15.74	15.23	14.79	14.51	12.39	13.14	9.16	2.33	2.24
170	18.23	15.7	15.24	14.98	12.77	13.55	9.44	2.4	131
180	16.7	16.16	15.69	15.39	13.14	13.94	9.71	2.47	137
190	17.15	18.6	18.12	15.81	13.5	14.32	9.98	2.54	144
200	17.6	17.03	18.54	16.22	13.85	14.69	10.24	2.6	150
210	18.03	17.45	18.94	16.8e	14.19	15.08	10.49	2.67	156
220	18.44	17.86	17.34	17.01	14.52	15.41	10.74	2.73	162
230	18.87	18.26	17.73	17.4	14.85	15.76	10.98	2.79	168
240	1028	18.65	18.11	17.77	15.17	16.1	11.21	2.85	174
250	19.68	19.04	18.49	18.14	15.48	16.43	11.44	2.91	180
260	20.07	19.42	18.85	18.5	15.79	16.75	11.137	2.97	185
270	20.45	19.79	19.21	18.85	18.09	17.07	11.89	3.03	211
280	20.83	20.15	19.57	19.2	16.39	17.39	12.11	3.08	2.96
290	21.19	20.51	19.91	19.53	16.68	17.69	12.33	3.13	3.01
300	21.55	20.86	20.25	19.87	16.96	18	12.54	3.19	3.06
310	21.91	21.2	20.59	20.2	1724	18.3	12.75	324	3.12
320	22.26	21.54	20.92	20.52	17.52	18.59	12.95	3.29	3.16
330	22.61	21.87	21.24	20.84	17.79	18.88	13.15	3.34	3.21
340	22.95	22.2	21.56	21.15	18.06	19.16	13.35	3.39	3.26
350	23.28	22.53	21.88	21.46	18.32	19.44	13.54	3.44	3.31
360	23.61	22.85	22.19	21.77	18.58	19.71	13.73	3.49	3.38
370	23.94	23.16	22.49	22.07	18.84	19.99	13.92	3.54	3.4

380	24.26	23.47	22.79	22.38	19.09	20.26	14.11	3.59	3.45
390	24.58	23.78	23.09	22.65	19.34	20.52	14.3	3.64	3.49
400	24.89	24.08	23.39	22.94	19.59	20.78	14.48	3.68	3.54
410	25.2	24.38	23.68	23.23	19.83	21.04	14.66	3.73	3.58
420	25.5	24.68	23.96	23.51	20.07	21.29	14.83	3.77	3.63
430	25.81	24.97	24.25	23.79	20.31	21.55	15.01	3.82	3.67
440	26.11	25.26	24.53	24.06	20.54	21.8	15.18	3.86	3.71
450	26.4	25.54	24.8	24.33	20.77	22.04	15.35	3.91	3.75
460	26.69	25.83	25.08	24.6	21	22.29	15.53	3.95	3.8
470	26.98	26.11	25.35	24.87	21.23	22.53	15.69	3.99	3.84
480	27.26	26.38	25.62	25.13	21.45	22.76	15.86	4.03	3.88
640	31.47	30.47	29.59	29	24.73	26.25	18.28	4.65	4.47
740	33.81	32.72	31.76	31.17	26.61	28.24	19.67	5	4.81
