GLOBAL INDUSTRIAL 348116 36 Inch Square Food Court Table With Umbrella Hole Instructions

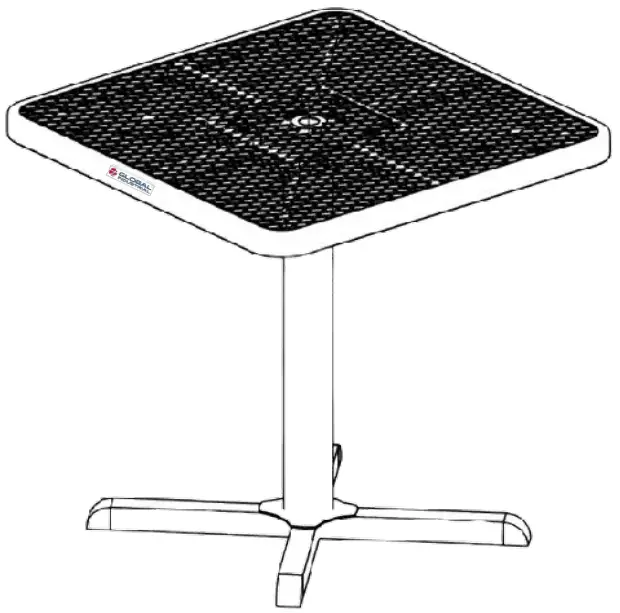

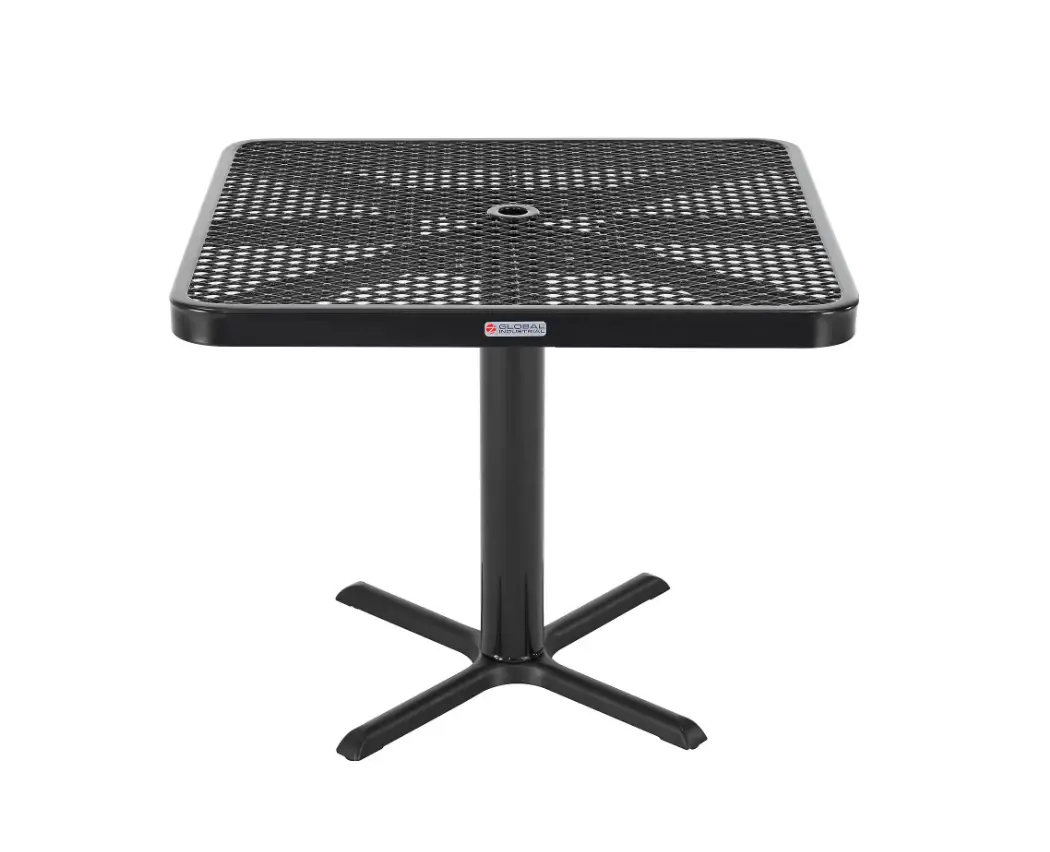

36″ Square Food Court Table With Umbrella Hole
Models:
29″ Height: 348116
36″ Height: 348117
42″ Height: 348118
Components
36″ Table Top: 348109
Base: 243308
29″/36″/42″ Pedestal: 278CP0(2/3/4)BK
| Ref. | Qty. | Description |
| 1 | 1 | Pedestal |
| 2 | 1 | Base |
| 3 | 1 | Table Top |
| H1 | 11 | M8 x 25 mm Bolt |
| H2 | 19 | M8 x 24 x 2 Flat Washer |
| H3 | 3 | M8 Spring Washer |
| H4 | 8 | M8 Stainless Steel Nylon Nut |
Assembly Instruction

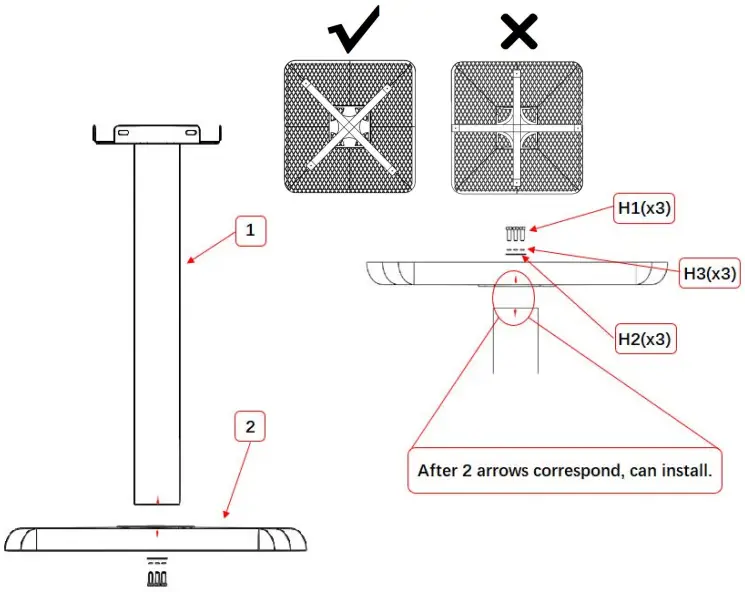

- Attach pedestal to base using 3 bolts, spring washers, and flat washers.

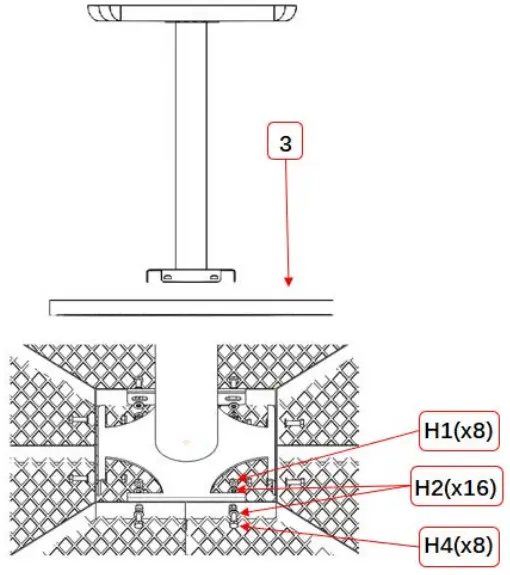

- Attach table top to pedestal using 8 bolts, 16 flat washers, and 8 nylon nuts.
CUSTOMER SUPPORT
US: 1-800-645-2986
