User manual for Door sensor
facebook.com/telldus
@telldus
You can also read the manual online.
Just follow the link: telld.us/m15110
Installation

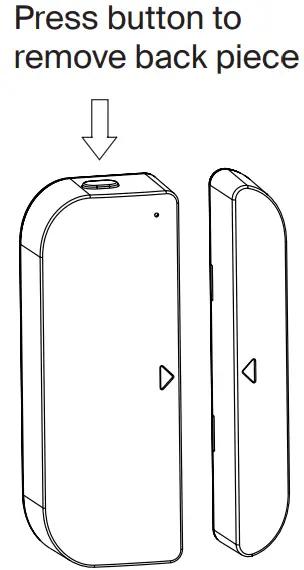

| Insert the included batteries into the sensor. |  |
Connect the sensor to TellStick
Requires a TellStick and a Telldus Live account

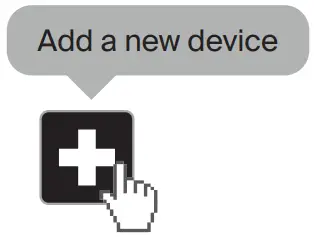

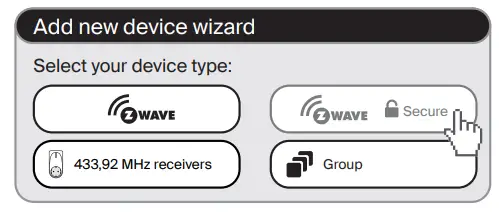

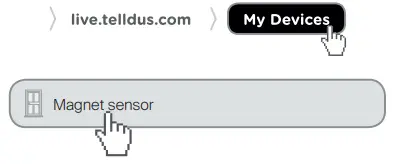

| Log into live.telldus.com

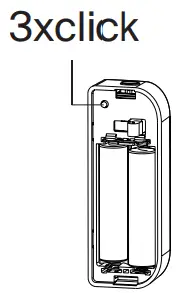

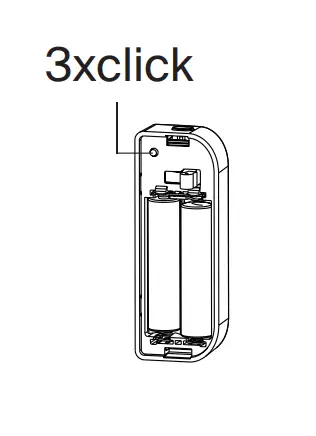

|  Connect sensor by pressing 3 times on the button |

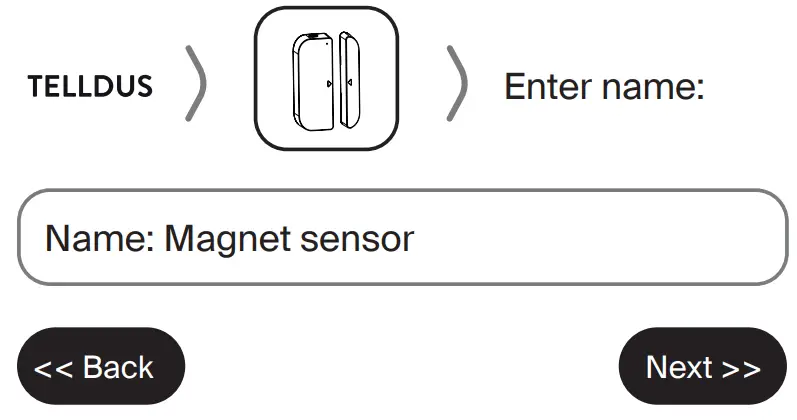

 |  Press next and then the installation is done. |
 |
Specifications
Article number/Artikelnummer/Artikkelinumero: 15110
Product size: 40x70x18mm
Battery/Batteri/Batterie/Paristo: 2XAAA 1.5V
Range/Räckvidd/Soveltamisala/Aktionsradius: 0-30m
Protection class/Skyddsklass/Schutzklasse/Suojausluokka: IP20
Frequency/Frekvens/Frequenz/Taajuus: 868.42MHz (EU)
Protocol/Protokoll/ Pöytäkirja: Z-Wave 500 plus
Operating temperature/Användningstemperatur/Betriebstemperatur/Käyttölämpötila: 0– +40
Placing the sensor

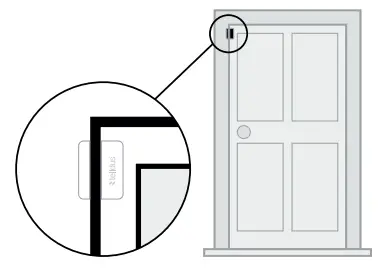

Mount the sensor on either a door or a window.
Choose if you want to fasten with the M3 tape or the screws that come included.

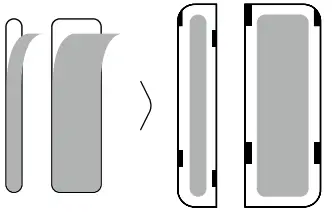

Mounting with adhesive tape

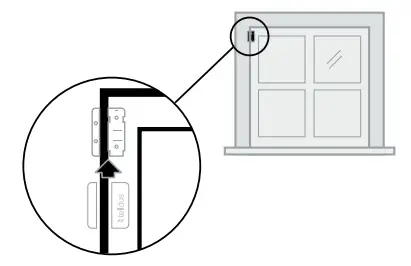

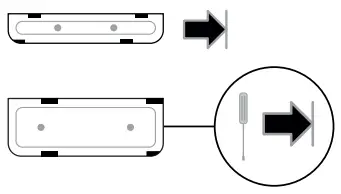

 OBS! Make sure the arrows align. |  |  |

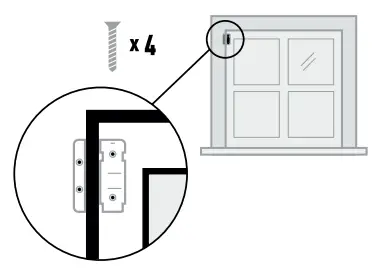

Mounting with screws
 |  |  |
Exclude the device
 |  |  |  |
Read this before installation
- This sensor may not be installed outdoors.
- For rough surfaces: Fix the magnet sensor into the frame by using the included screws.
For smooth surfaces: You may use double adhesive
tape for fastening the sensor.
Correct disposal of the products
Within the European Union, this symbol indicates that the products must not be disposed of in the household waste. Devices contain valuable recyclable materials that should be recycled for reuse and uncontrolled waste disposal may cause harm to the environment and human health. Please dispose of the old products via suitable collection systems or send the unit to the office where you bought it. This will make the product recycling.
Proove AB Birger Svensson Väg 34 B,
432 40 Varberg,
Sweden www.telldus.com
support.telldus.com
