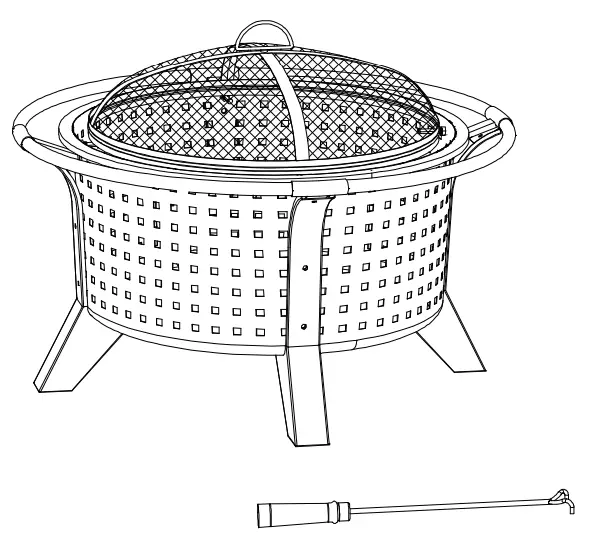

Woven 30 Inch Outdoor Round Wood Burning Firepit
Instruction Manual
Item/Article# ：A301026800
WE HAVE YOU IN MIND, LET US SERVE YOU!
Warnings
This fire bowl is intended for outdoor use only. NEVER LEAVE A FIRE UNATTENDED.
- DO NOT use the fire bowl to cook food. The fire bowl is not designed for grilling food.
- DO NOT allow children or pets near the fire bowl without supervision.
- DO NOT touch the surface of the fire bowl while in use as it may cause burns.
- NEVER burn in vehicles, tents or indoors. CARBON MONOXIDE HAZARD.
- Use a poker and / or heat-resistant gloves to open / close the mesh cover while in use.
- DO NOT use water to extinguish as this is dangerous and can cause damage to the fire bowl.
- Burn only untreated wood or fire logs in this fire bowl.
- DO NOT use gasoline or kerosene to start the fire in this fire bowl.
- Only place/use this fire bowl on stable and non-combustible surfaces.
- DO NOT attempt to move the fire bowl while it is hot or in use.
- Place the fire bowl no closer than 8′ (2.4 m) from walls or combustibles during use.
- Adequate fire extinguishing material should be readily available.
- Always ensure that the mesh cover is secured over the fire bowl while in use.
- The poker handle may become hot during and after use.
- Check local fire regulations and municipal by-laws for information regarding the safe use of this fire bowl.
- NEVER leave a burning fire unattended when in use. Always extinguish fire completely before leaving it.DO NOT COVER THE UNIT UNTIL FIRE HAS BEEN EXTINGUISHED FOR 24 HOURS.

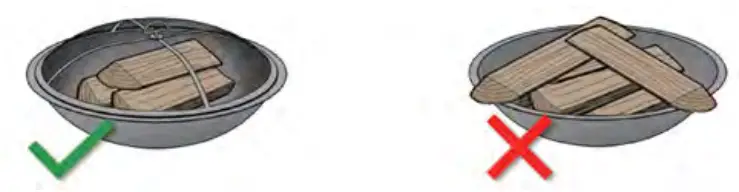

- [Referring to the above diagrams] Firelogs should fit well INSIDE the bowl, allowing the mesh-screen lid to fit securely and evenly. Logs should never be too many/too high, or sticking outside the perimeter of the bowl.
- Always use caution while using your firebowl.
Warranty: 1 Year
WHAT IS COVER?
The limited warranty is extended to the original purchaser and applies to material and manufacturer’s defect provided the item is maintained with care and used only for personal, residential purposes.
IMPORTANT
KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.
How many people needed for the installation work

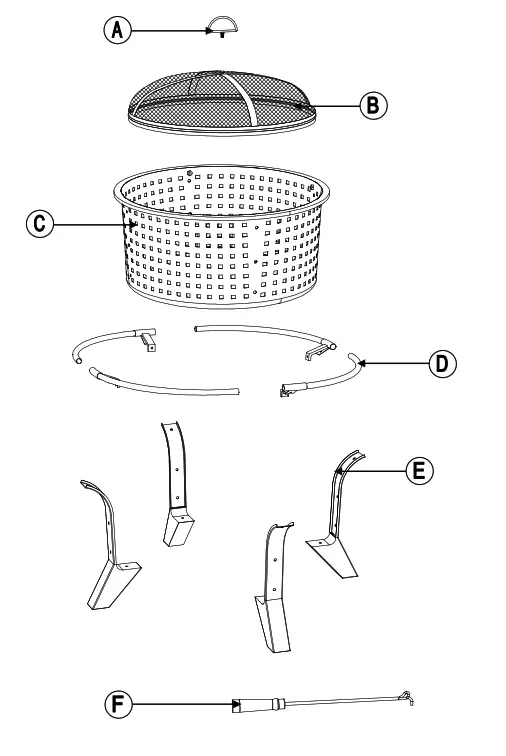

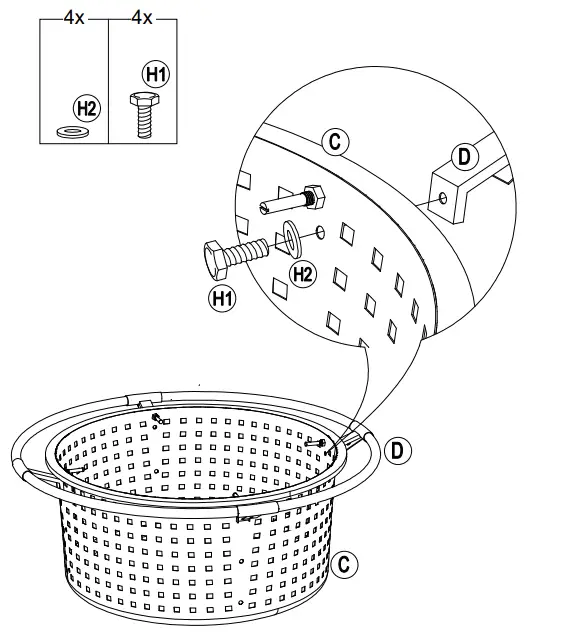

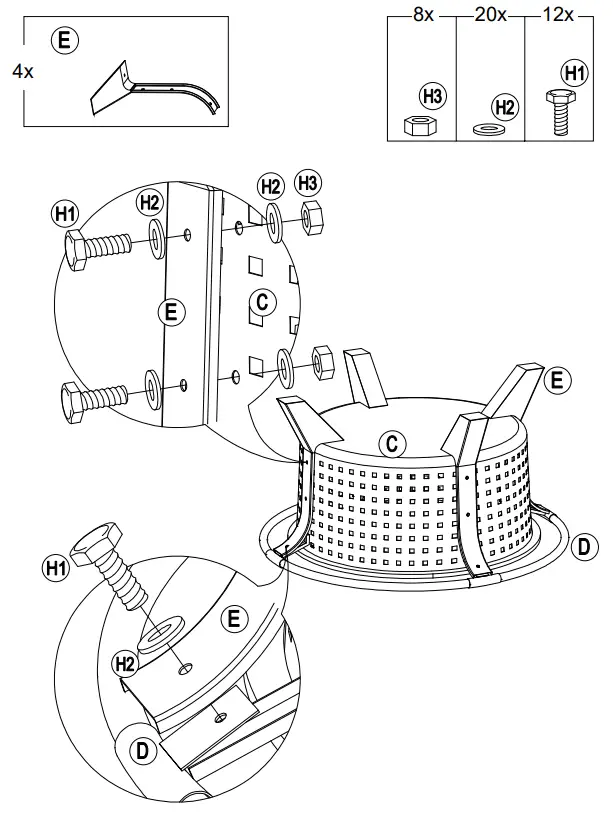

EXPLODED DRAWING
Parts List
| Label | Part Number | Description | Qty | Part Image |
| A | P00510035601 | Handle | 1 |  |
| B | P00260006401 | Mesh Cover | 1 |  |
| C | P00250013701 | Bowl | 1 |  |
| D | P00050164901 | Metal Ring | 4 |  |
| E | P00540061201 | Leg | 4 |  |
| F | P002700012 | Poker | 1 |  |
Hardware Pack
| Labe | Part Number | Description | Qty | Add | Part Image |
| H1 | H010010003 | Bolt M6*15 | 20 | 2 |  |
| H2 | H050030001 | Flat washer M6 | 28 | 3 |  |
| H3 | H040010004 | Nut M6 | 8 | 1 |  |
| H4 | H040020004 | Nut M6 | 1 | 1 |  |
| H5 | H010190000 | Bolt M6*30 | 4 | 0 |  |
| HW | H090010017 | Wrench M6 | 2 | 0 |  |
Care and Maintenance
Before using, clean the Chair completely with a soft dry towel. When not in use, wipe free of any dirt or loose objects, wash with a mild solution of soap and water; rinse thoroughly and dry completely. Do not use strong detergent or abrasive cleaners. Over time nuts and bolts can loosen. Occasionally, check nuts and bolts, re-tighten if necessary.
Limited Manufacturer’s Warranty
SUNJOY Group warrants to the original purchaser that this item is free from defects in workmanship and materials for a period of 1 year from the date of purchase, provided the item was factory-sealed at the time of purchase and is maintained with care and used only for personal, residential purposes. Should any manufacturing defect arise within this warranty period, SUNJOY Group will replace (at our option) any defective merchandise or parts upon proof of purchase; however, transportation and delivery costs, as well as payments to a third party for assembly or disassembly of the item, remain the responsibility of the purchaser. A purchaser of an “open box,” previously-returned, or “clearance” item, as well as original purchasers outside of the warranty period, may obtain replacement parts from SUNJOY Group for products in current production, at nominal cost.
Exclusions:
Items used for commercial, contract, or other non-residential purposes, or items damaged due to acts of nature, vandalism, misuse, or improper assembly are not covered. Corrosion or rusting of hardware is not covered. Proof of purchase (dated register receipt) is required for warranty claims. Warranty is to the original purchaser and is non-transferable. Any replacement of warranted items will be in the original style and color, or a similar style and color if the original is unavailable or has been discontinued. As some states do not allow exclusions or limitations on an implied warranty, the above exclusions and limitations may not apply. This warranty gives you specific rights, and you
may also have other rights, which vary from state to state.
Questions? Issues?
CONTACT US
24 hours / 7 days a week
Warranty Parts
www.sunjoyonline.com
[email protected]
https://www.sunjoyonline.com/A30102680022
Country of Origin: China
Production Number: xxxxxxxxxx
