Fisher Paykel Dh8060p3 Heat Pump Dryer User Guide (+ PDF)

QUICK REFERENCE GUIDE > DH8060P3
Heat Pump Dryer, 8kg
Series 5 | Heat Pump
White
User Guide

Contents hide

1 DH8060P3 Heat Pump Dryer

2 DIMENSIONS

3 FEATURES & BENEFITS

4 SPECIFICATIONS

5 Documents / Resources

5.1 References

6 Related Posts

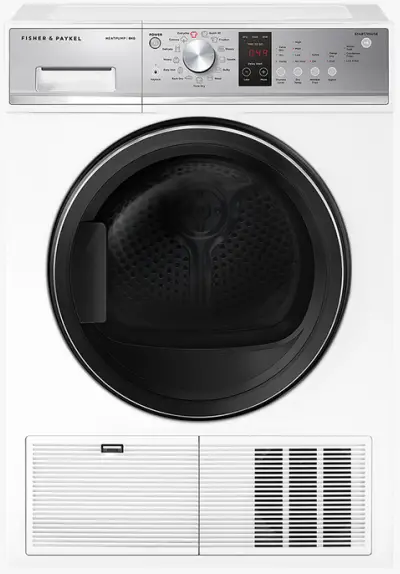

DH8060P3 Heat Pump Dryer

Better energy efficiency and fabric care with heat pump condensing technology, which dries your clothes at a lower temperature.

13 dry cycles including Freshen, Delicate, Bulky and Easy Iron for comprehensive fabric care
Dry a couple of items fast with the convenient Quick 30 cycle 7 Star Energy Rating
No need for external venting, allowing your dryer to be placed anywhere in your home

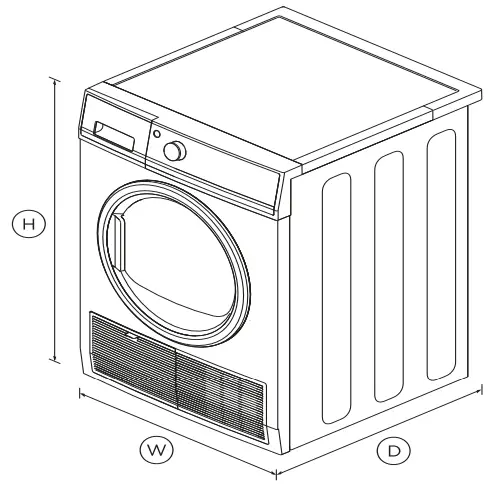

DIMENSIONS

Height	850mm
Width	600mm
Depth	650mm

FEATURES & BENEFITS

CARES FOR CLOTHES
13 drying cycles including Freshen, Delicate, Bulky and Easy Ironfor every type of garment. Select the cycle that best suits your load to confidently dry your clothes.
QUICK DRYING
When time is short, you can select the Quick 30 cycle to dry clothes in 30 mins while maintaining care of fabric. Perfect for light items like work shirts or school uniforms.
HEAT PUMP TECHNOLOGY
Heat pump technology dries at lower temperatures for gentle fabric care and because moisture is condensed, no venting is required. This is an ideal dryer for laundries where venting is difficult, as it can be placed almost anywhere in the home.
AVOID OVER-DRYING WITH AUTO-SENSING
Auto-sensing prevents over-drying by sensing moisture levels inside the drum and shutting off automatically. This helps clothes last longer and reduces energy consumption.
TOO PRECIOUS TO TUMBLE?
The drying rack is designed for items that can’t be tumble dried.
It fits easily into the dryer and delivers the perfect result for those precious delicates, shoes and toys.
DRUM LIGHT
A handy interior light turns on when you open the dryer door providing improved visibility inside the drum.

SPECIFICATIONS

Consumption
Energy rating	7 star
Energy usage	155kWh/year
Dry Cycles
Bulky	•
Cottons	•
Delicate	•
Easy Iron	•
Everyday	•
Heavy	•
Number of cycles	13
Quick 30	•
Rack dry	•
Sheets	•
Time dry	•
Towels	•
Wool	•
Features
Clean condenser filter	•
Clean door lint filter reminder	•
Drum light	•
Drying rack	•
Easy access lint filter	•
Easy clean condenser filter	•
End of cycle signal	•
Keylock	•
No external venting	•
Progress indicator	•
SmartTouch™ control dial	•
Stainless steel drum	•
Time to go	•
Wrinkle free option	•
Performance
Auto sensing	•
Dryness settings	5
Heat pump technology	•
Reverse tumbling	•
Temperature settings	4
Time dry	10 mins – 150 mins
Product dimensions
Depth	650mm
Height	850mm
Width	600mm
Warranty
Parts and labour	2 years
SKU	93281

The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020

Other product downloads available at fisherpaykel.com
User Guide
Service & Warranty
Installation Guide
