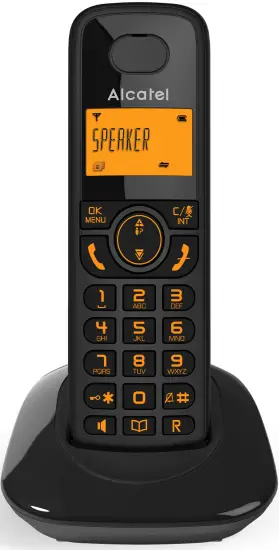

Alcatel E230 Touch Of Fun In Your Communications User Guide (+ PDF)

Do not open your device or its power supply to avoid risk of electrical shock. Do not attempt to open the batteries, as they contain hazardous chemical substances.

Your telephone must be located in a dry place away from hot, humid and direct sunlight condition.

To avoid radio signal interference, place the phone at least 1 meter away from other electrical appliances or other phones.

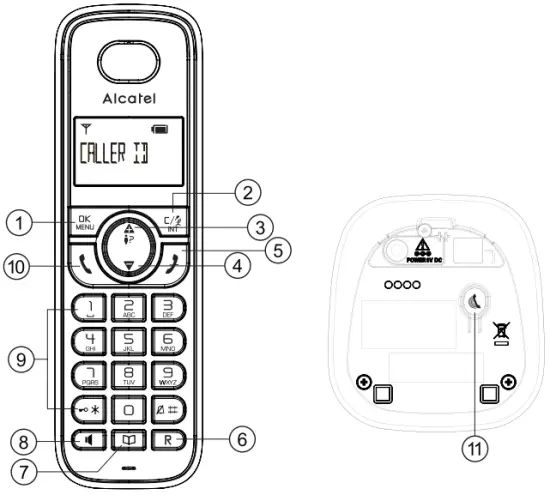

Product Description

BEFORE 1st USE

Connecting your phone

Connect plugs in corresponding sockets in the base station. Plug the telephone line into telephone socket and insert power plug in an electrical outlet.
Insert batteries in Handset

Before you start to use your telephone, charge batteries continuously for 15 hours.

only use plug adapter supplied with the unit and rechargeable batteries with your phone.

OK/Menu key
Back/Mute/Intercom key
3 & 4. Navigation key
Hang-up/Exit key
Recall (Flash) key – To access to operator services*
Phonebook key
Loudspeaker key
Star key – To lock / unlock keypad; toggle between the external and internal calls.
Talk key
Paging key – To locate handset / to start registration procedure.

*Subject to subscription and availability of the service from the fixed line operator.

Display icons

Indicates battery is fully charged.
Indicate battery is fully discharged.
Indicates that an external call is connected or held.
Blinks when you have new missed calls*.
Displays when handsfree is activated.
Displays when ringer volume is turned off.
Indicates that the handset is registered and within range of the base station. Icon blinks when the handset is out of range or is searching for a base.

Set language and flashtime to operate correctly on your network

select HS SETTINGS / select LANGUAGE / select your desired language / .
select BS SETTINGS / select FLASH TIME / select SHORT / MEDIUM or LONG /.

Using the phone

Receive and end a call

Make a call

either before or after dialing your number.
From redial list:.
From call log list*: .
From direct memories: long press on KEY 1 or KEY 2 or KEY 3 in idle mode.
From phonebook:.
To activate/dsactivate handsfree: .

Phonebook settings: 20 entries

To register in phonebook

to select PHONEBOOK / / select ADD / / enter name of contact / / enter number of contact / / select melody /.

To register the direct memories in keys 1, 2 & 3

select HS SETTINGS // select DIRECT MEM / select KEY 1, KEY 2 or KEY 3 / / edit or enter the number /.

General settings

This phone can be customized according to your preferences, to access the different possibilities press: .

To customize handset (name, melody, language,…) select HS SETTINGS/ .

TROUBLESHOOTING

As a general rule, if a problem occurs, remove the batteries from all handsets for about 1 minute, then disconnect and reconnect the power supply to the base and reinstall the handset batteries.

ENVIRONMENT

This symbol means that your inoperative electronic appliance must be collected separately and not mixed with the household waste.The European Union has implemented a specific collection and recycling system for which producers are responsible.

CONFORMITY
Hereby, ATLINKS EUROPE declares that the radio equipment type DECT is in compliance with
Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following
internet address: www.alcatel-home.com
Average power per channel: 10mW;
Maximum Output Power (NTP) : 24dBm; Frequency Range : 1880 1900MHz

ATLINKS Europe
147 avenue Paul Doumer
92500 RUEIL-MALMAISON

France
www.alcatel-home.com
Alcatel is a trademark of Nokia, used under license by ATLINKS.

E230 EWE
A/W no.: 10002533 Rev.0
Made in PRC
