OB30SPPTX1 Built-in Oven
User Guide
QUICK REFERENCE GUIDE > OB30SPPTX1
Oven, 30″, 4.1 cu ft, 17 Function, Self-cleaning
Series 9 | Professional Stainless Steel

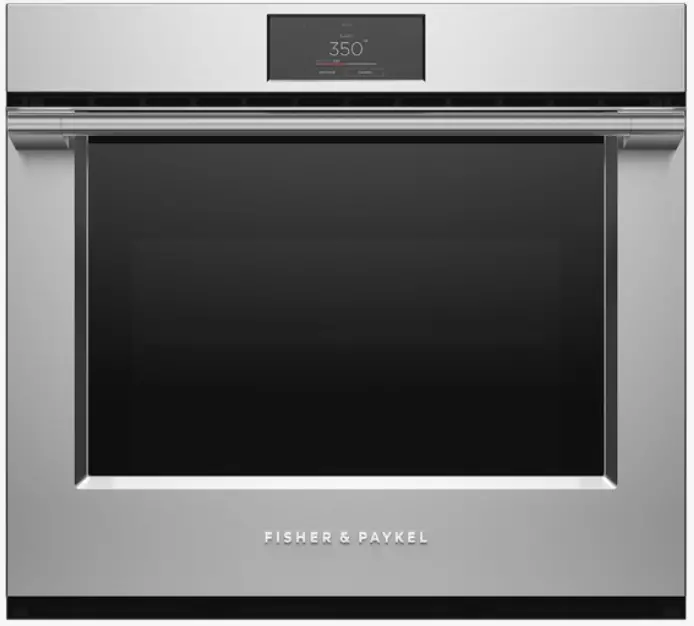

OB30SPPTX1 Built-in Oven
With professional styling, advanced cook functions and touchscreen, this large capacity oven is a highlight of our collection.
- Guided cooking using your touchscreen makes it simple to cook by food, function or recipe.
- 4.1 cu ft total capacity, with 17 oven functions including AeroTM Pastry and Roast, Air Fry and Dehydrate
- Non-tip, full extension sliding shelves for safe removal of hot dishes
- Accessories include food probe, smokeless grill tray, and more

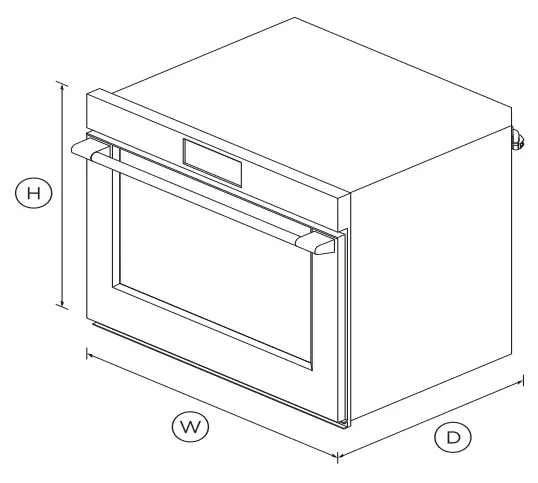

DIMENSIONS
| Height | 27 1/16″ |
| Width | 29 29/32″ |
| Depth | 23 29/32″ |
FEATURES & BENEFITS
COOK WITH CONFIDENCE
Our touchscreen interface provides an intuitive guided cooking experience that helps deliver perfect results, whether you’ve been cooking all your life or just starting out. Cook with a favorite method, a hero ingredient, or a go-to cooking function or recipe.
GENEROUS CAPACITY
With its 4.1 cu ft total capacity, you can create several perfectly cooked dishes at once using multiple shelves.
MULTI-FUNCTION FLEXIBILITY
The cooking functions have each been tailored, tested, tweaked and perfected to ensure that no matter what you’re cooking, you’ve got the right heat to match. A Wireless Temperature Sensor precisely monitors cooking in real time, giving you complete control.
EXCEPTIONAL PERFORMANCE
AeroTech circulates heat evenly for a consistent temperature throughout the cavity, helping you ensure perfect results even when cooking on multiple shelves.
SELF-CLEANING
Our self-clean technology breaks down food residue at a very high temperature, leaving a light ash that’s easily removed with a damp cloth. The enamel coated side racks don’t need to be removed when using this function.
DESIGN FREEDOM
Designed to fit seamlessly into your kitchen, this built-in oven features premium materials and elegant styling to support a cohesive, considered kitchen design.
SPECIFICATIONS
| Accessories | |
| Broil rack | 1 set |
| Food probe | 1 |
| Full extension sliding shelves | 3 sets |
| Full extension telescopic | • |
| Roasting pan | 1 |
| Self cleaning side runners | 1 set |
| Smokeless broil tray | 1 |
| Capacity | |
| Shelf positions | 8 |
| Total capacity | 4.1cu ft |
| Usable capacity | 3.6cu ft |
| Cleaning | |
| Acid resistant graphite enamel | • |
| Removable oven door | • |
| Removable shelf runners | • |
| Self cleaning side runners | • |
| Controls | |
| Adjustable audio and display | • |
| Automatic cooking/minute | • |
| Automatic pre-set | • |
| Celsius/Fahrenheit | • |
| Electronic clock | • |
| Electronic oven control | • |
| Food probe | • |
| Guided cooking by food type | • |
| Intuitive touchscreen display | • |
| Multi-language display | UK English, US English, |
| Precise electronic temperature | • |
| Sabbath mode with Star K | • |
| Wi-Fi connectivity | • |
| Functions | |
| Aero Bake | • |
| Aero Broil | • |
| Air fry | • |
| Bake | • |
| Broil | • |
| Classic bake | • |
| Dehydrate | • |
| Maxi Broil | • |
| Number of functions | 17 |
| Pastry Bake | • |
| Pizza bake | • |
| Rapid proof | • |
| Roast | • |
| Self-clean | • |
| Slow cook | • |
| True Aero | • |
| Vent bake | • |
| Warm | • |
| Performance | |
| AeroTech™ technology | • |
| Automatic rapid pre-heat | • |
| Broil power | 4400W |
| Broil width | 20″ |
| Number of passes on Maxi | 12 |
| Number of passes on broil | 10 |
| Power requirements | |
| Amperage | 16.7 – 19.4A |
| Supply voltage | 208 – 240V |
| Product dimensions | |
| Depth | 23 29/32″ |
| Height | 27 1/16″ |
| Width | 29 29/32″ |
| Safety | |
| ADA compliant | • |
| Advanced cooling system | • |
| Balanced oven door | • |
| Catalytic venting system | • |
| Control panel key lock | • |
| CoolTouch door | • |
| Full extension sliding shelves | • |
| Non-tip shelves | • |
| SKU | 81921 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
