2 In 1 UV LED Nail Art Lamp
User Manual
Thank you for choosing MelodySusie! Please read this user guide carefully and keep it in an accessible location so you may refer to it later.
IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE USING.
To reduce the risk of burns, electrocution, fire, or I. injury to persons.
Please be sure to read the safety instruction as follow to avoid potential hazards that could result in personal injuries or damage to the device.
Note: If the USB cord connects to the adapter, it is recommended to use an adapter of 5V 2A. Please do not exceed 5V 2A, or the device will burn out.
Note Before Using
- Check the charging cord before the first use and during the life of the device. Do not use this device with a damaged cord, or when the device is not working properly or is damaged. If the device or the power cord is damaged, it should be repaired or replaced by MelodySusie or another authorized professional.
- Do not plug this device into a voltage system that is different from the voltage system specified on the device. Use with improper voltage will damage the device and VOID warranty.
- Do not project the UV/LED light to the eyes, which will cause damage to the eyes.
- Do not touch the device with a wet hand to prevent electric leakage and shock or fire.
- Any misuse, dropping or excessive use may cause device damage.
- Please turn the power off if you don’t use the nail lamp for a long time, and store it properly to extend its lifetime.
- Children under 18 years old should not use this device without parental consent and supervision.
Note for the Battery
- Please fully charged the battery before your first use to ensure optimal performance.
- Do not overcharge the device or use it when it is charging.
- Charge the device in a well-ventilated conto dition with 0°C 40° C. Do not charge the device close to flammable or explosive materials. When charging the device, please do not cover it with clothes or other things.
- If the device is not used for long periods of time, you should charge and discharge it once every three months. In normal conditions, the battery performance will decline over serval years.
Maintenance Work
- Do not disassemble the device. Doing so could be dangerous and constitutes voiding warranty conditions.
- Do not keep the device in a place that is about or more than 50 C (in a metal box, car, or other places at high temperature).
- Store the device in a cool and dry place. Do not store it in a hot or humid environment.
- Keep the charge cord away from heated surfaces.
- Do not dispose of the device in heat or fire.
- Do not clean the device with harmful chemicals or detergents. The operator shall be responsible for any consequences including product damage or accidents if not strictly complies with the instructions. If you require any technical support, contact us at [email protected]
Items Included
1 x 2 in 1 UV LED Nail Art Lamp
1 x USB Cord
1 x User Manual
How to Use
Step 1: Press the “ON/OFF” button to power on the device.
Step 2: Touch the 0 to switch the light between the LED Light Mode and UV Light Mode.
Step 3: The UV Light Mode will switch into the LED Light Mode after 60 -seconds curing automatically. If you need to use the UV Light Mode again, simply press the O to switch the light.
Step 4: Press the “ON/OFF” button to power off the device.
Note:
- LED Light Mode: Without curing function, can only provide the lighting requirement for manicure work.
- UV Light Mode: Work for nail gel polish curing. (When used in conjunction with MelodySusie Nail Lamp whose power is higher than 48W.)

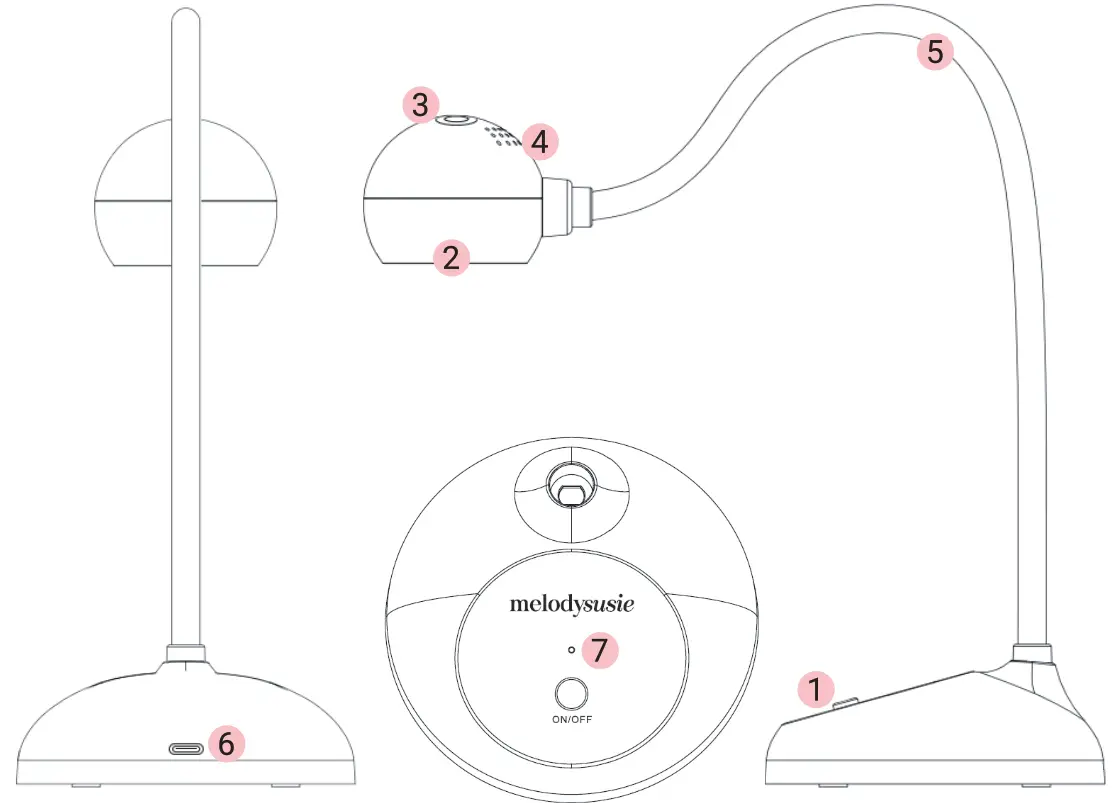

| 1. ON/OFF 2. LED Light/UV Light 3. Touch Switch 4. Heat Dissipation Hole | 5. Flexible Tube 6. Type-C Charge Jack 7. Charging Indicator |
Charging
- Connect the charging cord to the nail lamp.
- Insert the charging cord with the 5V 2A adapter or other USB sockets.
- The indicator will change from RED to GREEN when the device is fully charged.
Malfunctions and Solutions
| Malfunctions | Reasons | Solutions |
| Device drops to the ground or by other impacts | 1. The ON/OFF button doesn’t work 2. Nail Lamp damages | Avoid device drops or by other impacts |
| Long time, Large load work | Motor burns out, or device lifespan shortens | The continuous working time should not be too long when the working condition is in heavy load. When the device is overheating, it should be stopped immediately to make it return to normal temperature |
| The beads don’t turn on | The LED light beads are defective, or the lamp’s internal circuits are damaged | When the light beads are damaged, please contact MelodySusie’s customer service team for help |
| The gel nail polish cannot be cured or dried | Insufficient curing time may result in incomplete curing of your gel nail polish. The curing time requirements vary from different gel polish brands and colors | 1. Please try to extend the curing time appropriately until the nail surface is completely cured |
| Malfunctions | Reasons | Solutions |
| Overcharge | Battery lifespan shortens | Not exceed the specified charging time |
| Insert into a mismatched power supply | Motor burns out | According to the device voltage requirements insert the matching power supply |
| Put the power cord at random, or use the device when charging | 1. Battery damages and device lifespan shortens 2. Power cord brokes 3. Poor connection | Do not pull the power cord, or do not use the device when charging |
| Water into the device, or operate in wet or moist conditions, or use a wet cloth to clean the | 1. Motor burns out 2. Device lifespan shortens | Do not operate in wet or moist conditions, only a dry cloth is allowed for cleaning |
Specifications
Max Input Voltage Range: 5V/2A Battery Fully Charging Time: 2.5 hours
Email: [email protected]
Email: [email protected]
Website: www.melodysusie.com

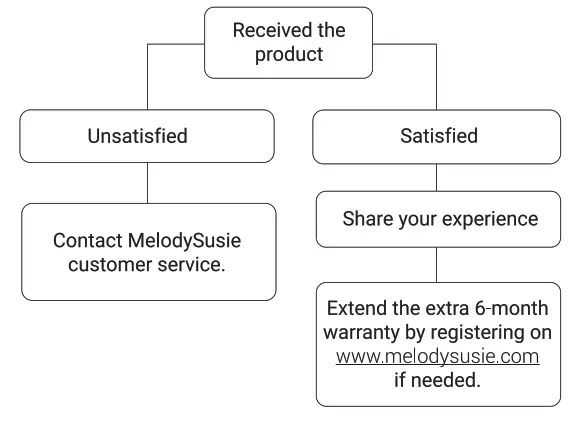

Warranty and Customer Service
MelodySusie offers a 6-month limited warranty on quality-related issues. Please apply for your extra 6-month warranty extension by registering on www.melodysusie.com if needed.
