Amewi Tk-7.0 Professional Line Ir-bb Instruction Manual

TK-7.0
BEDIENUNGSANLEITUNG
INSTRUCTION MANUAL

TK-7.0 Professional Line IR-BB

Please read the instructions before use.
Not suitable for children under 14 years old.
WARNING
Choking hazard! This product contains small parts. NOT suitable for children under 3 years.
Contains electrical components and should always be kept dry.
To avoid any possible injury DO NOT use if the antenna is broken.
Regularly check the battery, charger wires, plugs and shell and other components for damage.
Do not use if any part is damaged.
Replace any damaged components before reusing.

1. Small detachable parts should be kept safe and out of the reach of children.
2. If interference occurs, turn off the tank and try again in another area.
3. The remote control will not work properly if the batteries are weak. Please replace the batteries.
4. Please dispose of old / used batteries at your local waste disposal company.
5. Please keep the remote control in a cool, dry place.
6. DO NOT expose to fire or high temperature, do not store in humid places.
7. If the battery gets wet, wipe it immediately with a soft, dry cloth.

Battery use coution proceeding

1. The tank is operated with a 7.2V or 7.4V battery.
2. 6x 1.5V AA batteries are used for the remote control.
3. Please observe the correct polarity when connecting the battery.
4. Batteries should be charged under adult supervision. Always use the original charger.
5. In the remote control: do not mix old and new batteries.
6. Totally discharged or bloated batteries may no longer be used.
7. Never short-circuit the poles.
8. Never charge batteries.
9. Remove the battery for charging.
10. Never expose the battery to fire or water.
11. The charger must be suitable for your mains voltage.
12. It is normal for the charger and battery to heat up during charging.

General summary of multifunctional motherboard control system

1. Main functions


   Turret rotation	Turret left/right rotation (Turret 360° rotation by installing electric slip ring)
   Turret pitching	Cannon realistic up/down lifting
   Cannon launch	Cannon realistic launching (BB)
   Body recoiling	Body recoiling while cannon launching
   Firing sound	Realistic cannon firing sound effect
   Machine gun sound	Realistic machine gun sound effect
   Engine sound	Engine start/stop sound effects simulated
   Smoking system	Engine exhaust effect (Synchronize with speed)
   Sound effects	Four kinds switchable tanks sound effects
   Volume adjustment	Speaker 7 levels circulatory adjustment
   Light control	Front/rear and machine gun lights switch control
   Infrared battle system	Simulative tank battle/destroyed effects. (Compatible with Tamiya’s IR battle system)
   High / Low speed mode	Free switching between proficient and beginners
   Correction function	Deviation correction of forward / backward moving

2. Optional functions (purchase separately)


   LED lights output socket	Tank braking/steering flashing light function
   Laser aiming	Aim at the target precisely
   Two way severs	Cannon realistic up/down lifting & launch recoiling
   WIFI image transmission system	Image transmission for location shooting
   Firing flashing light	Realistic firing of the tank
   Auto cannon lifting	Cannon automatic lift while spinning
   Cannon stabilization system	Target locked of the tank cannon

3. Structural function


   Tracks adjustment

   Tank tracks tension adjustable

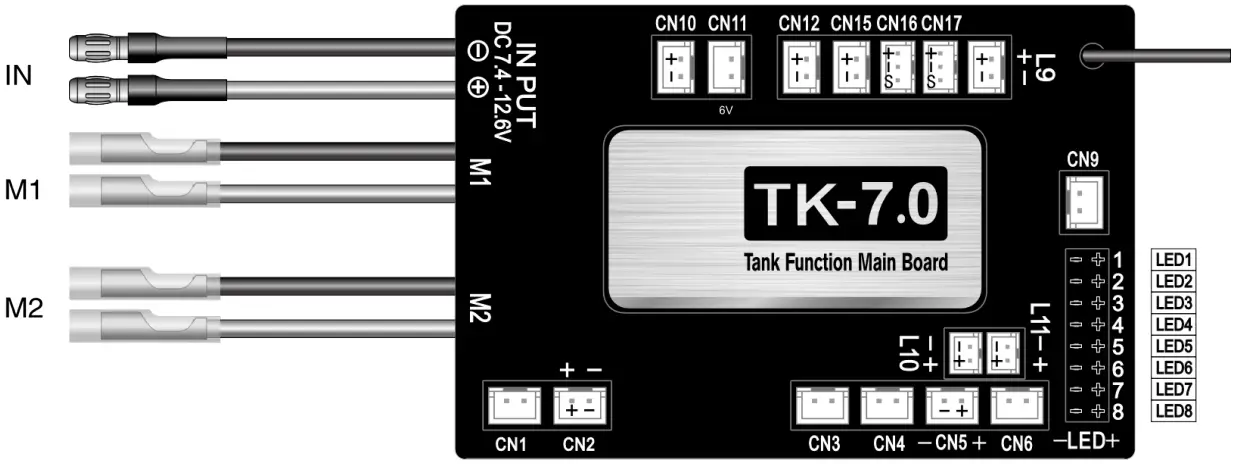

ELECTRIC BOARD SOCKET TABLE

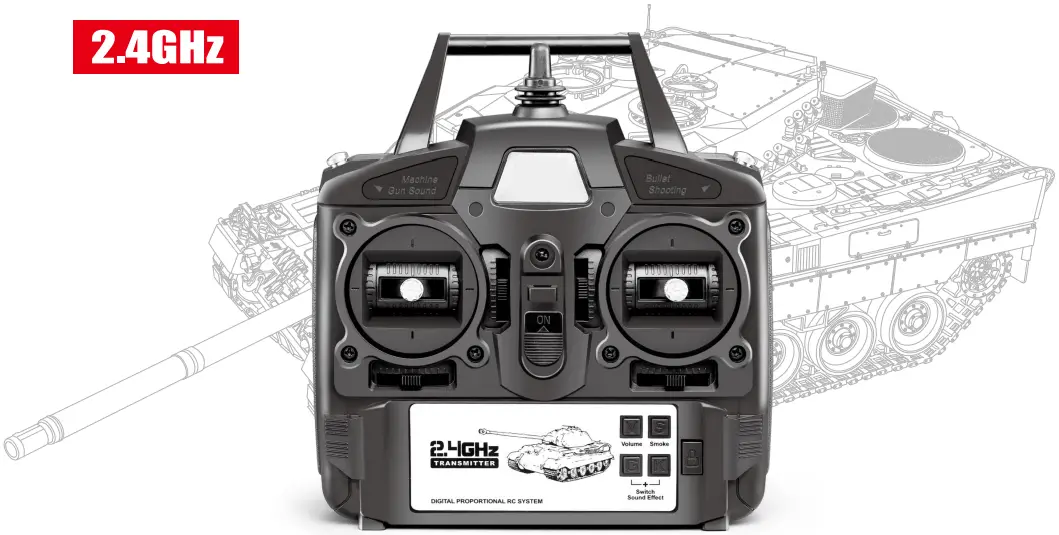

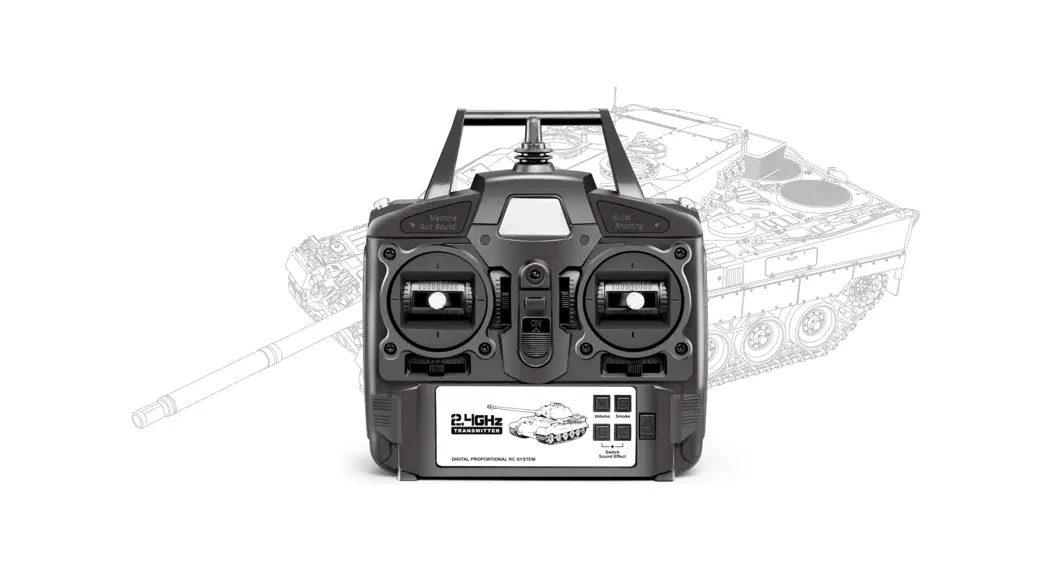

OPERATE INSTRUCTIONS OF THE REMOTE CONTROLLER

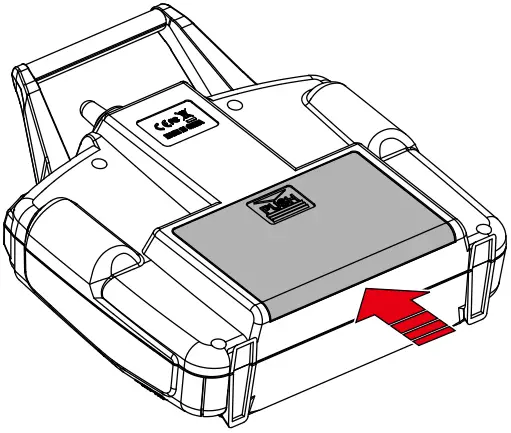

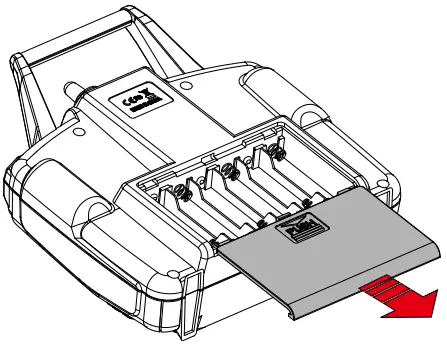

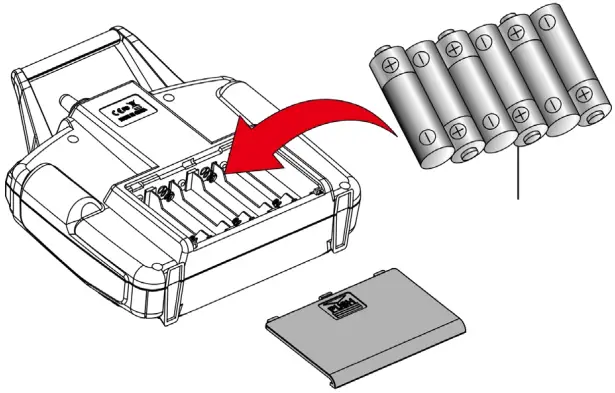

Battery Transmitter

1. Press down the PUSH on the battery cover and remove it at the same time. (Make sure the switch is in OFF position)

2. Load in the batteries correctly.

3. Replace the cover.


Cautions
Turn on the remote control first and then the tank. If you do not follow the order, the tank can get out of control.

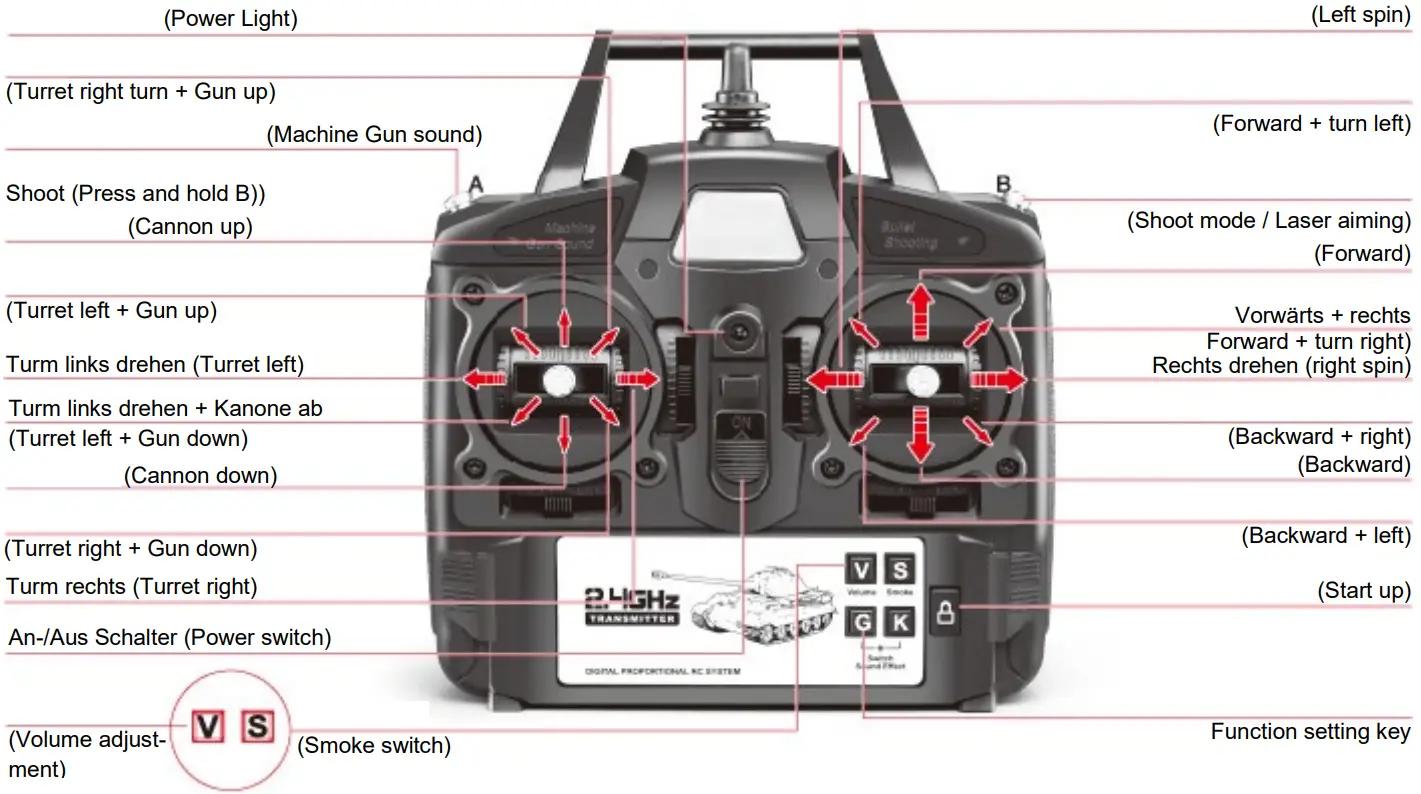

Transmitter instructions

Tranmitter operating instructions

1	Button G + Control stick 1		Front light switch, the buzzer sounds “Di”
2	Button G + Control stick 1		Rear lights – the buzzer sounds “Di”
3	Button G + Control stick 1		Backward left fine tuning – the buzzer sounds “Di“
	Button G + Control stick 1		Backward right fine tuning – the buzzer sounds “Di“
4	Button G + Control stick 2		Forward left fine tuning – the buzzer sounds “Di“
	Button G + Control stick 2		Forward right fine tuning – the buzzer sounds „Di“
5	Button G + Control stick 2		Operate mode 1 (High speed mode) – the buzzer sounds „Di“, the tank sounds „Don“
6	Button G + Control stick 2		Operate mode 2 (Low speed mode) – the buzzer sounds „Di“, the tank sounds „Don“
7	Button A		Machine gun sound & flashing light
8	Button B		Laser aiming light
9	Button A + Button B		BB launch + Tank recoil action + in the same time emit the infrared signal
10	Button G + Button S		WiFi switch
11	Button G + Button K		Sound effects switch (Attention: The tank must be restarted)
12	Button V + Control stick 1		Volume up, the buzzer sounds „Di“
13	Button V + Control stick 1		Volume down, the buzzer sounds „Di“
14	Button K + Button S		Recoil level (three levels). The tank sounds “HongHong”
15	Button		Tank turn /On/Off, or Frequenzing prepering
16	Button S		Smoke function switch
17	Button G+ Button V		Braking strength adjustment (Three braking levels)
18	Button K + Control stick 1		Left Hand control mode
19	Button K + Control stick 1		Right Hand control mode
20	Button K + Control stick 2		Raise the tank self rotate speed
21	Button K + Control stick 2		Slow down the tank self rotate speed
22	Button K + Control stick 2		Reduce the turning circle
23	Button K + Control stick 2		Increase the turning circle
24	Button K + Button A		Machine gun sound effect switch (The tank sounded 2nd Machine gun sound when it switched)
25	Button K + Button B		Super self-rotation switch
26	Button G + Button		Not needed
27	Button + G + K		Factory settings

HOW TO OPERATE

First, switch the remote-control to on then switch the button on the Tank to “ON”. Pres the “start-up” button , the tank sounds simulative engine start-up sound. Please wait 5 seconds, the tank goes into operate state and emits smoking. The smoke can emit the switch button S control through the remote control.

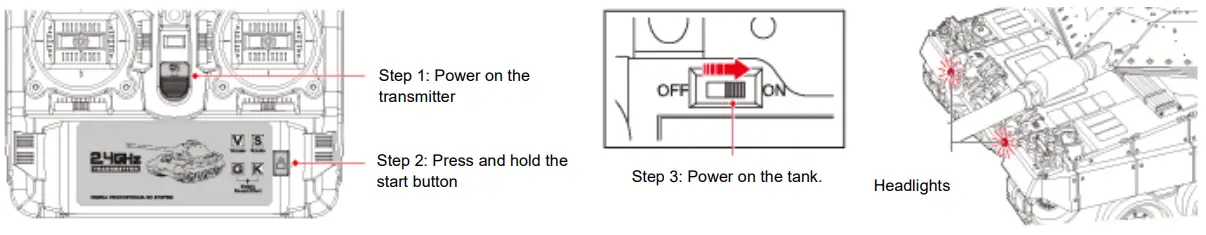

FREQUENCY PAIRING
When the tank is used for the first time, frequency pairing should be performed if not before. The steps are follows:

1. Install the remote-control batteries with the correct polarity, then power on the remote-control. The buzzer sounds “Di”. At the same time, the power indicator will be on and the remote control will work normally.
2. Press and hold the start button of the remote-control and power on the tank. When the tank makes a start sound and the headlights stay on, it shows that the code is successful and the remote-control can normally operate the tank.

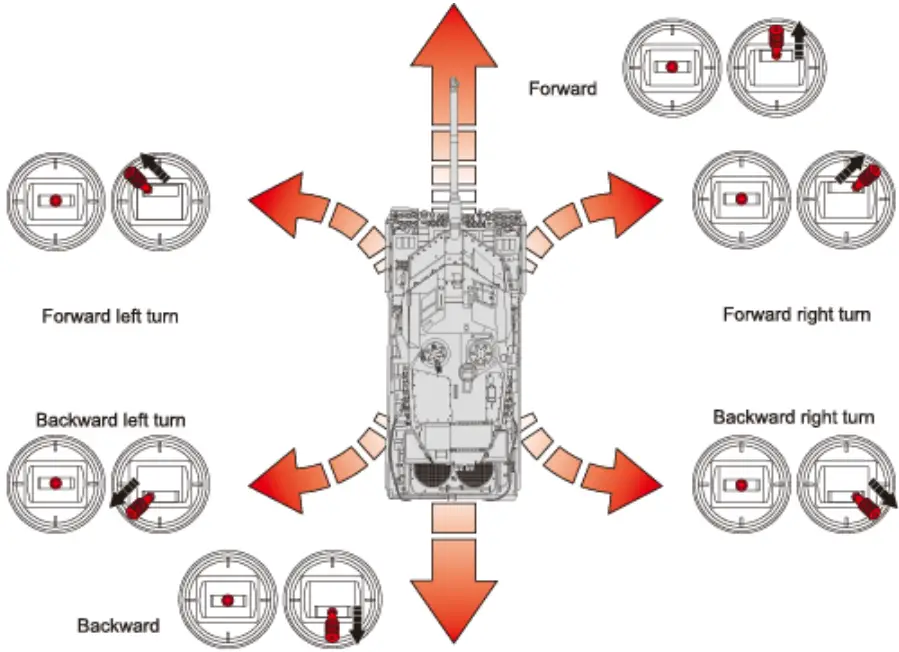

Driving

1. The position of headlights or rear lights should be based on actual position of each product.
2. When the tank successful started, The roar of the engine sound on. LED headlight and taillight will be turned on from flashing.
3. To pairing the frequency must turn off all the other same type of transmitter. Otherwise the pairing will fail.

Spin

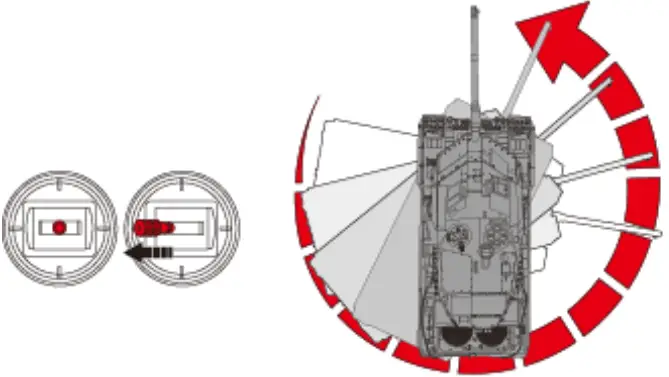

Left Spin
Turn the control stick 2 to the leftside

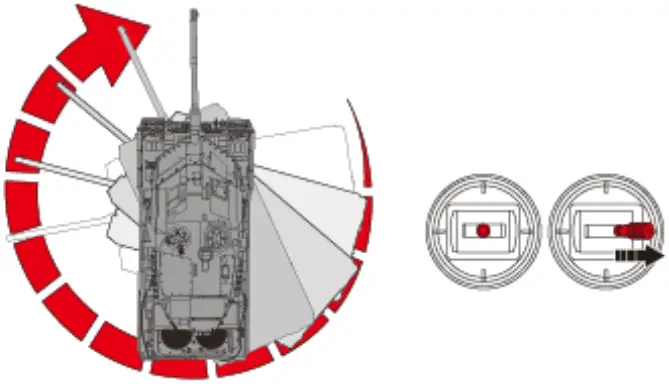

Right Spin
Turn the control stick 2 to the right side

Control the turret

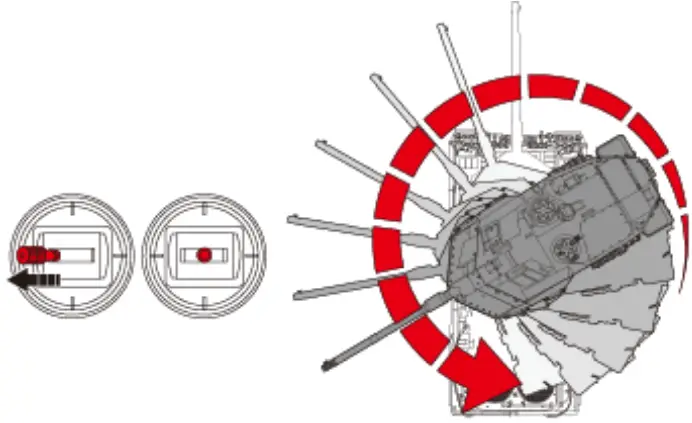

Turret left turn
Turn the control stick 1 to the left side

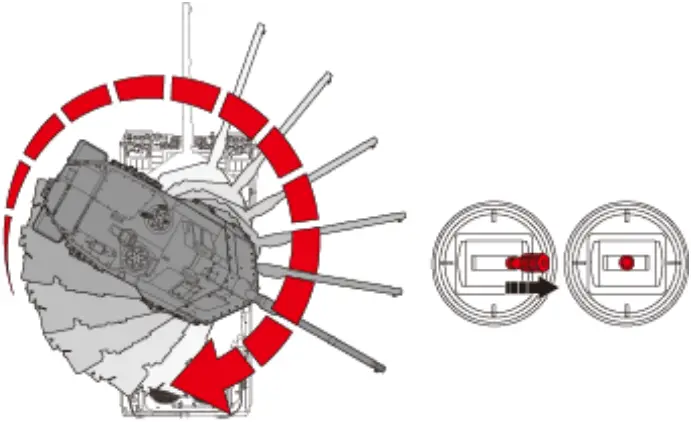

Turret right turn
Turn the control stick 1 to the right sideThe clutch functions whenever the turret reaches his limit and it cannot turn any further.
Whenever the turret turns to its limit at the back of the tank, the clutch functions and prevents further turning of the turret. It is normal phenomenon. Do not try to force the turret to any further to avoid damage.

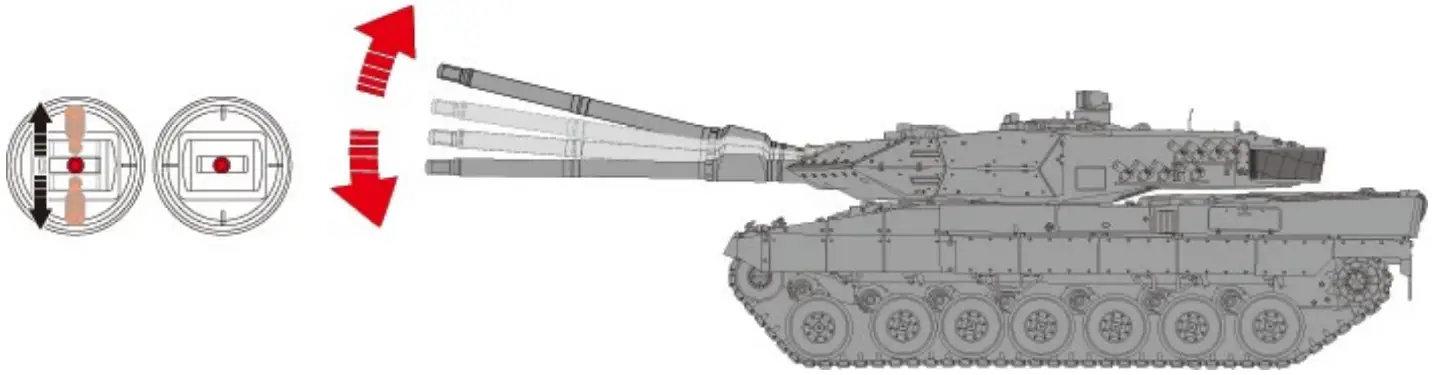

Cannon Up/Down
Push up / pull down the control stick 1

The cannon can continuously and alternately move up and down when the control stick 1 is pushed or pulled.

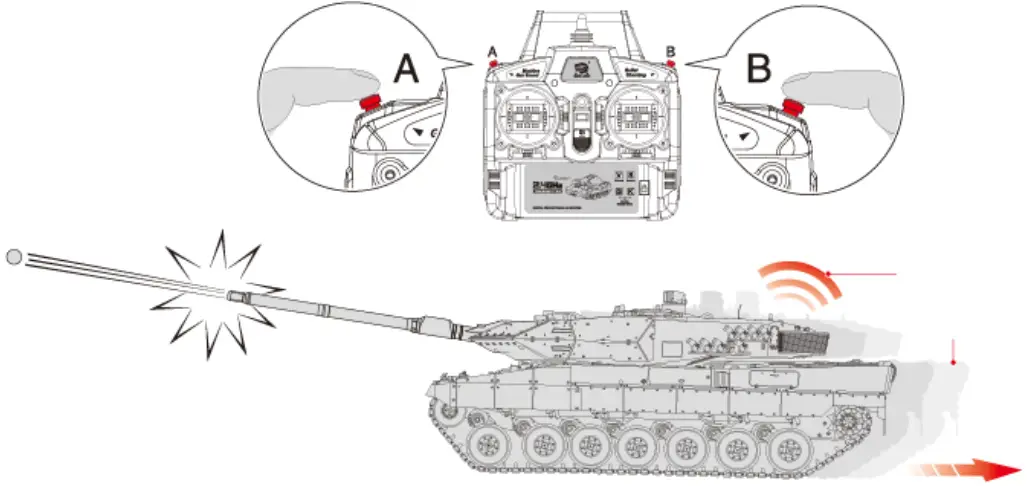

BB Schooting function

1. Hold down the B Button.
2. Press button A, shooting BB bullet with realistic recoil action & firing sound.

Warning
when control is interfered by other radio waves or the control signals are not strong enough, the tank may not act correctly and may shoot accidentally. Immediately stop tank running and shooting in such circumstances. Make sure the environment id safely when shoot BB bullet. People in the shooting spot should wear goggles. Sometimes bullet remains inside the tank, but you think no bullet remains. It is dangerous because the bullet may be shot out accidentally. After use, remember to put the protective cap onto the gun muzzle, turn off main switch on the tank. Remove BB bullets and batteries and store them in a safe place.
Caution
BB shoot function configuration: The maximum shooting range of the tank is 25m, which may differ according to actual shooting conditions, such as vertical angle of the gun and wind speed.
Turret should stay horizontal when shooting.
According to the design of the turret: if the left side or the back side of the turret i lower than their counter sides, bullets cannot be loaded, and shooting becomes impossible.

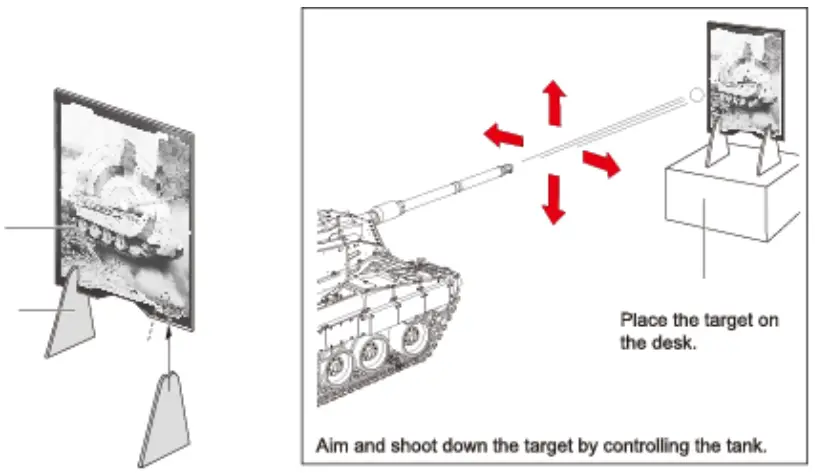

Set Up Target
Firmly insert the target to the holding gaps on the support.
Aim the bull’s eye from back of the tank before shooting. Fire during the aiming moves of the cannon to shot down the target.

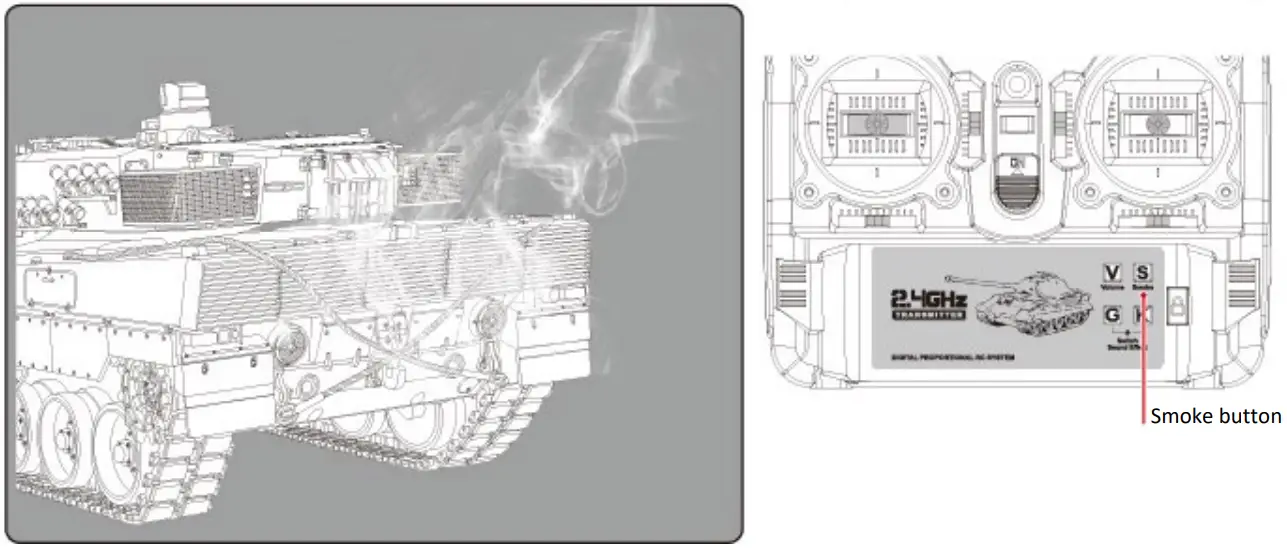

Smoke function
Smoking function can be activated only when the tank is started. Press the smoke button. About 1 minute later, smoke will begin to appear from the exhaust pipe and will gradually increase.

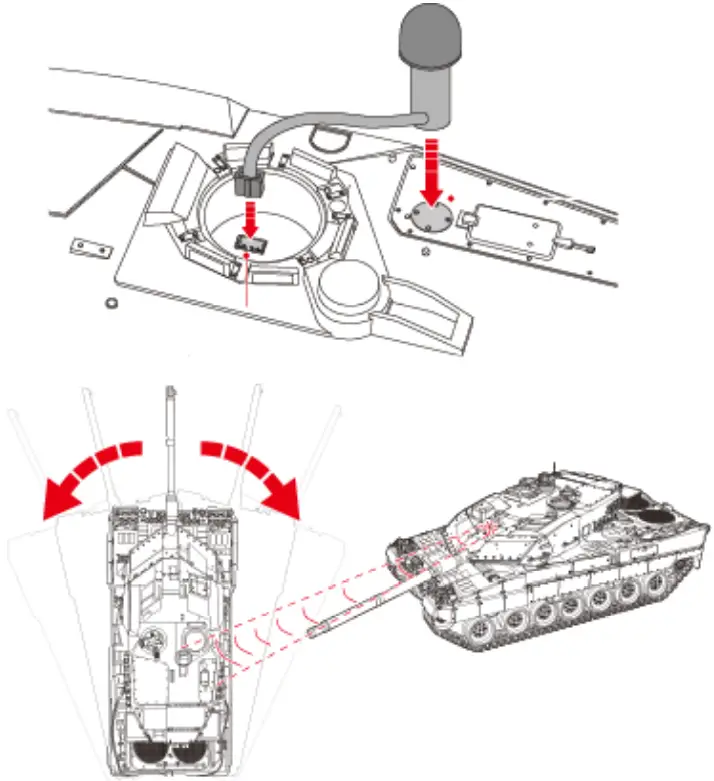

Infrared battle system (optional)

1. Connect the infrared receiver’s plug in the socket on the turret. Also put the infrared receiver to the magnetic suction position.
2. When the cannon is aimed at the infrared receiver, press and hold button A. The machine gun will start or press and hold button B first and then button A. BB bullet will be fired and an “infrared shot” fired simultaneously.
   If the tank is hit, it will be shaken with an explosion sound. Then it is started and can take part in the battle again.
3. When the tank be hit for six times, it will automatic shut down and front lights off. After 10 seconds the front lights flashing, and the tank will automatic start up and it can join into the battle again.
