MAYTAG W11466176A Front Load Washer with Extra Power
Product Information:
Model: MHW5630HC – Model Variation
MHW5630HW – Capacity: 4.5 cu ft DOE (US)/5.2 cu ft IEC (CAN) – Minimum Circuit Amperage Rating: 15 A – Maximum Ampere Draw Operating Voltage: 10.36 A – Operating Frequency: 60 Hz – Electrical Requirements: 120 V AC only Product Dimensions: – Height
(with feet): 38 5/8 in (minimum), 40 in (maximum) – Product Width
27 in – Door Width: 22 1/4 in (minimum), 31 5/16 in (maximum) – Product Depth: 22 1/8 in (minimum), 30 3/16 in (maximum) – Product Depth with Door Open: 51 5/16 in – Door Height: 10 in – Height to
Bottom of Door: 22 1/8 in – Position of Power Cord: 35 5/16 in (minimum) – Power Cord Length: 72 in – Position of Water Inlet
Valves: 35 5/16 in (minimum) – Position of Drain Hose
8 in(minimum) – Drain Hose Length: 52 in – Diameter of Drain Hose: 1 in
Product Usage Instructions:
- Before installing and operating the appliance, read the IMPORTANT SAFETY INSTRUCTIONS and INSTALLATION INSTRUCTIONS located in the appliance’s Owner’s Manual.
- Ensure that the electrical requirements are met. The appliance requires a minimum circuit amperage rating of 15 A and operates at a maximum ampere draw of 10.36 A with a voltage of 120 V AC and a frequency of 60 Hz.
- Plan the installation dimensions carefully. The height of the appliance with feet should be between 38 5/8 in and 40 in, and the width should be 27 in.
- For the door dimensions, the width should be between 22 1/4 in and 31 5/16 in, and the height to the bottom of the door should be 10 in.
- The product depth should be between 22 1/8 in and 30 3/16 in, with a depth of 51 5/16 in when the door is open.
- Position the power cord at a minimum distance of 35 5/16 in, and ensure that the power cord length is 72 in.
- The water inlet valves should be positioned at a minimum distance of 35 5/16 in, and the drain hose should be positioned at a minimum distance of 8 in. The drain hose length is 52 in, with a diameter of 1 in.
- Follow the additional details and information specific to your model as mentioned in the Quick Start Guide.
- For custom under counter installation, ensure a minimum clearance of 39 in and a recessed area or closet installation with a minimum clearance of 48 in2 (310 cm2).
- Note that all 27 wide washers should have a clearance of 19 in, while all 29 wide washers should have a clearance of 22 in. Please refer to the complete user manual for detailed instructions and additional information specific to
your model.
DETAILED PLANNING DIMENSION
MAYTAG® FRONT LOAD WASHER WITH EXTRA POWER AND 12 HOUR FRESH SPIN™
OPTION – 4.5 cu ft
ELECTRICAL REQUIREMENTS
WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS and INSTALLATION INSTRUCTIONS, located in your appliance’s Owner’s Manual, before installing and operating this appliance.
| Electrical Requirements | |
| MHW5630HC MHW5630HW | 4.5 cu ft DOE (US)/5.2 cu ft IEC (CAN) |
| Minimum Circuit Amperage Rating | 15 A |
| Maximum Ampere Draw | 10.36 A |
| Operating Voltage | 120 V AC only |
| Operating Frequency | 60 Hz |

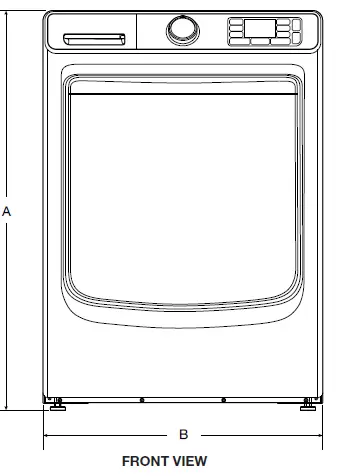

PRODUCT DIMENSIONS
| MHW5630HC MHW5630HW | 4.5 cu ft DOE (US)/5.2 cu ft IEC (CAN) | |||
| Unit of Measurement | in (minimum) | mm (minimum) | in (maximum) | mm (maximum) |
| Height (with feet) (A) | 385∕8 | 981 | 40 | 1016 |
| Product Width (B) | 27 | 686 | – | – |
IMPORTANT: Dimensional specifications are provided for planning purposes only.
DETAILED PLANNING DIMENSION

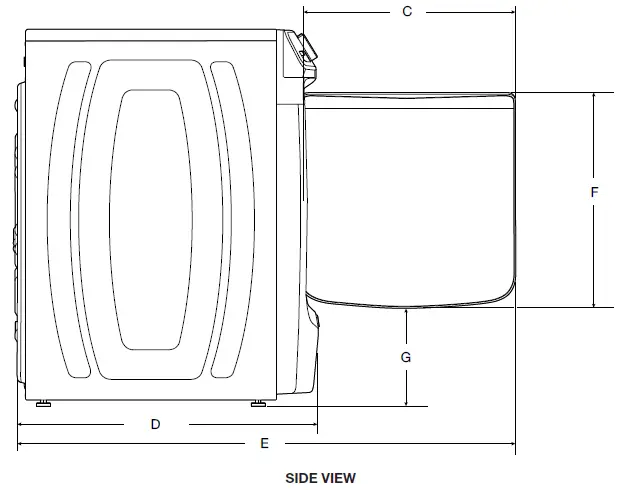

MAYTAG® FRONT LOAD WASHER WITH EXTRA POWER AND 12 HOUR FRESH SPIN™ OPTION – 4.5 cu ft PRODUCT DIMENSIONS
| MHW5630HC MHW5630HW | 4.5 cu ft DOE (US)/5.2 cu ft IEC (CAN) | |||
| Unit of Measurement | in (minimum) | mm (minimum) | in (maximum) | mm (maximum) |
| Door Width (C) | 221∕4 | 565 | – | – |
| Product Depth (D) | 315∕16 | 795 | – | – |
| Product Depth with Door Open (E) | 515∕16 | 1303 | – | – |
| Door Height (F) | 221∕8 | 562 | – | – |
| Height to Bottom of Door (G) | 10 | 254 | – | – |
IMPORTANT: Dimensional specifications are provided for planning purposes only.

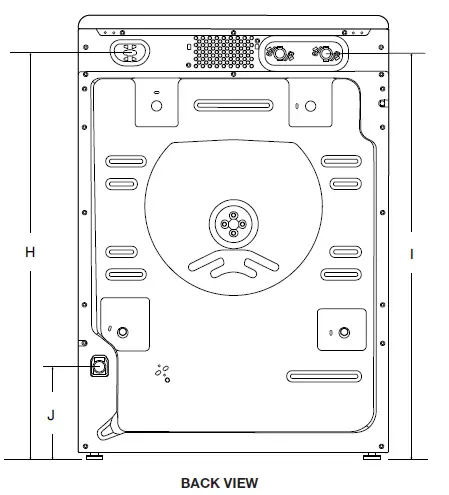

MAYTAG® FRONT LOAD WASHER WITH EXTRA POWER AND 12 HOUR FRESH SPIN™ OPTION – 4.5 cu ft PRODUCT DIMENSIONS
| MHW5630HC MHW5630HW | 4.5 cu ft DOE (US)/5.2 cu ft IEC (CAN) | |||
| Unit of Measurement | in (minimum) | mm (minimum) | in (maximum) | mm (maximum) |
| Position of Power Cord (H) | 355∕16 | 897 | – | – |
| Power Cord Length | 72 | 1830 | – | – |
| Position of Water Inlet Valves (I) | 355∕16 | 897 | – | – |
| Position of Drain Hose (J) | 8 | 205 | – | – |
| Drain Hose Length | 52 | 1321 | – | – |
| Diameter of Drain Hose | 1 | 26 | – | – |
IMPORTANT: Dimensional specifications are provided for planning purposes only.
MAYTAG® FRONT LOAD WASHER WITH EXTRA POWER AND 12 HOUR FRESH SPIN™ OPTION – 4.5 cu ft
All Dimensions show recommended spacing allowed, except for closet door ventilation openings which are minimum required.
This washer has been tested for installation with spacing of 0″ (0 mm) clearance on the sides. Consider allowing more space for ease of installation and servicing, and spacing for companion appliances and clearances for walls, doors, and floor moldings. Add spacing of 1″ (25 mm) on all sides of washer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required.
*For additional details (or information) specific to your model, refer to your Quick Start Guide.

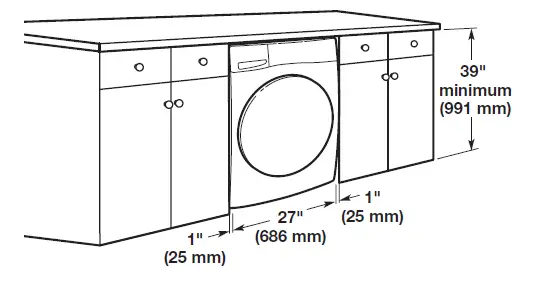

CUSTOM UNDER COUNTER INSTALLATION

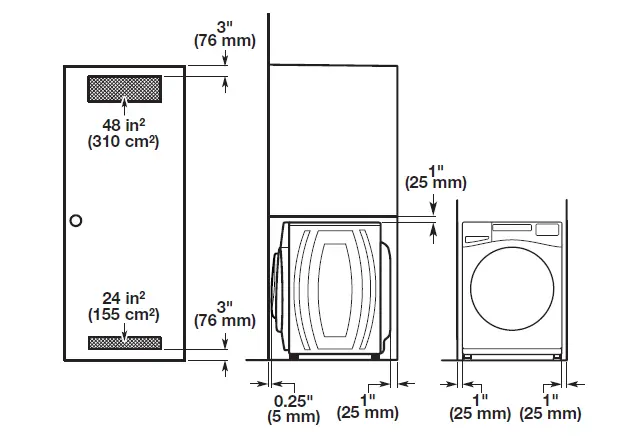

RECESSED AREA OR CLOSET INSTALLATION
NOTE: All 27″ wide washers should have 19″ clearance, while all 29″ wide washers should have 22″ clearance.
