OUTDOOR WOOD
QUADRO I 1050
Inbuilt installations

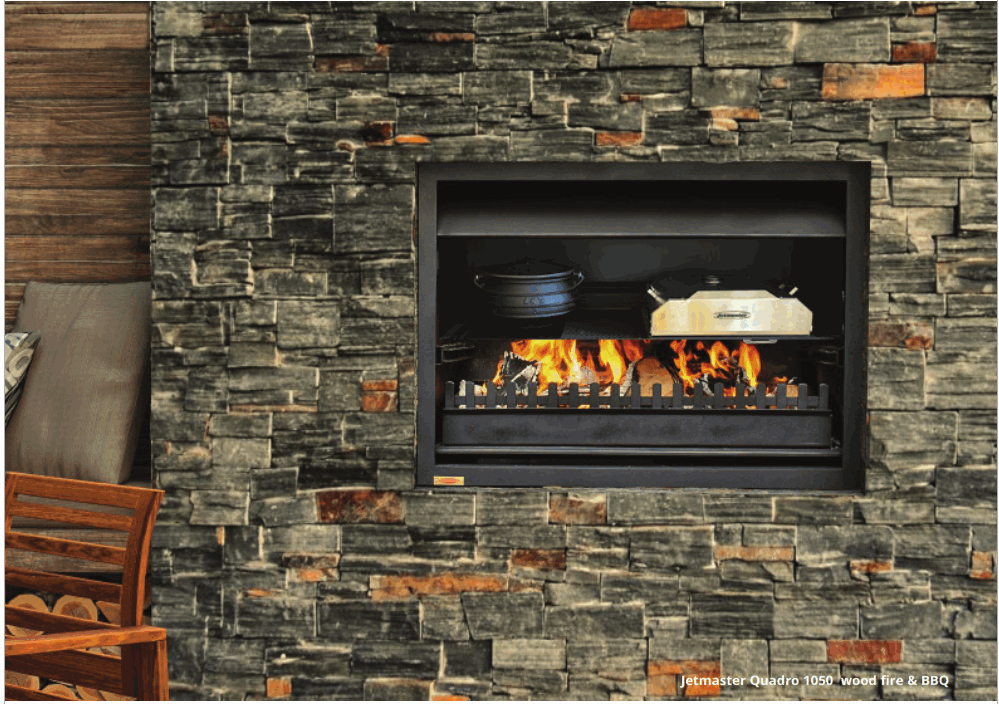

Quadro 1050 Multi-Tasker Outdoor Wood Fires
4-in-1 Wood-fired, BBQ grilling and heating.
There is nothing quite like the enchanting ambience of an open wood fire. World-renowned Jetmaster fireplaces are built to provide striking centrepieces with class-leading performance and visual appeal.
The Jetmaster Quadro 1050 adds a whole lot more to your outdoor fire experience, providing wood-fired BBQ grilling and cooking fuctionality as well as a removable pizza oven. For the astute BBQ chef this versatile outdoor fireplace really is the master in its class.
Key Features
 | Versatile 4-in-1 cooking & heating |
| Removable BBQ grill, pizza oven & pot |
| High heat output |
| Minimal ash & cleaning |
| Stainless weather shield |
The Fireplace Ltd reserves the right to change all content contained herein and is subject to change without notice.
Product Specifications
(All dimensions in millimetres)

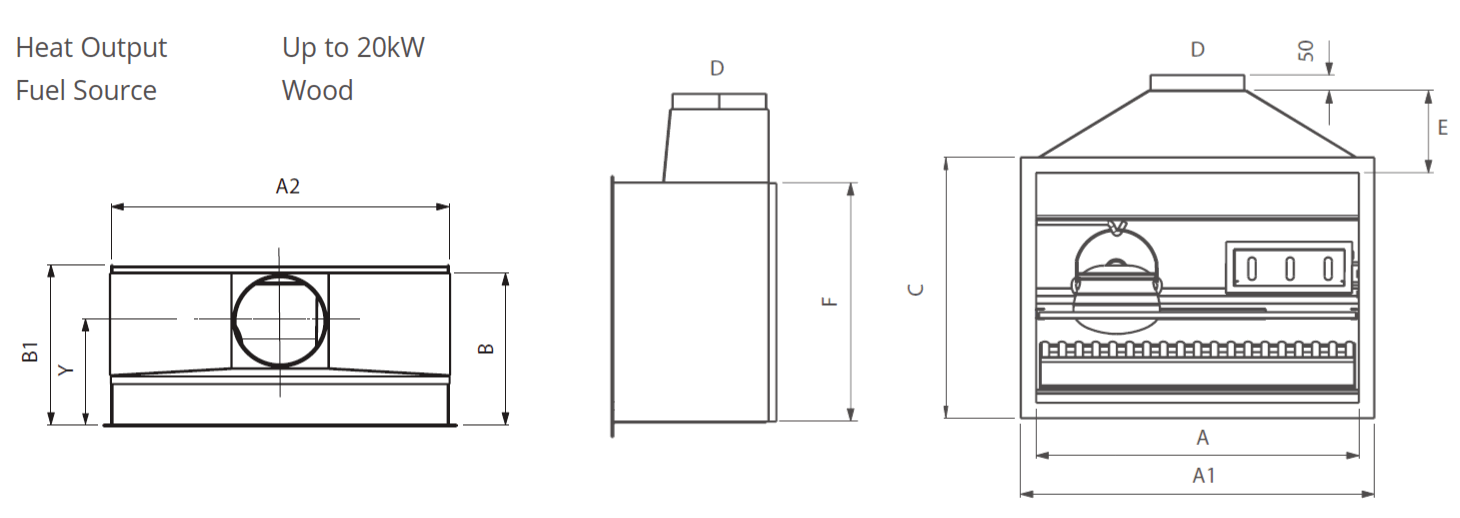

Product Dimensions
| MODEL | A | A1 | A2 | B | B1 | C | D | E | F | Y |
| Quadro 1050 | 1050 | 1150 | 1100 | 502 | 530 | 850 | 300/400 | 240 | 800 | 350 |
Installation Information
IMPORTANT: PLEASE REFER TO COMPREHENSIVE INSTALLATION INSTRUCTIONS PRIOR TO CONSTRUCTION AND INSTALLATION DOWNLOAD FROM: www.thefireplace.co.nz

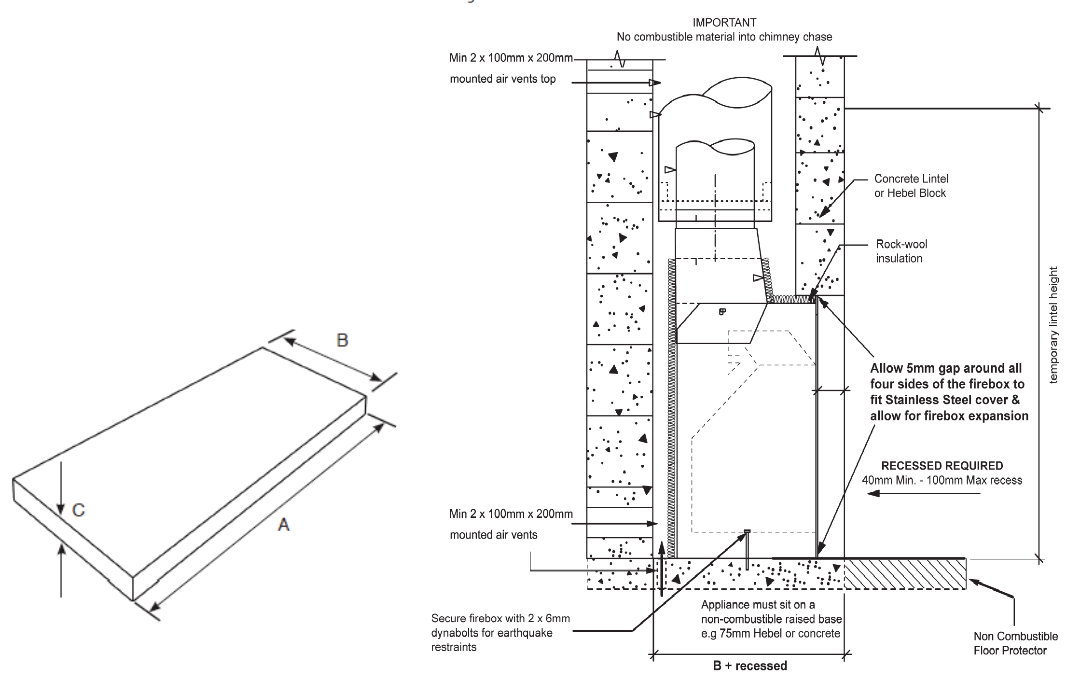

Cavity Dimensions (refer to full instructions for timber cavity dimensions)
| Cavity Width | B + Recess | Temporary Lintel | |
| Cavity (mm) Minimums | 1400 | 760 + Recess | 1400 |
Floor Protector Dimensions
| Floor Protector | A | B | C |
| Appliance Raised 500mm | 1400 | 800 | 75 |
| Floor Level | 1400 | 1000 | 75 |
Options & Accessories
