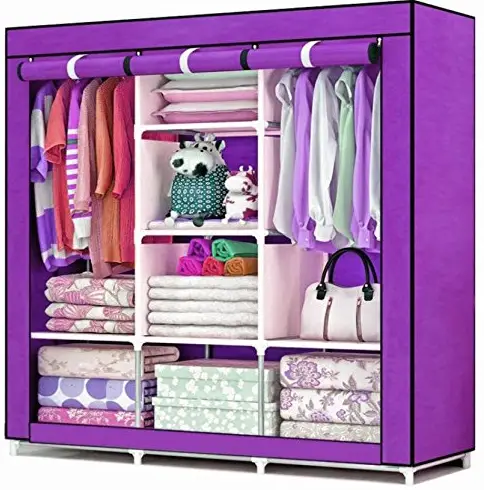

HCX STORAGE 88130 Storage Wardrobe Folding Cloth

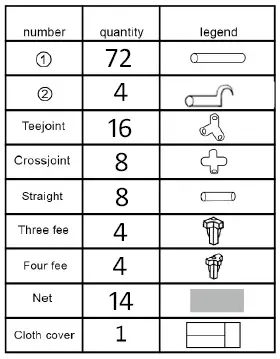

PARTS INCLUDED
Scan QR Code For Installation Vide
Video Link:– https://youtu.be/cfl6AXalxQI
Scan QR Code For WhatsApp Us
Call Or WhatsApp:- 9818557343 Timing 10:00 AM to 5:00 PM
Assembly & Disassembly Instuctions

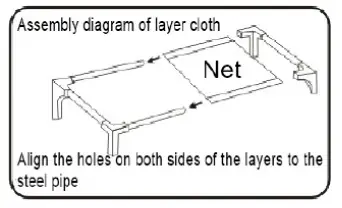

- (step 1): according to the assembly diagram 3 first net mesh cloth, respectively Into 6 root tube 1, reoccupy 4 root tube 1 and 4 t, 4 cross connect. At the bottom of the tube at the top with eight no. 1,

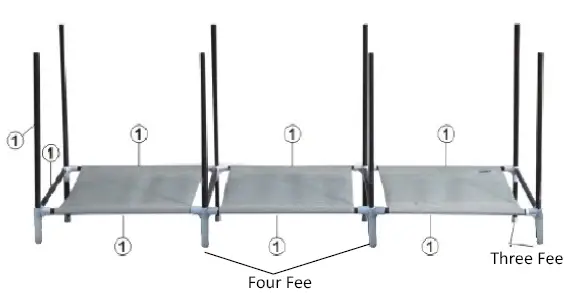

- (step 2): the bottom bracket is installed, in cloth at the bottom of the opening on the no.

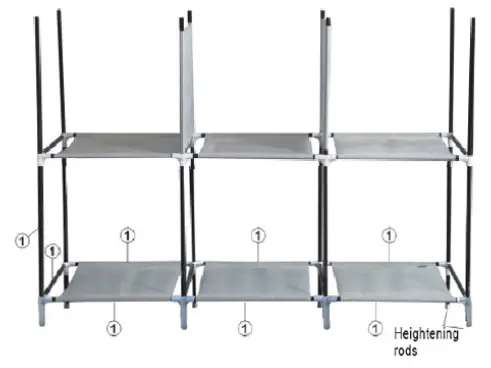

- (step 3): refer to step one assembly good net interlayer, again will be installed The mesh of interlayer load holder, And then inserted on it On 8 root tube 1, in the middle of the four 1 good tube position Two pieces of mesh (as shown in figure)

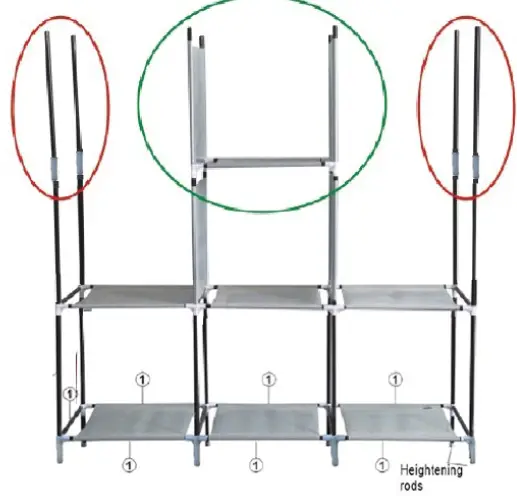

- step 4), installed after the third step, take out four straight root tube 1,4 On the left and right sides together as shown in figure (circle), however After four tee, 8 1 tube assembly in the middle interlayer small circles.
- STEP 5
- (step 6): fixed hanger after check whether installed!
