Perixx Perimice-802 Wireless Mouse User Manual

Perixx Perimice-802 Wireless Mouse User Manual

perixx logoperixx logo 2

PERIMICE-802
User Manual

perixx PERIMICE-802 Wireless Mouse

Product Installation

perixx PERIMICE-802 Wireless Mouse- InstallationBefore connecting PERIMICE-802, please check if your device supports Bluetooth. If not, please buy a Bluetooth Dongle first. Thank you!

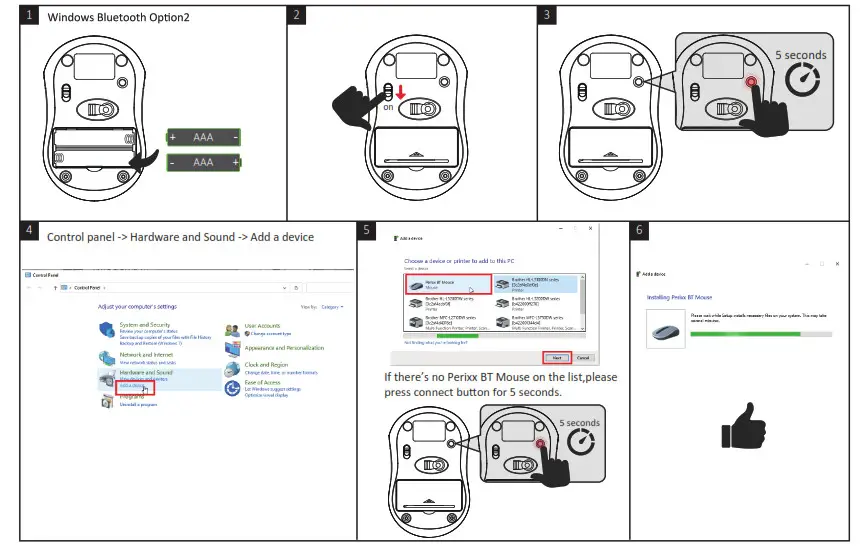

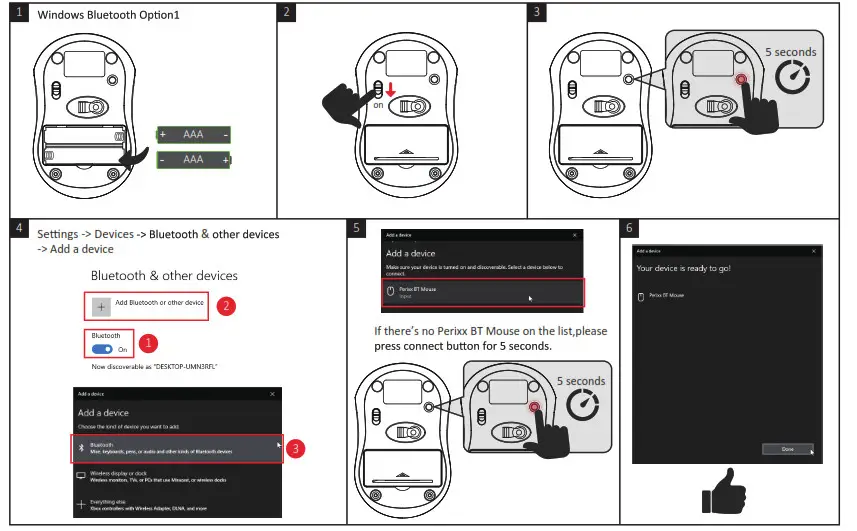

perixx PERIMICE-802 Wireless Mouse- Installation 1perixx PERIMICE-802 Wireless Mouse- Installation 2

If the Bluetooth pairing fails, please remove Perixx BT Mouse from the list of paired devices and redo it from Step-1.

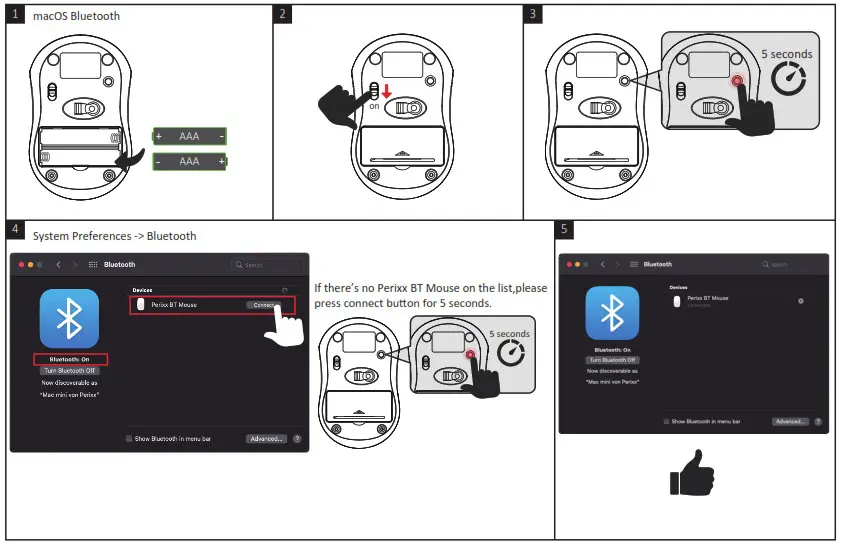

perixx PERIMICE-802 Wireless Mouse- Installation3

If the Bluetooth pairing fails, please remove Perixx BT Mouse from the list of paired devices and redo it from Step-1.

FCC Warning
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
NOTE 1:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
NOTE 2:
Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Caution

  • The manufacturer and re-resellers are not responsible for any technical malfunctions, damage, or personal injury incurred by:
    ► Any attempt to dismantle, change or modify the product in any manner
    ► Malfunction or damage is due to misuse or improper alteration or repair.
  • Malfunction or damage caused by external influence such as falling
    ► Malfunction or damage is caused by fire, salt, gas, earthquake, lightning, wind, water, or other natural calamities, or abnormal voltage.
  • Malfunction or damage is caused by other devices connected to the products.
  • Malfunction or damage is caused by high temperature, humid, greasy, dusty, and hazardous environment.
  • You are cautioned that changes or modifications not expressly approved by Perixx Computer GmbH could void your authority to operate the equipment
  • All brand names, trademarks, and logos are the properties of their respective owners. Please Note: Long-term repetitive use of any keyboard and mouse could cause injury to the user. Perixx recommends users avoid excessive use of this or any keyboard and mouse.

Important Safety Instructions

  • Avoid Dropping.
  • Do not disassemble.
  • This product is suitable for moderate climates only.
  • The maximum ambient temperature during use of this product must not exceed 40 degree
  • Open flame sources, such as candles, must not be placed on this product.
  • Only use a dry cloth or brush to clean this product.

Perixx offers a one-year limited warranty with an optional one-year extension.

Specification

InterfaceBT 3.0

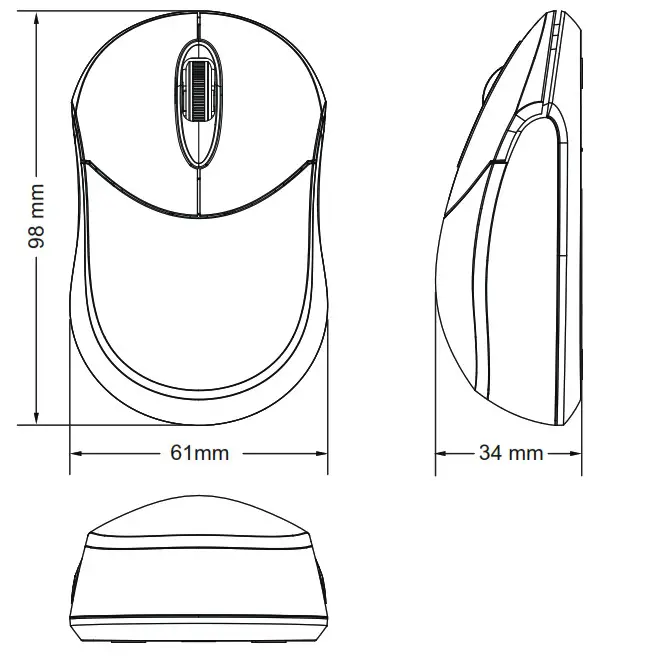

Size98*61*34mm
Weight54g
Input Current3V / 15mA
MaterialABS
Operating System RequirementsWin 7 / above
Nuber of Buttons3
DPI1200 DPI
Acceleration10G
Tracking Speed30IPS
Report Rate90Hz
Durability3 million keypresses

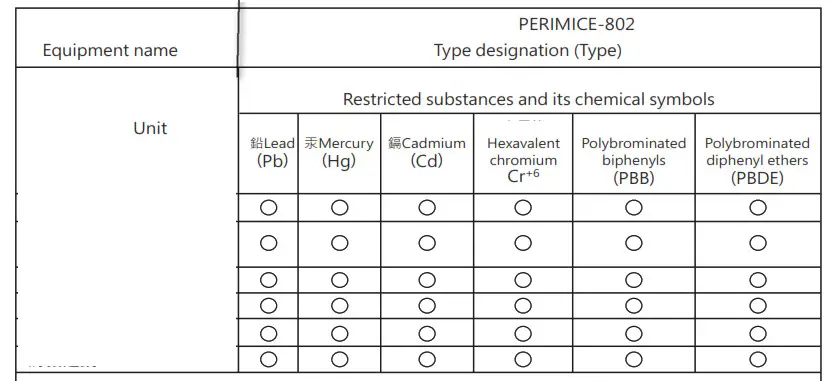

perixx PERIMICE-802 Wireless Mouse- Table

Note 1: “Exceeding 0.1 wt %” and “exceeding 0.01 wt %” indicate that the percentage content of the restricted substance exceeds the reference percentage value of the present condition.
Note 2:“○” indicates that the percentage content of the restricted substance does not exceed the percentage of the reference
Note 3: The “-” indicates that the restricted substance corresponds to the exemption

Rohs Symbol

Documents / Resouces

Download manual
Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.
